In the library JCmpVisuBasic the following output objects are available for the floating points type REAL and LREAL:
OutputRealValue: output of the real value.
OutputLRealValue: output of the long real value.

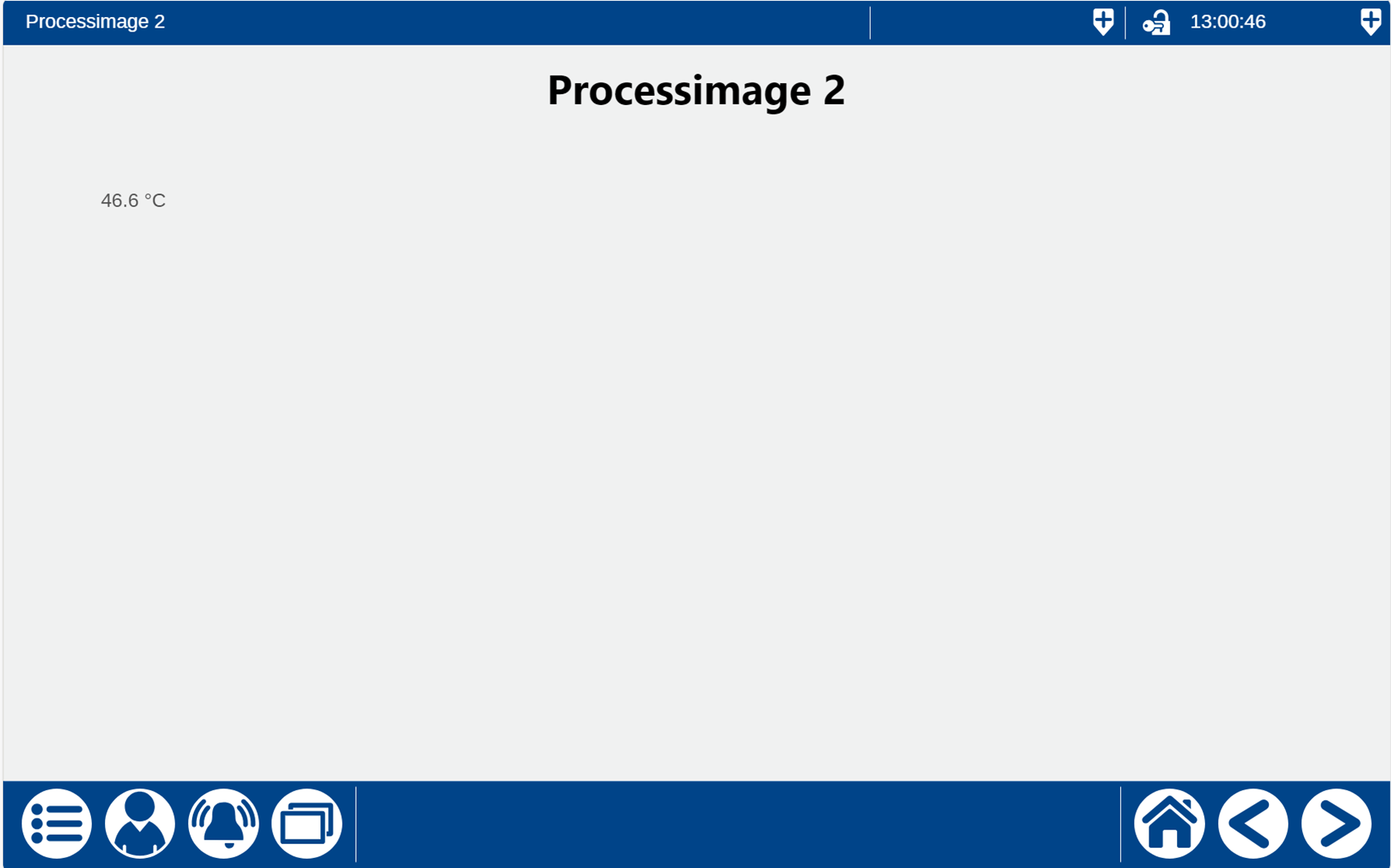

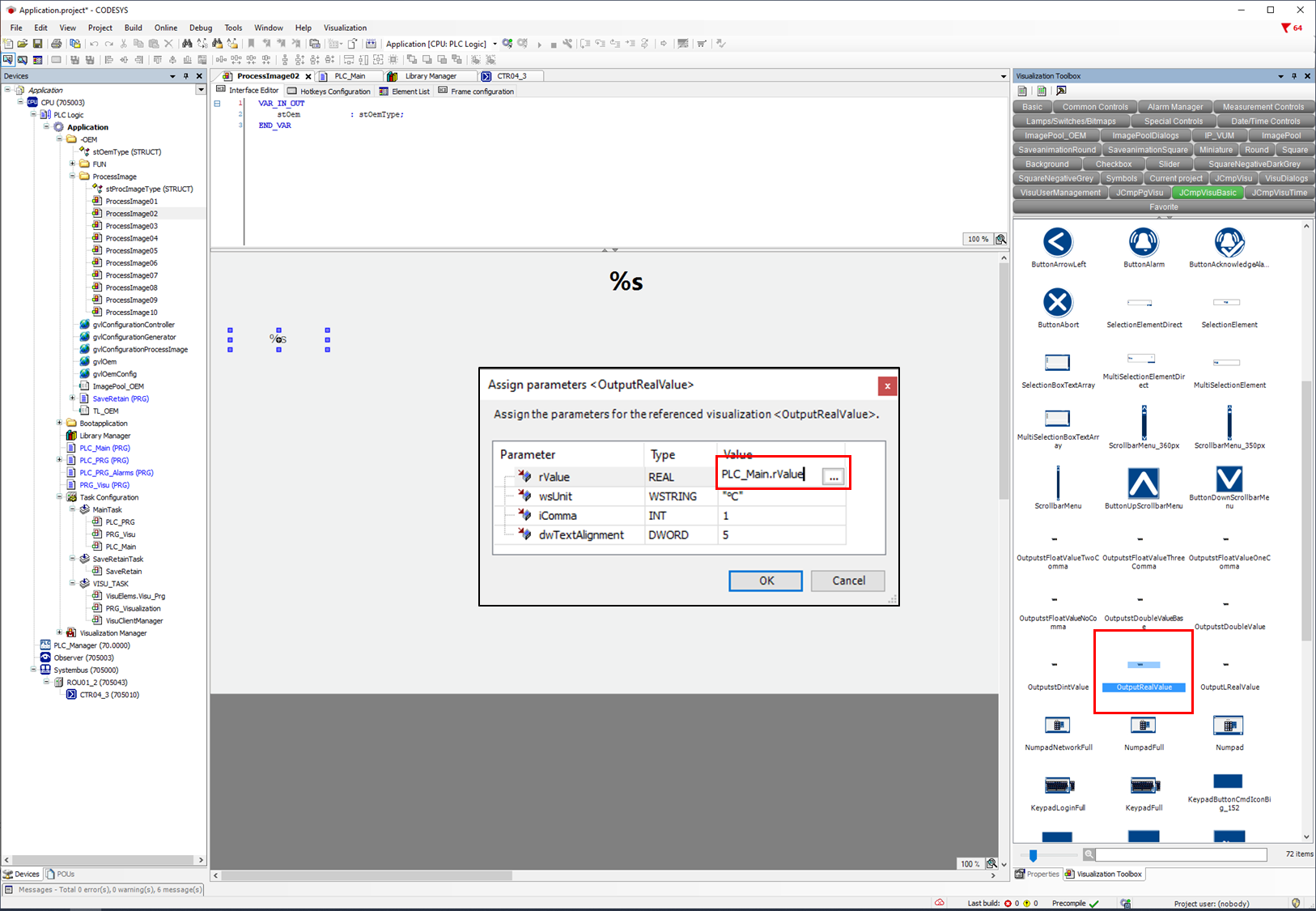

If you now drag the desired object from the Visualization Toolbox into the process screen, a parameter window opens. Here you can either specify fixed values as parameters for the output object or assign variables.

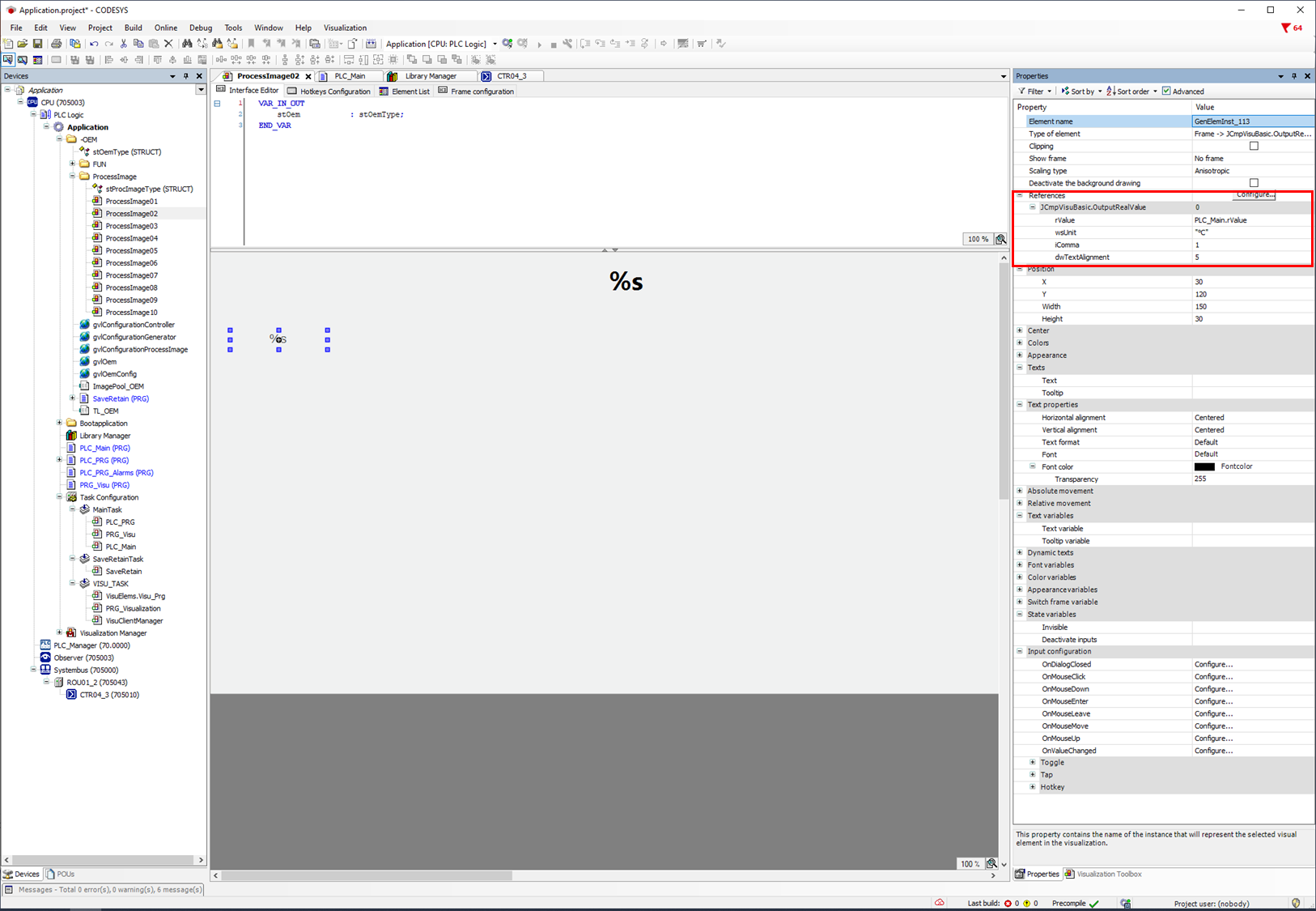

It is also possible to enter or change the parameters afterwards via the object property.
The following variables are used for all real value outputs.
rValue/lrValue: Output of real value.
wsUnit:Unit as wString or wStringvariable is shown behind the title.
Comma:Number of decimal places
0 no decimal place
1 one decimal place
2 one decimal place
3 one decimal place
dwTextAlignment:The following values determine the position of the value in the output
0 Top left
1 Top center
2 Top right
4 Center left
5 Center Center
6 Center right
8 Bottom left
9 Bottom center
10 Bottom right
