Output options for numeric values can be found in the library JCmpVisuBasic.
The following output objects exist for integer values:
OutputstDintValue: Output of integer value (-2147483648 to 2147483647).
For the integer value output, the variable type stDintValueType is used.
VAR
// Example for Output Dint Object
stDintValue : JCmpVisuBasic.JCmpUtilItf.stDintValueType;
END_VAR

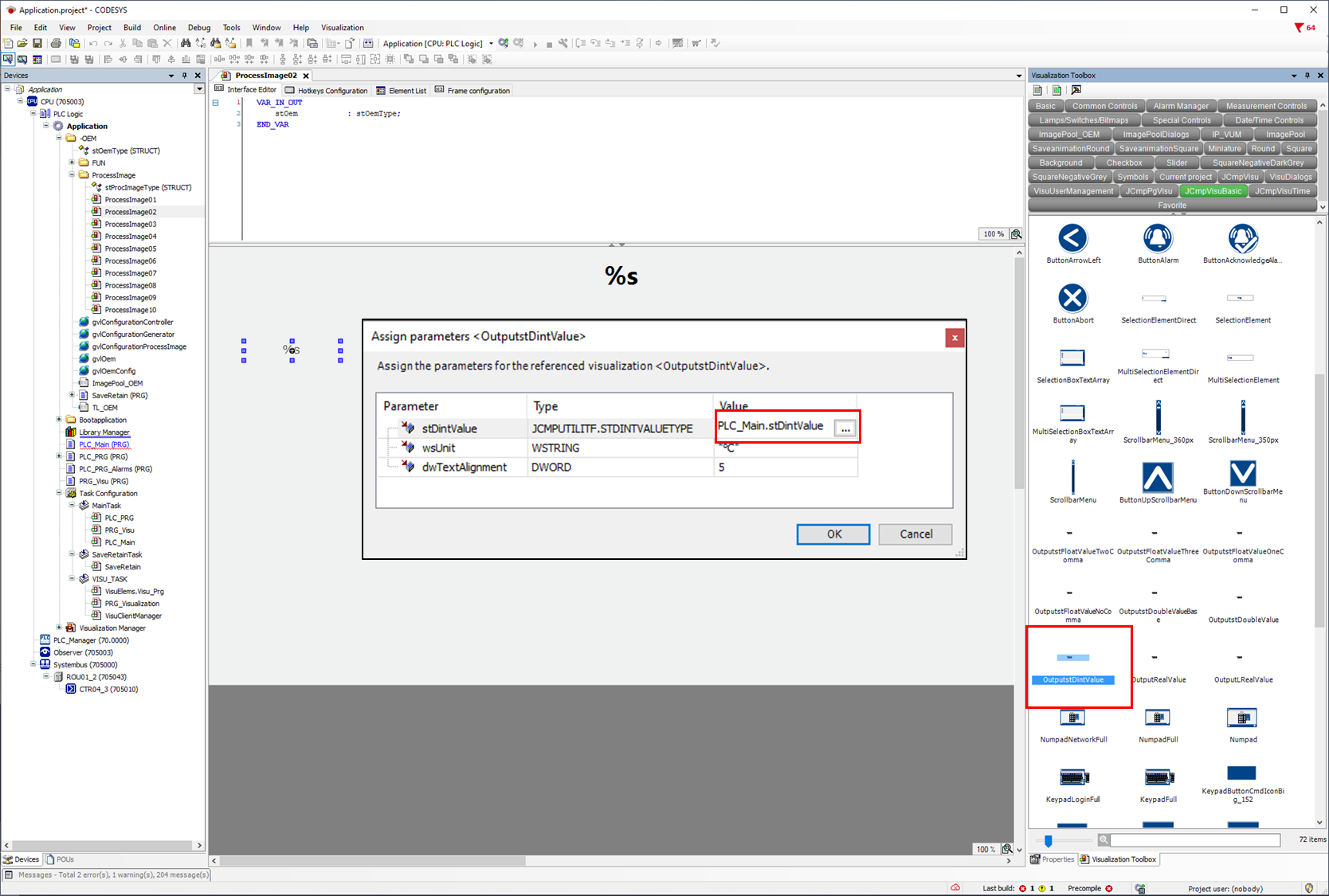

If you now drag the desired object from the Visualization Toolbox into the process screen, a parameter window opens. Here you can either specify fixed values as parameters for the output object or assign variables.

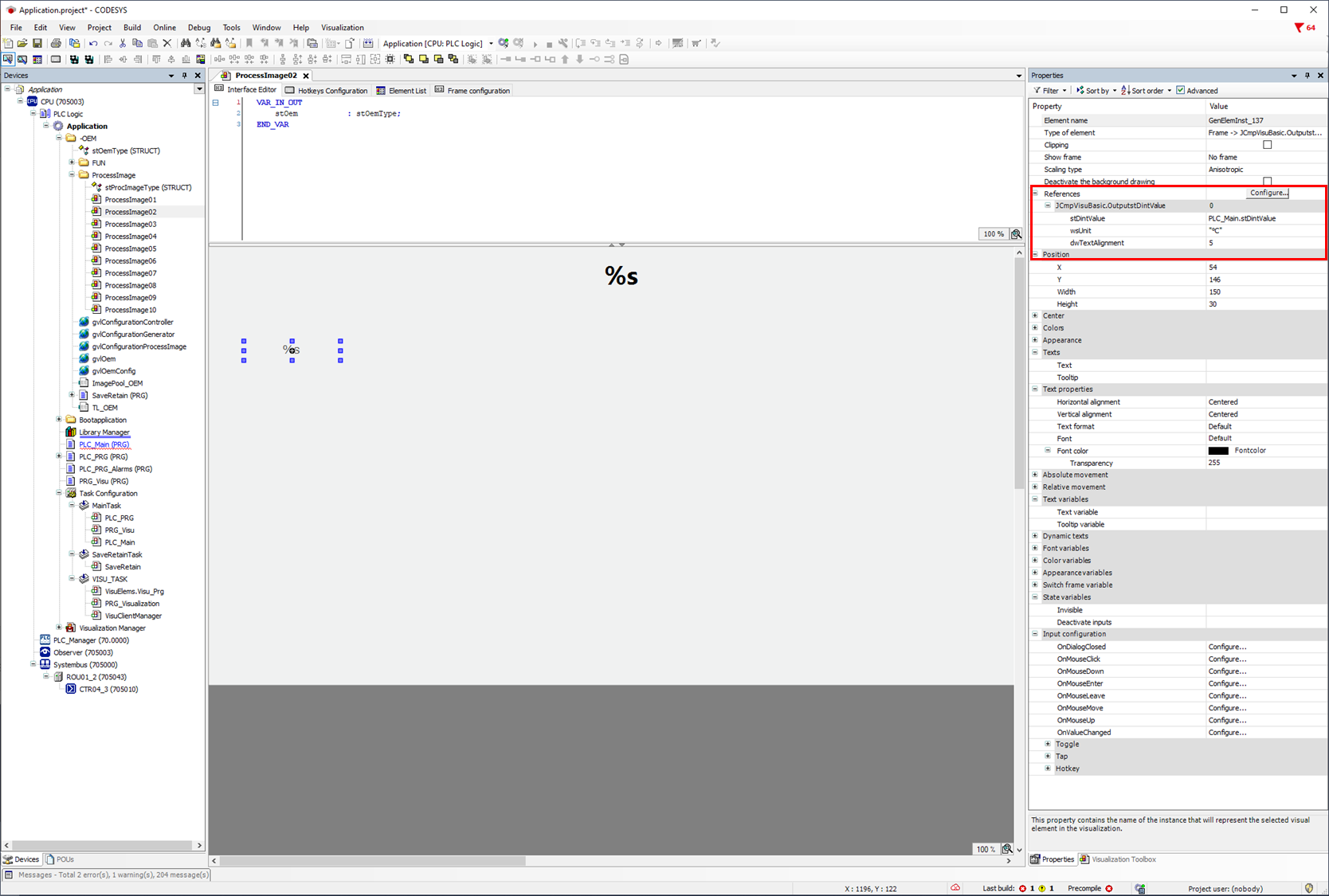

It is also possible to enter or change the parameters afterwards via the object property.
The structure variable JCmpVisuBasic.JCmpUtilItf.stDintValueType contains the following variables:
diValue: DINT value
eValueError: enum for error.
eValueStateNamur: enum for the name status.
udiUnitType: value for the unit.
In the code, the output of the long real value can be output as follows:
