Controllers – more than 10 controller modules

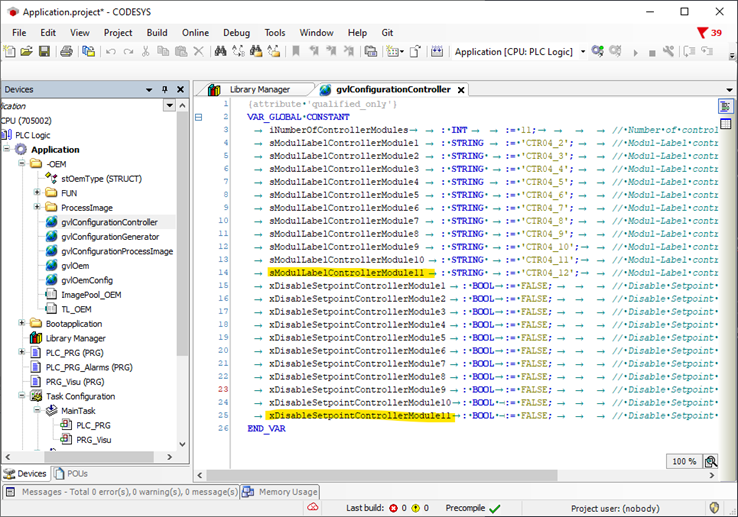

If more than ten controller modules are connected, the following changes must be made in CODESYS:

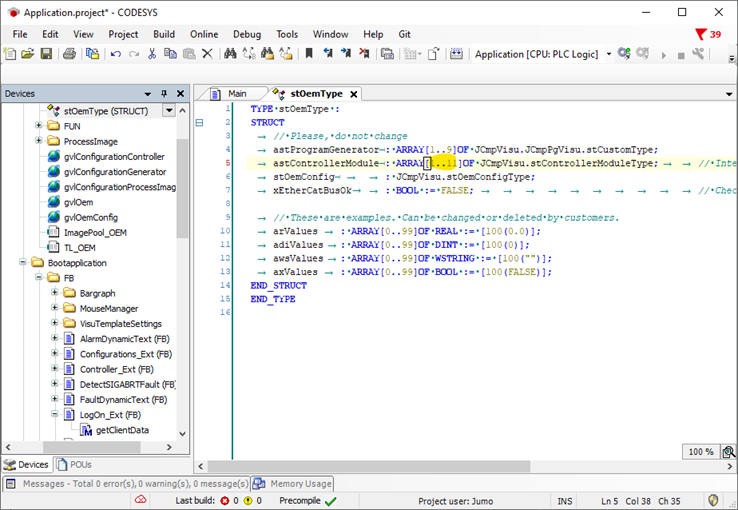

The number of fields for the controller modules must be adjusted in the structure ‘stOemType’.

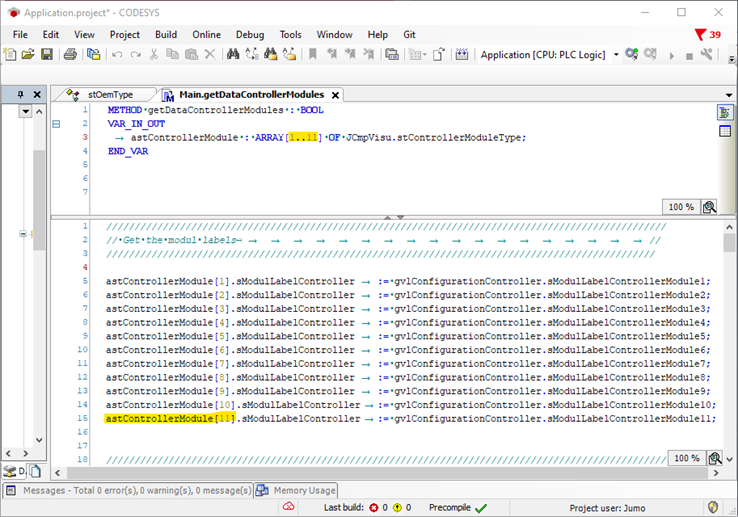

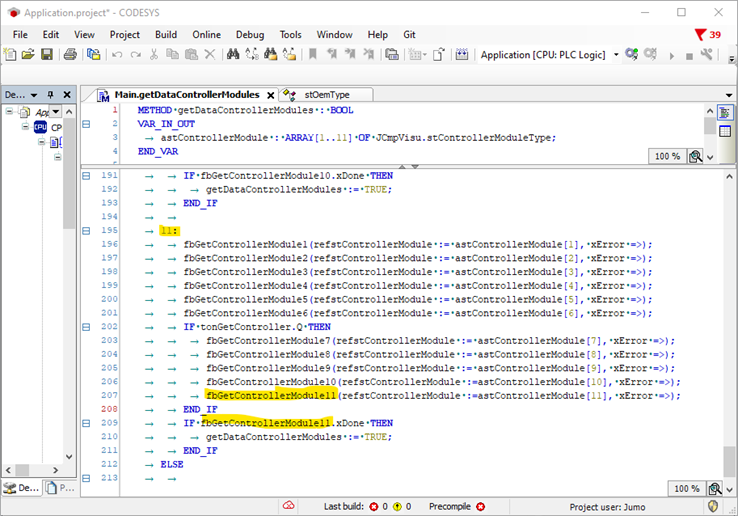

The additional function module retrievals must be added in the ‘getDataControllerModules’ method.
