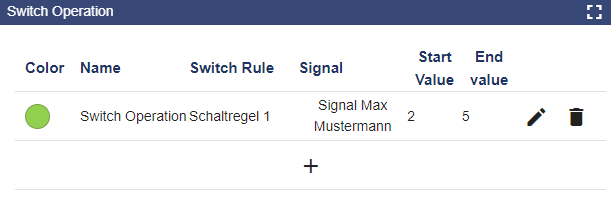

The "Switching Operations Planning" widget is used to create switching operations for an associated scheduler. This window can also be found in the configuration of the "Scheduler" widget. You can use this widget to flexibly customize the switching operations on the Dashboard. This provides the added value of not having to navigate to the "Scheduler" widget configuration for each adjustment. To create a switching operation, either an analog or a digital output signal is required.
The widget can only be used if the SCADA-Lizenz comprises the module "Scheduler".

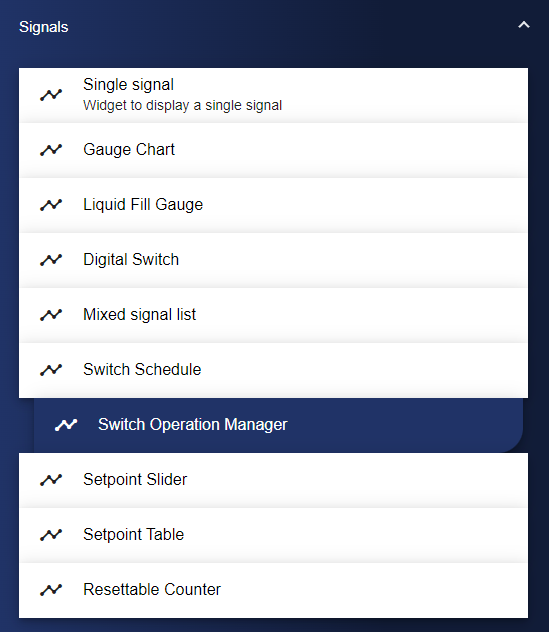

Select the Switching Operations widget from the Signals category.

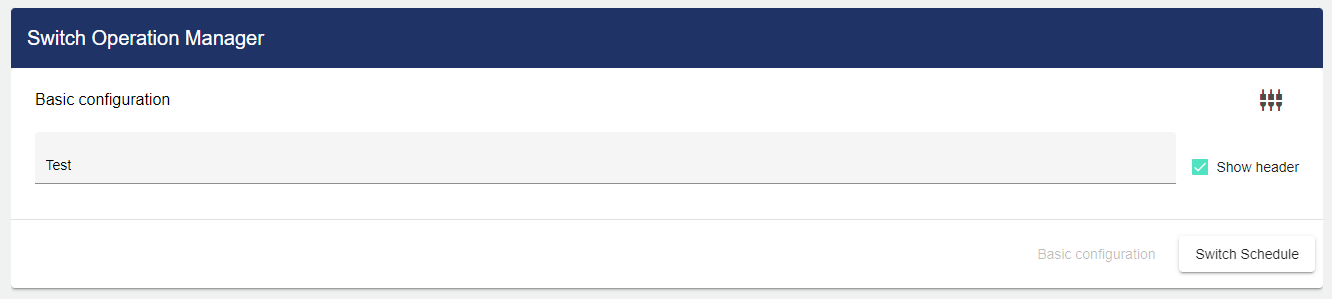

In the Basic Configuration of the Switching Operations Planning, assign a suitable label (title). The header can be displayed by selecting the check box.

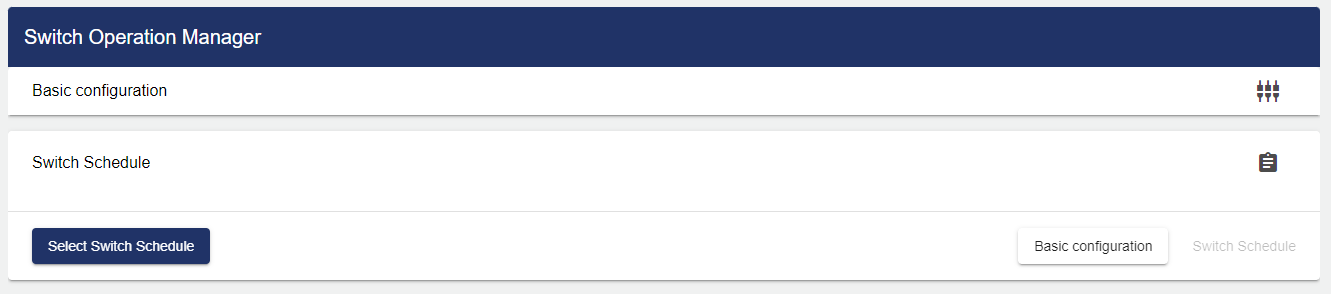

You now need to select a switching schedule. To do this, click "Select Switching Schedule". A Scheduler must have been created in the configuration beforehand.

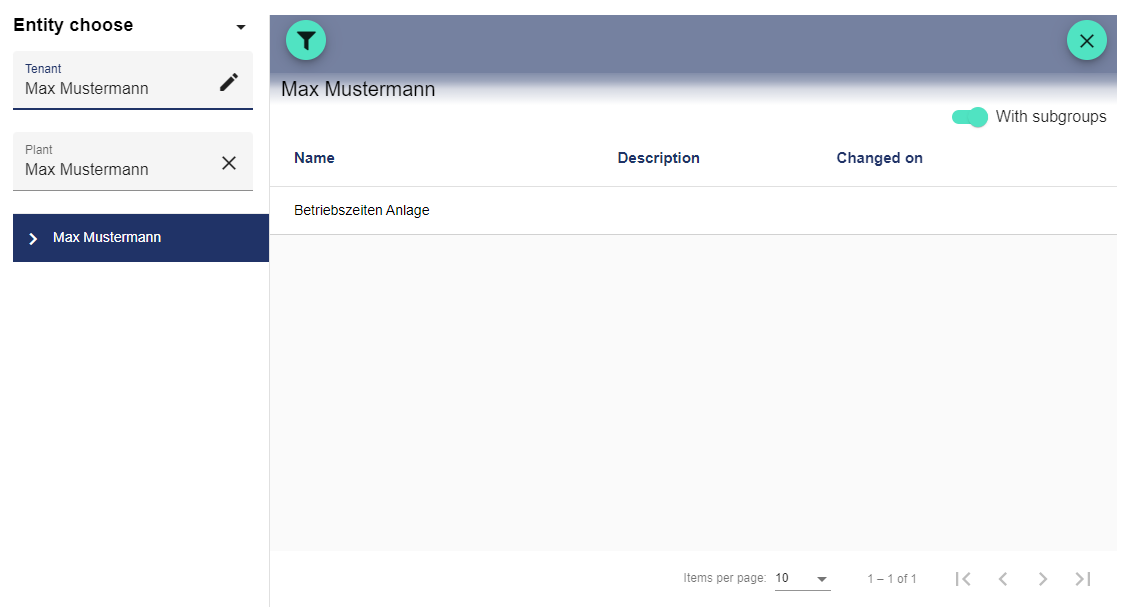

Clicking the Plus button opens the Entity-Select window. You can add a previously created switching schedule here.
Once you are satisfied with your configuration, you can save it.
