Widget: Single Signal
Use
The Single Signal displays the current value together with the last timestamp.

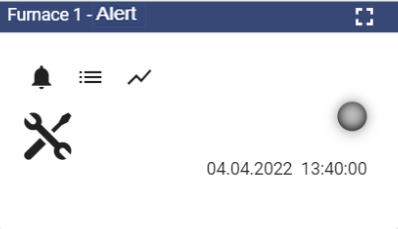

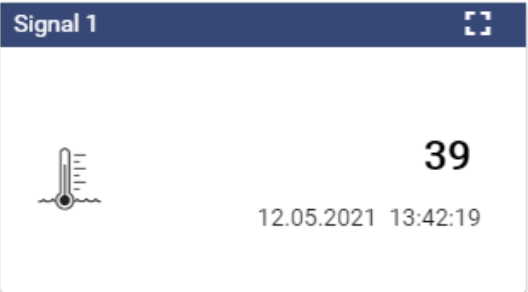

Analog Signal | Digital Signal |
![]()
| ![]() |
If a signal was defined as Output, the setpoint can be adjusted by clicking this widget on the Dashboard.
![]() | Can be set via "Manage conditions" (see below). Allows to edit the conditions set in the signal. |
---|---|
![]() | Can be set via "Use signal history" (see below). Allows to see which changes the signal has undergone. So to speak a signal related Dashboard (Configuration) . |
![]() | Can be set via "Use signal history" (see below). Allows you to view the history of the signal during the day. So to speak a signal related Widget: Live-Chart . |
Configuration

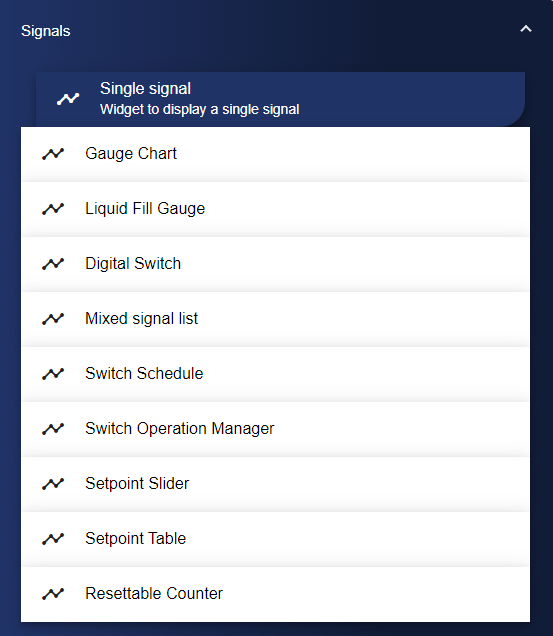

Select the Single Signal widget from the Signals category.
![](../../__attachments/1540391038/image-20220525-061330.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

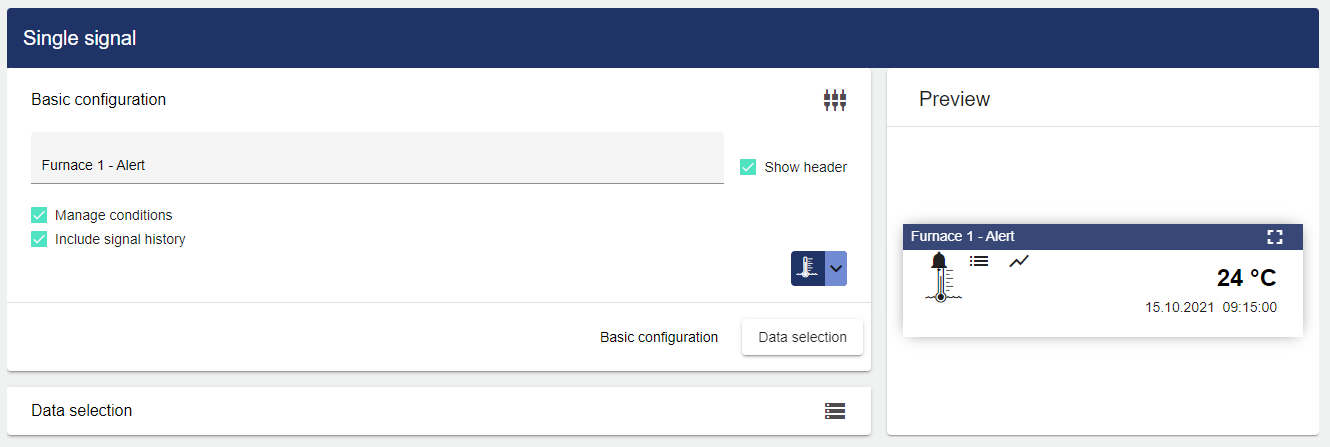

In the Basic Configuration of the Single Signal, assign a suitable label (title). The header can be displayed by selecting the check box.
As described above, you can set here whether the conditions and the signal history should appear.
![](../../__attachments/1540391038/image-20220525-062727.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

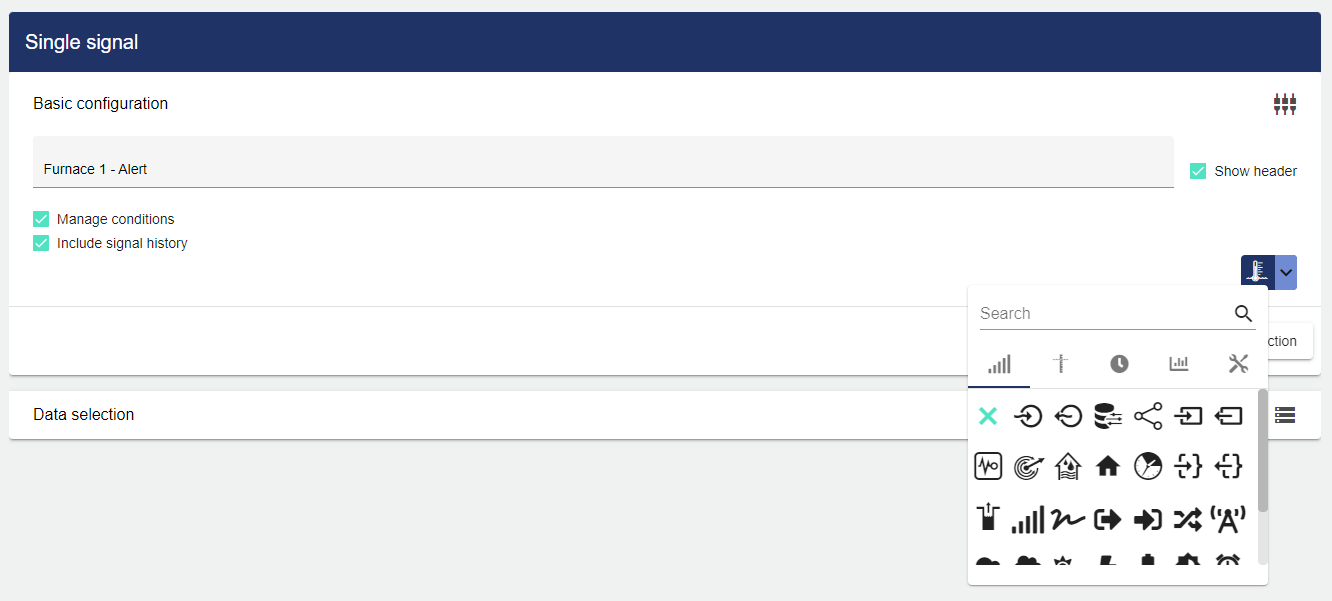

Under the drop-down menu on the right, you can select an icon of your choice for the signal.
![](../../__attachments/1540391038/image-20220525-062753.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

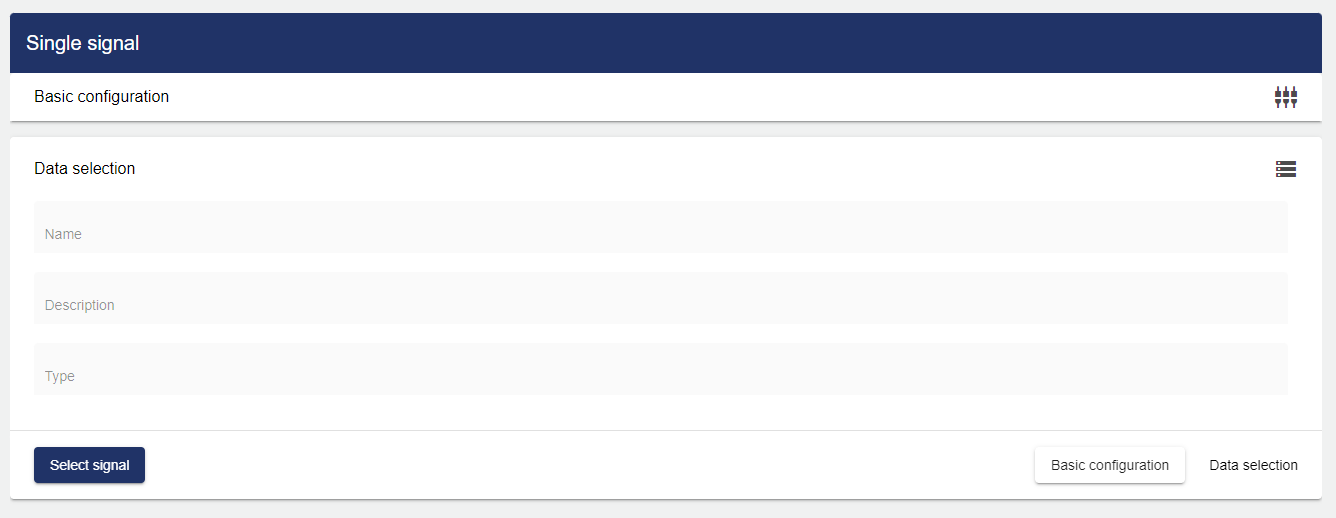

Then go to the "Data Selection" tab and click "Select Signal".
![](../../__attachments/1540391038/image-20220525-062817.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

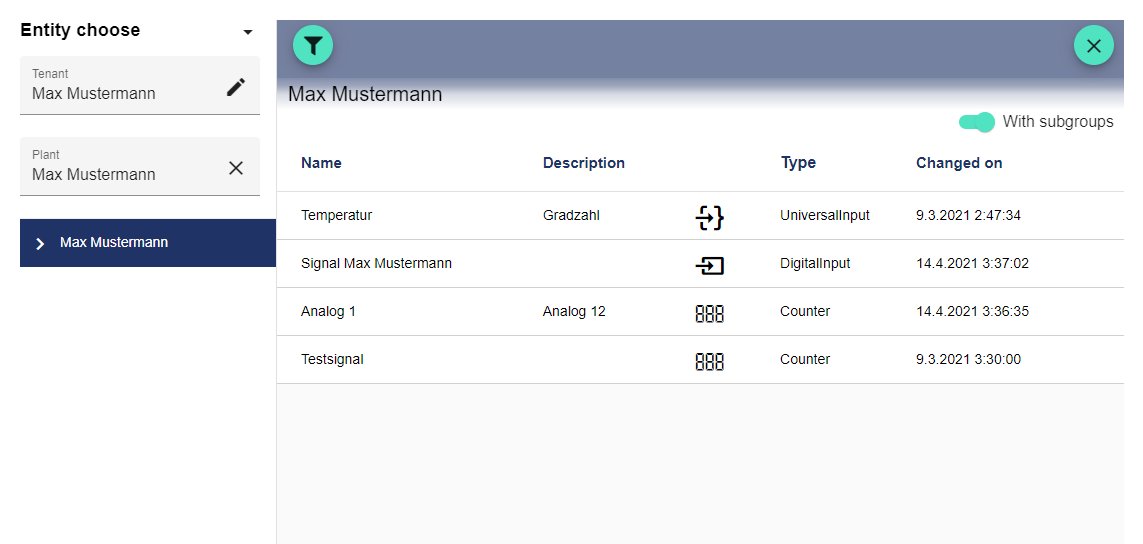

Clicking "Select Signal" opens the Select Entity window. You can add a previously created signal here.
![](../../__attachments/1540391038/image-20220525-062840.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

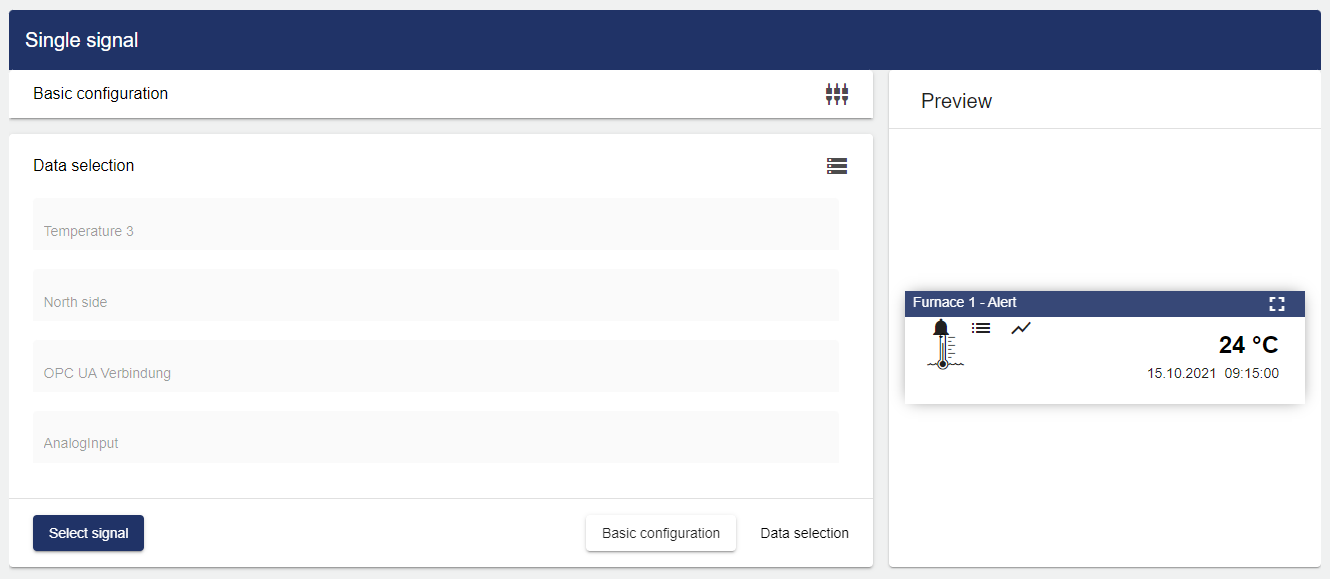

After you select a signal, a preview window opens. The finished configuration is displayed in this preview.
![](../../__attachments/1540391038/image-20220525-062913.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
