The configuration unit can only be used in its entirety if the SCADA-Lizenz comprises the "diary" module.
By selecting the "Scheduler" button, you can edit a Scheduler that was created earlier. A new Scheduler is created via the Plus button.

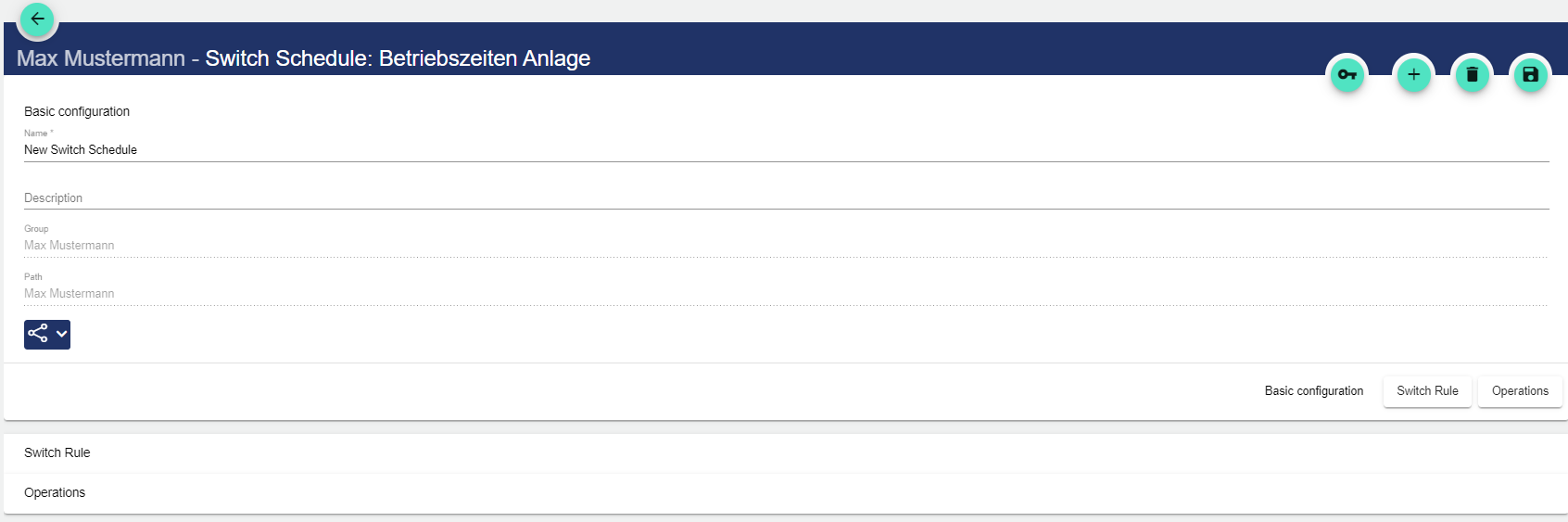

Assign the name of the Scheduler in the Basic Configuration. The Description field is optional. The "Group" field shows the Group in which this Scheduler was created. The path is generated automatically by the system.
Optionally, you can select the desired icon from the menu.

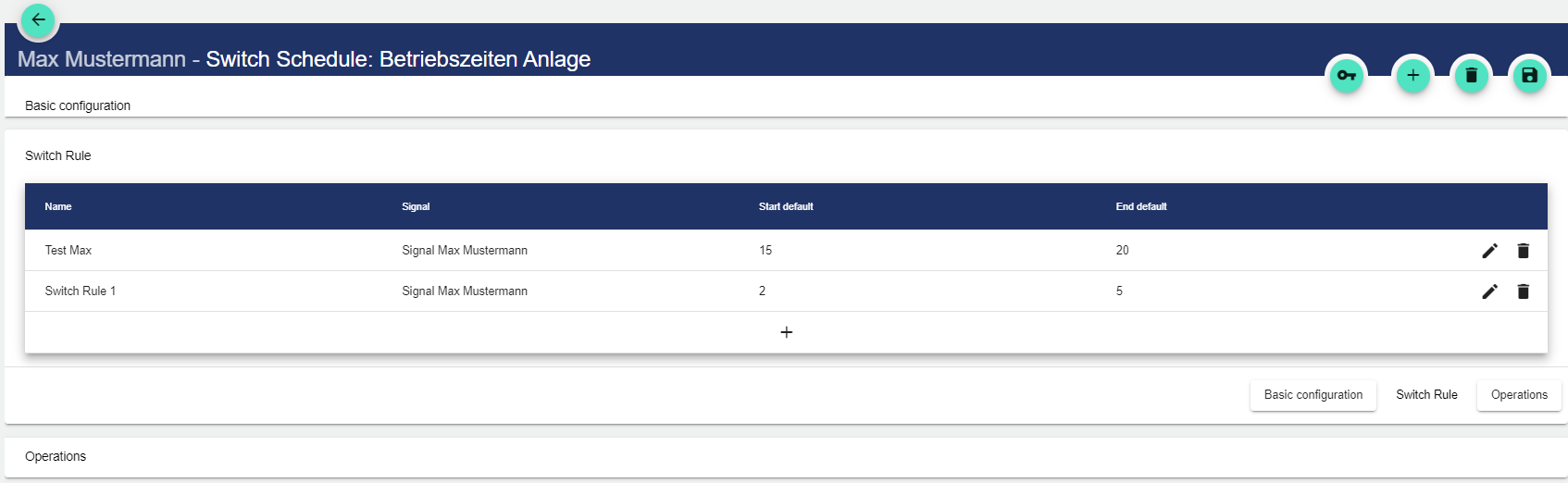

The "Switching Rules" field is used to specify ranges for default values.
A new Switching Rule is created via the Plus button.

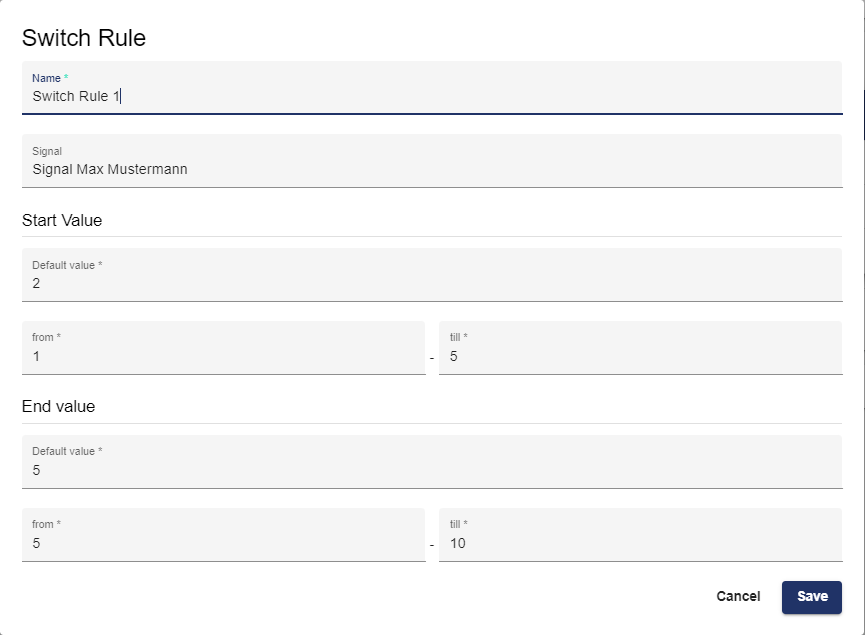

Assign a name to the rule.

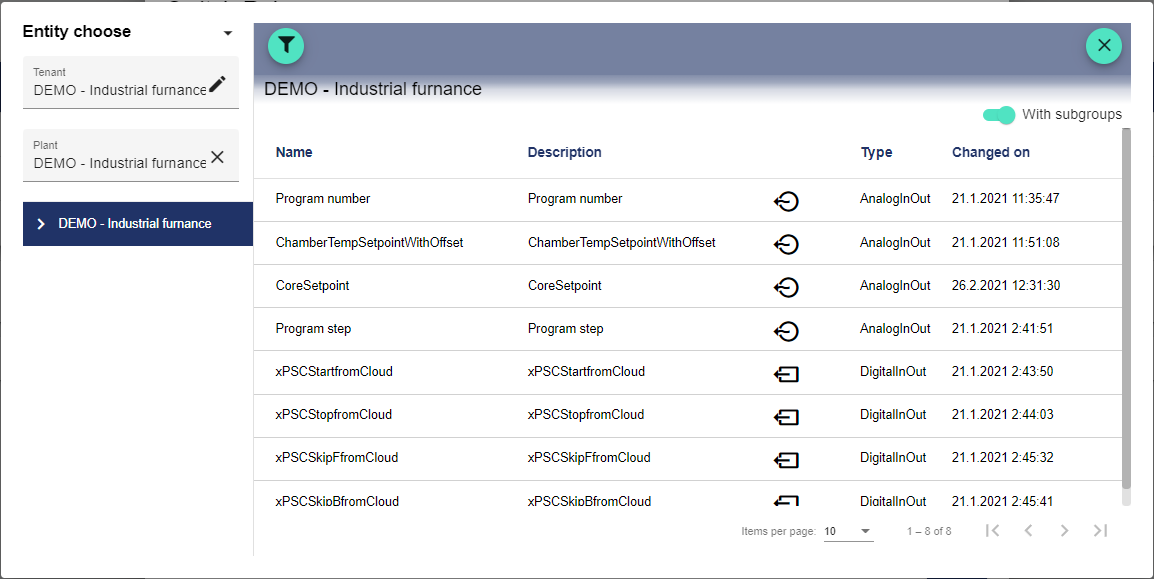

In the "Signal" field, another window opens in which a previously created signal can be selected.
Default values are entered for the start and end values. The range for the start and end values can be specified in the fields below. Based on this setting, the range in which the start and end values can be set for the switching operations is defined.

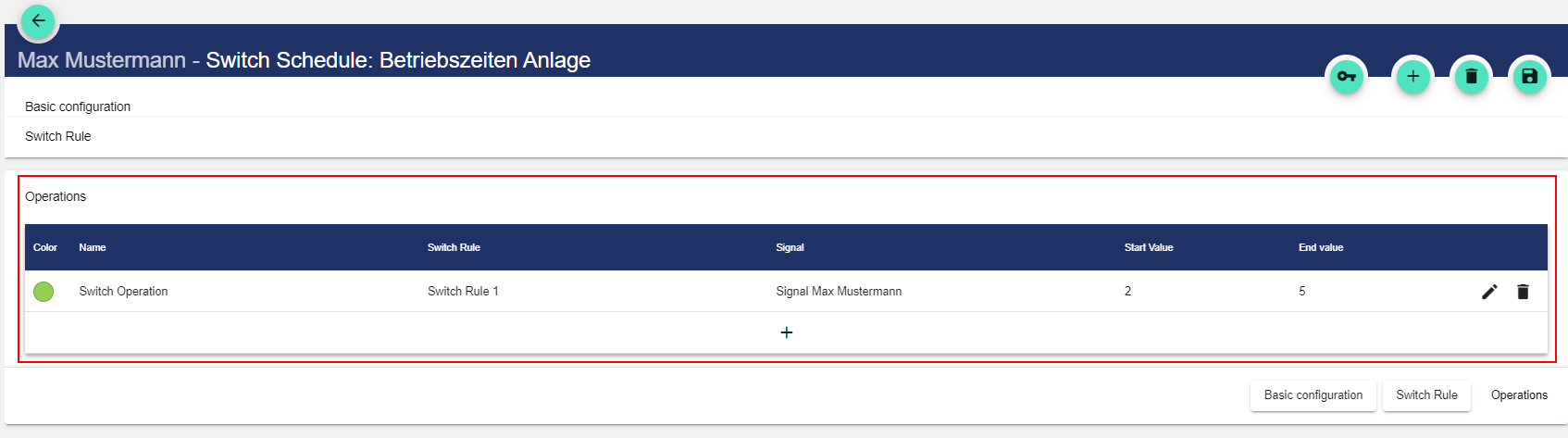

In the "Operations" field, a switching rule defines an action that occurs when the operation is activated.

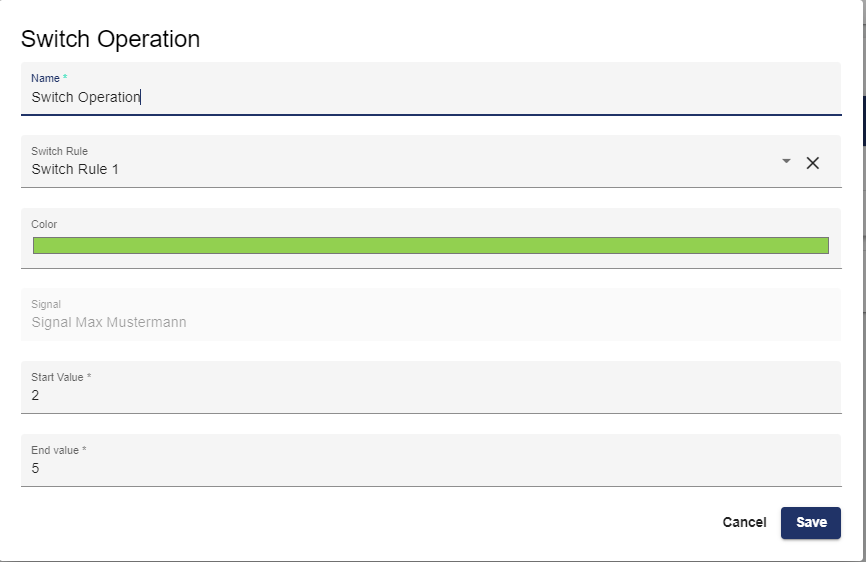

A new switching operation is created via the Plus button. Assign a name to the operation. In the "Switching Rule" field, you can select the previously created switching rule as a template.
In the "Signal" field, another window opens in which a previously created signal can be selected. This only works if switching rules have not been stored.
Enter the start and end values. These can only be set between the defined limits and are only freely selectable if no switching rule has been created.
Operations and switching rules are only available after saving the Basic Configuration.
