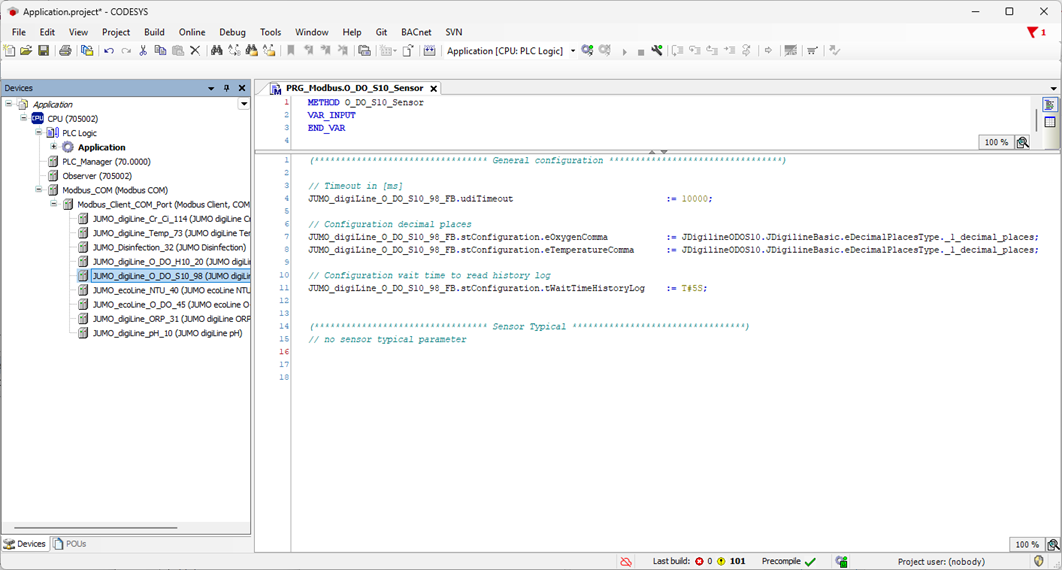

General configuration
|
Timeout |
If the default value (10000 ms) is too low or too high (depending on the number of devices at the interface), it can be modified. |
|
Decimal place |
The decimal place for the values shown in the Visu object can be changed here. |
|
WaitTimeHistoryLog |
If the default value (8 s) is too low or too high (depending on the number of devices at the interface), it can be modified. |
Device-specific configuration and parameterization
None available.
Calibration

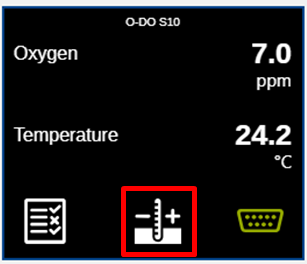

Press the button to start calibration.

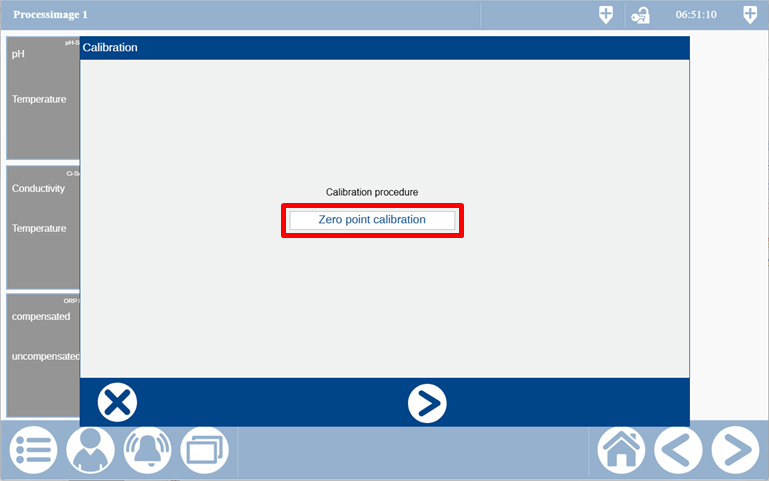

The calibration procedure must be selected first.

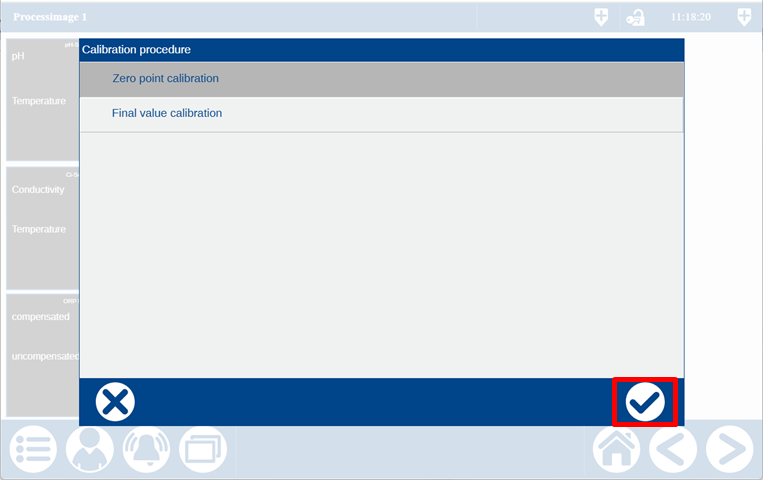

Zero point and end-point calibration can be selected here.
You are now requested to immerse the sensor in the reference solution and to confirm with the forward arrow.

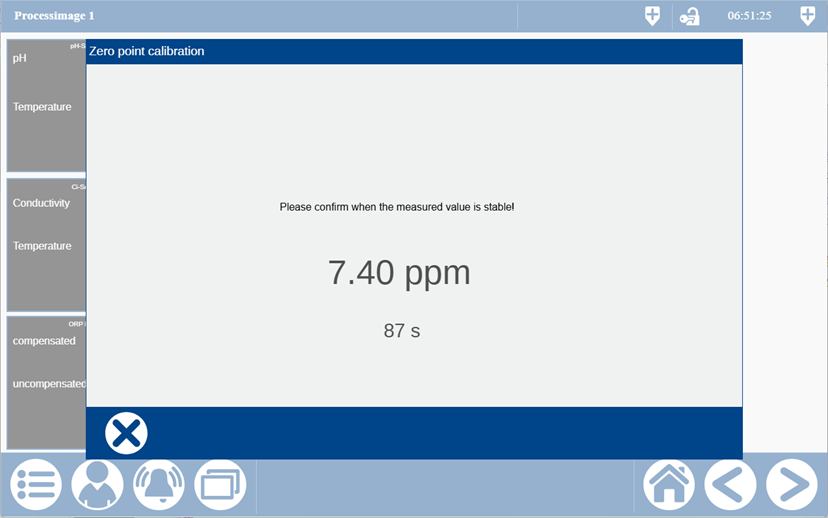

The measurement takes 90 seconds. The measured value may stabilize during this time.

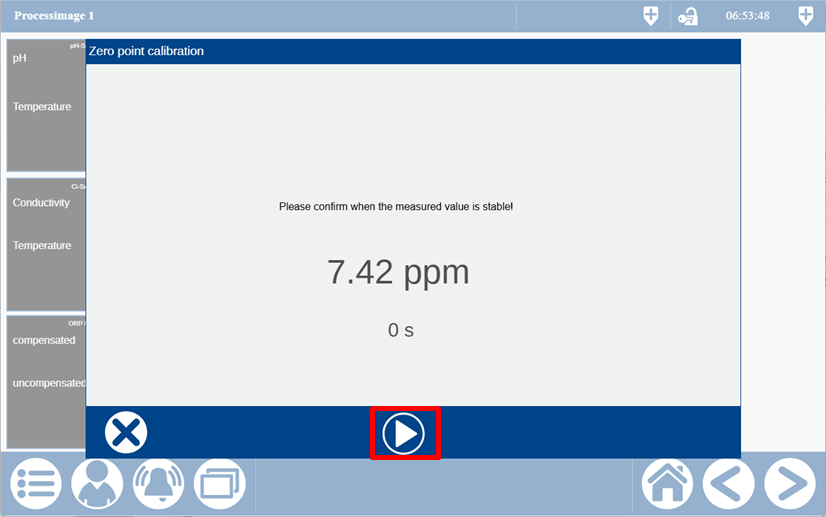

You can only skip to the next step once the time has elapsed.
The sensor needs a moment to process the calibration data internally.

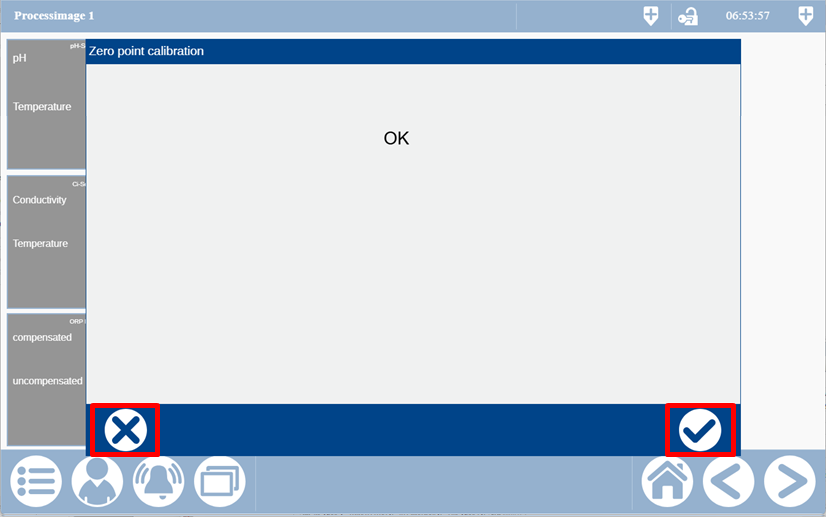

The result is displayed when processing is complete. The calibration can now be adopted or rejected via the buttons.
