Edit Dashboard

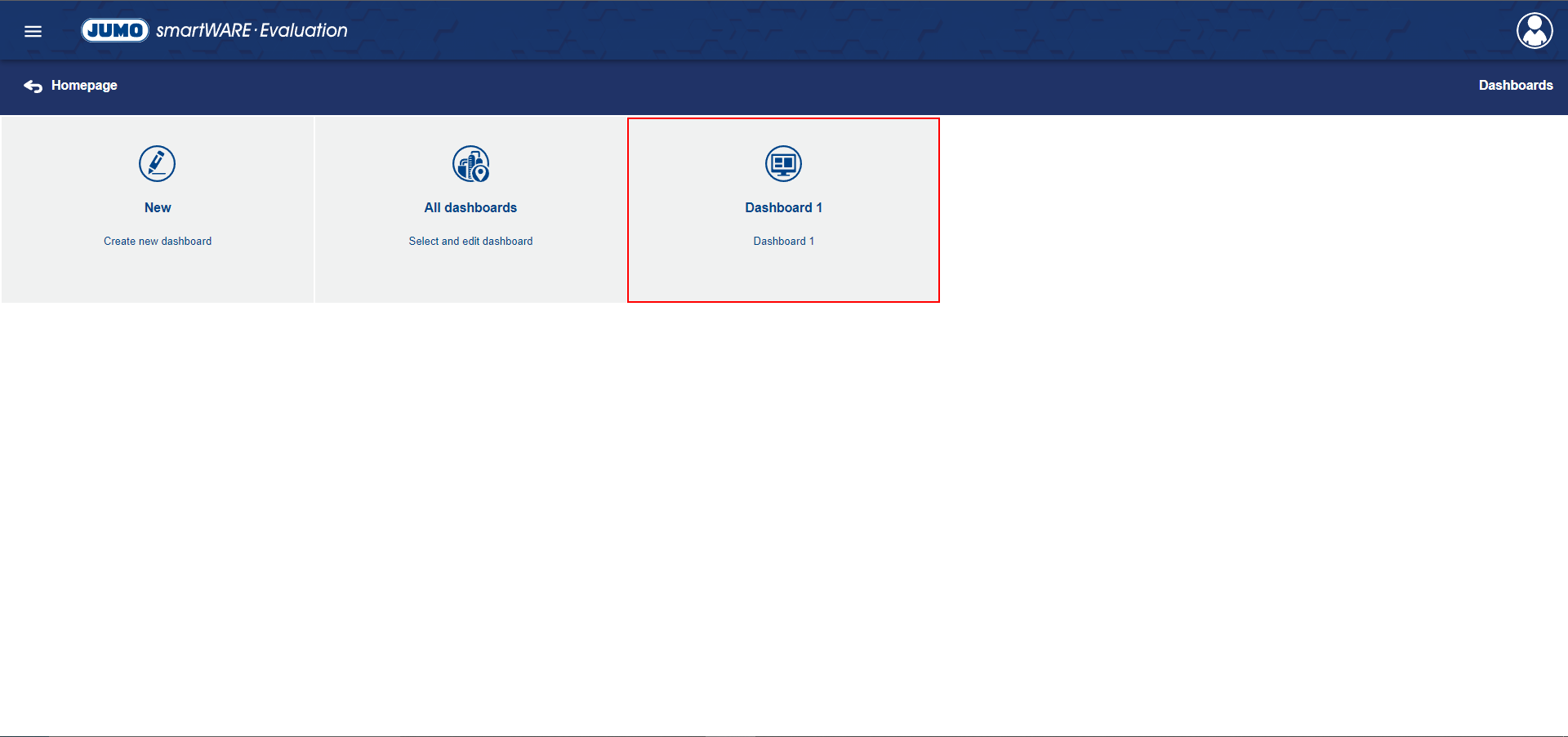

To edit an existing Dashboard, one of the existing Dashboards must be selected.

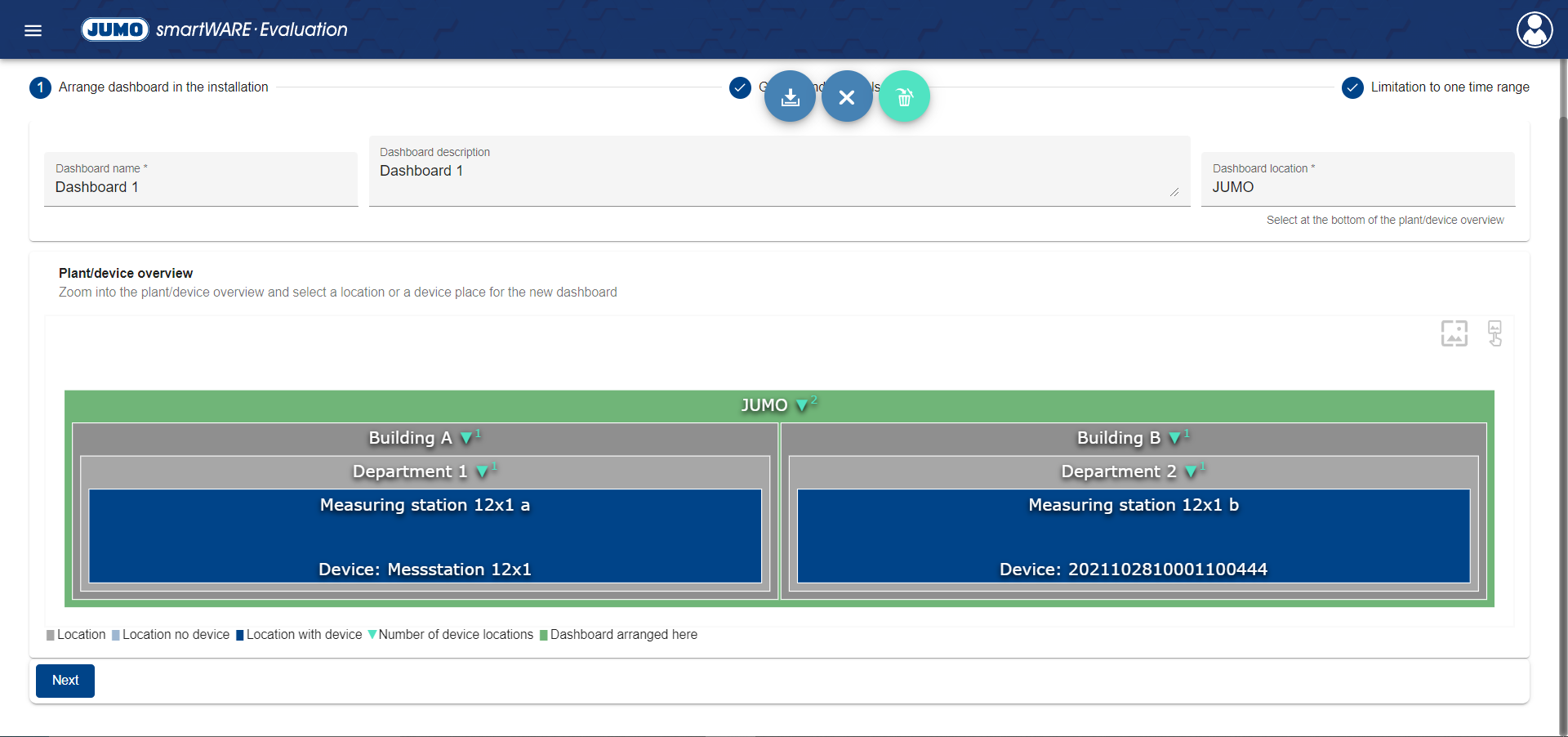

The following properties must now be defined:

Property	Meaning
Name of the Dashboard	The name under which the Dashboard can be found again later is defined here
Description of the Dashboard	A description for the Dashboard can be entered here
Site of the Dashboard	The site/device location where the Dashboard is located is defined here.

Clicking the "Next" button opens the next window.

There are two tabs on this screen:

Groups and Channels
Limitation to a Time Range

Groups and Channels

If a device location was selected as the site, the devices at the device location are automatically displayed on the left of the list. If a site was selected, the "Add Devices" button can be used to add another device to the Dashboard.

If a site was selected, all subordinate devices are not automatically displayed in the list. The devices must be added manually using the "Add Devices" button.

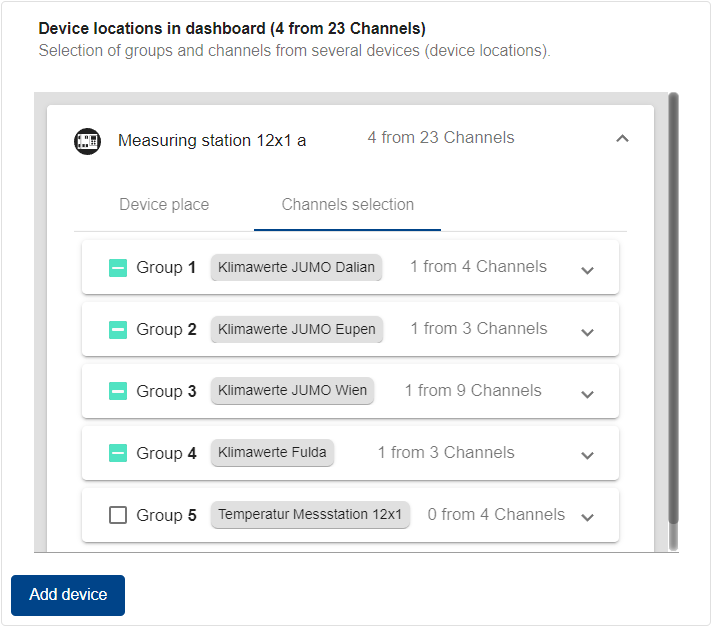

Each device in the list offers two tabs to configure the settings:

Device Location
Channel Selection

Setting	Description
Device location	In this tab you can remove the selected device location from the Dashboard
Channel Selection	In this tab, channels or channel groups to be displayed in the Dashboard can be selected for each device.

Begrenzung auf einen Zeitbereich

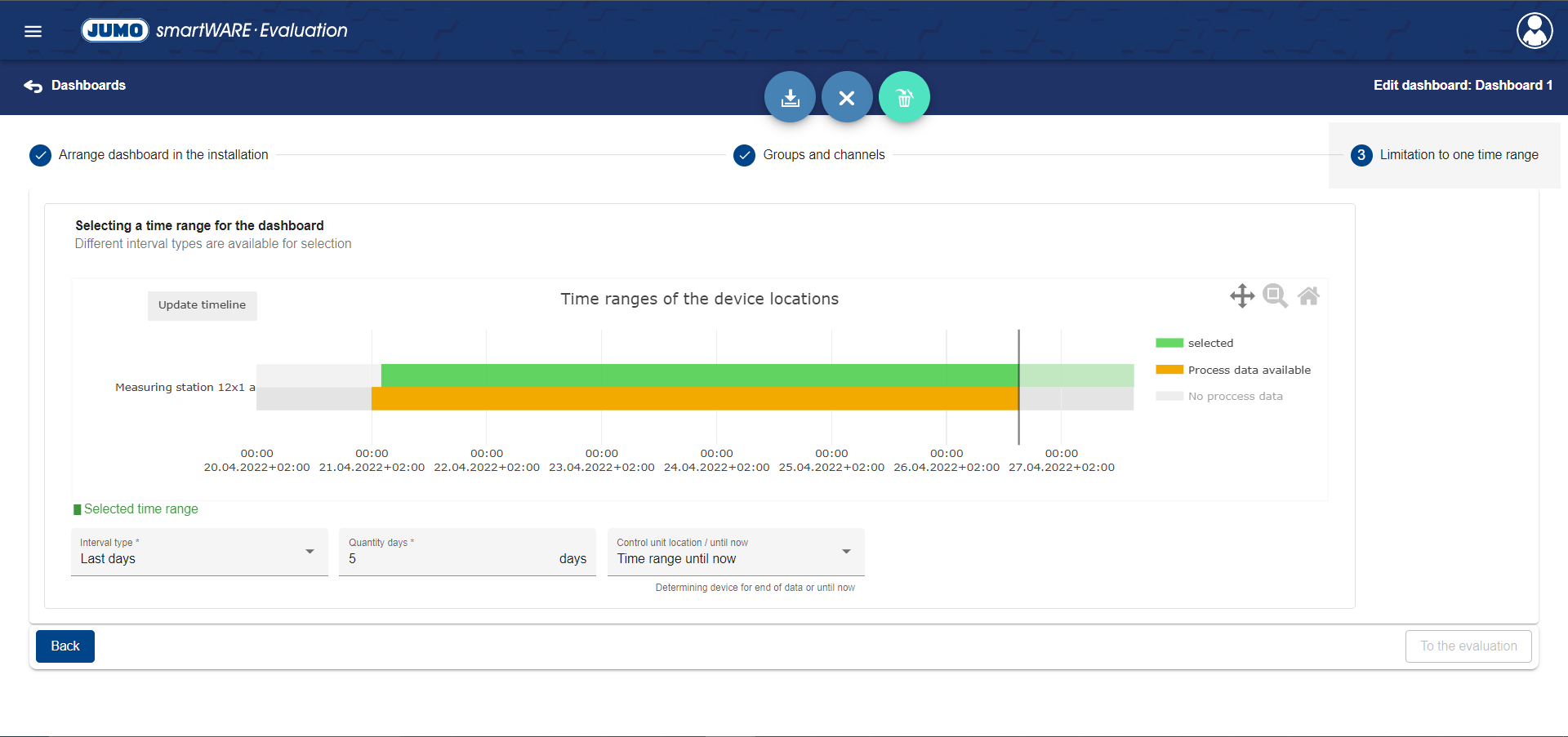

In order to define a time range for device locations, an interval must be defined. The following setting options for intervals are available:

Interval Type	Description
Date from to	The start and end date of the interval can be set
Date from	The start date of the interval can be set. The interval runs until the current time.
Last hours	This setting allows you to define the number of hours by which the time range extends into the past. Here there is also the option to let the time range run until the end of the data of a device or until now, i.e. the current time.
Last days	This setting allows you to define the number of days by which the time range extends into the past. Here there is also the option to let the time range run until the end of the data of a device or until now, i.e. the current time.
Last weeks	This setting allows you to define the number of weeks by which the time range extends into the past. Here there is also the option to let the time range run until the end of the data of a device or until now, i.e. the current time.
Last months	This setting allows you to define the number of months by which the time range extends into the past. Here there is also the option to let the time range run until the end of the data of a device or until now, i.e. the current time.
Last years	This setting allows you to define the number of years by which the time range extends into the past. Here there is also the option to let the time range run until the end of the data of a device or until now, i.e. the current time.

Example for option "until end of data":

The setting "8 hours to end of data" means that the last 8 hours of data sent by a device are available as Warm Data and can be evaluated. This is also the case if the last data transmission was several hours ago.

Clicking the button "To the Evaluation" opens the Evaluation of the created Dashboard.
