4.9.20230112

4.9 Update from

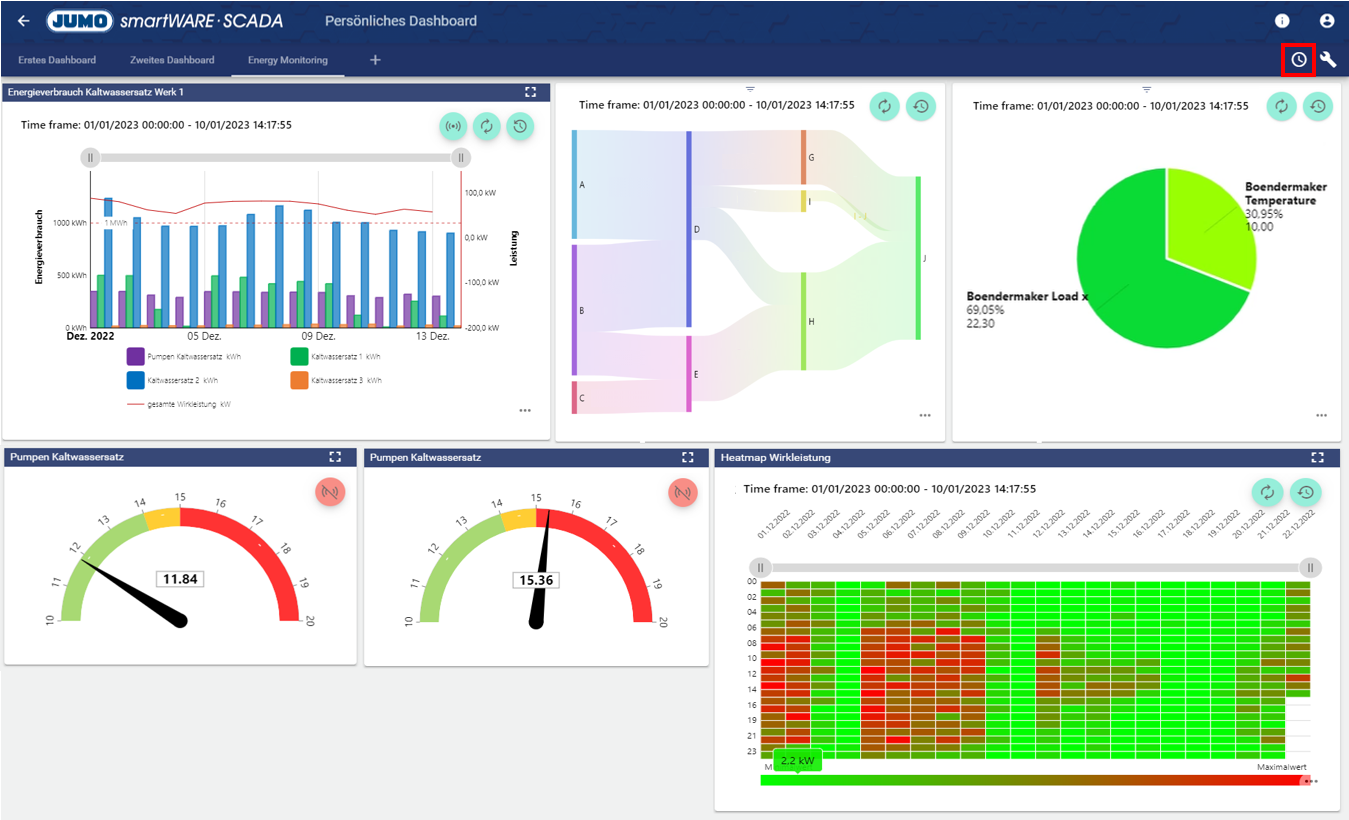

1.) The following widgets have been visually adapted and improved. A central time control has also been implemented. If the user now wants to view a time interval of the past month, for example, he can make this setting in a central place. The chosen widgets will then all display the selected time interval.

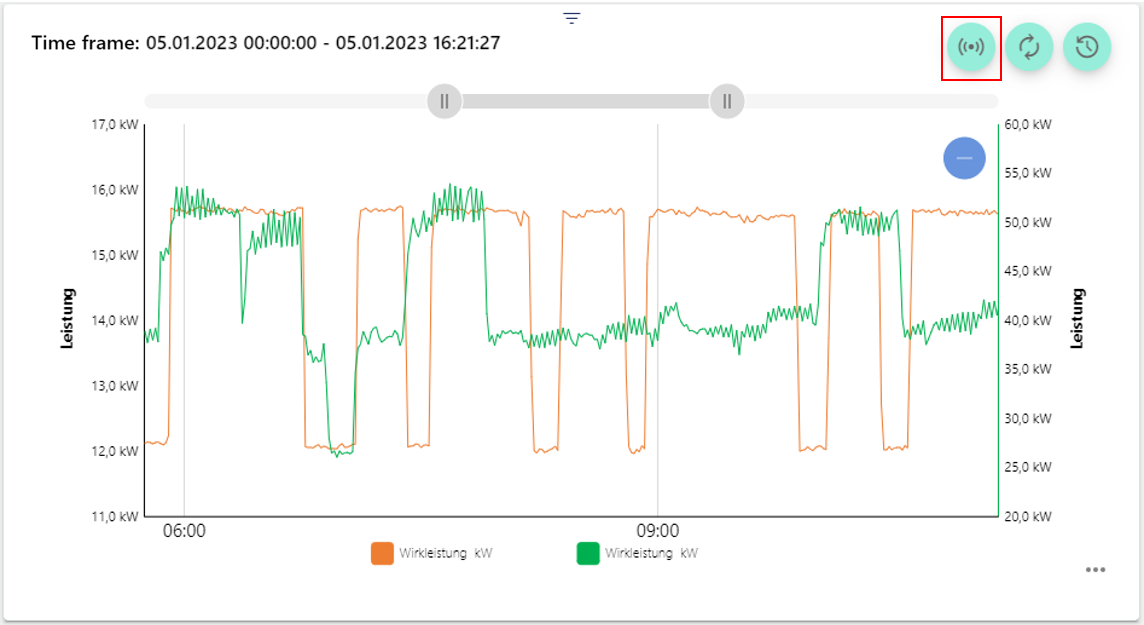

2.) The Widget: XY-Chart has been extended by a live mode. With this mode, the user is now able to display live values (as in Widget: Live-Chart) in addition to the historical values.

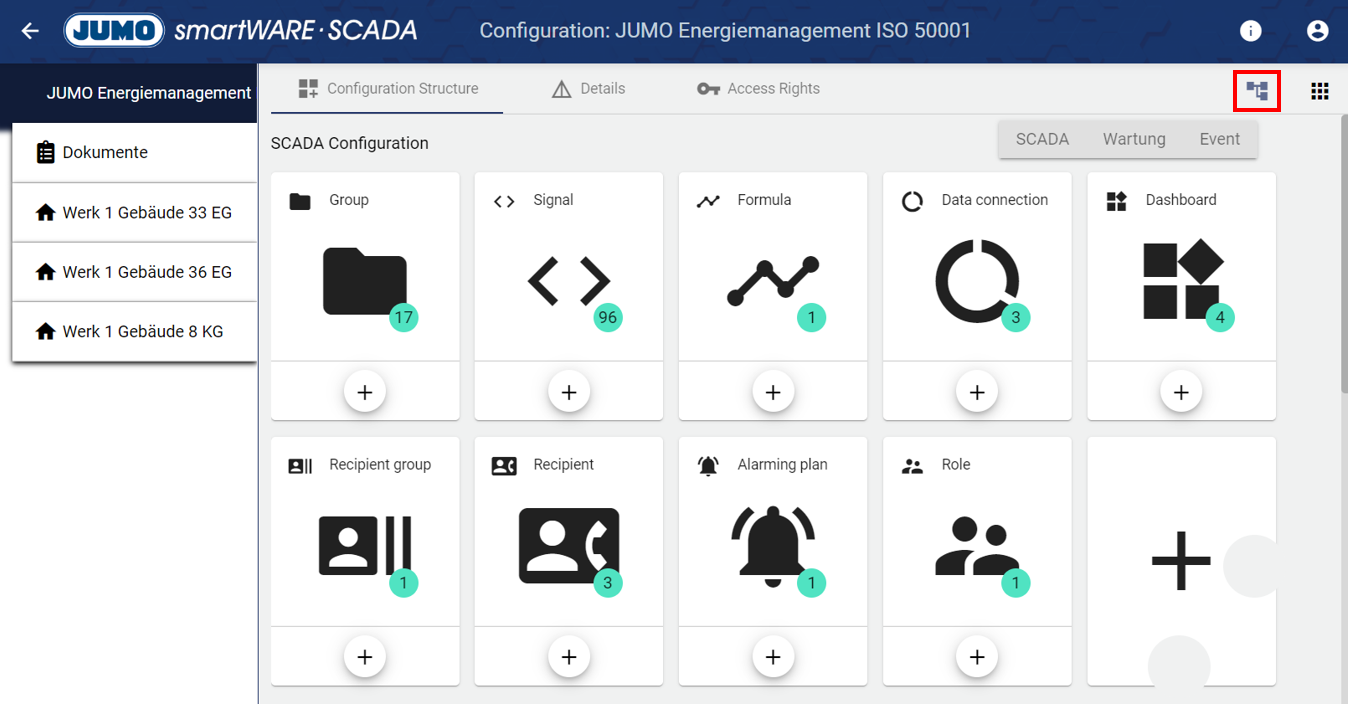

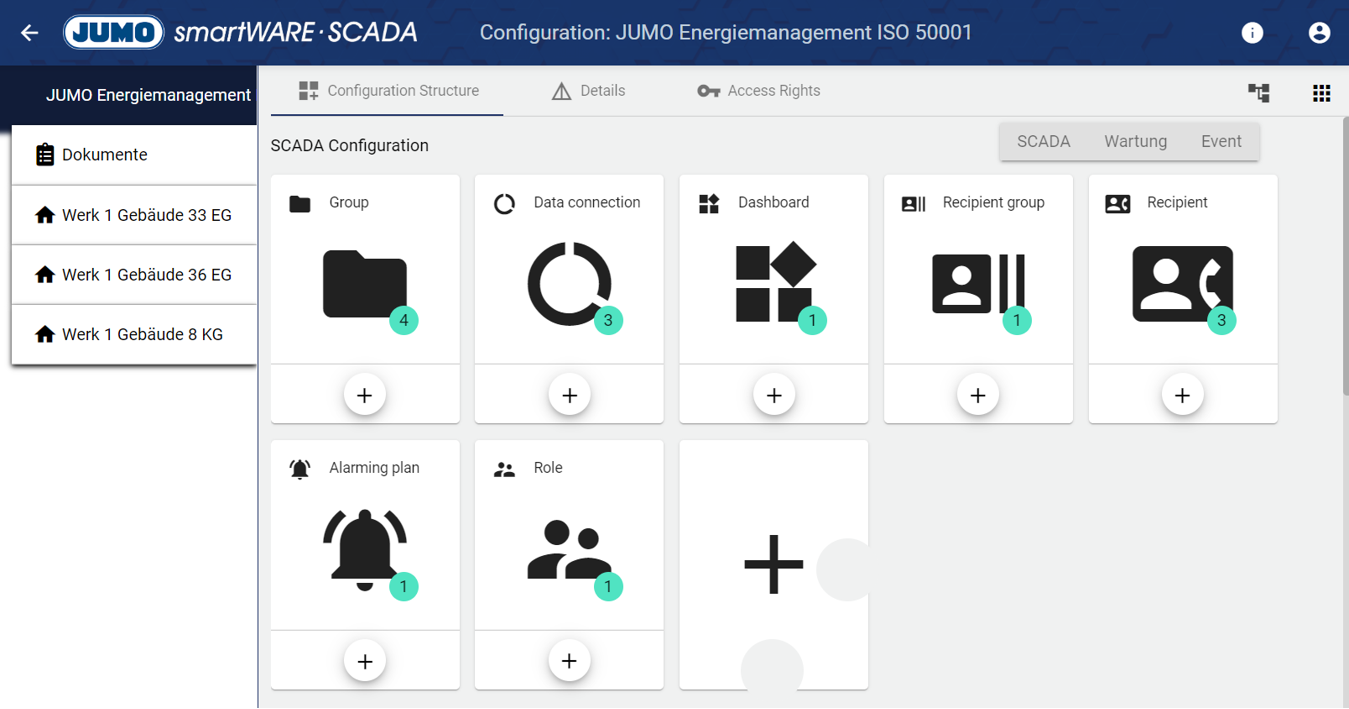

3.) In the Configuration Structure, it is now possible to display all configuration items from all subgroups within a group. For tenants with several groups, this feature saves a lot of time, as time-consuming searches are no longer necessary. The setting can be found at the top right of the configuration and is saved individually for each user account and tenant.

Setting not activated (error)

Setting activated (tick)

The setting is only a special view. The location of the configuration items per group is not changed.

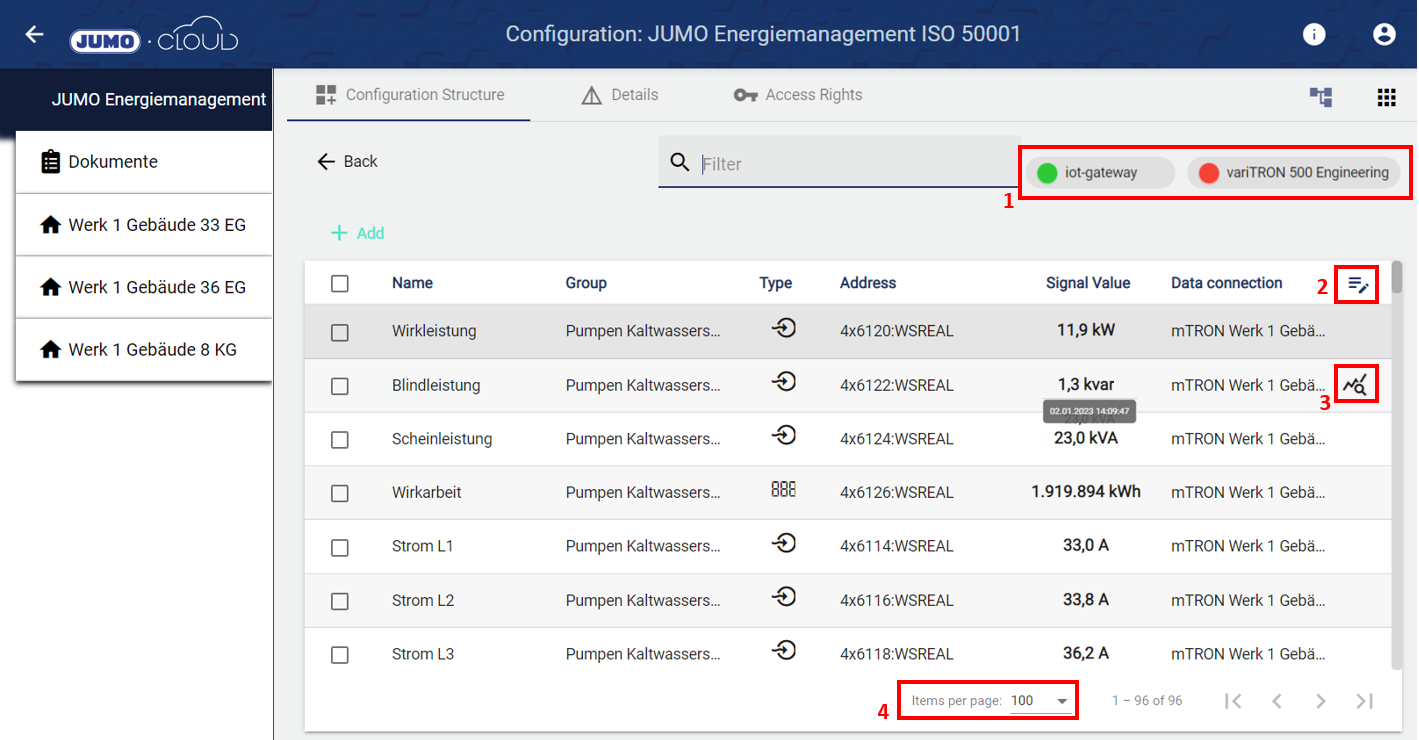

4.) To make project planning and commissioning even faster, some elements have been moved from “commissioning” area to configuration. In addition, the view of the configuration elements has been adapted and optimized. Enclosed the innovations at the example of the signal configuration.

  1. Within the signal configuration, all associated data sources are displayed. By hovering over the data source, the configuration can now be sent much more easily. In addition, the status (red, green) is displayed and the data source can be activated and deactivated more quickly.

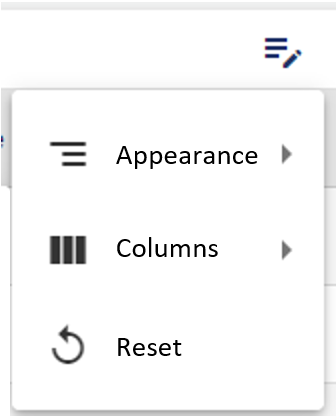

  2. The appearance of the table can be customized via this setting. The user can choose between the more compact display of individual rows and the possibility to show and hide individual columns.

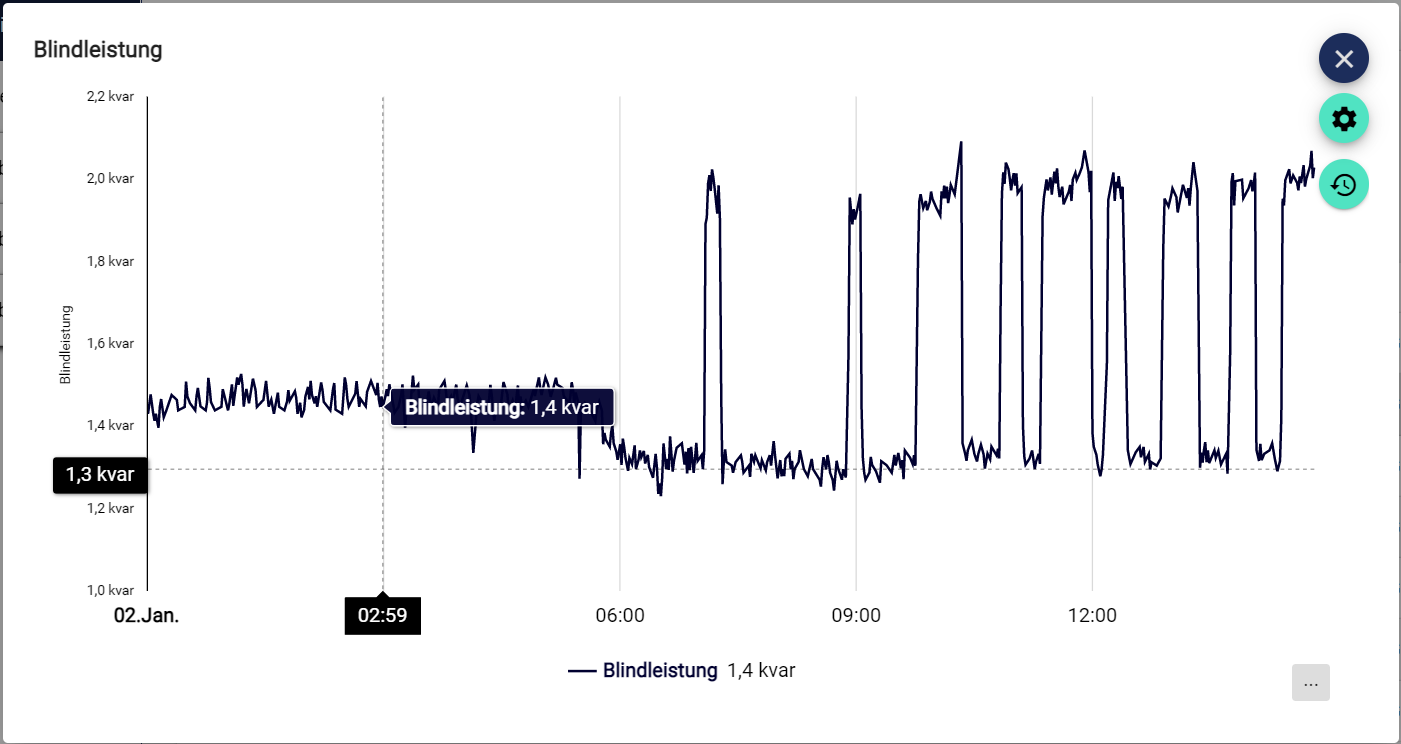

  3. If you hover over one of the signals, the time stamp appears next to the signal value and an icon appears on the right side of the row. By clicking on this icon, the signal history is displayed as a historical diagram.

  4. With this update, the "Items per page" are permanently stored in each user account after desired selection. The selection will then apply to all items in the configuration.

If several elements are selected in the configuration, they can now also be moved to a new group by "drag and drop".

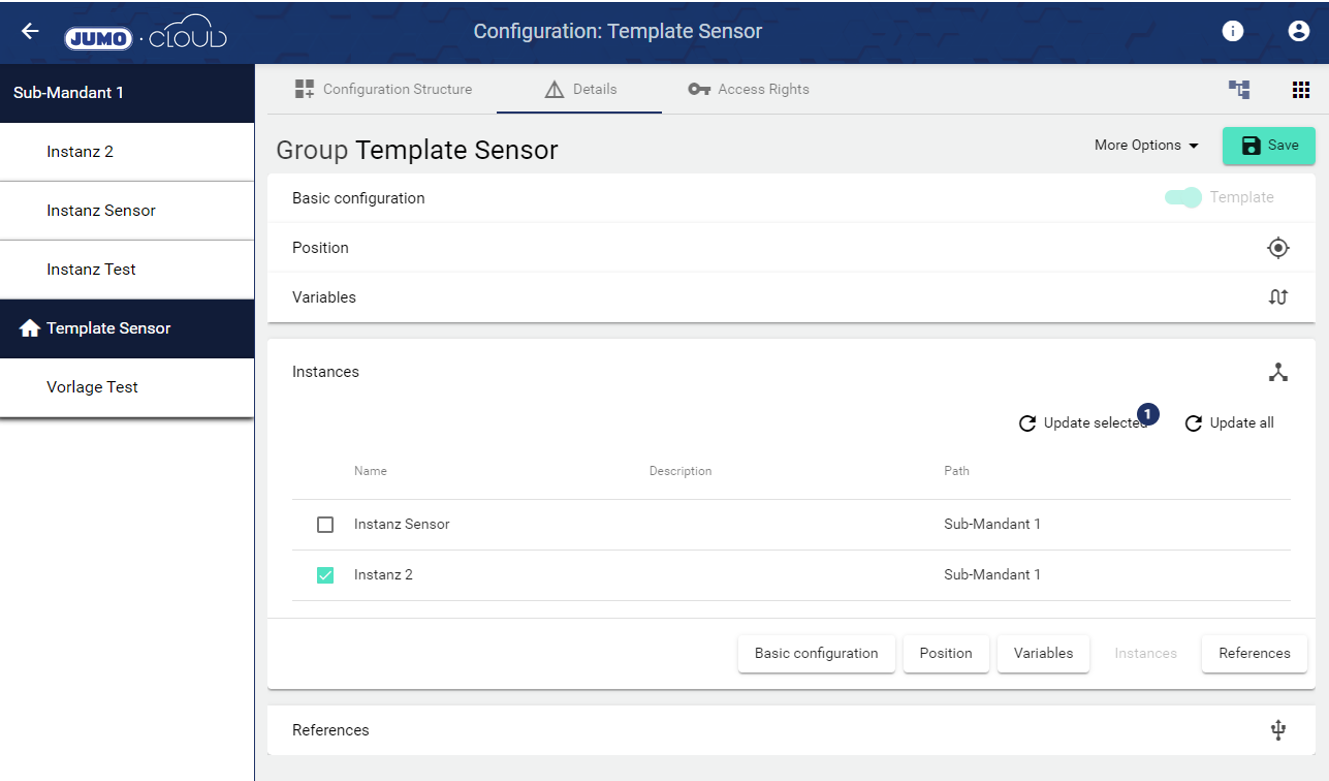

5.) Likewise, a template and instance function for following configuration elements has been developed. During project planning and commissioning of similar plant structures, this function can offer real added value. Several instances can thus be created and changed easily and quickly from one template.

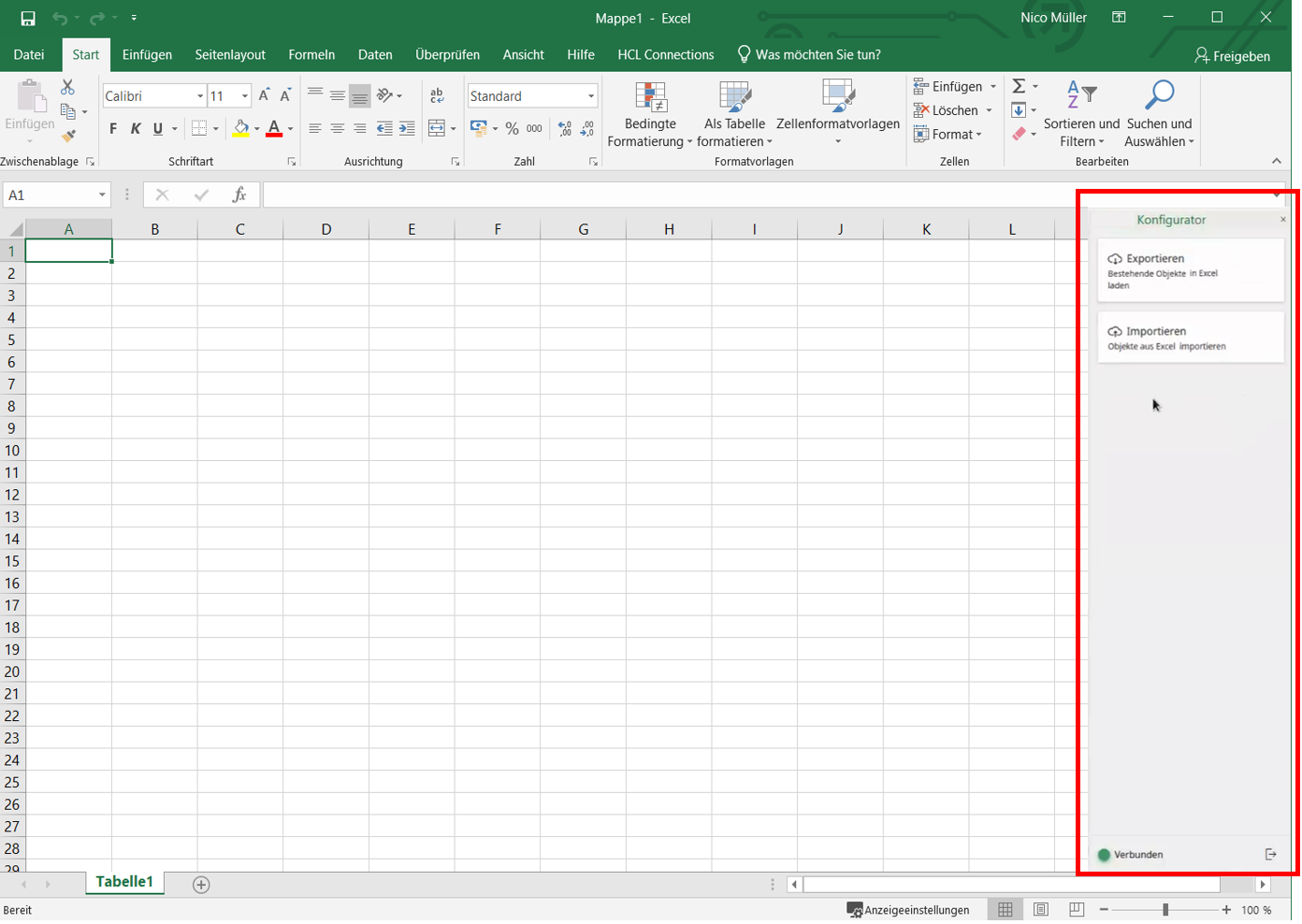

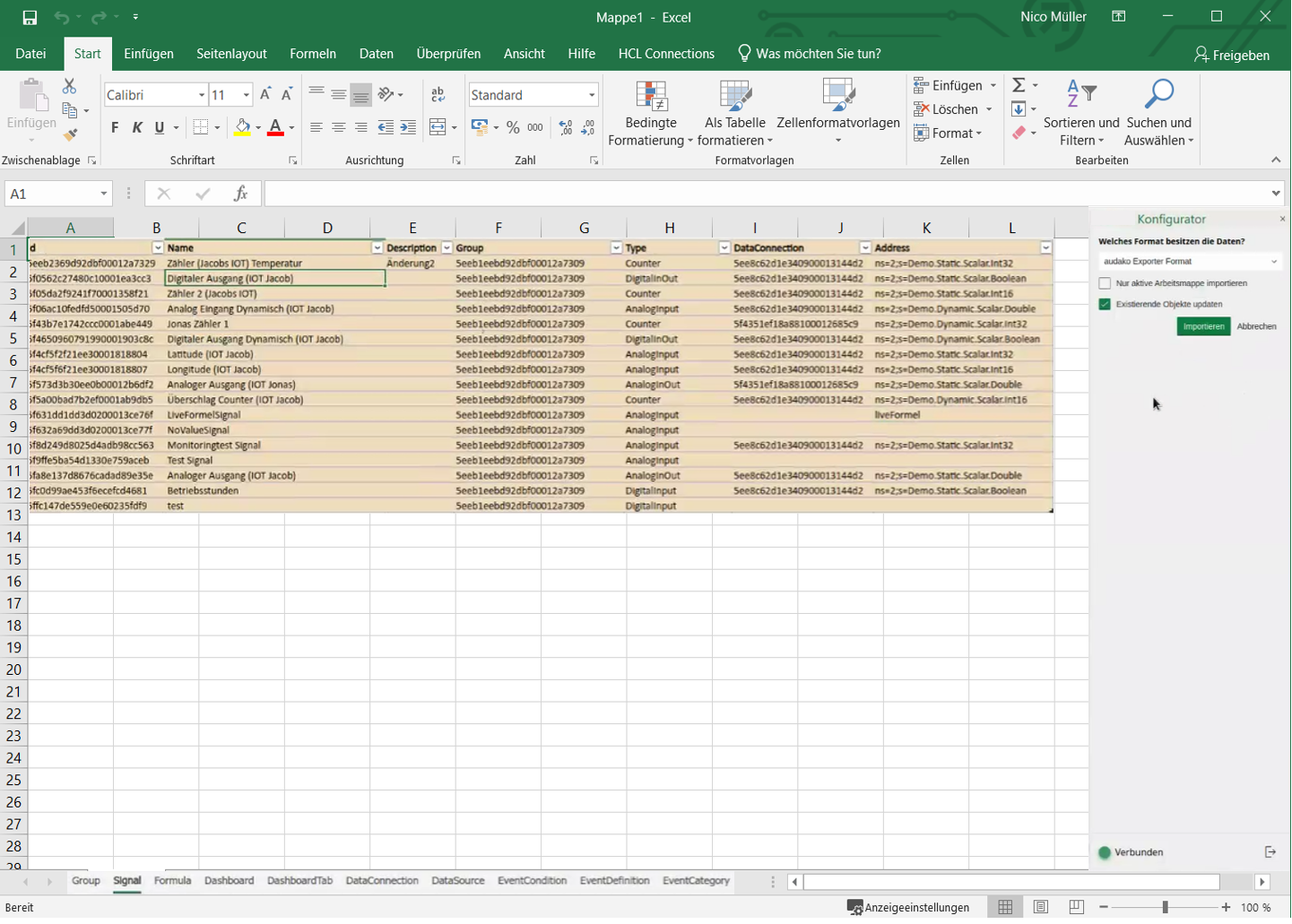

6.) An Excel add-in, which greatly simplifies project planning and commissioning, has been developed and will soon be available in the Office Store with this version. This can be used to import and modify entire configurations from a JUMO Cloud tenant or a JUMO smartWARE SCADA tenant. The file (configuration) can then be saved or changed and exported again to an existing or new tenant.

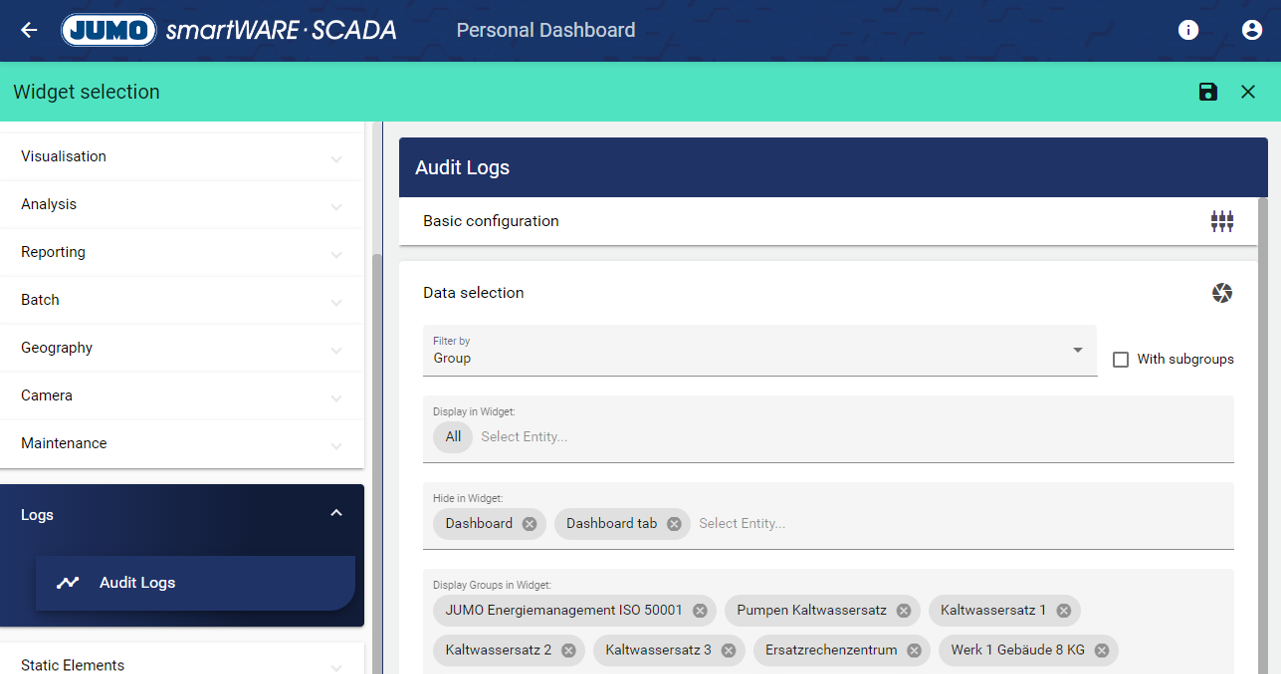

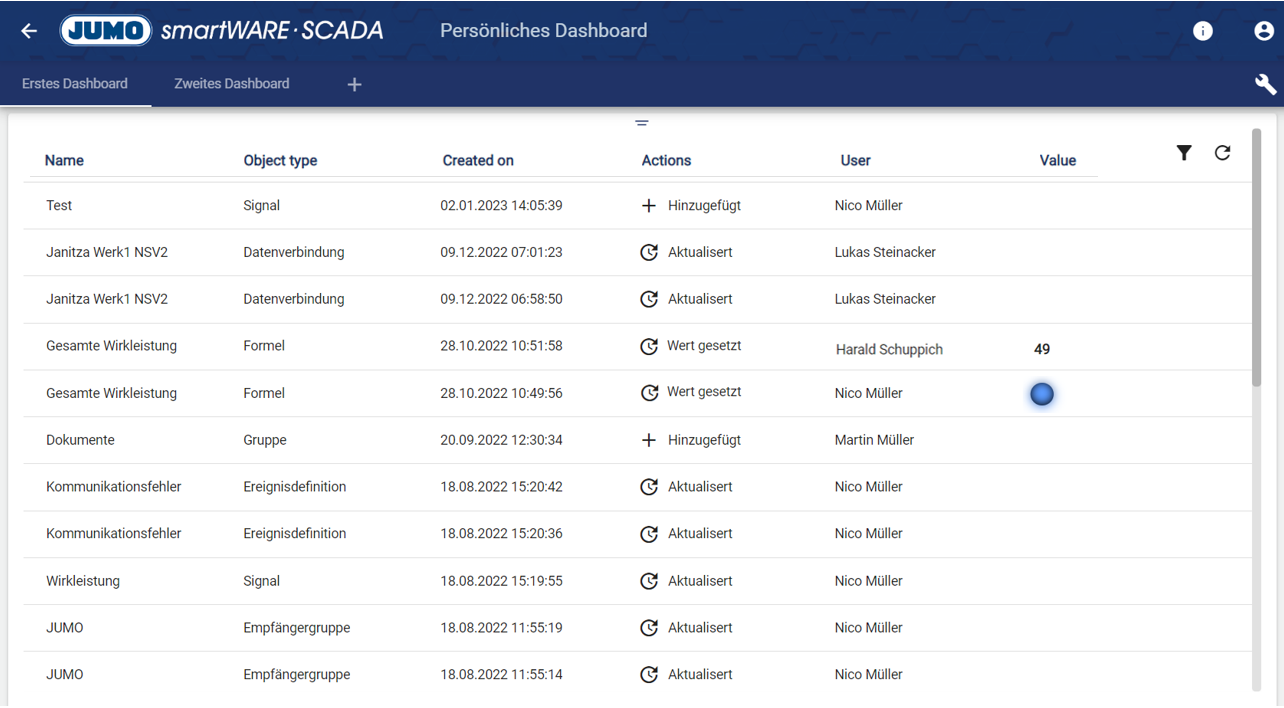

7.) The widget: Audit Logs has been significantly improved. From now on, all changes that are also displayed in the Control Operation Archive can be displayed in the widget. Additionally, there is an option to exclude different configuration items and groups from the view.

Dashboard view

Widget configuration

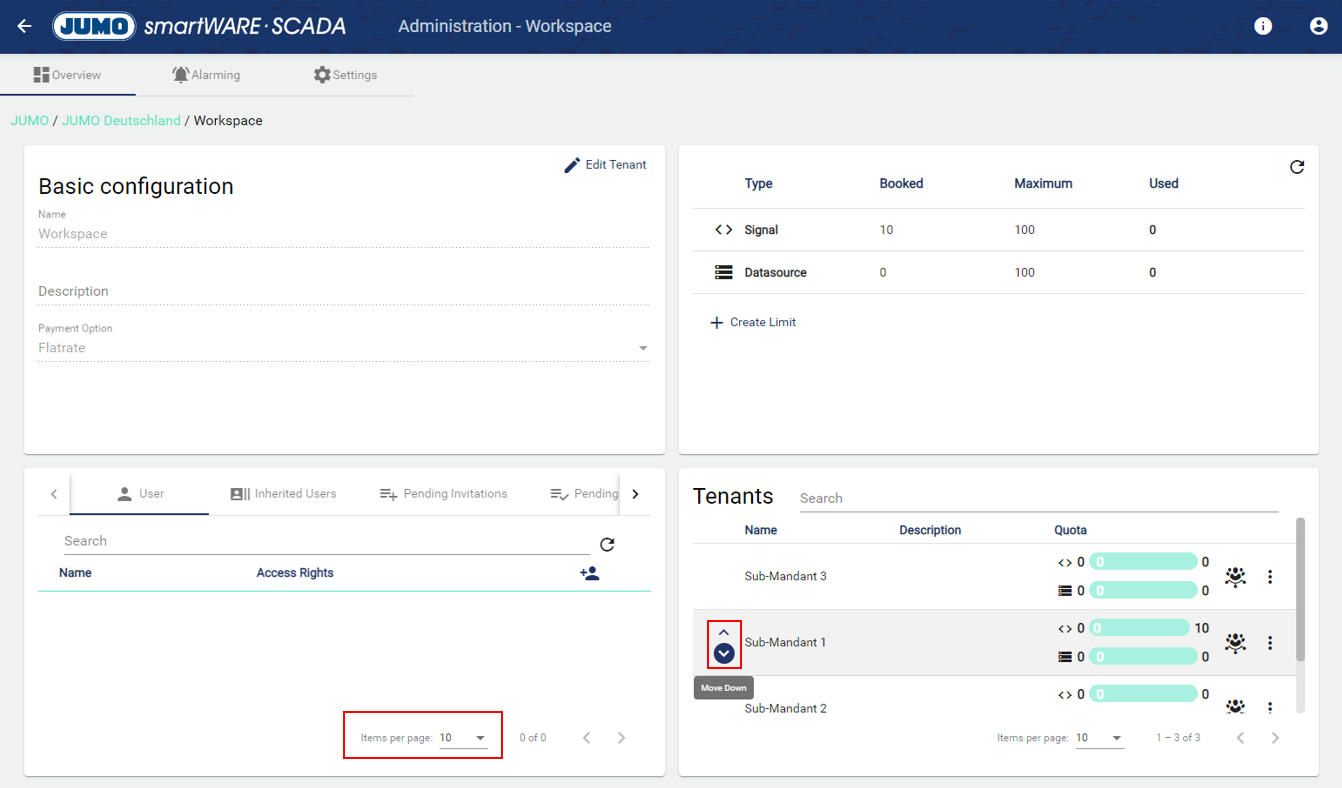

8.) The position of the sub-tenant can now also be changed in the administration in the Tenant area. To do this, simply hover over the tenant. An arrow symbol will then appear, which can be used to move the position in the view. This way, your most important tenants are always at the top of the list. (tick) Also the setting of the "Items per page" will be saved permanently as in the configuration.

The responsive view of the administration has also been optimized and can now be displayed clearly on mobile phones. 📲

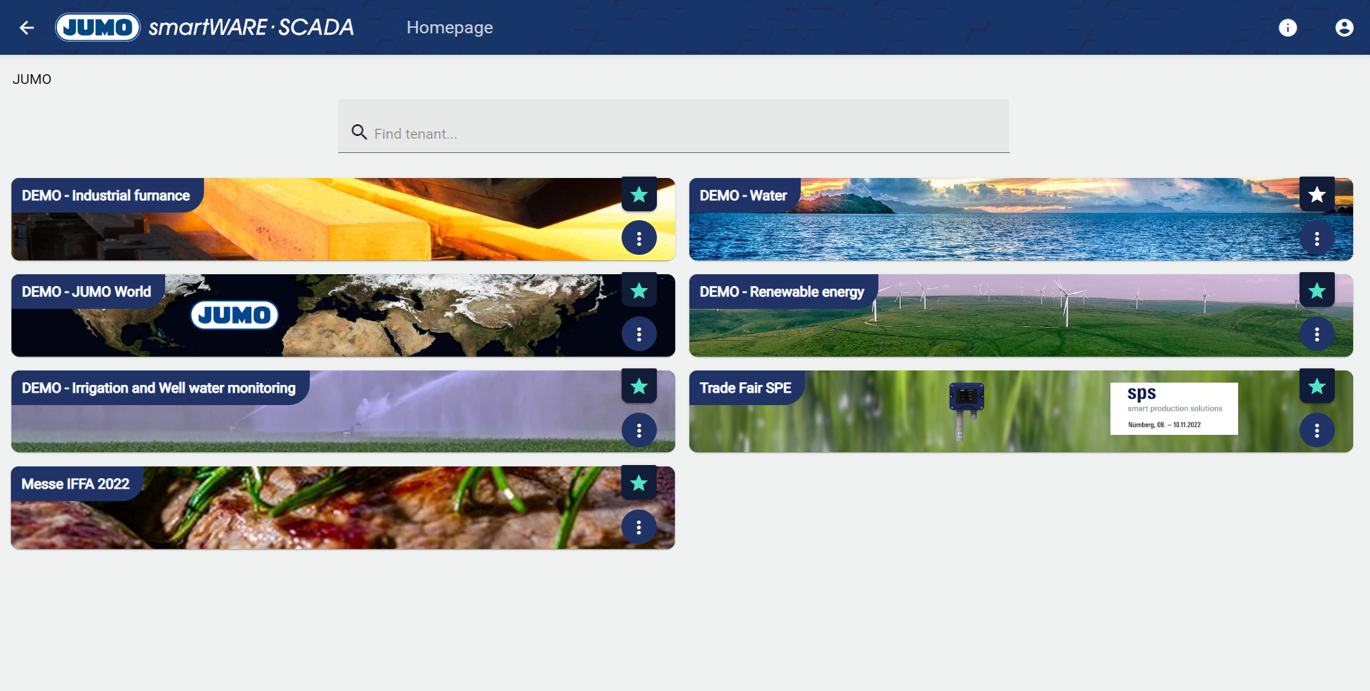

9.) To find tenants more quickly, a search bar has been added in the " Browse system" area. This is also used to search all sub-tenants that cannot be found in the top view.

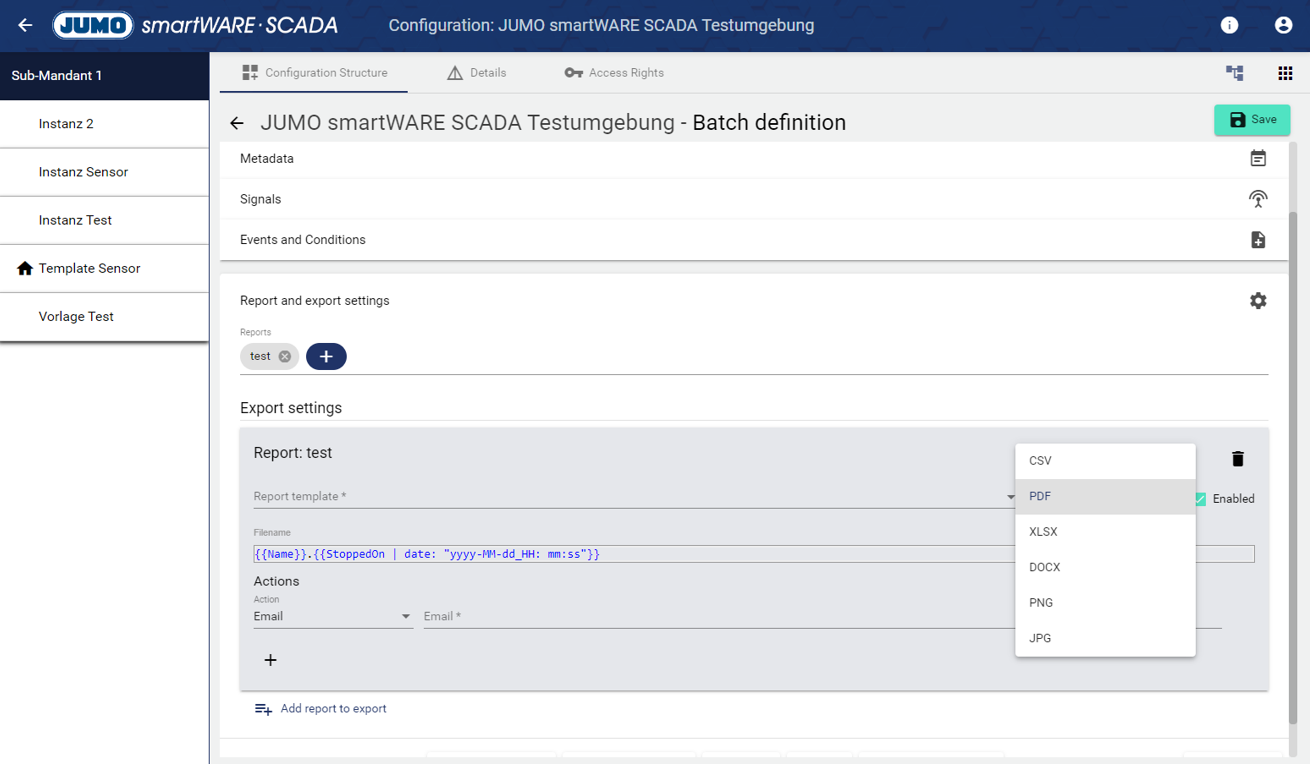

10.) With this update it is possible to send batch reports within the batch definition automatically event-based in different formats by mail or to save them in a directory.

The file name can be supplemented with individual batch data such as batch duration, batch number, etc.

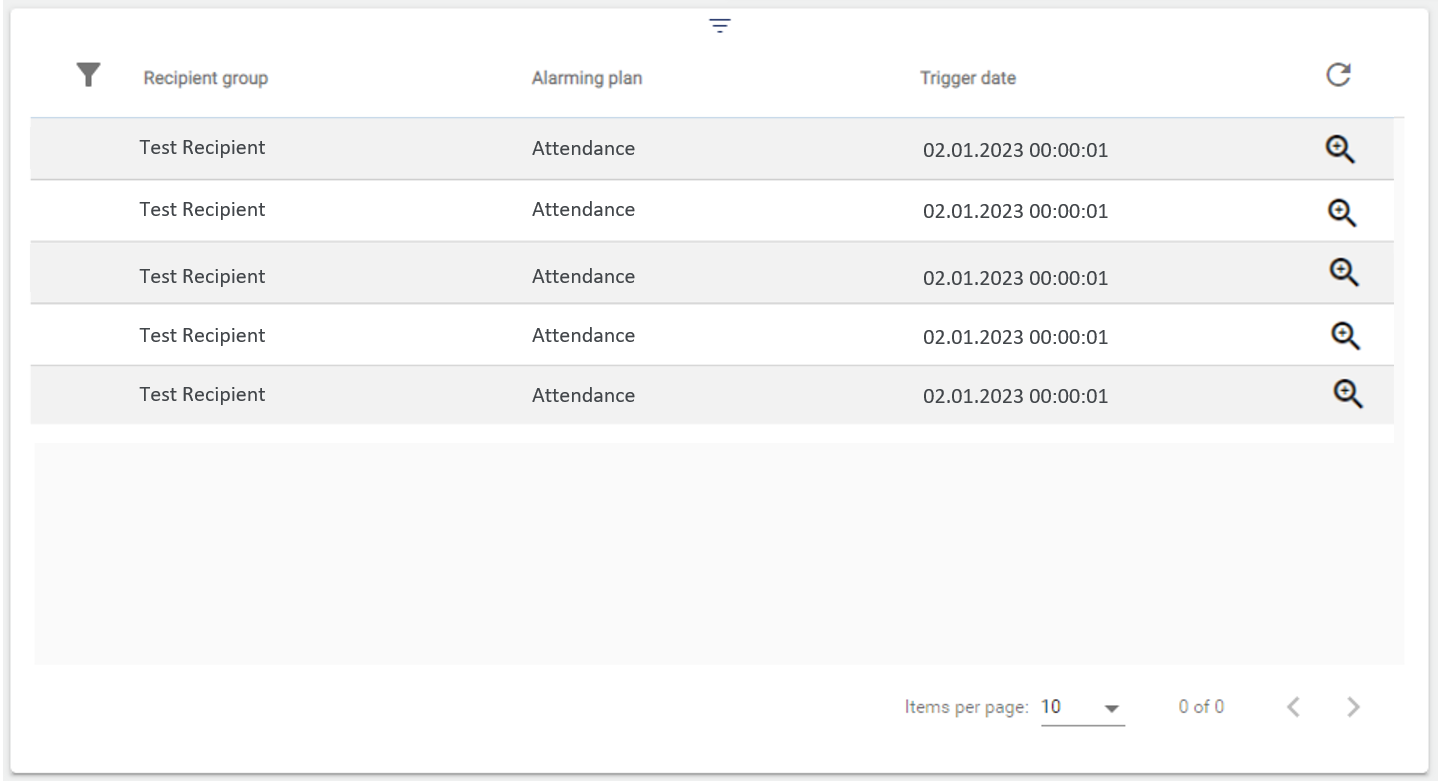

11.) The Widget: Entered Alarming can now also display alarms from selected groups and has thus become much more user-friendly.

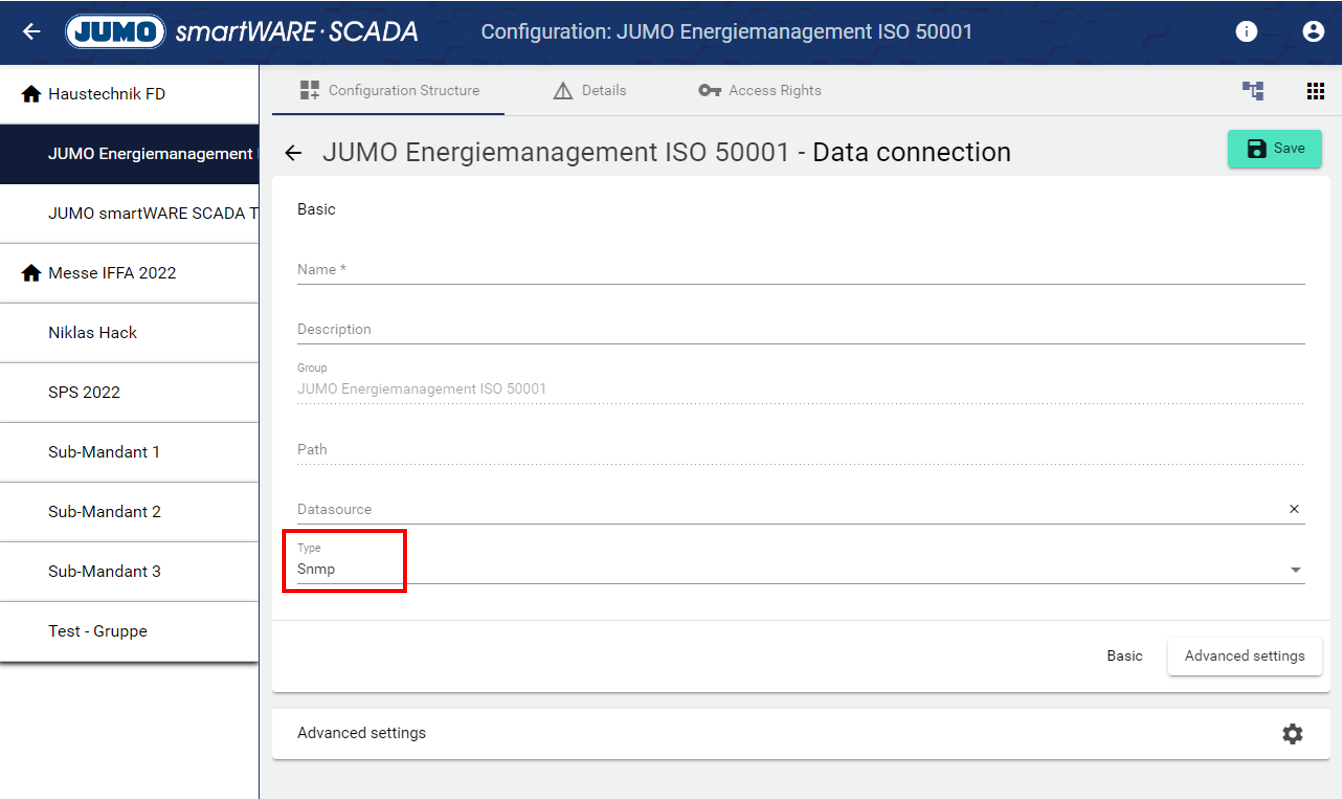

12.) Implementation of the SNMP protocol as a data connection. With this protocol type, it is possible to monitor and control network elements (routers, servers, switches, printers, computers, etc.) centrally via the IoT platform.

13.) VoIP voice alerts can now be sent in English and French as well as German. All that is required is to create a template. The user can then select this in the recipient-configuration.

14.) Bug fix and system maintenance
