Recipient
The Recipients are created individually with different options for contacting them.
The configuration unit can only be used if SCADA-Lizenz comprises the module "Standard notification" or "Extended notification".
By selecting the "Recipient" button, you can edit a Recipient that was created earlier. A new Recipient is created via the Plus button.

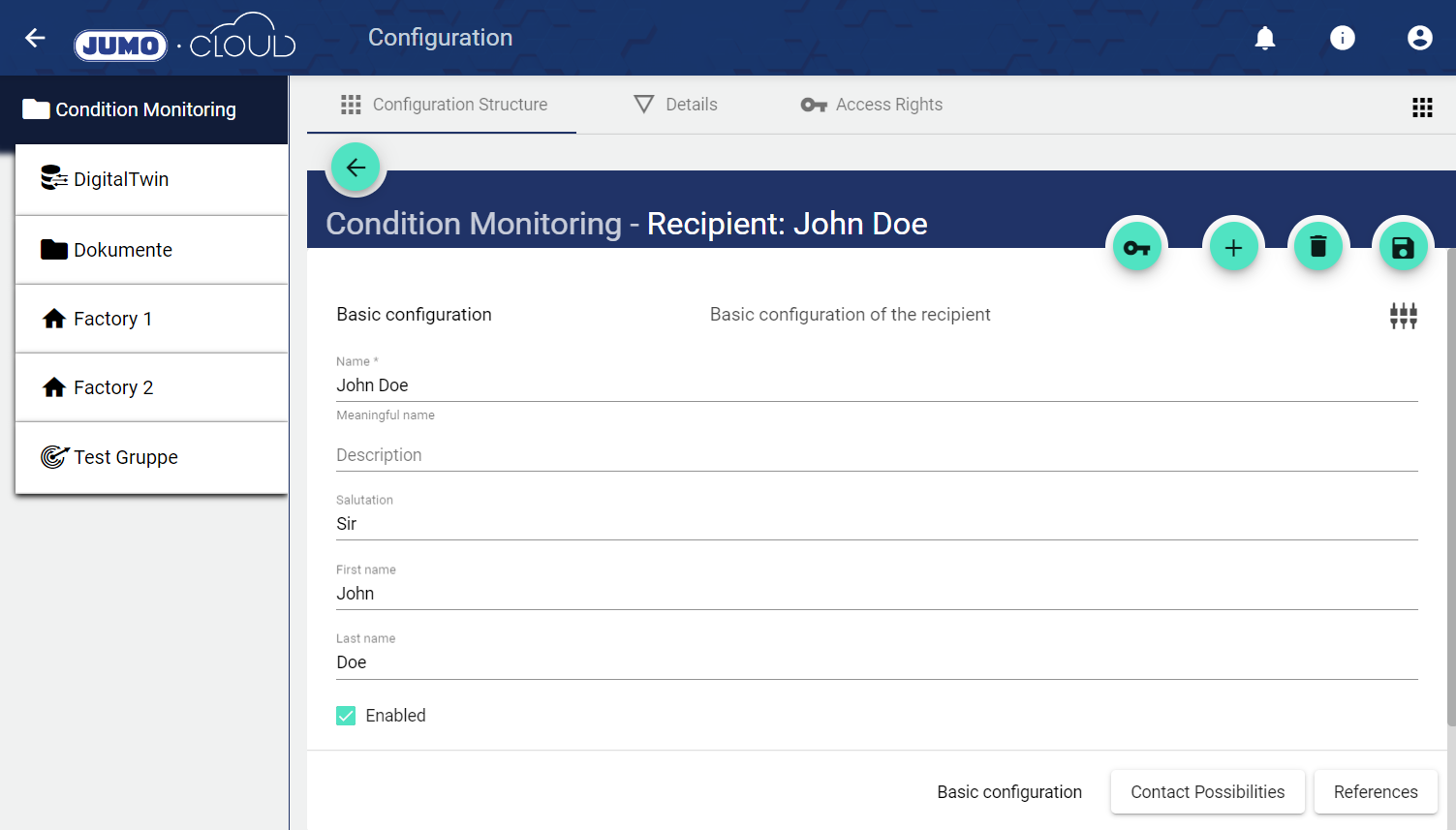

Assign the name of the Recipient in the Basic Configuration. The Description field is optional. For the salutation you can choose between Mr., Mrs. or a free text field. The first and last names are entered accordingly.
Individual contacts are activated or deactivated via the "Activated" checkbox. Deactivated contacts do not receive notifications.

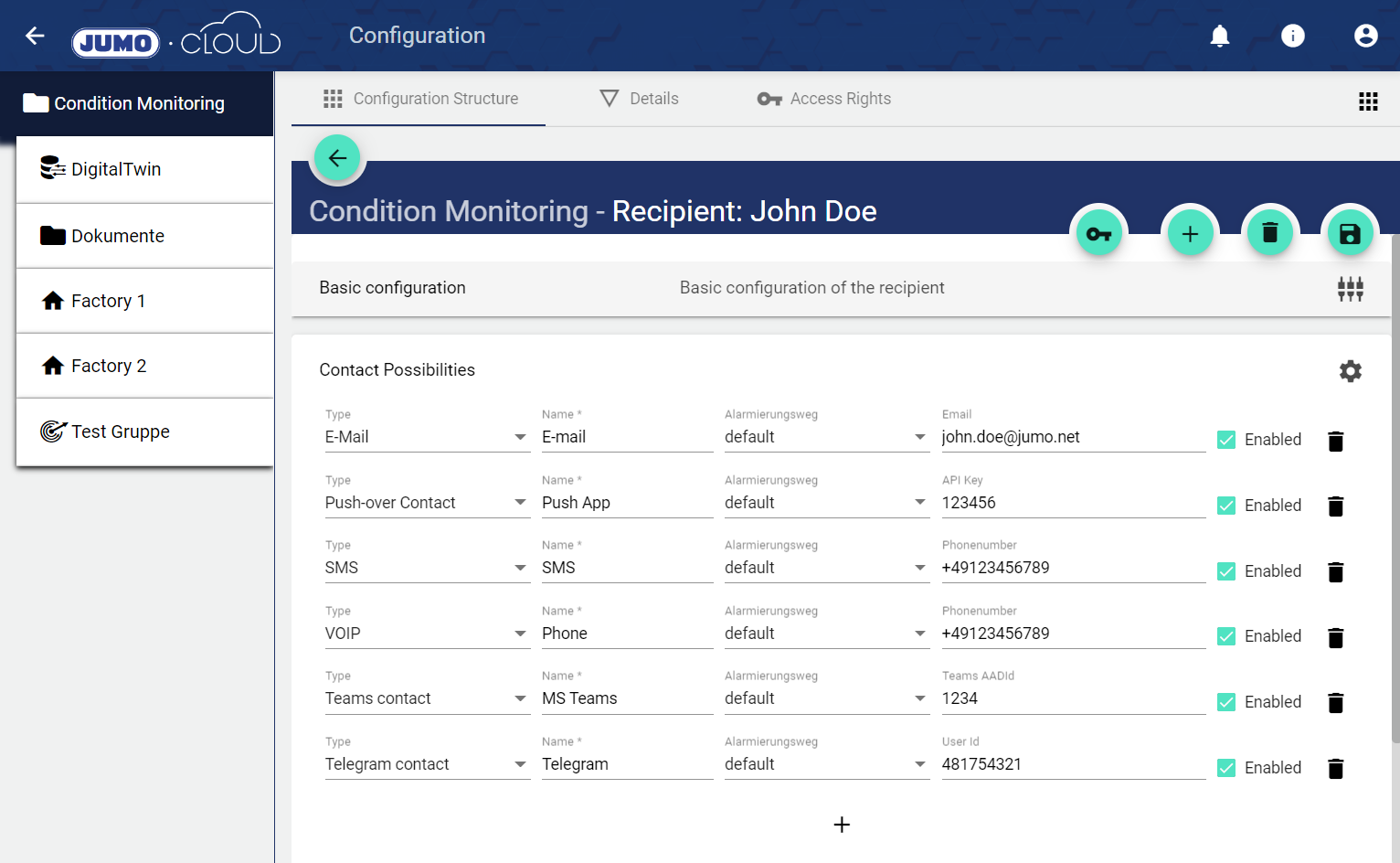

Contact Options
Under Template you can choose between different alerting languages. For this purpose, another template must have been created in addition to the "default" template. The same applies to the messagelines; if an individual line is required in addition to the "default" line, this must first be created.
Typ
Type | Description |
|---|---|
E-mail contact | The specified contact is stored with an e-mail address by which contact is made via e-mail. |
Push over | Push over is a service that makes it possible to send push messages to an Apple or Android device. Notification service for real-time notification. A push over key is required. |
SMS | The specified contact is stored with a cell phone number by which contact is made via SMS. |
VOIP | The specified contact is stored with a cell phone number by which contact is made via VOIP. The function can only be used if the SCADA-Lizenz comprises the module "Extended notification". |
Microsoft Teams | The specified contact is stored with a Teams ID and contacted or alerted via a JUMO bot. You will receive the ID after you have added the "JUMO Cloud Bot" (Teams App). In this case, please contact your JUMO representative |
Telegram | The specified contact is stored with a user ID and contacted via a JUMO bot. |
Important
Bei SMS und VOIP muss die Ländervorwahl beachtet werden (z.B.: DE = "+49...")
For the name you can choose between the following options or assign your own name:
Private: Private phone number or cell phone number.
Business: Business phone number or cell phone number.
PrivateMail: Private e-mail notification.
BusinessMail: Business e-mail notification.
Individual contacts are activated or deactivated via the "Activated" checkbox. Deactivated contacts do not receive notifications. Contact options do not receive notifications.
References
Here you can view the Recipient Groups of which the selected contact is a member.
AuditLog
The AuditLog is a change log that transparently shows how the object was changed. For some objects, it also shows which target values were set by a specific person. Power users can use the button on the right-hand side to get a detailed view of exactly what has been changed in the configuration.
The AuditLog can be used to quickly trace what happened to the object last. It corresponds to an extract from the Control Operation Archive.
