4.11 Update from

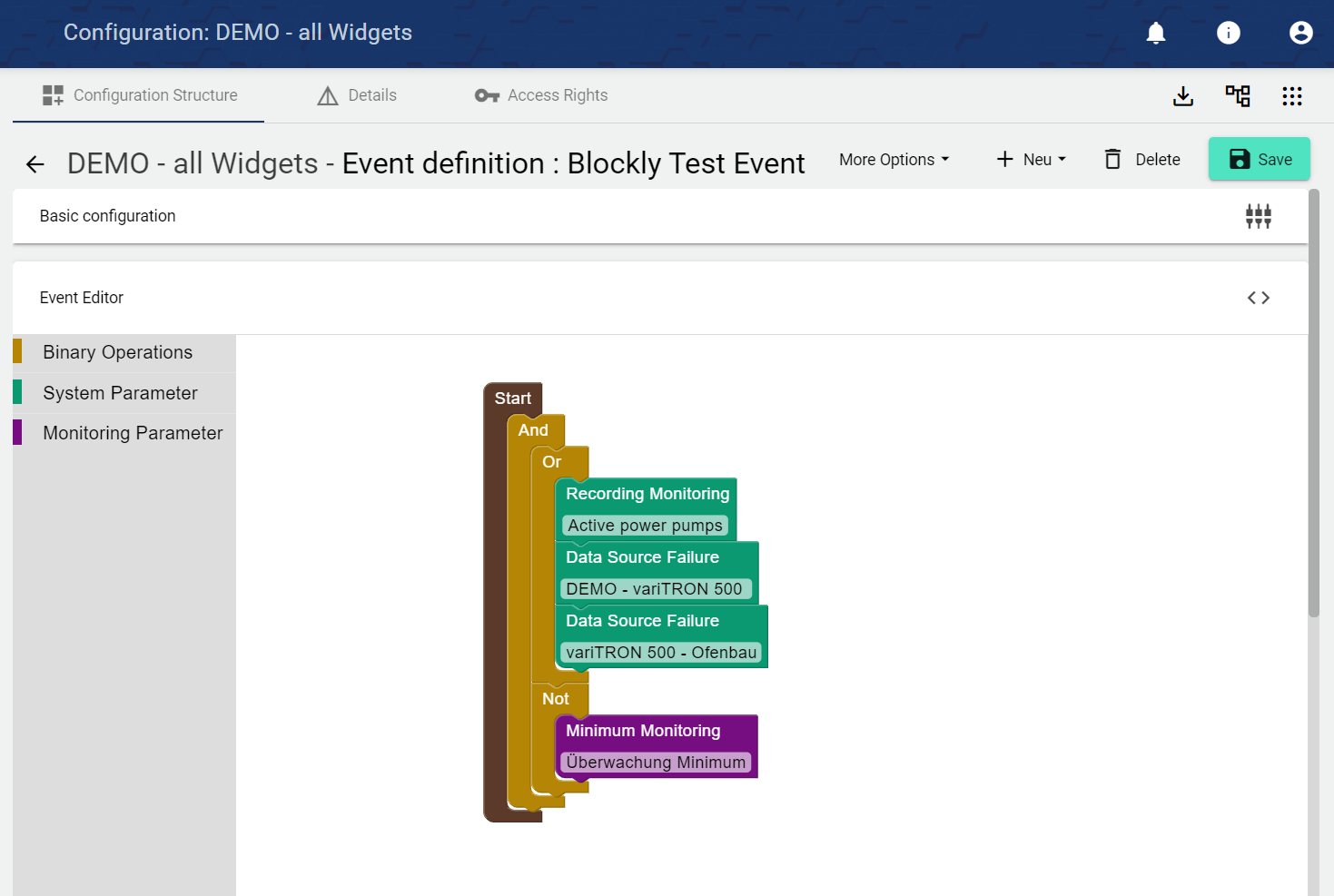

1.) The Event Definition has been revised and extended. From now on, due to the new Event Editor, the user is able to create any events in logical concatenation much more user-friendly and faster.

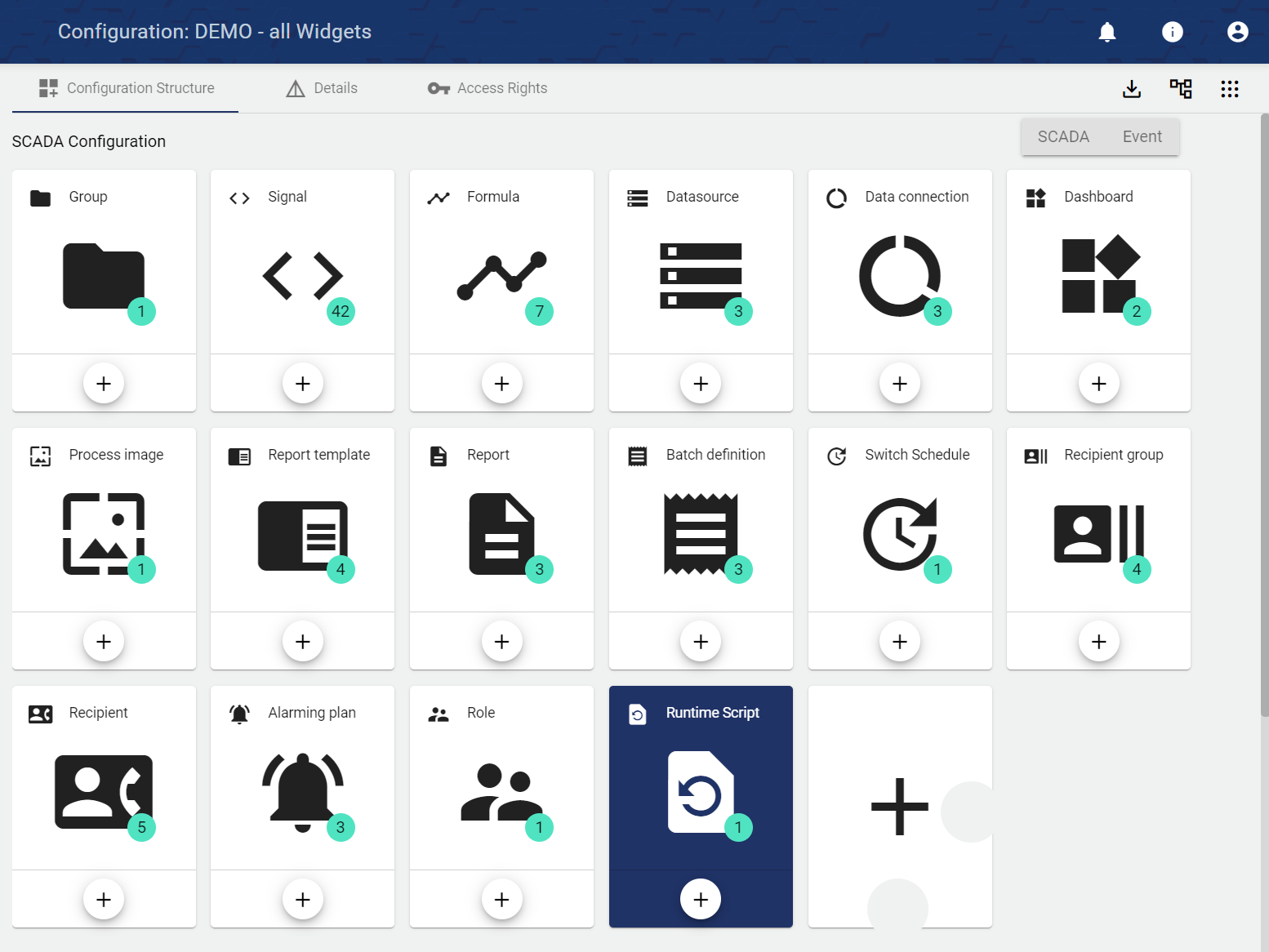

2.) As of this release, the JUMO smartWARE SCADA can execute program code trigger-based. It can now solve more complex automation tasks. For this purpose, the Runtime Script has been added to the configuration of each tenant. The scripting function can be used, for example, to query signal values, set setpoints based on events, implement a batch start or stop, or transfer a camera image to the archive. A script can also be used to check whether a camera image has been stored in the archive in a certain period of time.

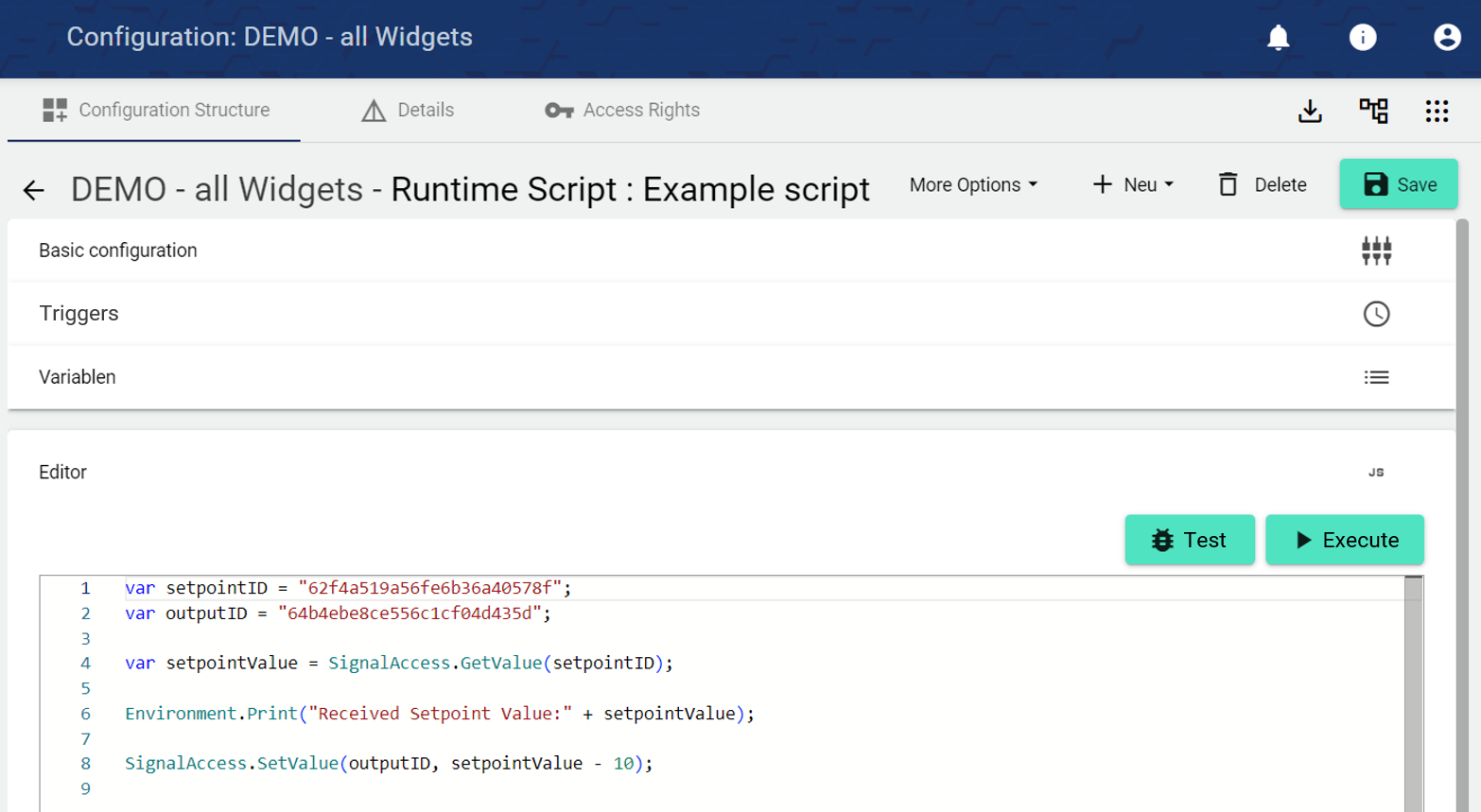

Attached is an example script showing an analog setpoint signal that is always set 10 units lower than a second analog setpoint signal.

The programming language is JavaScript

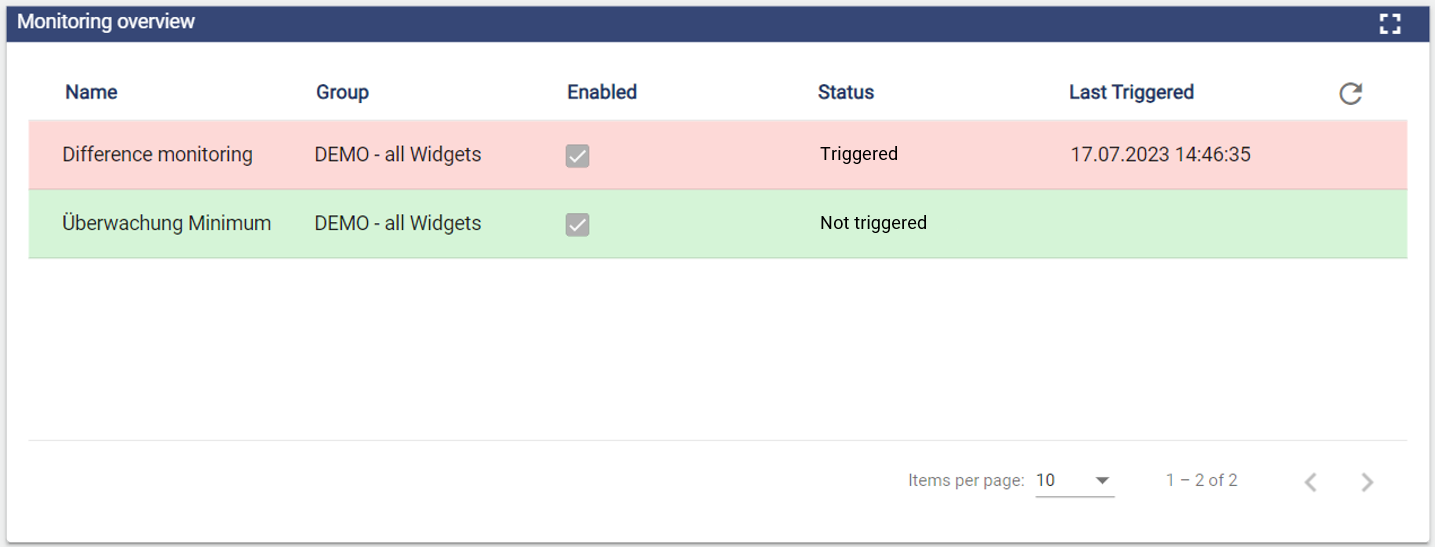

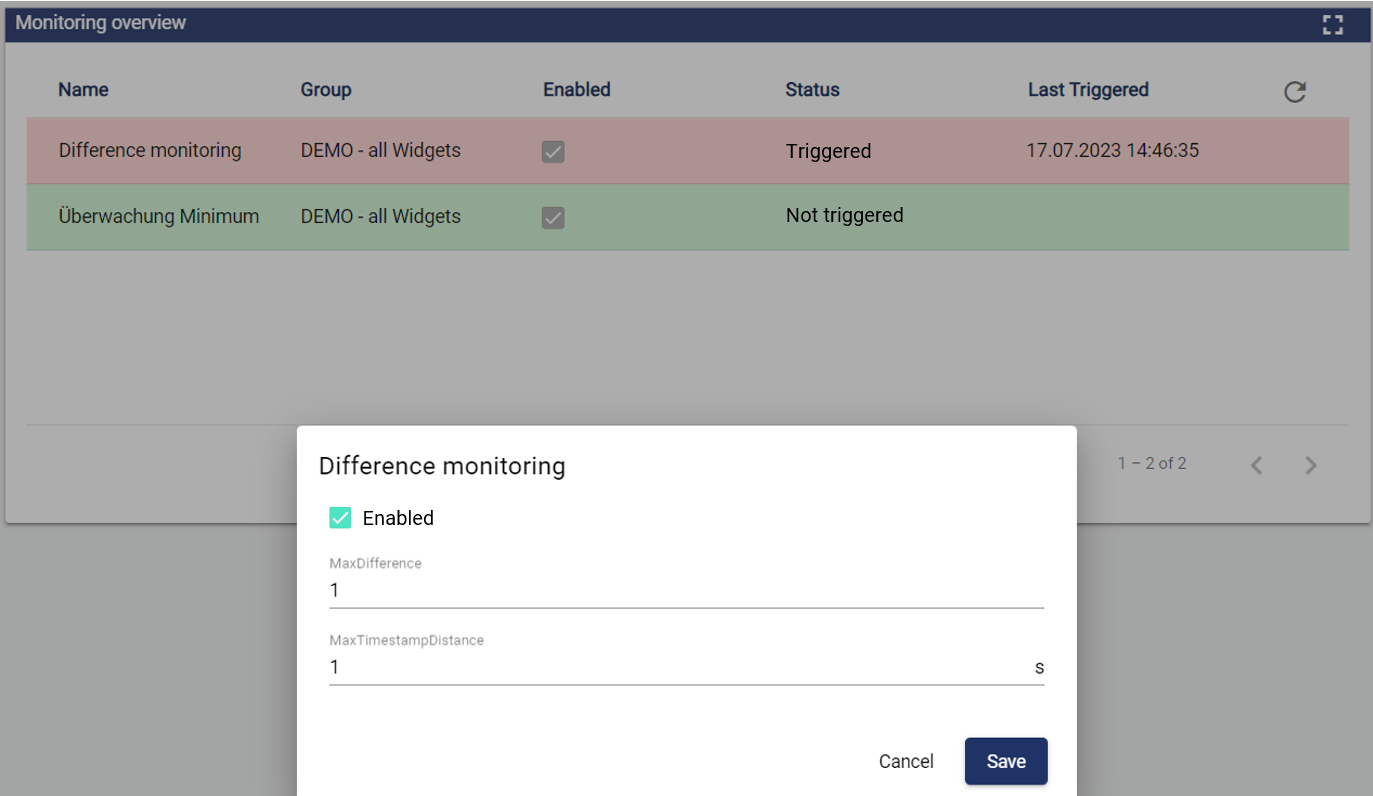

3.) With the brand new widget: Widget: Monitoring Management, users can now configure monitoring objects in the dashboard. Previously, these objects could only be edited in the configuration (Monitoring) . The widget also displayes the status and the last triggers.

4.) To simplify the commissioning of JUMO smartWARE SCADA, an industrial PC (IPC) with a pre-installed SCADA solution was introduced as a commodity. This completely eliminates the installation effort; only the license has to be purchased and entered. In addition, a commissioning guide has been created to assist with the first steps.

Order number and features of the IPC

Order number: 30049882

701829-0-1 (IPC for JUMO smartWARE SCADA)
Basic type: JUMO smartWARE SCADA Accessories
Software Add-on: without
Hardware Add-on: IPC for JUMO smartWARE SCADA

The JUMO smartWARE SCADA (701820) software can only be used on the industrial separate license on the industrial PC (IPC). It is not necessary to install the software on the IPC, since it is preinstalled.

  • Housing: Slim aluminum housing with cooling system, without fan

  • Dimensions: 165mm (W) x 126mm (D) x 57mm (H)

  • Operating system: Ubuntu Desktop 20.04 64bit LTS

  • Processor: Intel Core i5-10210U, 4/8 1.6GHz

  • RAM: 16 GB (2x8 GB)

  • Storage/Drive: 128GB SSD + 1024GB Samsung SSD PM9A1 M.2 NVMe - Expansion

  • Slot types: M.2, MiniPCIe, SIM slot

  • Graphics ports: HDMI, Displayport

  • Gigabit LAN: 2

  • Serial ports: 2 (RS232, RS485)

  • of which usable as RS232: 2

  • of which usable as RS485: 2

  • USB 2.0: 4

  • USB 3.2 Gen 1 (USB 3.0): 4

  • Digital I/O: 0

  • Operating temperature: -10°C - 60°C

  • Mounting: Wallmount

  • Mounting Industry Barebone

  • IP protection complete: none

5.) Bug fix and system maintenance
