Widget: Resettable Counter

Use

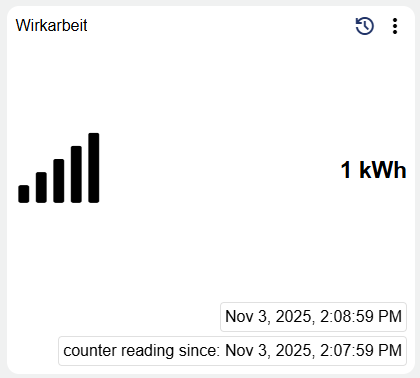

This widget visualizes the current value of a counter signal. The button below the icon can be used to reset the counter to 0.

The three dots in the upper right corner can be used to call up the following detailed information about the signal:

	Can be set via "Manage conditions" (see below). Allows to edit the conditions (Alarm thresholds) set in the signal.
	Can be set via "Include signal history" (see below). Allows you to view in list form when which historical values were stored in the system.
	Can be set via "Include signal history" (see below). Allows you to view the historical values of the signal via chart .

Configuration

Select the Resettable Counter widget from the Signals category.

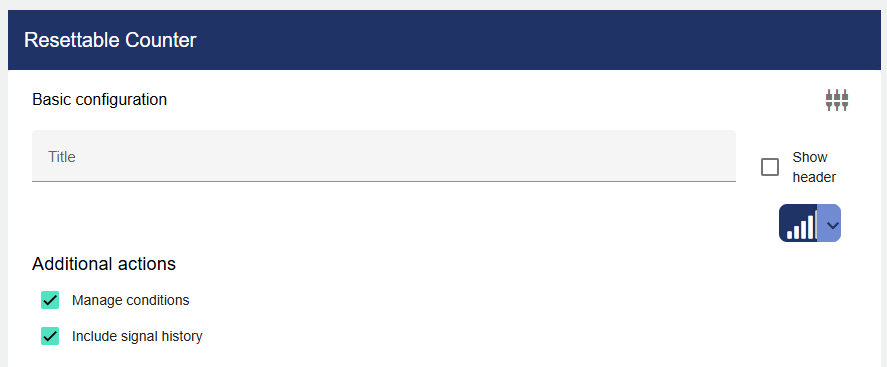

In the Basic Configuration of the Resettable Counter, assign a suitable label (title). The header can be displayed by selecting the check box. As described above, you can also set whether the conditions and signal history should be displayed.

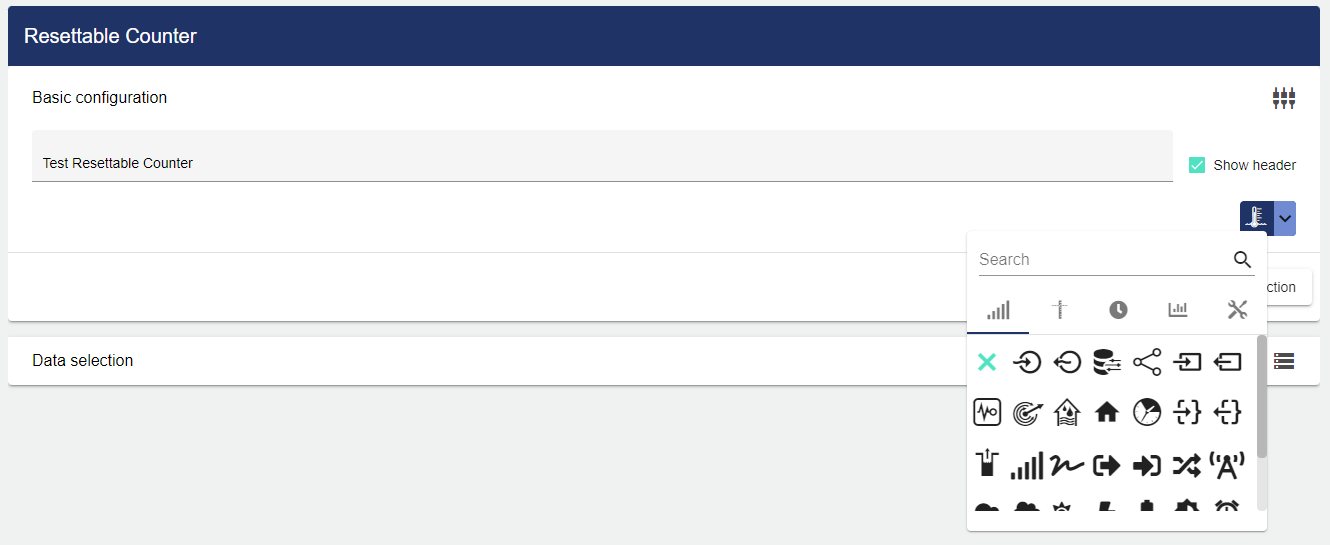

Using the drop-down menu, you can select an icon for your counter.

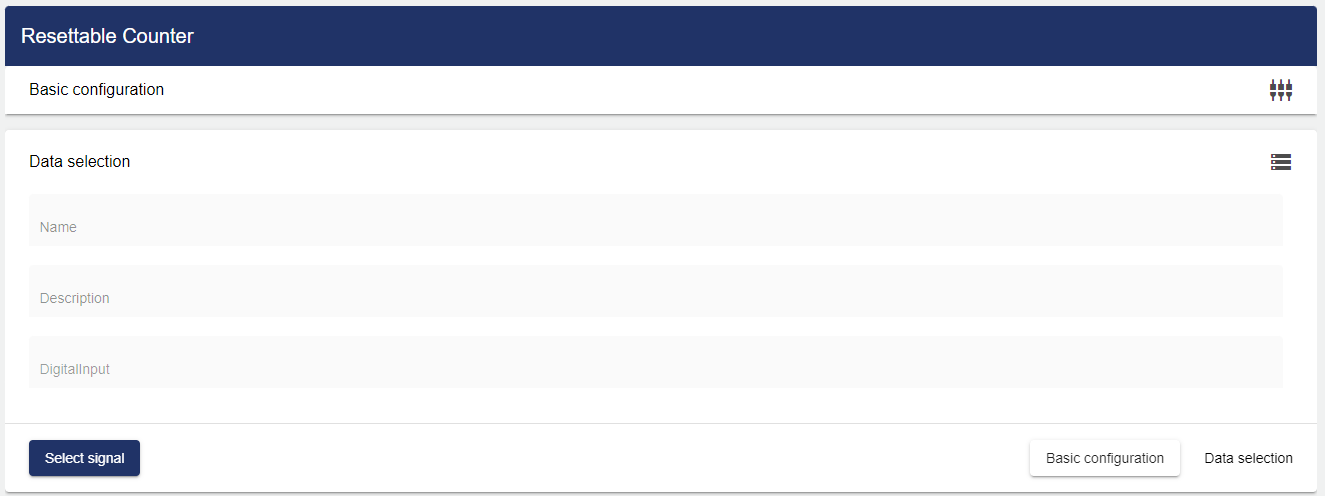

Then go to the "Data Selection" tab and click "Signal".

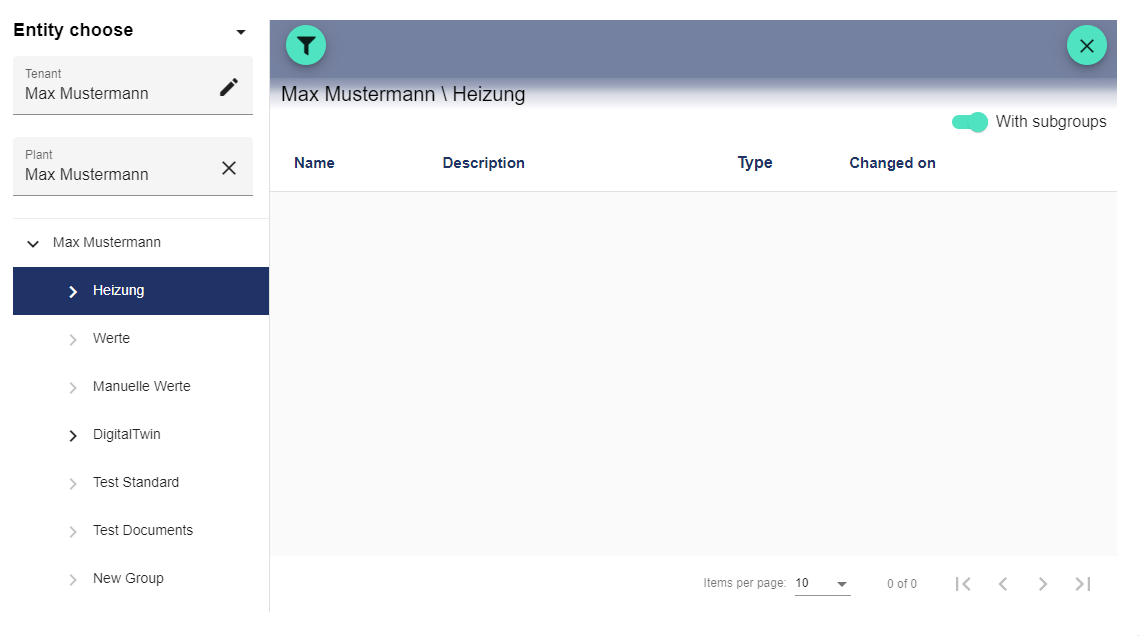

Clicking "Select Signal" opens the Select Entity window. You can add a previously created signal here.

Once you are satisfied with your configuration, you can save it.
