Widget: Batch control

Benutzung

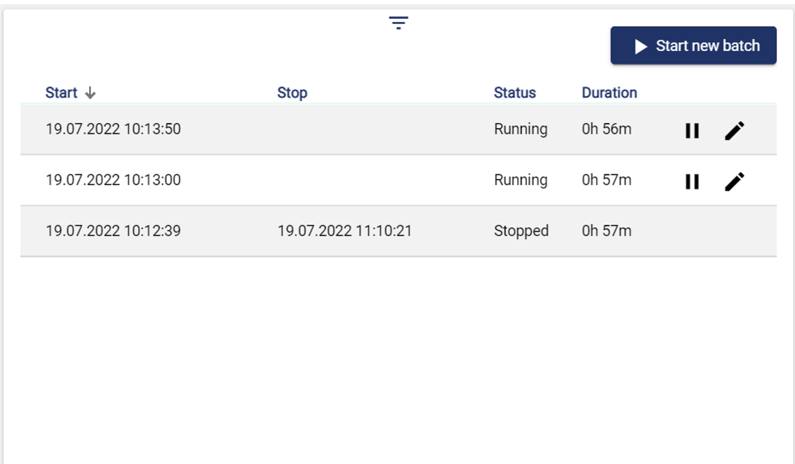

A batch can be started using the "Start batch" button. Beforehand, all necessary loading data must have been recorded manually or by signal. Batches can be stopped using the stop symbol and batch data can be changed using the pen. It is also possible to view curves and header data for the batch.

To use the widget, a Batch Definition must have been created beforehand.

In order to use the widget, the license module “Advanced Reports” must be present.

The operation of several parallel batches is also possible.

Configuration

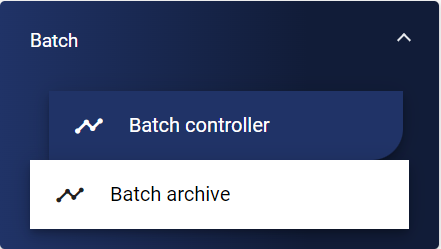

Select the Batch Control widget from the Batch category.

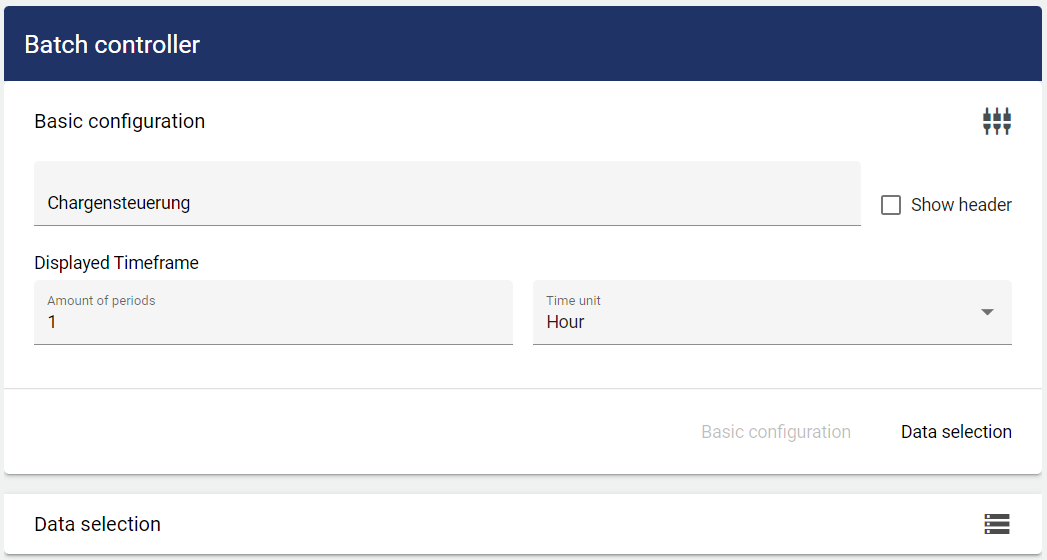

basic configuration The number of periods, together with the time unit, specifies how long past batches that have already been stopped should appear in the list of the widget. If the time is exceeded, the batch can only be found in Widget: Batch Archive

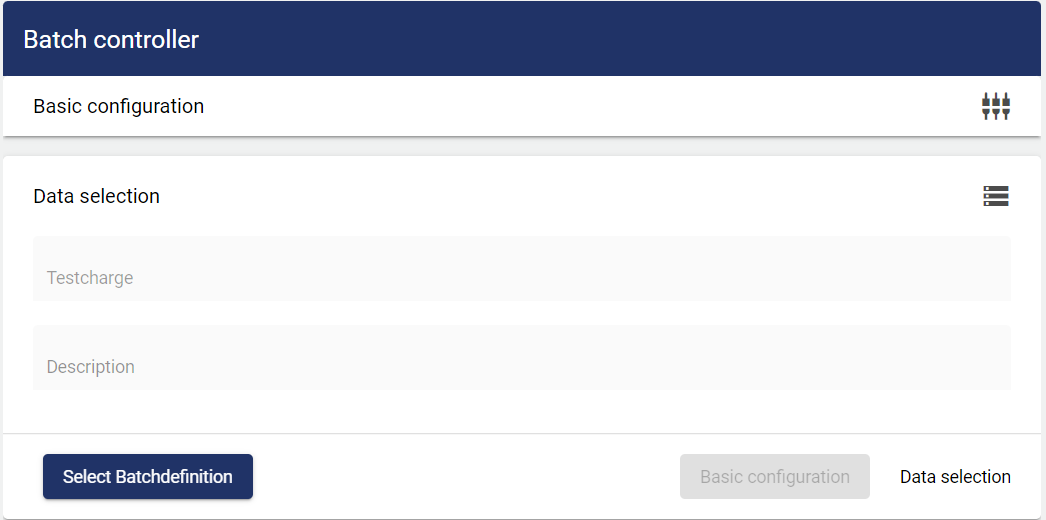

A batch previously created in the configuration under Batch Definition can be selected here.
