Limits and Quota


Limits serve to limit the Signals and datasources within a Client. If a limit is stored, the Maximum column assumes the corresponding upper limit.

Quota refers to a specified number of signals and datasources that can be used, assigned or used to the maximum.

The SCADA-Lizenz specifies how high the maximum of signals and datasources can be.

Type

Signal and Datasource

Assign

Specifies how many signals and datasources were assigned as "quota" for all sub-clients.

Maximum

Specifies the maximum number of signals and datasources available as "quota" for this client and all sub-clients and the maximum that can be distributed to sub-clients.

Used

Specifies how many signals and datasources are used in this client and all sub-clients (or created in the configuration).

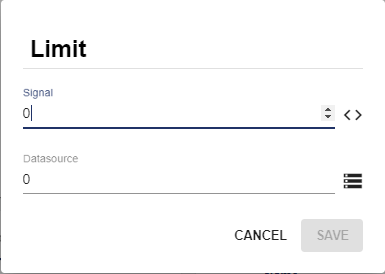

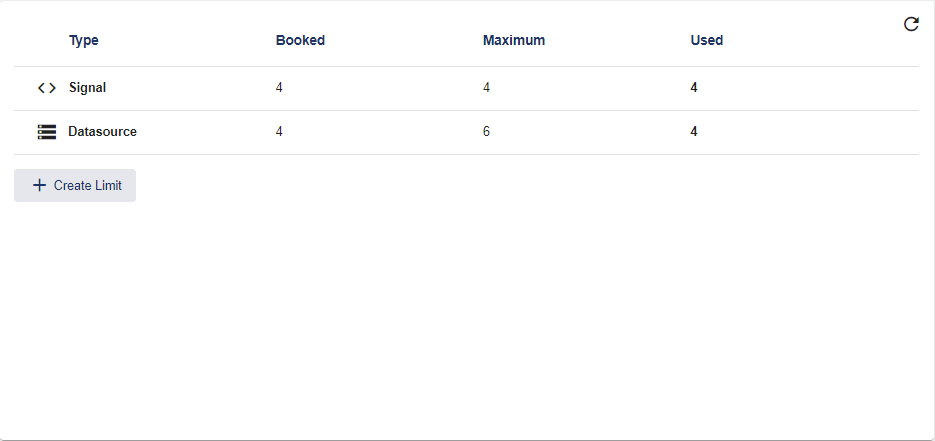

Create Limit

  1. Select "Create Limit" and the "Limit" pop-up window opens.

  2. Use the arrow keys or the text field to set the limits for signals and datasources.

  3. Save the change.

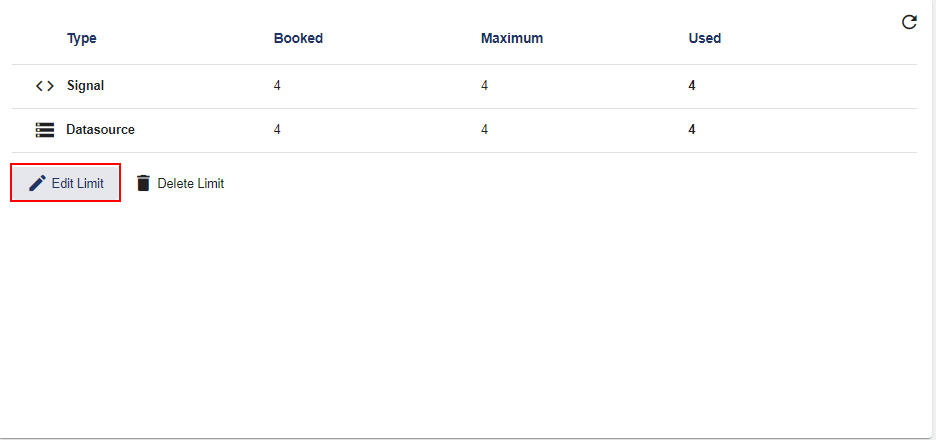

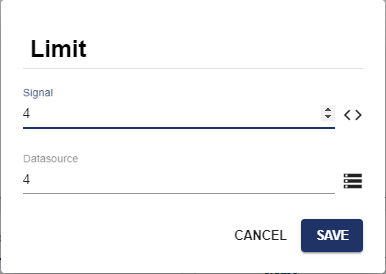

Edit Limit

  1. Select "Edit Limit" and the "Limit" pop-up window opens.

  2. Use the arrow keys or the text field to set the limits for signals and datasources.

  3. Save the change.

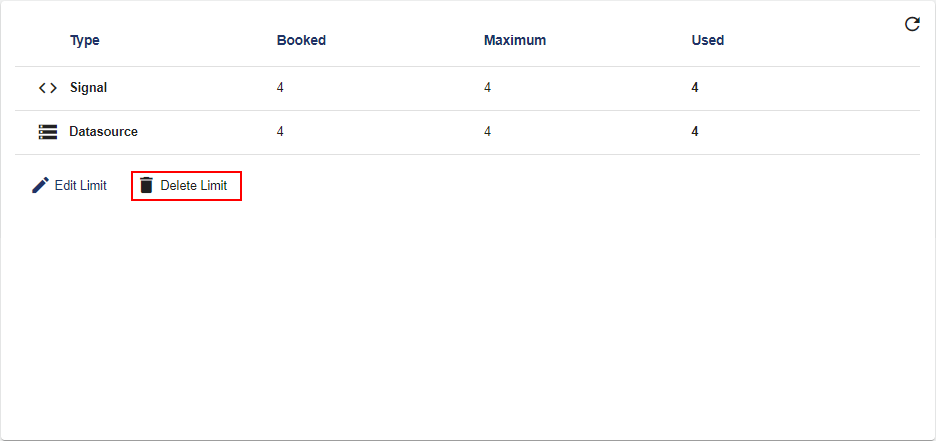

Delete Limit

You can easily remove the created limits by clicking the "Delete Limit" button.


Recount Signals and Datasources

There is an option to recount signals and datasources. To trigger the count, click the following button (top right):
