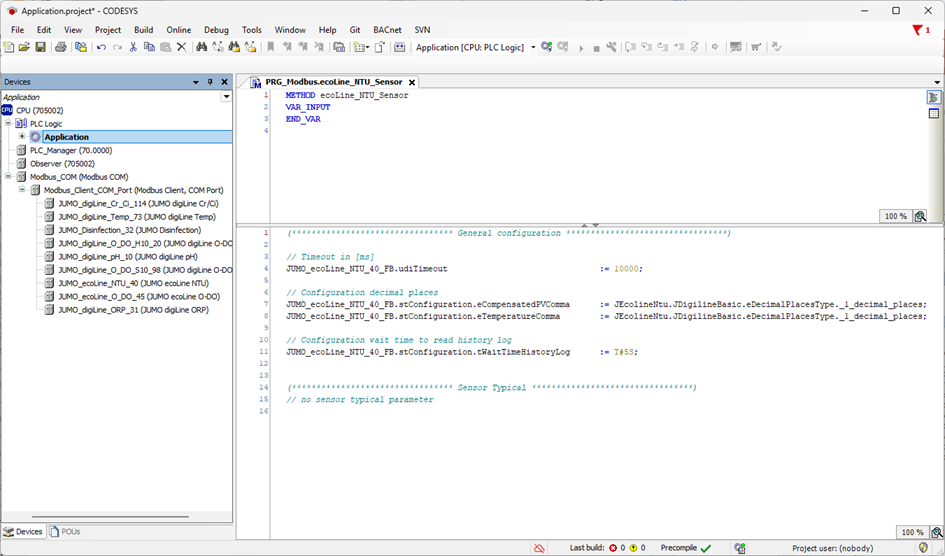

General configuration
|
Timeout |
If the default value (10000 ms) is too low or too high (depending on the number of devices at the interface), it can be modified. |
|
Decimal place |
The decimal place for the values shown in the Visu object can be changed here. |
|
WaitTimeHistoryLog |
If the default value (8 s) is too low or too high (depending on the number of devices at the interface), it can be modified. |
Device-specific configuration and parameterization
None available.
Calibration
Press the button to start calibration.

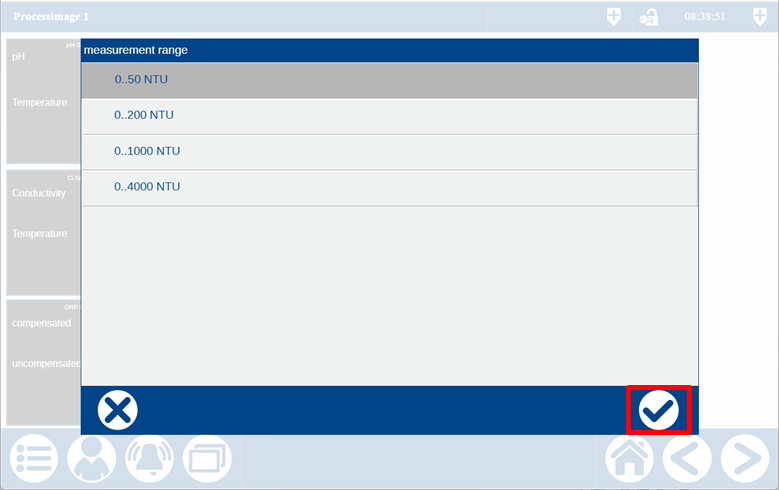

The measuring range must be selected first.
Four measuring ranges which can be calibrated are available to choose from here.

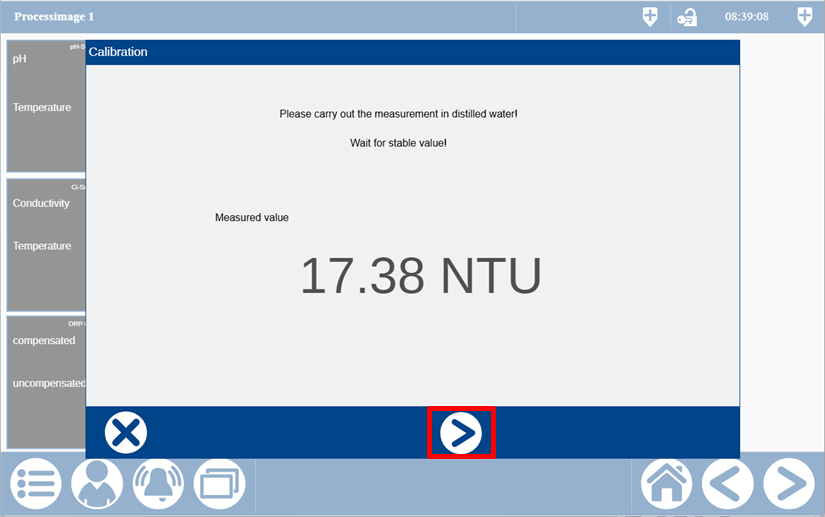

The electrode first has to be cleaned here, then immersed into the reference solution. Only when the displayed value is stable can you skip to the next step.

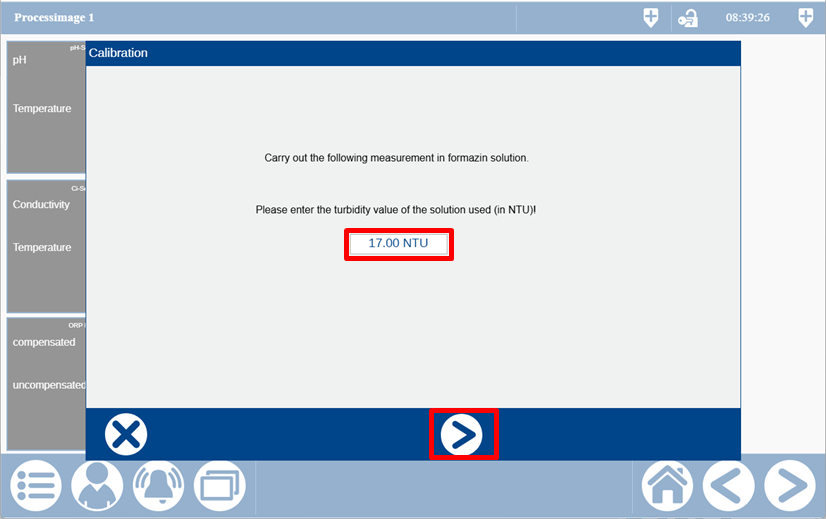

The reference value must then be input. You can only skip to the next step once a valid value has been input.

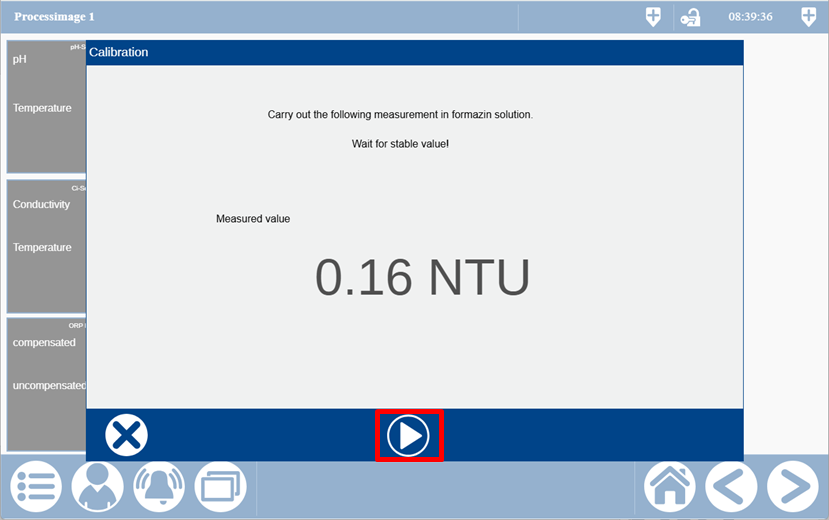

Only when the displayed value is stable can you skip to the next step.

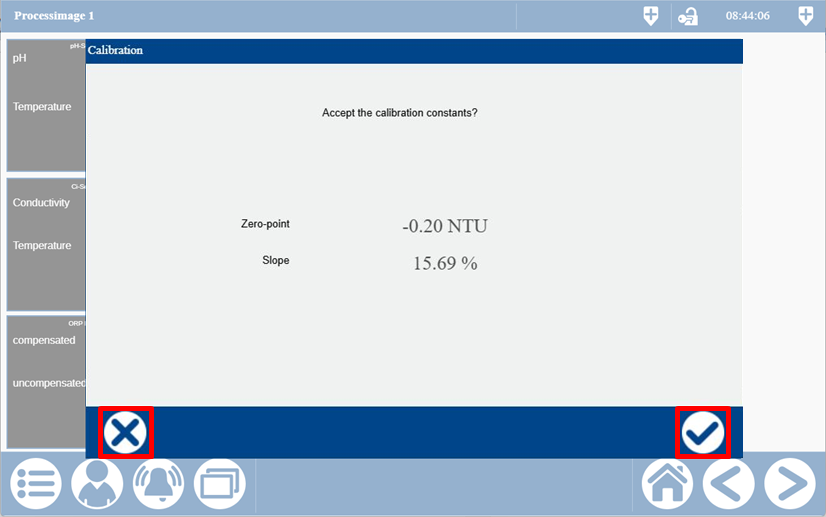

The result is displayed when processing is complete. The calibration can now be adopted or rejected via the buttons.
