Widget: Audit Logs


Use

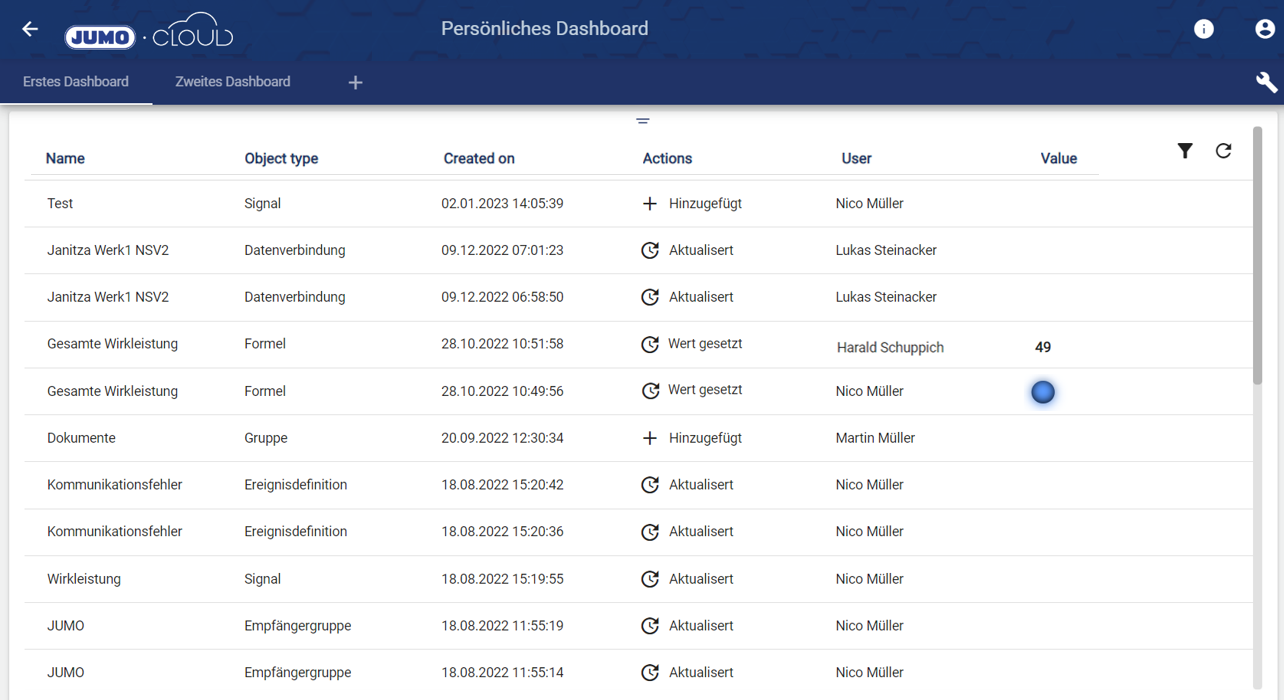

The Audit Logs widget displays the name of the signal and the date when the signal was changed. "Actions" shows the change that was made and "Value" shows the value received by the signal. Lastly, the user who made the change is displayed.

The Audit Logs widget displays the changes of any setpoint signal.


Configuration

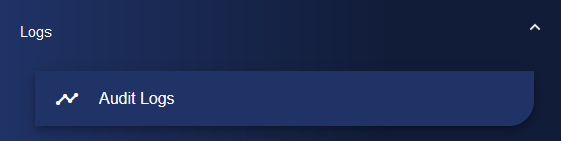

Select the Audit Logs widget from the Logs category.

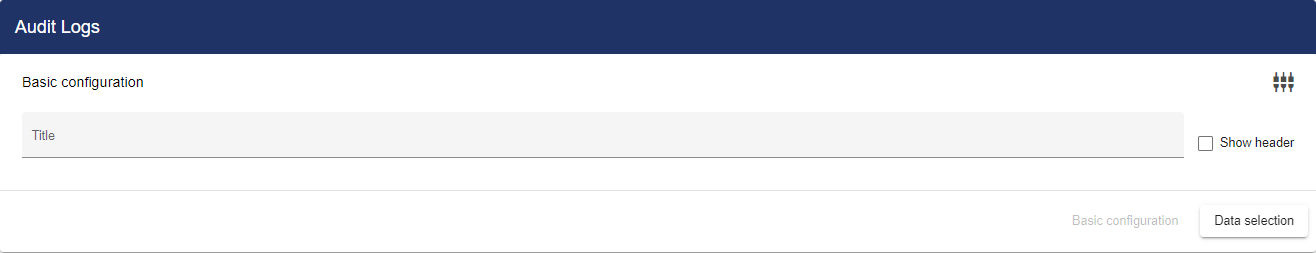

Assign a suitable title in the Basic Configuration for the Audit Logs. The header can be displayed by selecting the check box.

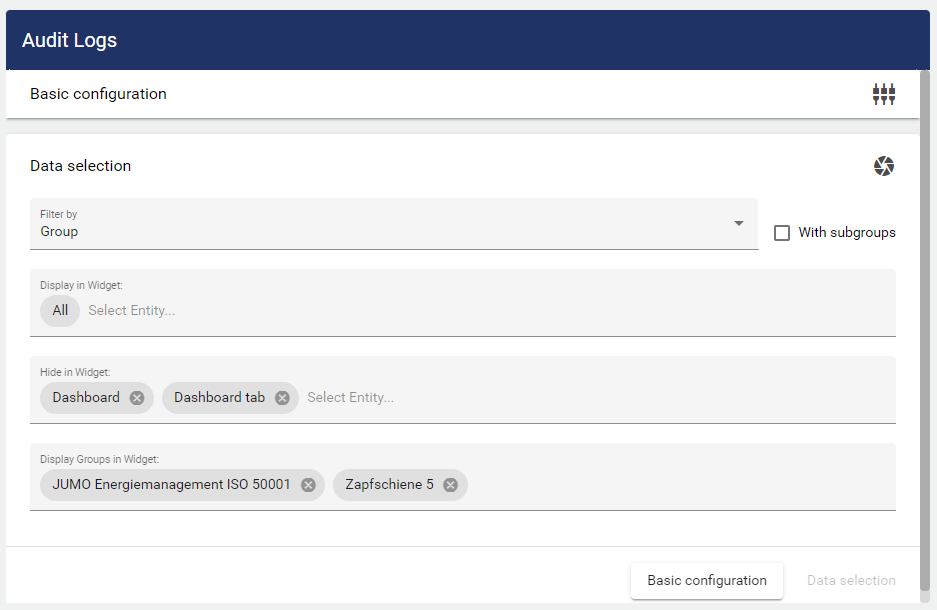

Then go to the "Data Selection" tab and click "Select Signal".

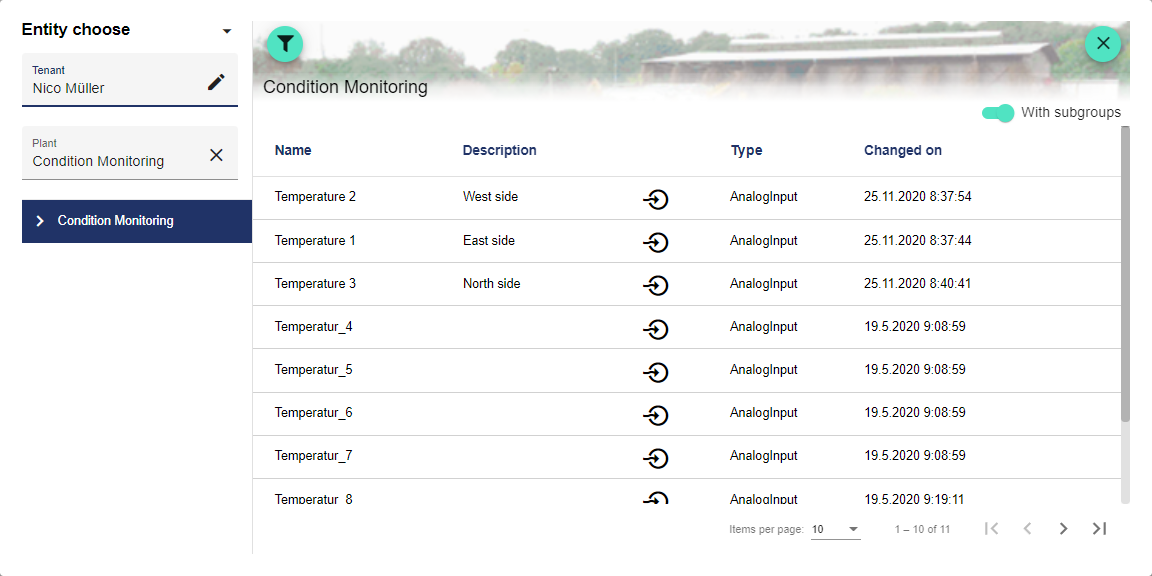

Clicking "Select Signal" opens the Select Entity window. You can add a previously created signal here.


Once you are satisfied with your configuration, you can save it.
