Widget: Pdf-Viewer

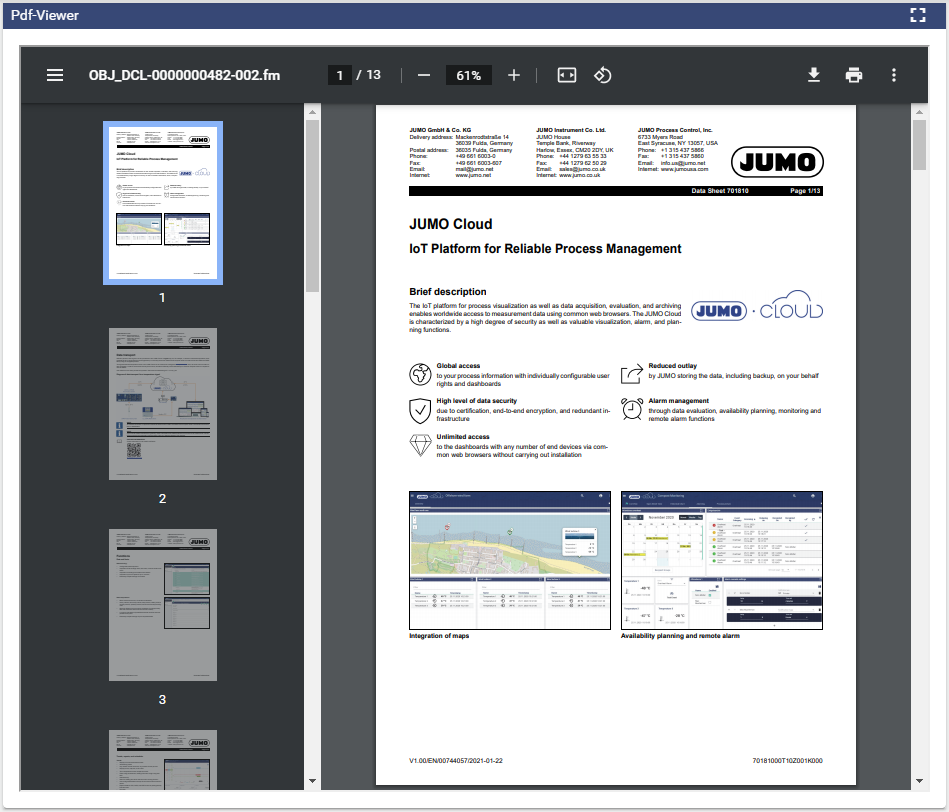

In the PDF Viewer widget, you can display PDF files that you previously uploaded to the JUMO smartWARE SCADA.

The prerequisite for this is that you created a Group with group type "Documents" in the Configuration and uploaded an image format here.

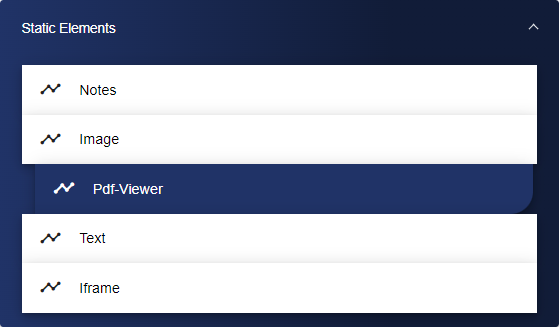

Select the PDF Viewer widget from the Static Elements category.

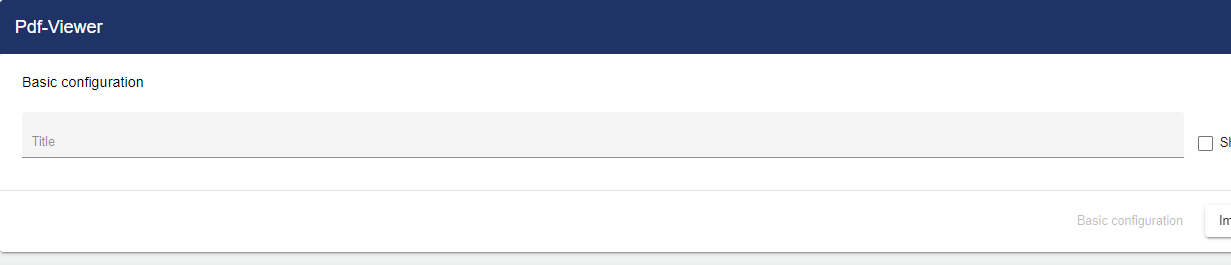

Assign a suitable title in the Basic Configuration of the PDF Viewer. The header can be displayed by selecting the check box.

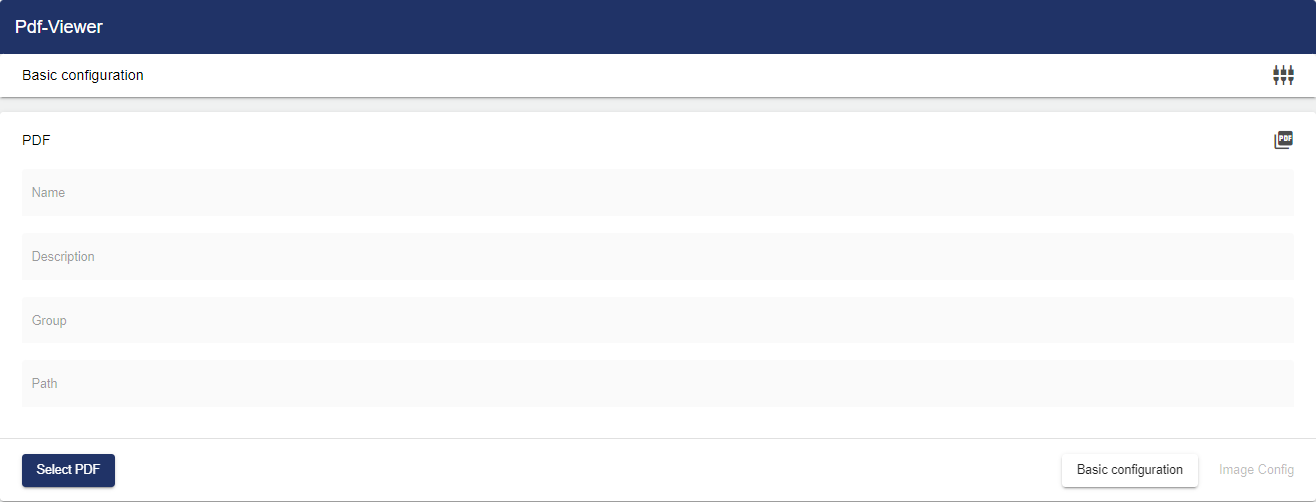

Then go to the "PDF" tab and click "PDF".

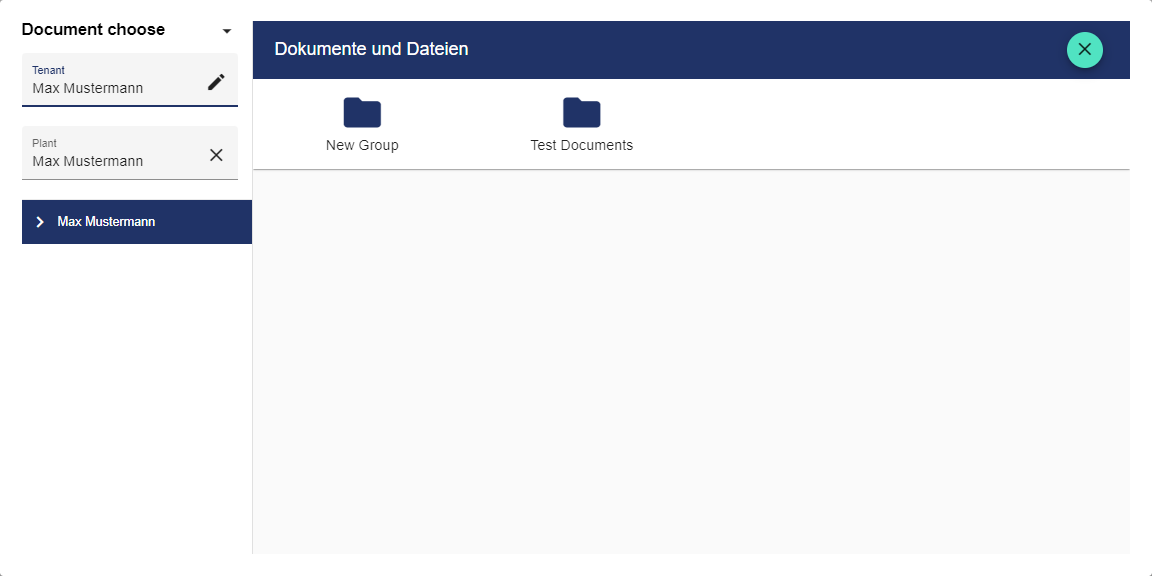

Clicking "Select PDF" opens the Entity-Select window. You can add a PDF file that was created earlier.

Once you are satisfied with your configuration, you can save it.
