Widget: Report


Use

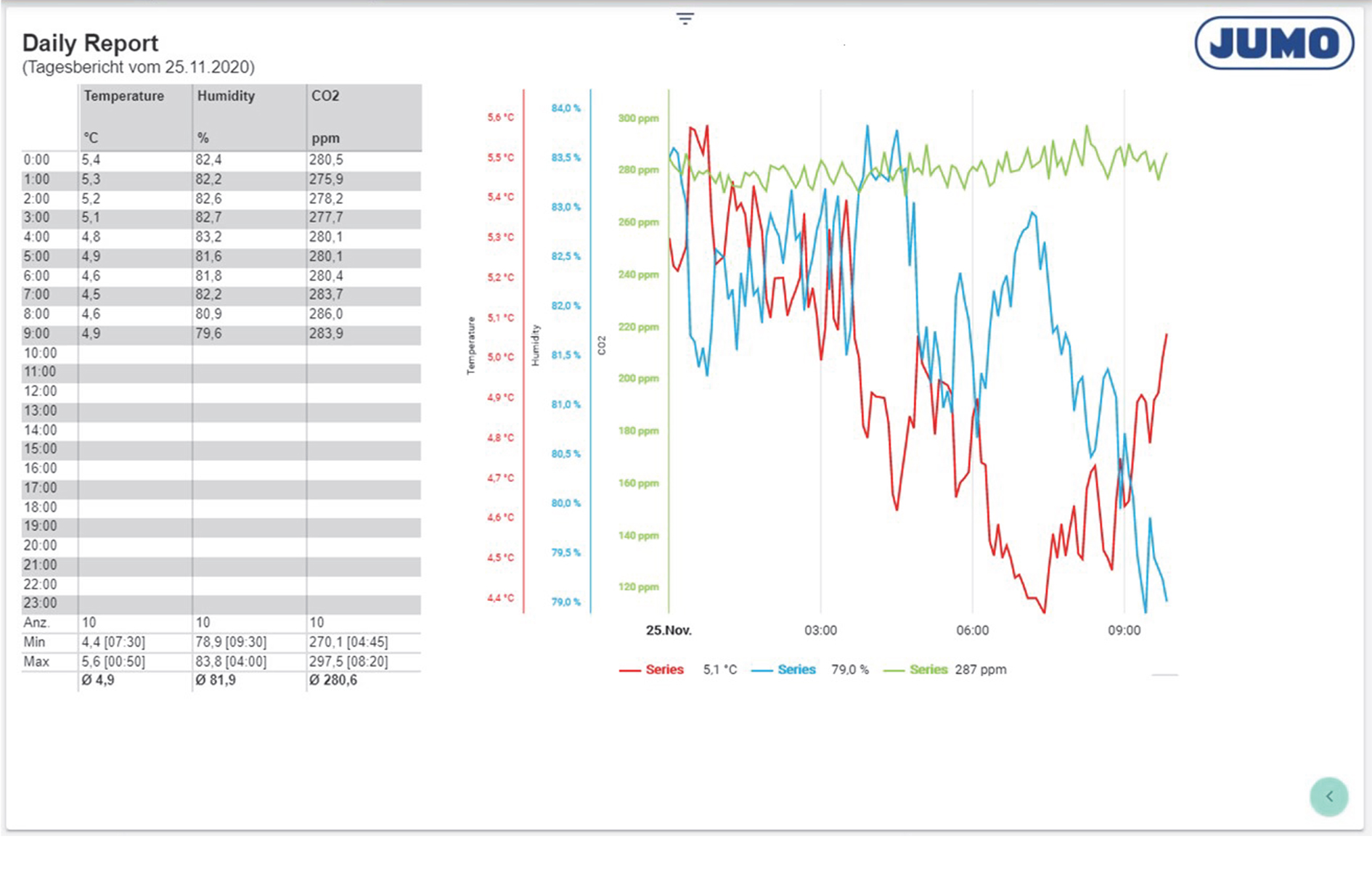

The Report widget allows you to insert a Report into the Dashboard. Depending on the report template, this allows individual information to be displayed in the user's own design.

If you would like to have a customized report created, please contact JUMO.

Benutzerhandbuch_ Dashboard_WidgetsSCADA_Bericht Grafik 1 bearbeitet v2.png

Configuration

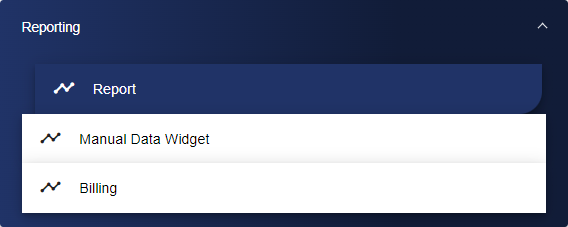

Select the Report widget from the Reporting category.

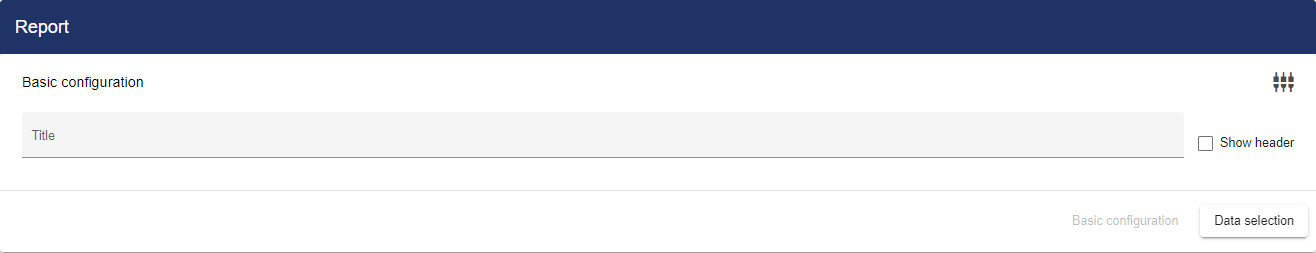

Assign a suitable title in the Basic Configuration for the Report. The header can be displayed by selecting the check box.

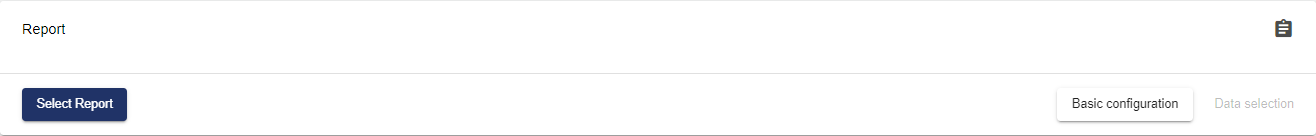

To select a report, click "Select Report" in the Data Selection tab.

The prerequisite for a Report is the previous creation of a Report in the configuration.

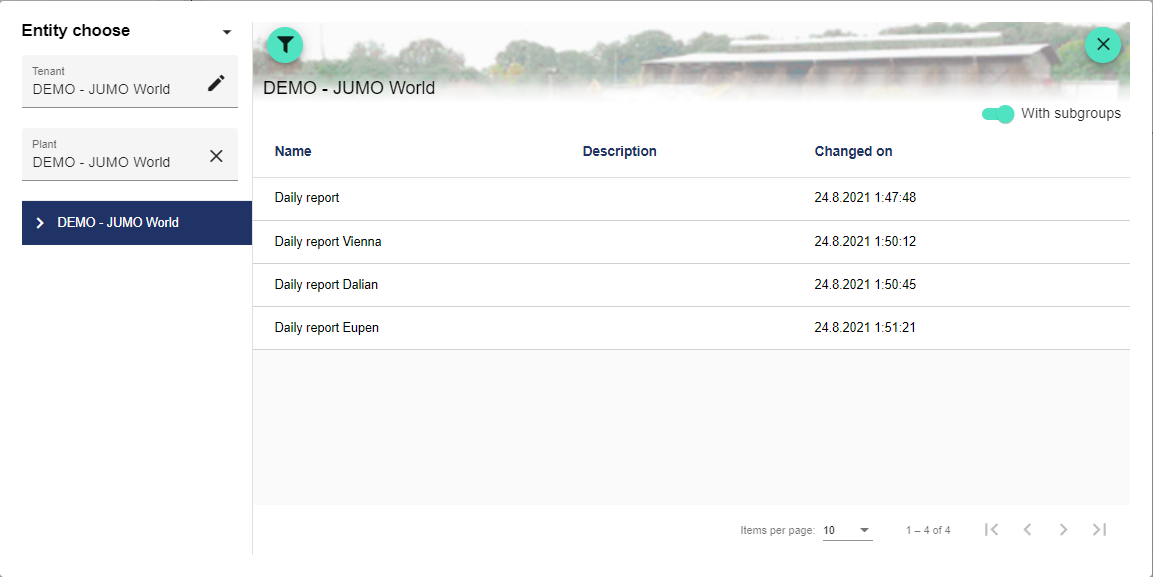

Clicking "Select Report" opens the Entity-Select window. You can add a previously created report here.


Once you are satisfied with your configuration, you can save it.
