Widget: Image
Use

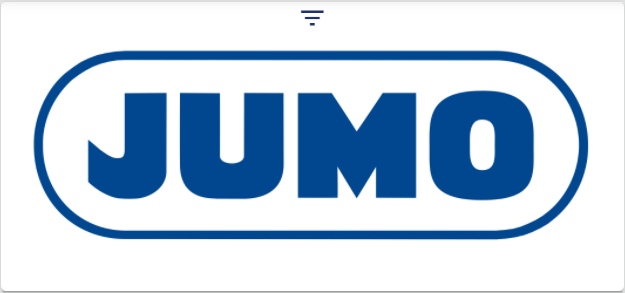

In the Image widget, you can view images that have already been uploaded. The following image formats are supported: jpg, png and gif.
The prerequisite for this is that you created a Group with group type "Documents" in the Configuration and uploaded an image format here.
![](../../__attachments/1569259633/image-20210401-120055.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Configuration

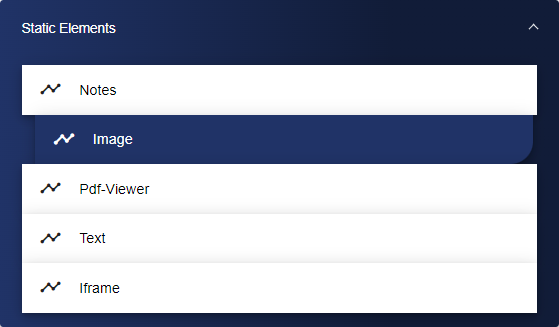

Select the Image widget from the Static Elements category.
![](../../__attachments/1569259633/image-20220603-065717.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

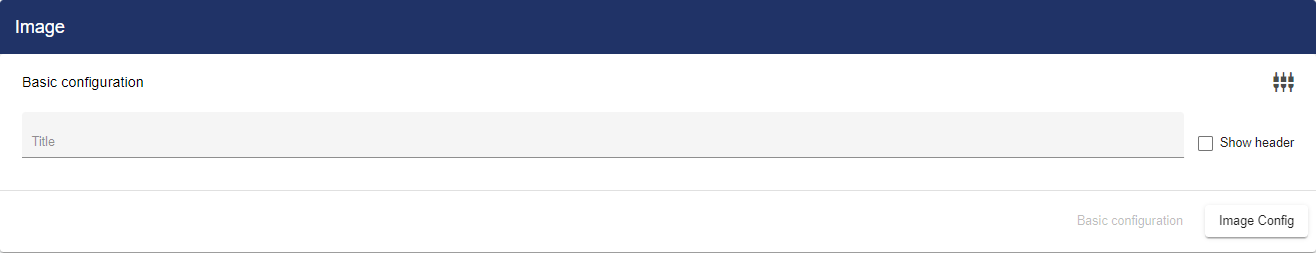

In the Basic Configuration of the Image, assign a suitable title. The header can be displayed by selecting the check box.
![](../../__attachments/1569259633/image-20220603-065734.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

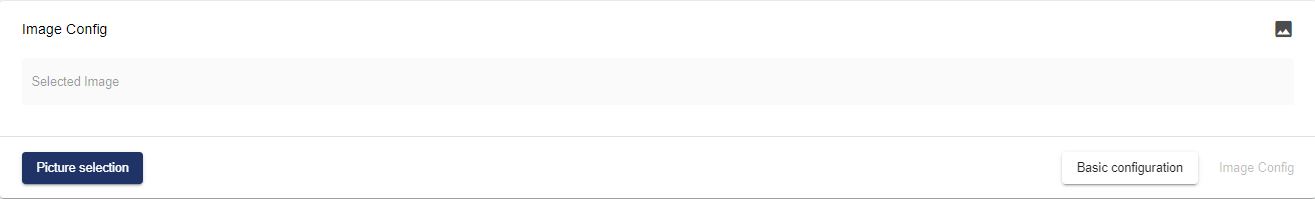

Then go to the "Image Widget" tab and click "Image Selection".
![](../../__attachments/1569259633/image-20220603-065805.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

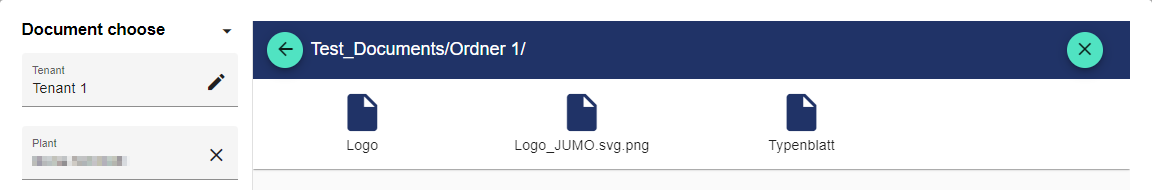

Clicking "Image Selection" opens the Entity-Select window. A folder structure is displayed showing all available images.
![](../../__attachments/1569259633/image-20220603-065929.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

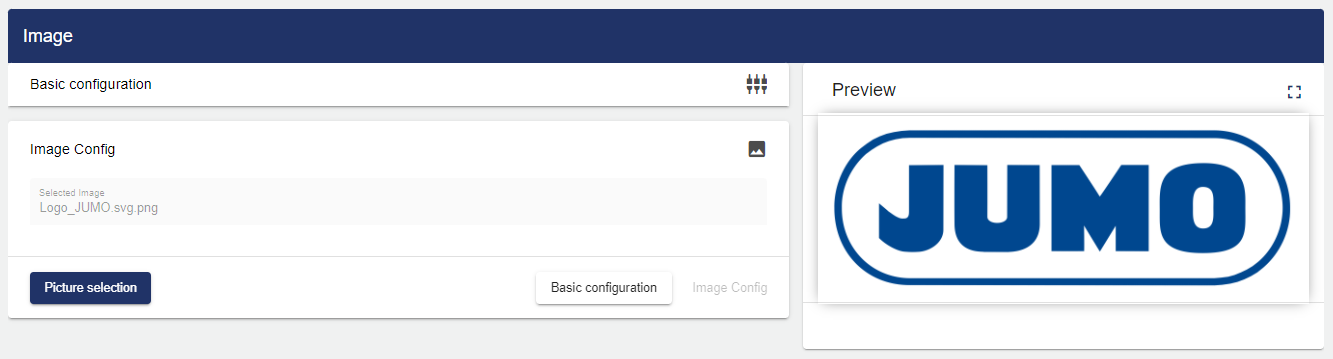

After selecting the image, the image is previewed automatically.
![](../../__attachments/1569259633/image-20220603-074955.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Once you are satisfied with your configuration, you can save it.
