Widget: Basic Map
Use

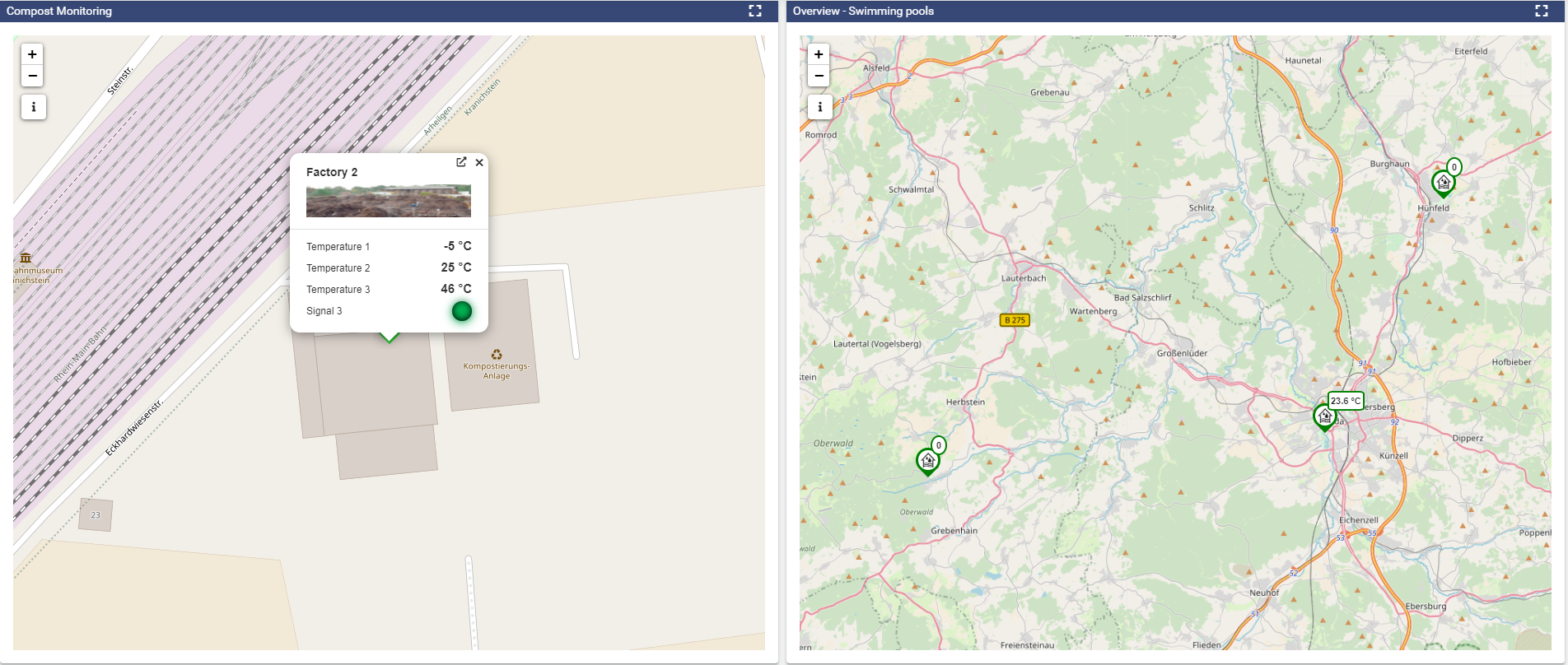

The Map allows you to visualize an open-street map with different markers and icons. In this way, you can display your objects/systems in an optimal way and always see at a glance whether there is a fault (unacknowledged event) or similar at the landmark you have selected. This can help by notifying employees to resolve issues quickly and efficiently. If you click one of the markers, I receive additional information and the option to "jump" to a corresponding Dashboard (top right, the arrow that points out of the box).
![](../../__attachments/1569095854/image-20210609-122207.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Configuration

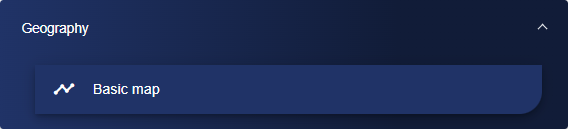

Select the Map widget from the "Geography" category.
![](../../__attachments/1569095854/image-20220603-062400.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

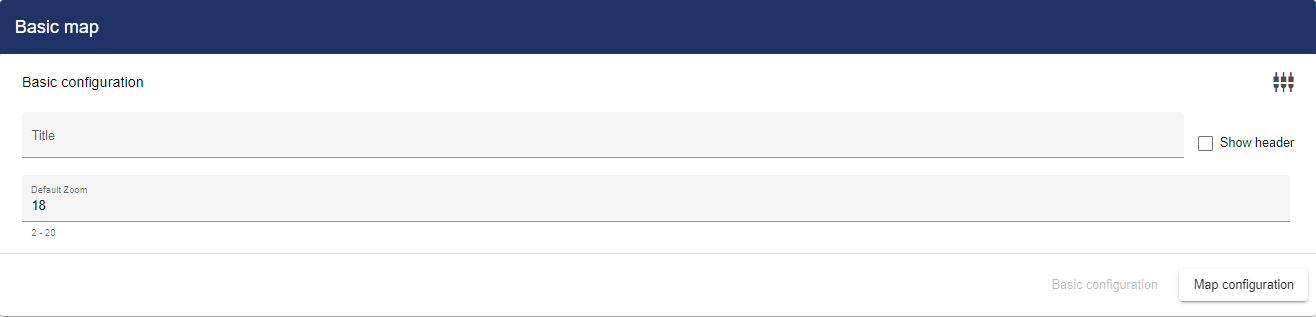

Assign a suitable title in the Basic Configuration for the map. The header can be displayed by selecting the check box. The default zoom specifies the zoom factor (2 - 20), in which the map is displayed after the widget is started. The smaller the factor, the further out the zoom. The zoom can be varied using the mouse wheel.
![](../../__attachments/1569095854/image-20220603-062413.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

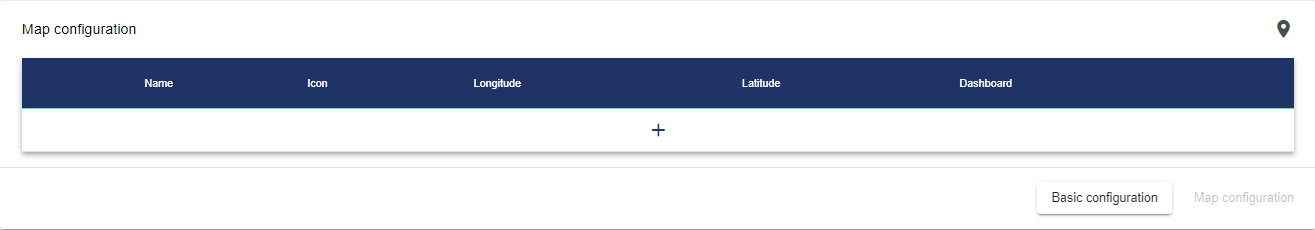

Then go to the "Card Configuration" tab and click the "+" icon. A drop-down menu opens in which you can choose between Group, User-defined and Dynamic:
Group | This setting uses the location (longitude, latitude), the group image and the description of the respective group. These can be configured under Details. |
User-defined | With this setting, the length and width specifications can be set individually in the widget. |
Dynamic | With this setting, the length and width data can each be integrated from a Signal. The corresponding signal can be transmitted dynamically from a GPS source to the JUMO smartWARE SCADA via the JUMO variTRON using a gateway and SIM card. This mode allows moving objects to be mapped in the widget. |
Images can only be included as described when "Group" is selected.
![](../../__attachments/1569095854/image-20220603-062502.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

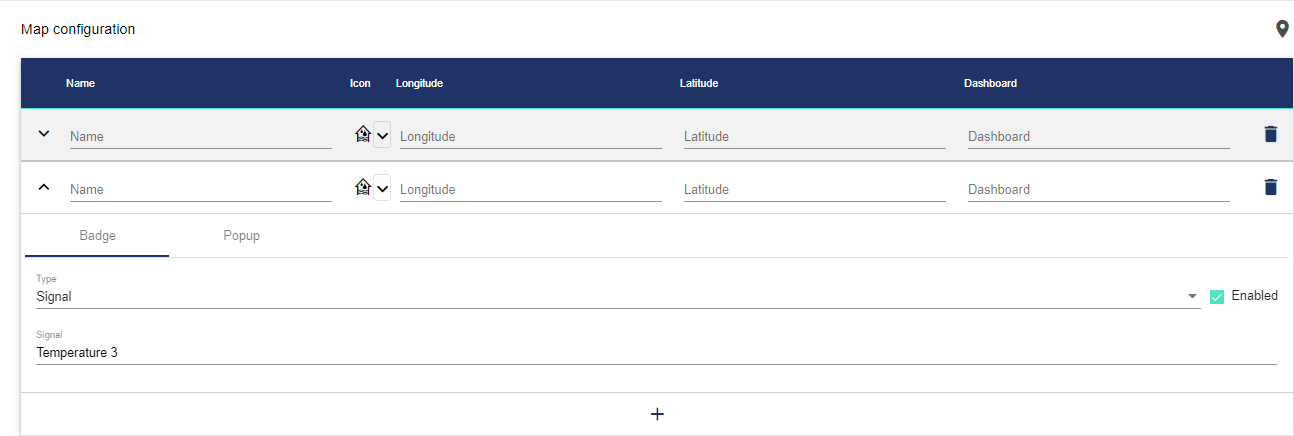

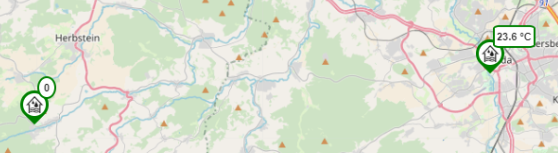

The "Badge" is used to set what can be seen on the landmarker. Signals as well as an Event Definition and an Event Category can be selected here. For a signal, the value is displayed in the bubble above the marker (on the right in the image below); for events, the respective number of active events is displayed (on the left in the image below).
![](../../__attachments/1569095854/image-20210609-144636.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
![](../../__attachments/1569095854/image-20220603-062636.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

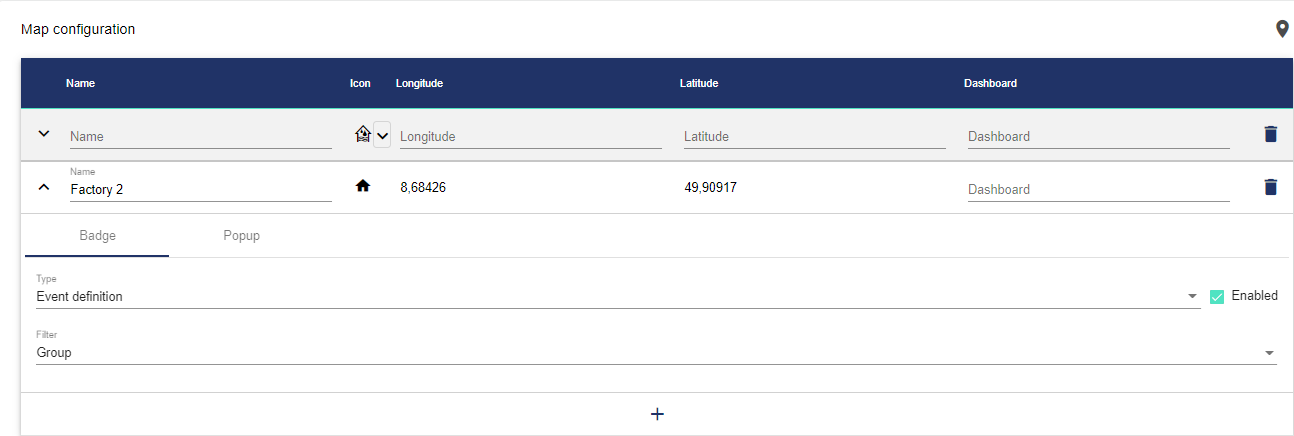

You can add signals and choose an individual Recording Interval under the "Popup" tab. If the marker was created as a "Group", you can additionally specify whether the "Image" and the "Description" are also to be displayed.
![](../../__attachments/1569095854/image-20210609-150510.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
![](../../__attachments/1569095854/image-20220603-062750.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Once you are satisfied with your configuration, you can save it.
