Output value type stDoubleValueType

In the library JCmpVisuBasic the following output objects are available for the floating points type stDoubleValueType and stDoubleValueBaseType:

OutputstDoubleValue: Output of real value via the structure variable.
OutputstDoubleValueBase: Output of real value via the structure variable.

stDoubleValueTyp/stDoubleValueBaseTyp: the structure contains the following variables:
lrValue: long real value
eValueError: enum for error.
eValueStateNamur: enum for the name status.
udiUnitType: value for the unit. (only for stDoubleValueTyp)

In the project, the necessary structures can be defined as follows:

VAR
// Example for Output Double Object
stDoubleValue : JCmpVisuBasic.JCmpUtilItf.stDoubleValueType;
stDoubleValueBase : JCmpVisuBasic.JCmpUtilItf.stDoubleValueBaseType;
END_VAR

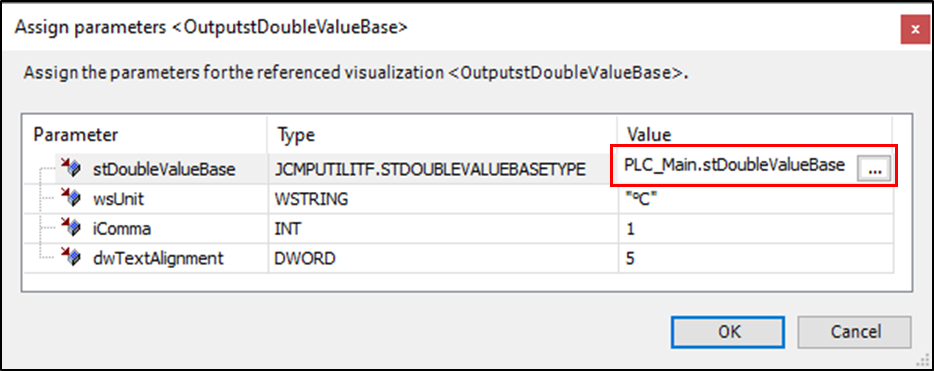

The structure defined above must now be transferred for the transfer parameters.

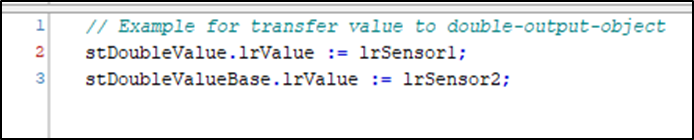

In the code, the output of the long real value can be output as follows:
