Different concepts can be realized for the system type definition. To show two common concepts, an application of the food industry is used here.
|
System types |

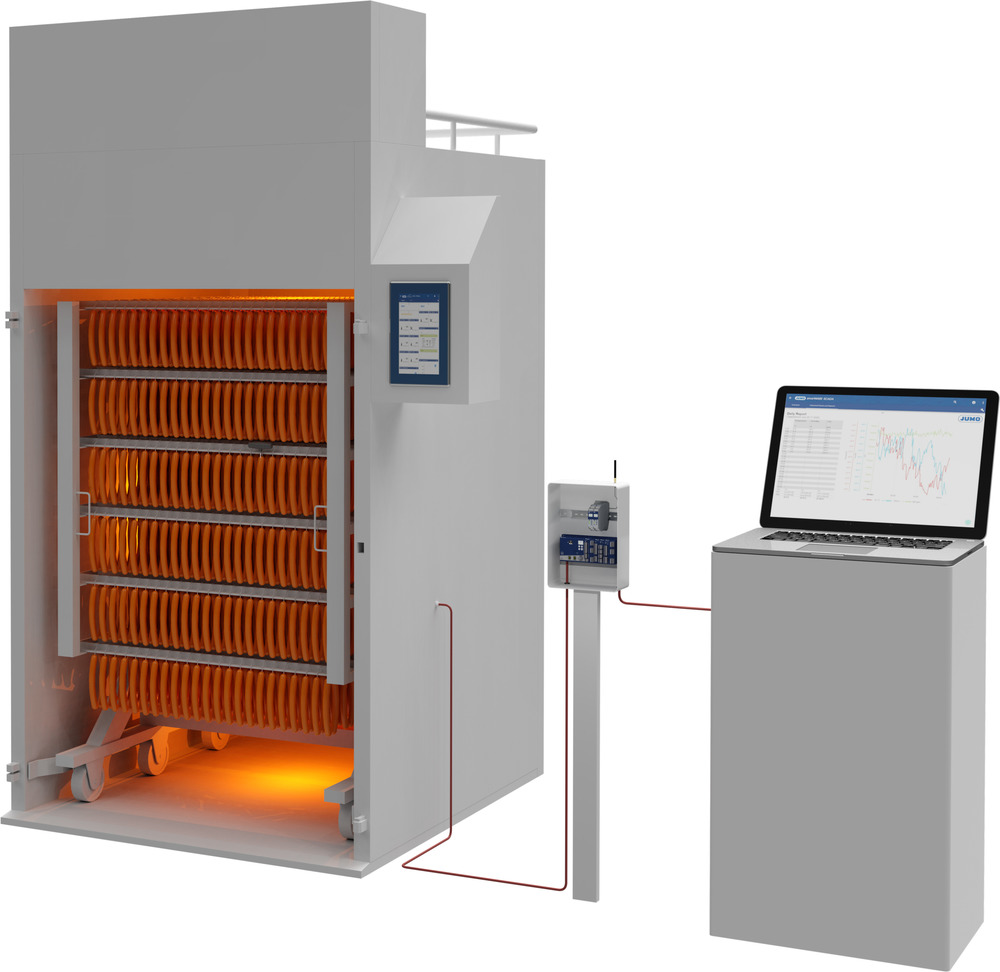

Smoking chamber |

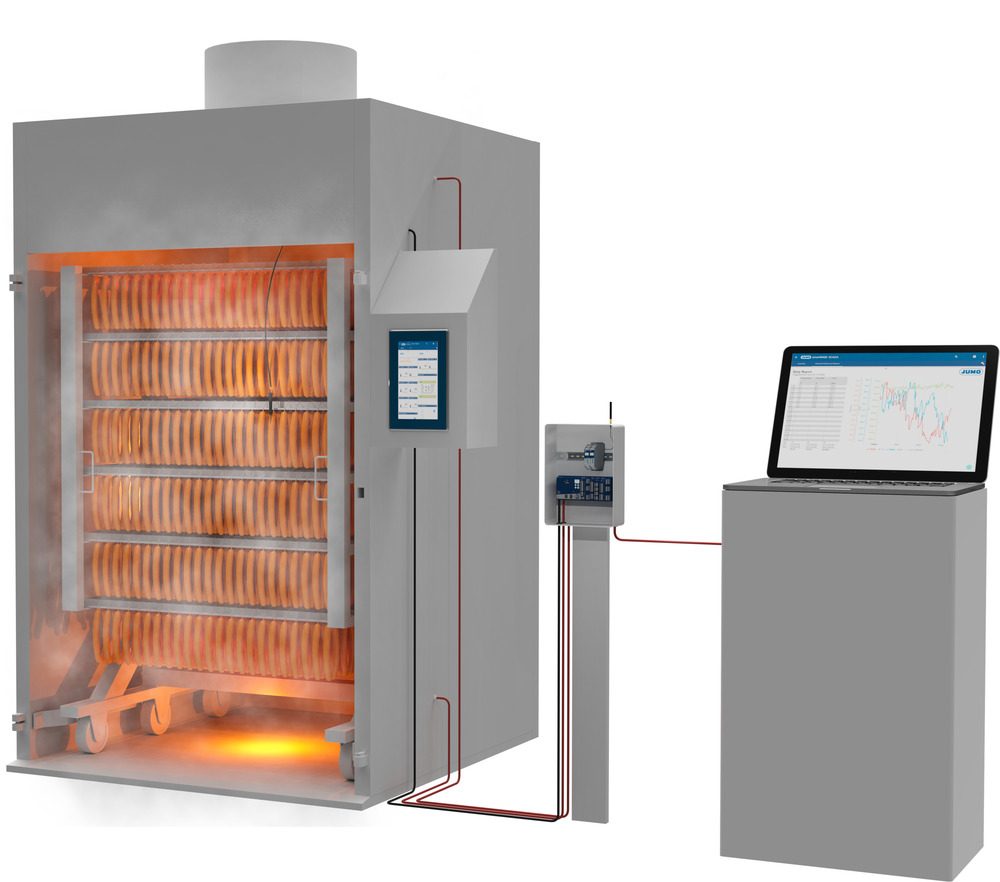

Cooking chamber |
|---|---|---|
|
|
|
|
|
smoking system |
cooking system |
|
|
circulation fan supply air flap exhaust fan exhaust flap electrical heater smoke generator |
circulation fan supply air flap exhaust fan exhaust flap electrical heater |
In this example, system type definitions can be made using the type designation or its properties.
Because of the similarity of the two systems, a definition using properties is recommended.
This would allow a common use of different process steps.
