Widget: Pdf-Viewer
Use

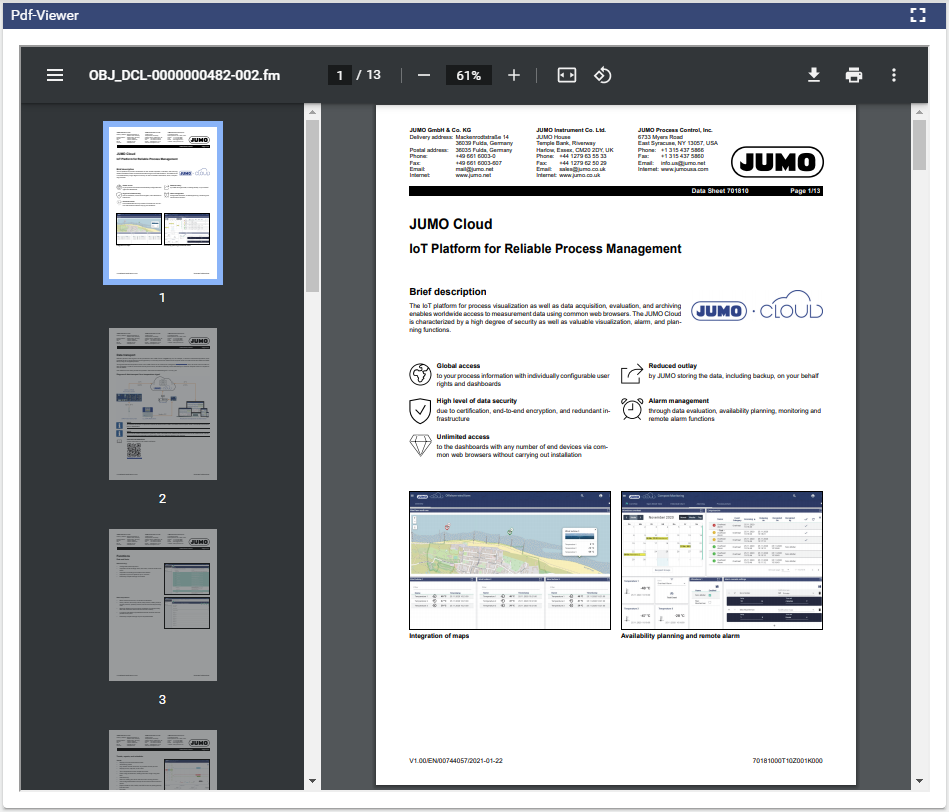

In the PDF Viewer widget, you can display PDF files that you previously uploaded to the JUMO smartWARE SCADA.
The prerequisite for this is that you created a Group with group type "Documents" in the Configuration and uploaded an image format here.
![](../../__attachments/1510837603/image-20210618-115614.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Configuration

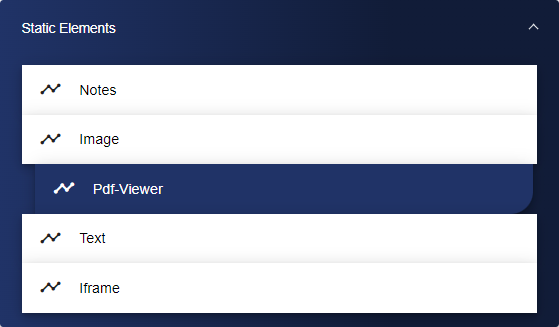

Select the PDF Viewer widget from the Static Elements category.
![](../../__attachments/1510837603/image-20220603-075118.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

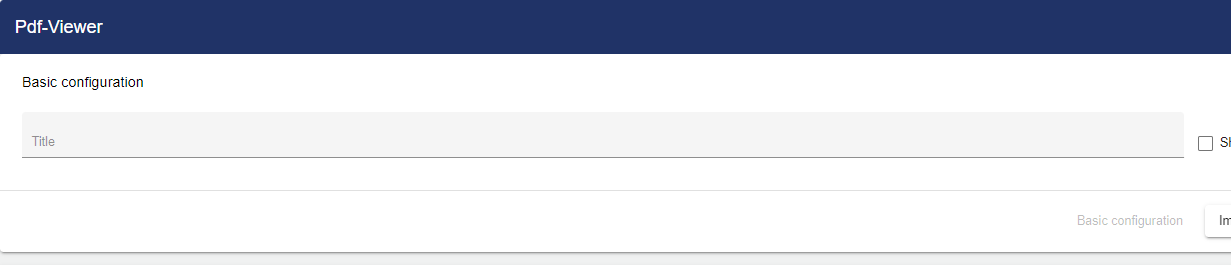

Assign a suitable title in the Basic Configuration of the PDF Viewer. The header can be displayed by selecting the check box.
![](../../__attachments/1510837603/image-20220603-075100.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

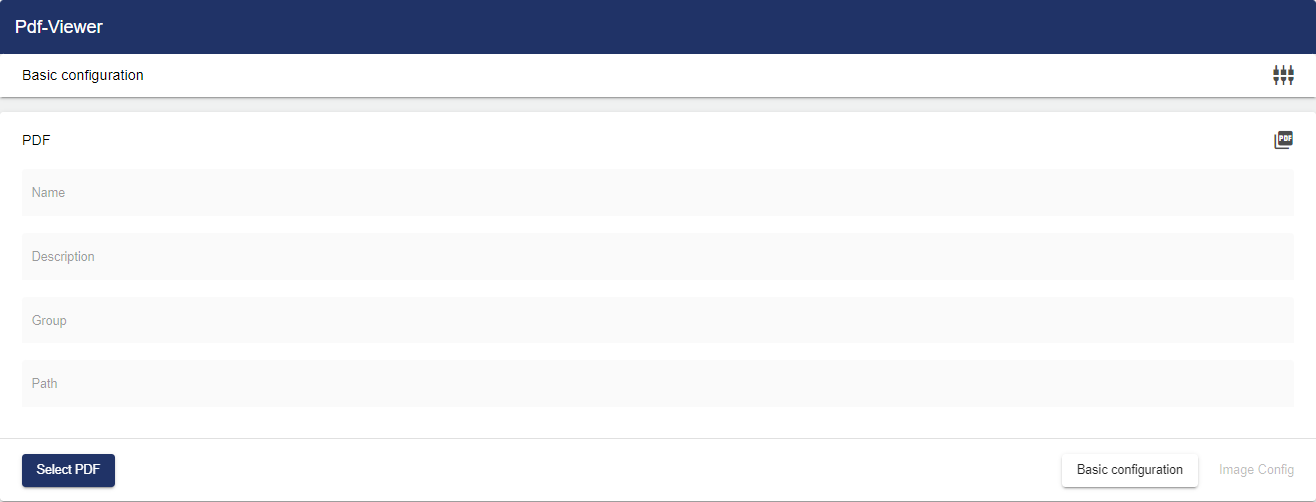

Then go to the "PDF" tab and click "PDF".
![](../../__attachments/1510837603/image-20220603-075242.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

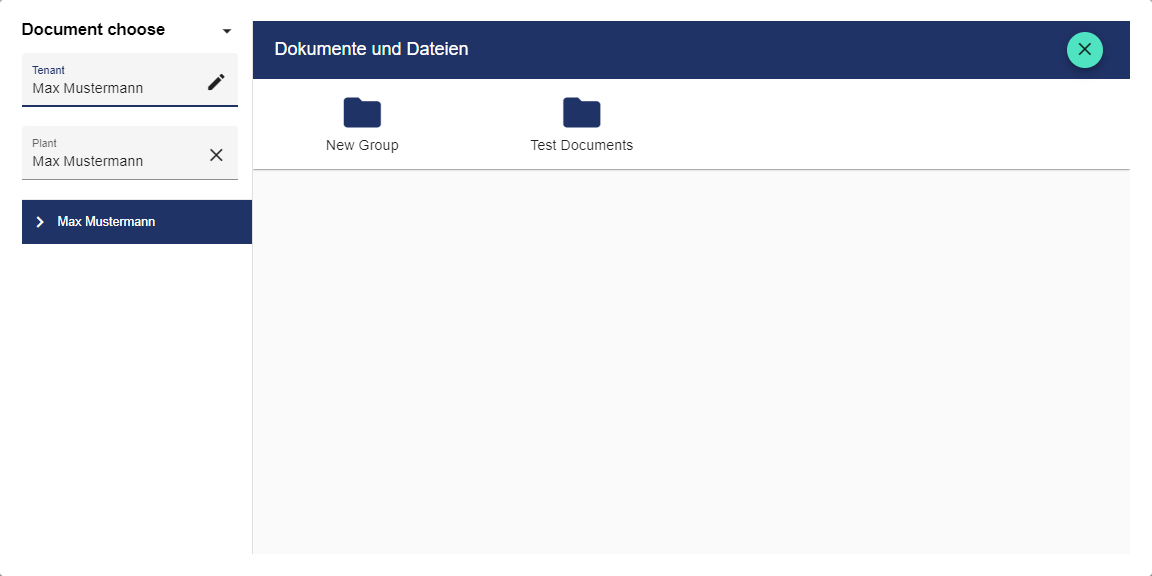

Clicking "Select PDF" opens the Entity-Select window. You can add a PDF file that was created earlier.
![](../../__attachments/1510837603/image-20220603-075307.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Once you are satisfied with your configuration, you can save it.
