Add alerting services

Depending on the license, the JUMO smartWARE SCADA can alarm in different ways

Email configuration

An SMTP server is required for an alarm via email. In addition, the installed SCADA license has to comprise the "Standard notification" module.

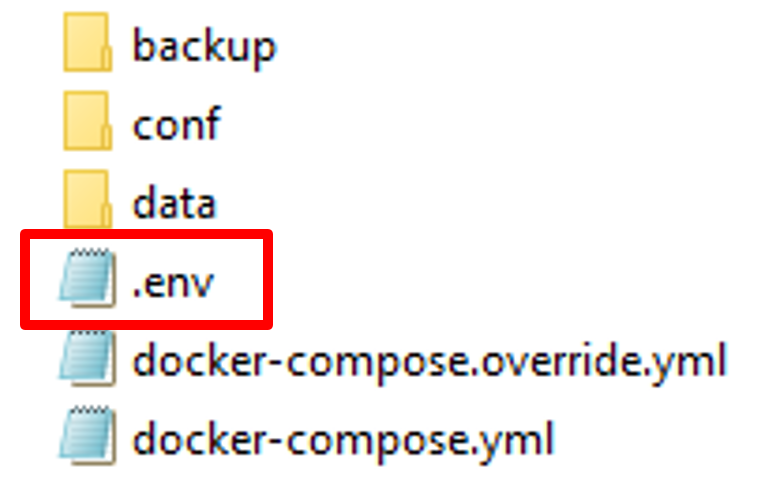

The following items have to be entered in *.env-Datei under C:\jumo_scada or Linux /opt/jumo_scada.

File path

Sample with explanation

Example

Mail_SenderAddress ~ email address of sender
Mail_ServerHost ~ Url to the SMTP Server
Mail_ServerPort ~ SMPT port of server (Standard 25)
Mail_ServerUser ~ User
Mail_ServerPassword ~ Passwort
Mail_ServerEnableSsl ~ true/false whether server uses SSL

Mail_SenderAddress=iot@jumo.net
Mail_ServerHost=10.10.10.10
Mail_ServerPort=25
Mail_ServerUser=
Mail_ServerPassword=
Mail_ServerEnableSsl=false

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE
docker-compose up -d

This re-initializes the container "jumo_scada_messenger


SMS configuration

An SMS gateway is required for alerting via SMS. E.g. from Yeastar or Sipgate. We recommend Sipgate. In addition, the installed SCADA license has to comprise the "Standard notification" module.

The following items have to be entered in .env:

File path

Sample with explanation

Example

Messenger_SmsUsername ~ User name for SMS Server
Messenger_SmsPassword ~ Password for SMS Server
Messenger_Provider ~ Which provider is used yeastar / sipgate
Messenger_ProviderAddress ~ Address of SMS Server

Messenger_SmsUsername=ABC_user
Messenger_SmsPassword=******
Messenger_Provider=sipgate
Messenger_ProviderAddress=10.10.10.10

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE
docker-compose up -d

This re-initializes the container "jumo_scada_messenger


VoIP configuration

A provider is required for alerting via VoIP. E.g. Sipgate. In addition, the installed SCADA license has to comprise the "Extended notification" module.

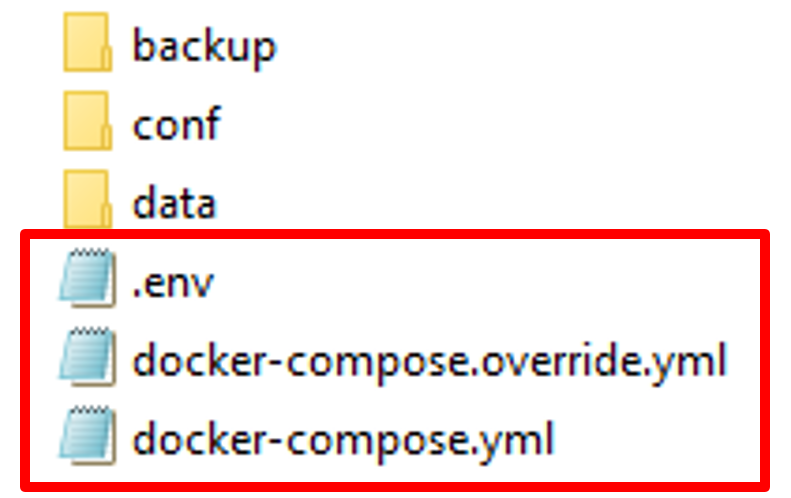

To set up VOIP, entries must be added in the .env, docker-compose.yml and in the docker-compose.override.yml. Using the example of the Sipgate provider.

File path

docker-compose.yml

docker-compose.override.yml

.env

 tts:

    image: ${DOCKER_REGISTRY}tts:latest

    restart: always

    ports:

  • 59125:59125

 voipaster:

    image: ${DOCKER_REGISTRY}voipaster:latest

    restart: always

    ports:

  • 8088:8088

    environment:

       SIP_PROVIDER: generic

       SIP_SERVER: sipgate.de

       SIP_ID:

       SIP_PASSWORD:

       SIP_NUMBER:

voipmanager:

    image: ${DOCKER_REGISTRY}voipmanagerapi:unstable

    restart: always

   ports:

  • 31422:80

   voipmanager:

    environment:

  • ASPNETCORE_ENVIRONMENT=Development

  • MQ_Connstr=${MQ_Connstr}

  • DB_Connstr=${DB_Config_Connstr}

  • TTS_ProxyUri=${TTS_ProxyUri}

  • TTS_ProcessUri=${TTS_ProcessUri}

  • VoIP_AriUri=${VoIP_AriUri}

  • Log_Connstr=${Log_Connstr}

TTS_ProxyUri=http://voipmanager/api/tts/

TTS_ProcessUri=http://tts:59125/process

VoIP_AriUri=http://asterisk:asterisk@voipaster:8088

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE
docker-compose up -d

Push-app configuration

For alerting via push app, an available push app from the app store is required. In addition, the installed SCADA license has to comprise the "Standard notification" module.

Documentation in progress. If required: enquire withe JUMO.
