Backup

With the backup described here, both the historical data and the configuration of the software are saved.

Automatic backup

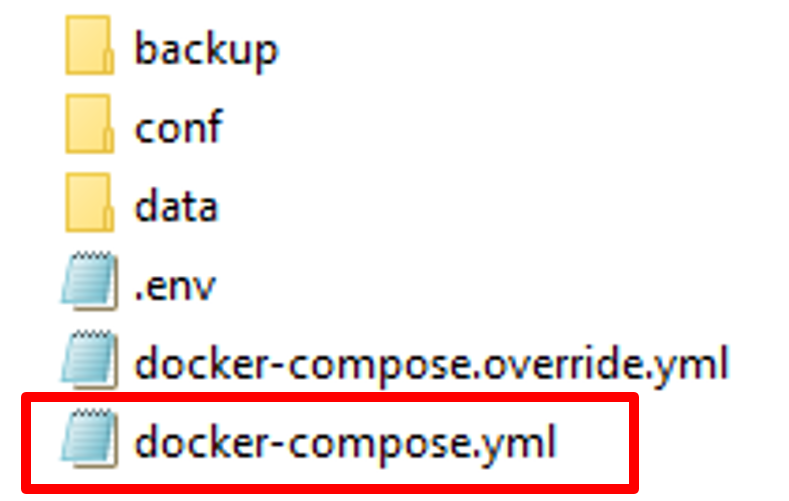

  • Change of file “docker-compose.yml”

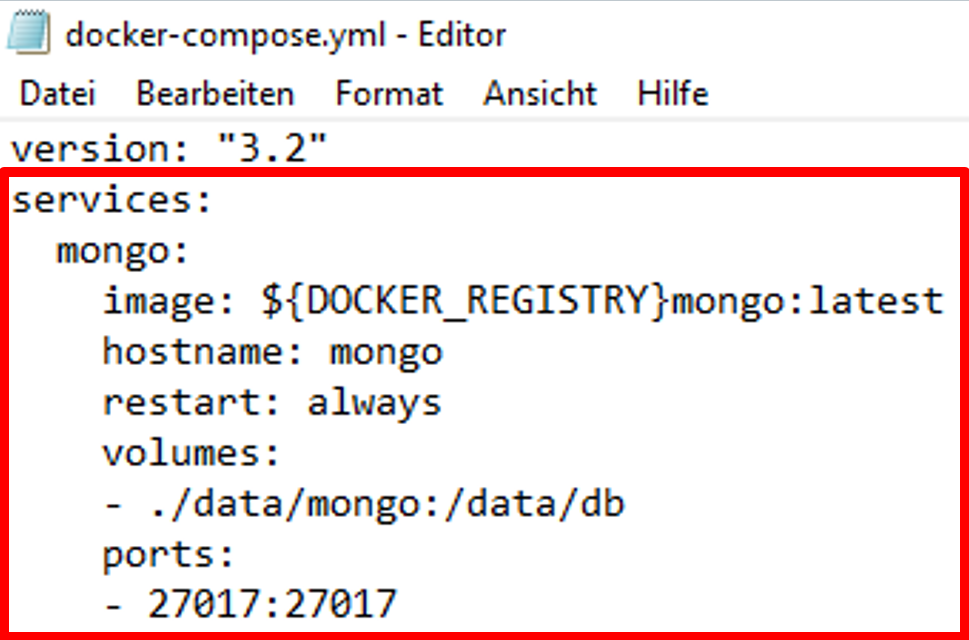

  • Search in section “services → mongo”

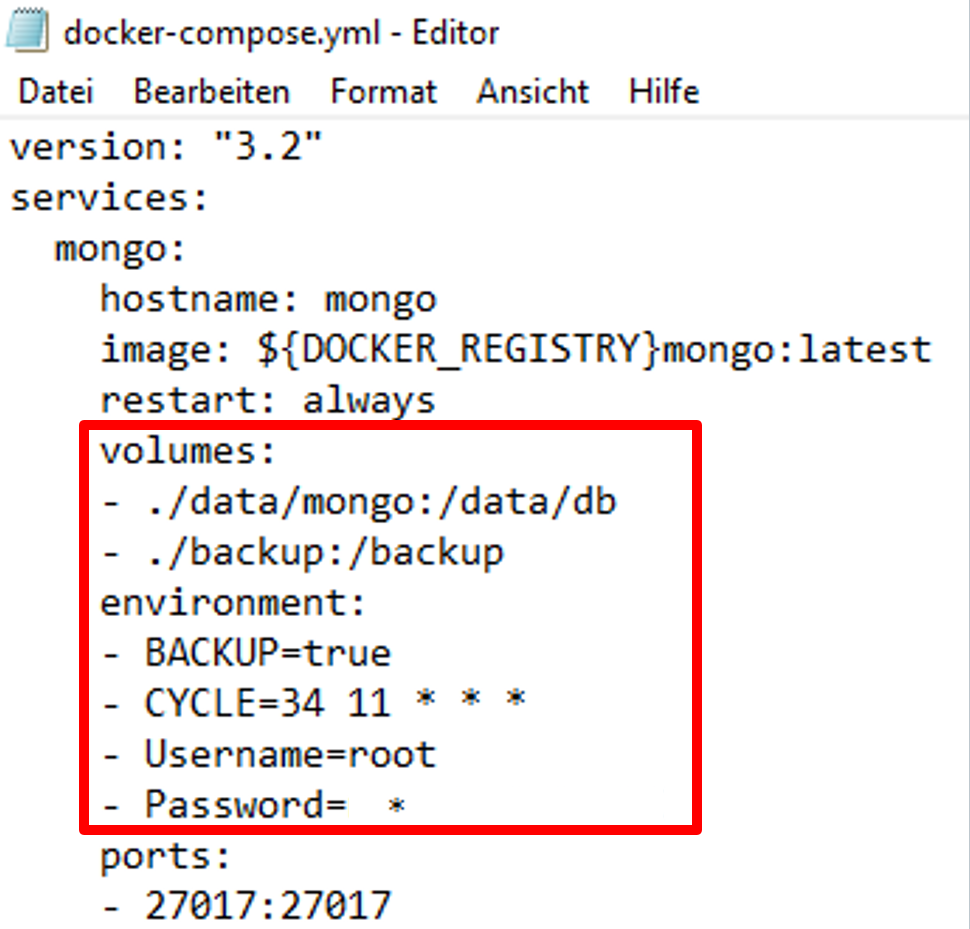

  • Adding safety index “volumes → - ./backup:/backup”

  • Adding safety settings “environment”

– BACKUP=true

– CYCLE=30 12 * * *

Syntax is based on crontab https://crontab.guru/#15_14_1_*_ and sets the cycle time of backup.

– User name = root

– Password=*******

Optional: Restart of Mongo service with PowerShell or Linux Terminal command “docker-compose restart mongo” to activate changes

CODE
docker-compose restart mongo
  • Automatic generation of the Mongo database, as *.gz-file

File path

Docker-Compose

Docker-Compose

MongoDB Database backup

Manual backup

Manual copy of SCADA file

Copying the SCADA folder NOT allowed when the SCADA application is running → risk of a corrupted Mongo database

Please adhere to the following procedure:

  • Stop SCADA application with the command:

CODE
docker-compose down
  • Copy SCADA file

  • Restart of SCADA application with the command

CODE
docker-compose up –d
