Linux
Installation process
1) Check server / PC parameter
Further information can be found here: Systemvoraussetzungen
Checking the utilized processor for Quad-Core and Hyper Threading function.
Example: Intel Core i5-8250U Processor
2) Unpacking JUMO Installer Zip
Current version JUMO Installer
The JUMO installer has to be unpacked on a drive of the respective computer/server.
3) Downloading and installing current Docker application
Docker Engine and Docker Compose are required.
Windows | Linux | macOS |
---|---|---|
4) Loading and installing JUMO smartWARE SCADA image from JUMO Registry
1. Opening Linux Terminal
The following page provides an overview all Terminal commands for Docker: https://docs.docker.com/compose/reference/overview/
· Open PowerShell and enter the following command.
/opt/jumo_scada
"/opt/jumo_scada" is our example path in these instructions. Replace it with the path leading to the unpacked JUMO installer.
· Once "/opt/jumo_scada" appears in the next front line instead of the original path, enter the following command:
docker login registry.jumo.digital
· Subsequently, you have to log in with the "username" and "password" provided by JUMO. You receive this log-in data together with the license key when purchasing JUMO smartWARE SCADA.
· After log-in, enter the following commend
docker-compose pull
· Upon pressing the Enter key, the data is updated by Docker "pulling" the JUMO smartWARE SCADA images from the previously entered path. However, this does not yet activate the containers. The process can take several seconds.
· When the download is completed, please enter the following command. This command starts the containers in Docker.
docker-compose up -d
The following commands can be used in case of error messages:
docker ps -q | % { docker kill $_ }
docker-compose rm -f
docker-compose up -d
2. Now, it is possible to check in the Linux Terminal whether all containers are running
docker ps
3. Going through JUMO smartWARE SCADA - Installer
· Open your browser and enter the following in the URL line
http://localhost
· Then the JUMO Installer opens. Please follow the installation instructions.
You can switch the language to English.
Normal Mode | Night Mode |
After each menu item in the JUMO Installer, you can switch to the next one via "Next step".
Menu item | Note |

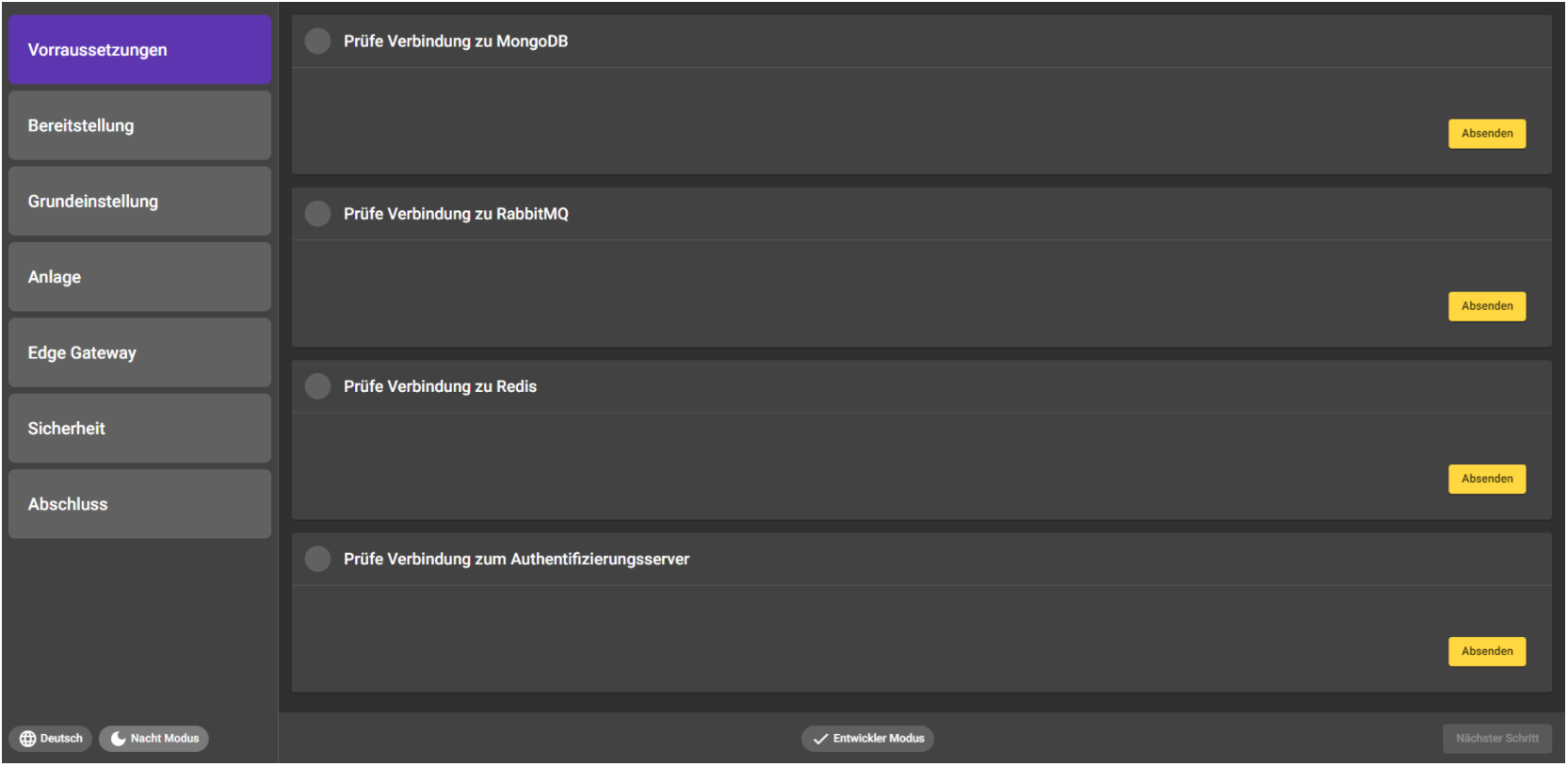

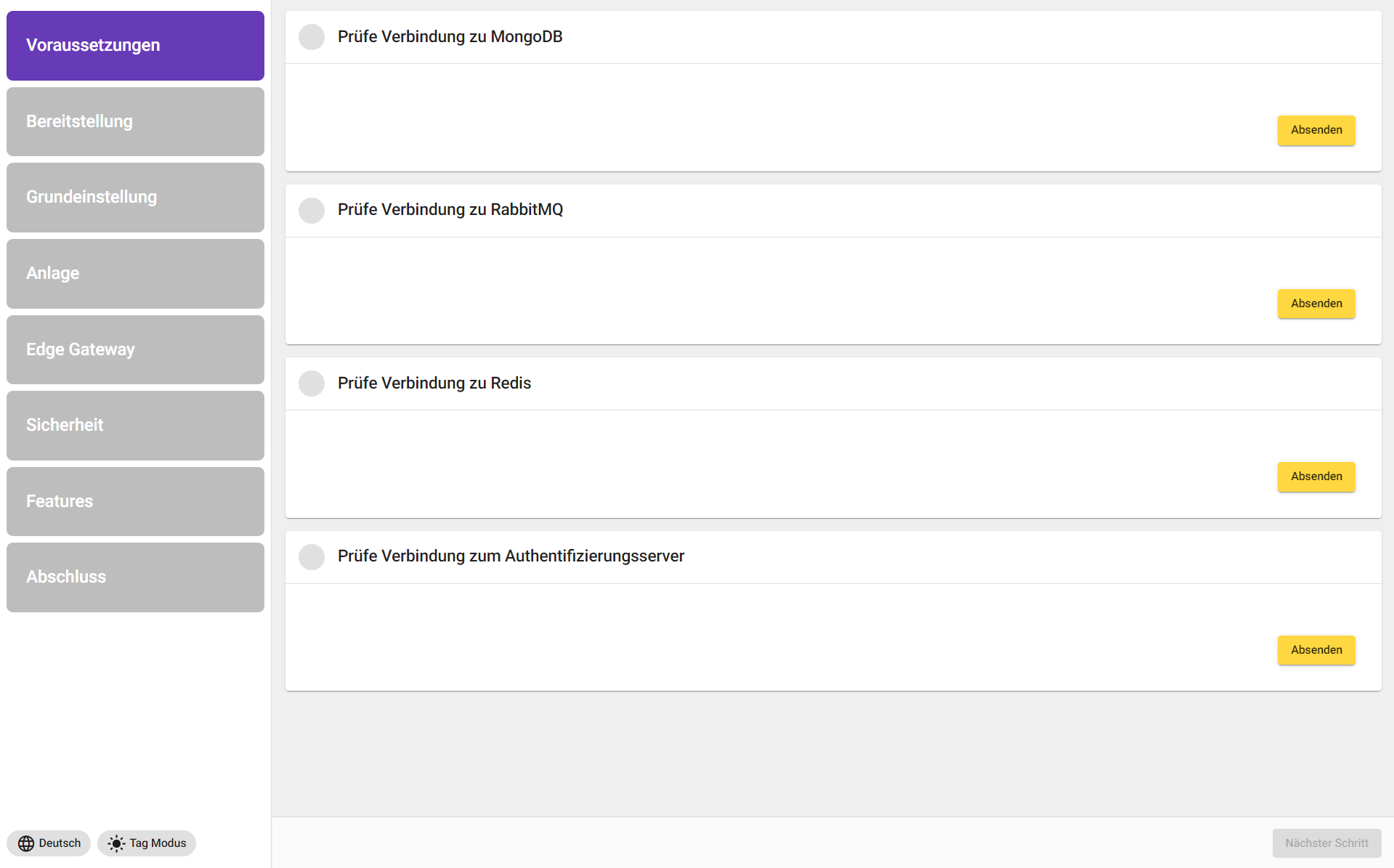

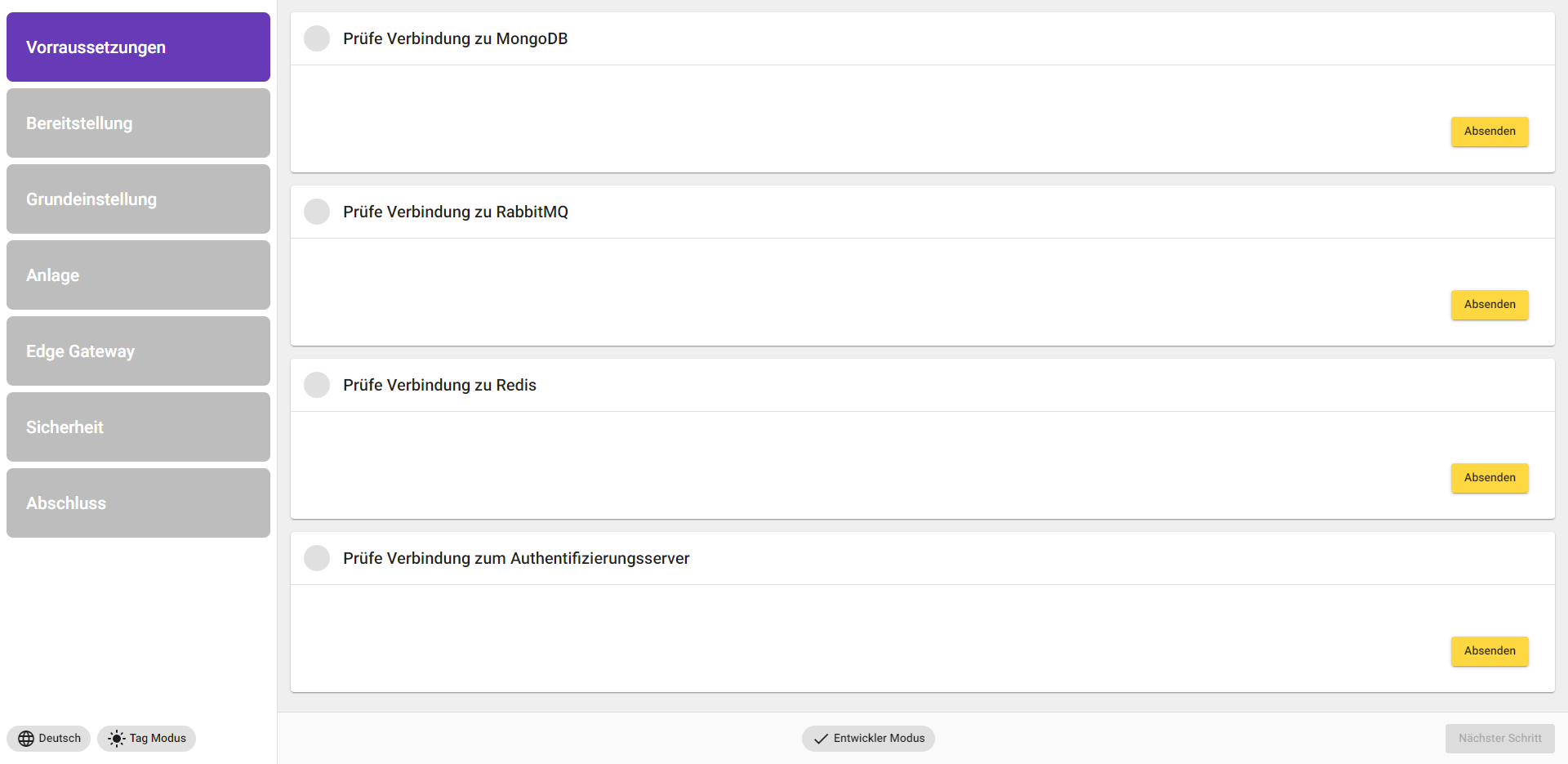

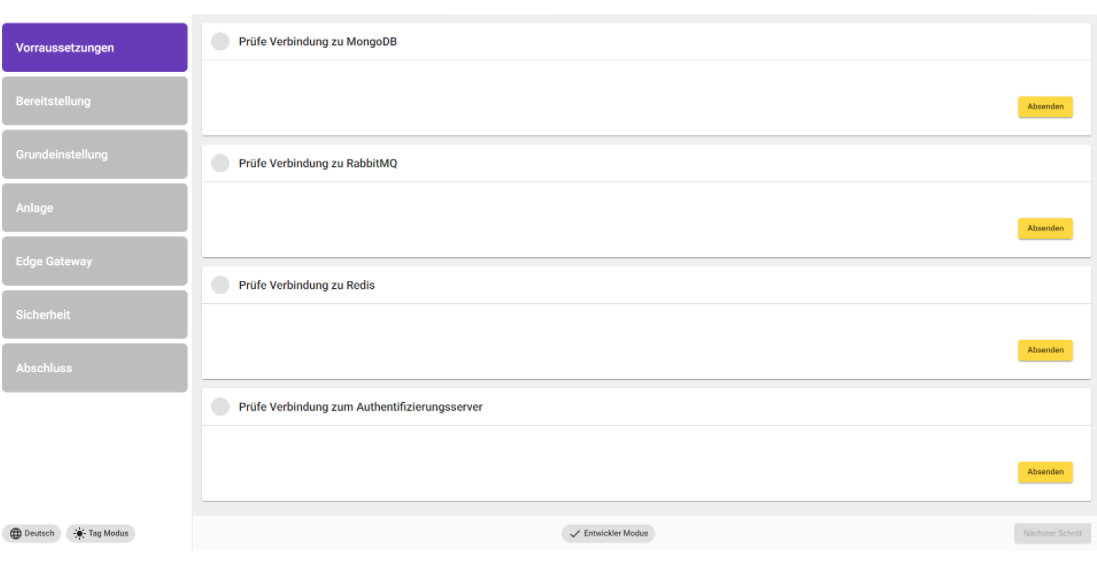

Requirements | Here, the connection to various databases and servers is checked. The test can take several seconds. If the test has failed, enter the following command in PowerShell:
CODE
CODE
CODE
|

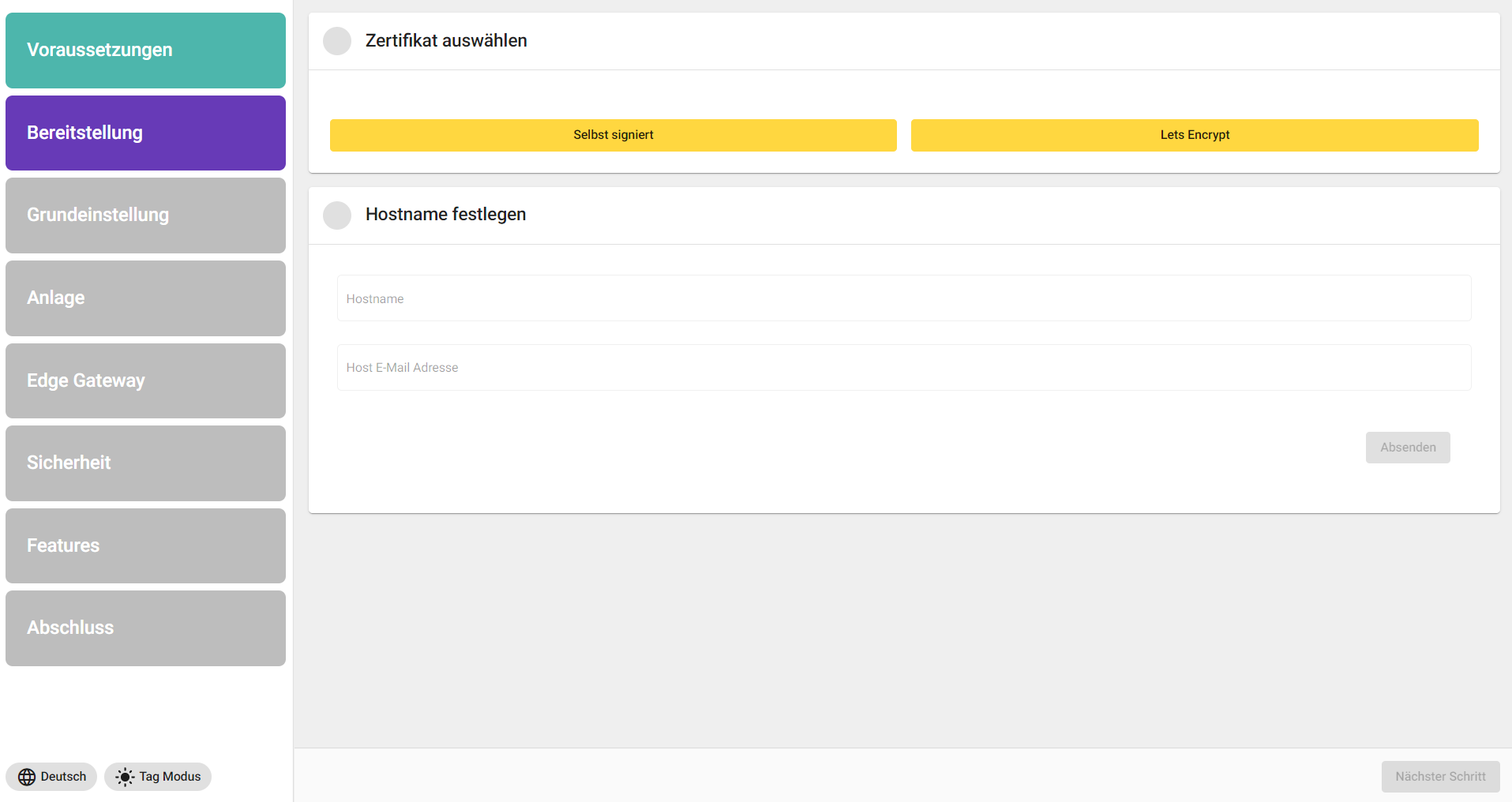

Provision | In the "Provision" sector, a certificate has to be signed and a host name has to be allocated. Select "Self-signed" to continue. As a host name, select the name of the server/system upon which you are installing the JUMO smartWARE SCADA and click on "send". Example host name, subsequently available in browser under http://smartware-scada or https://smartware-scada smartware-scada |

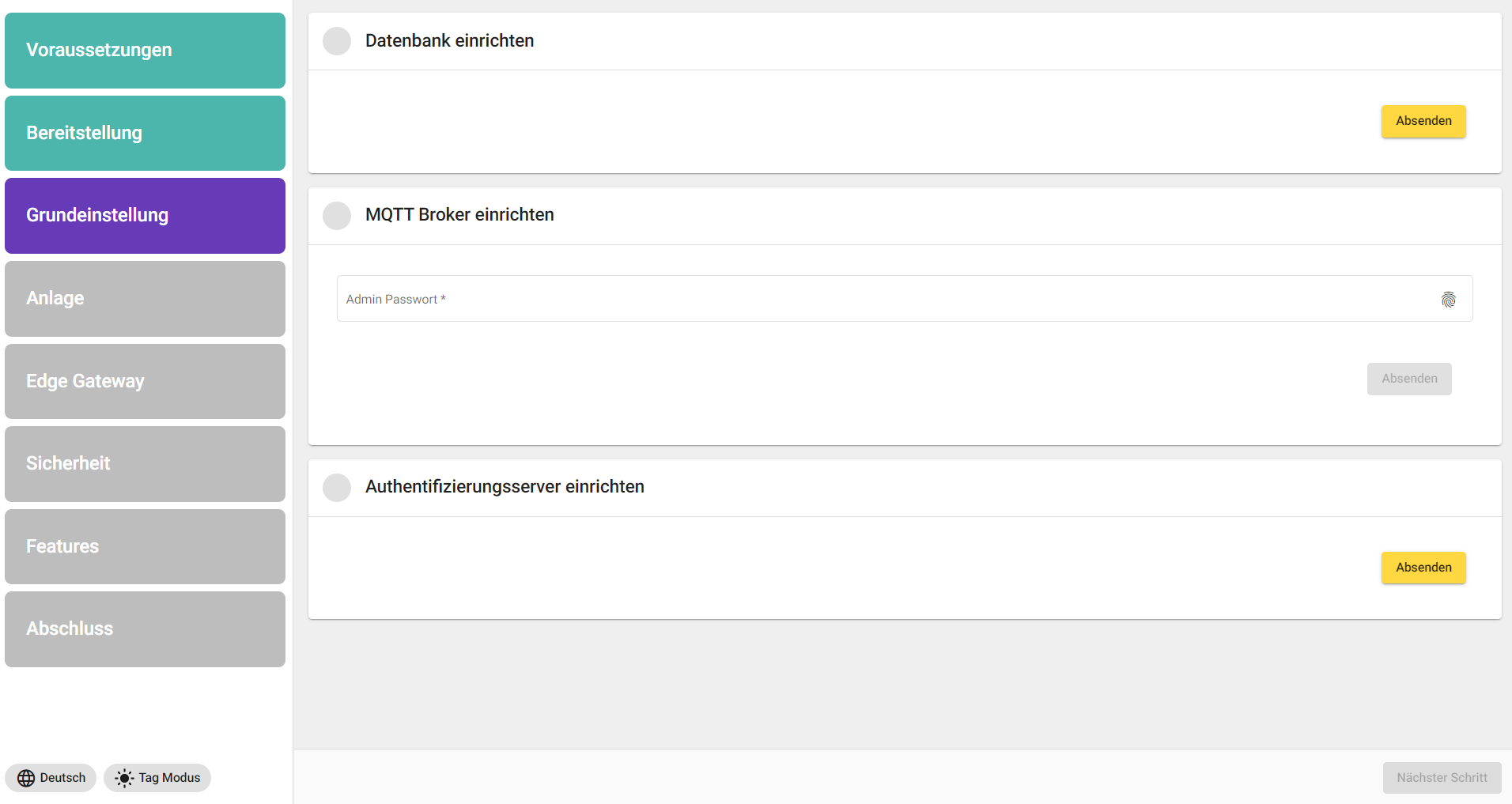

Basic setting | Databases and Server are established in the basic settings. When establishing the database, click on the "Send" button. Subsequently, you determine a password for your database and confirm your determined or generated password via the Send button. Passwords can be randomly generated via the fingerprint symbol. Subsequently, press the "Send" button at "Set up authentication server" to create the database. |

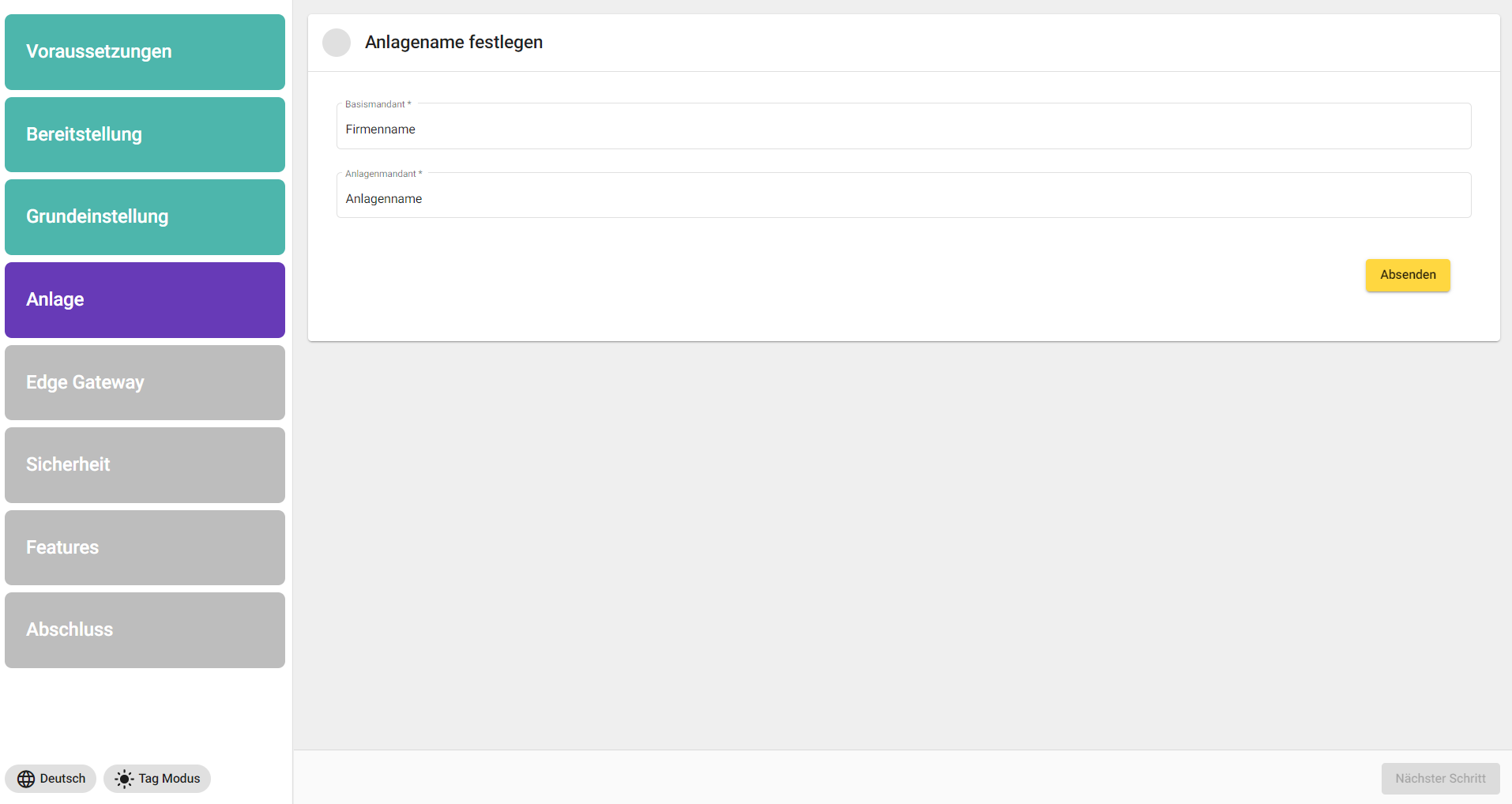

Creation | Here, a client name has to be determined. Tip: Name the client after your company or the subject area in which SCADA has to generate additional value. |

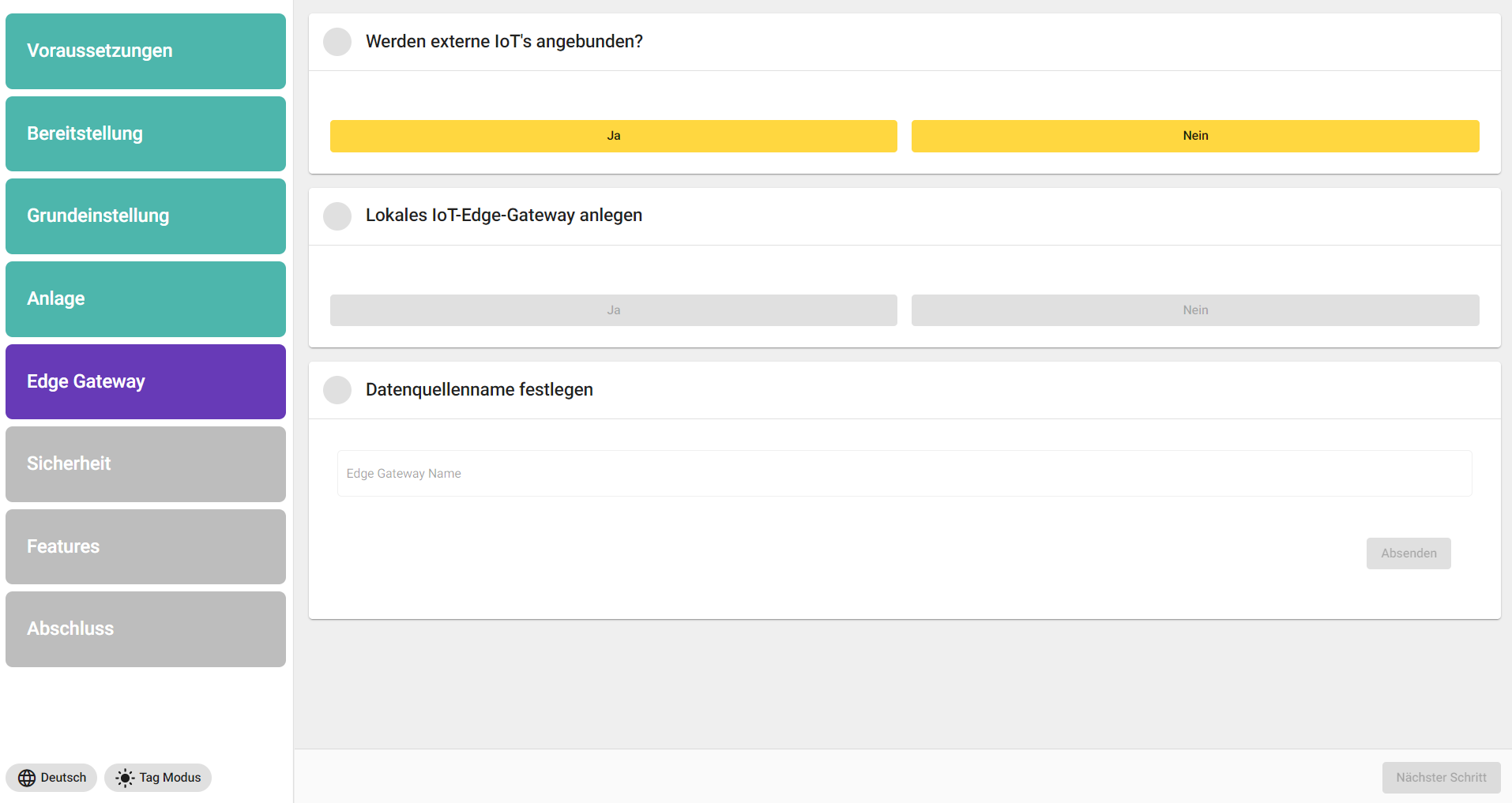

Edge Gateway | In the "Edge Gateway" you are asked whether or not a lokales IoT-Edge Gateway is to be created (generally "yes"). In addition, a data source name has to be entered. An externen IoT-Edge Gateways is also requested. In addition to the SCADA main server (local IoT) should further networks or JUMO variTRON devices (external IoT's) be connected via MQTTS → "Yes" |

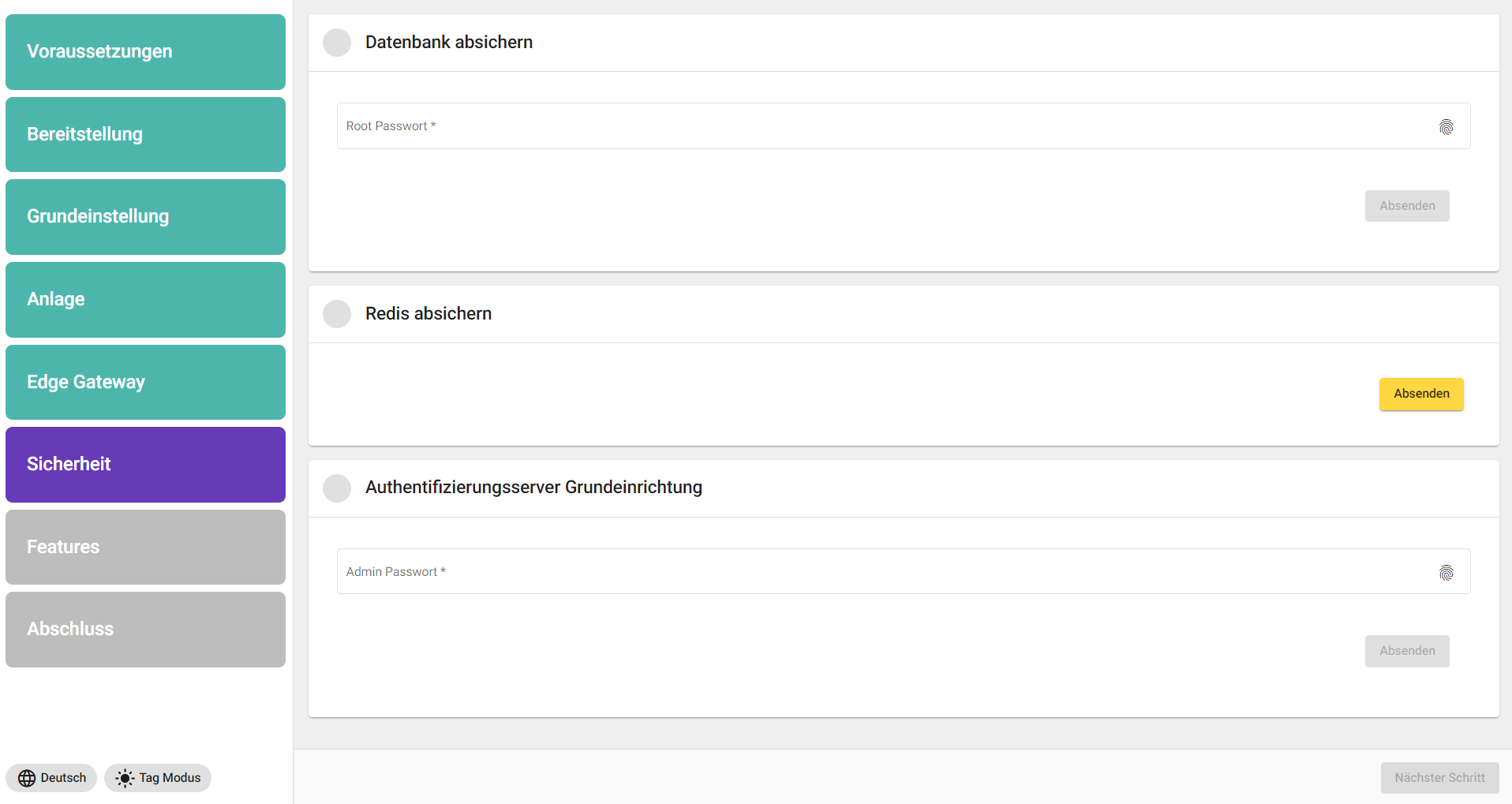

Security | In the security settings, a password is set or generated for the database and authentication server respectively. Passwords can be randomly generated via the fingerprint symbol. |

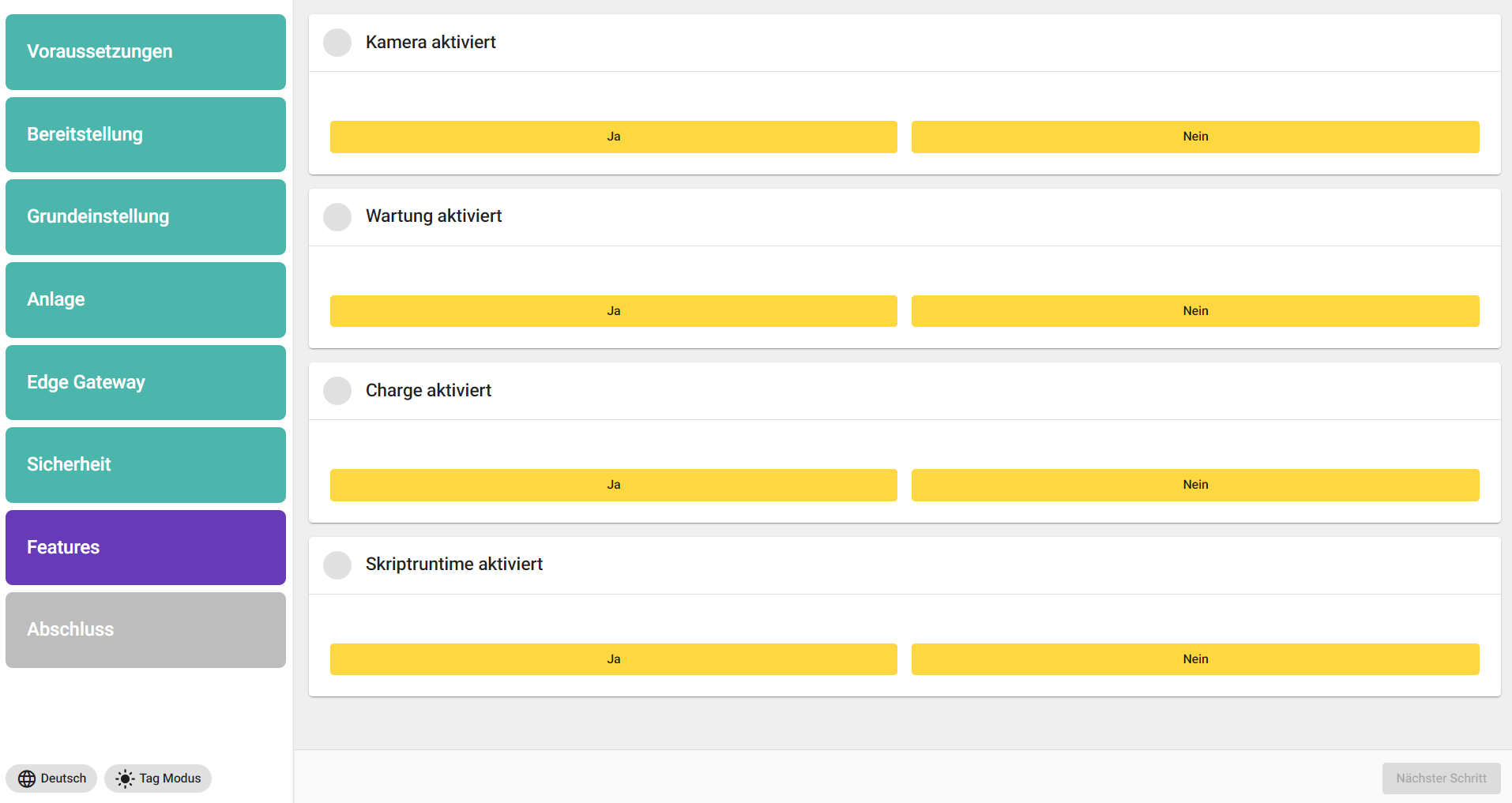

Features | Depending on which feature is required, it can be decided here whether it will be implemented or not. Please follow the acquired licensing here. |

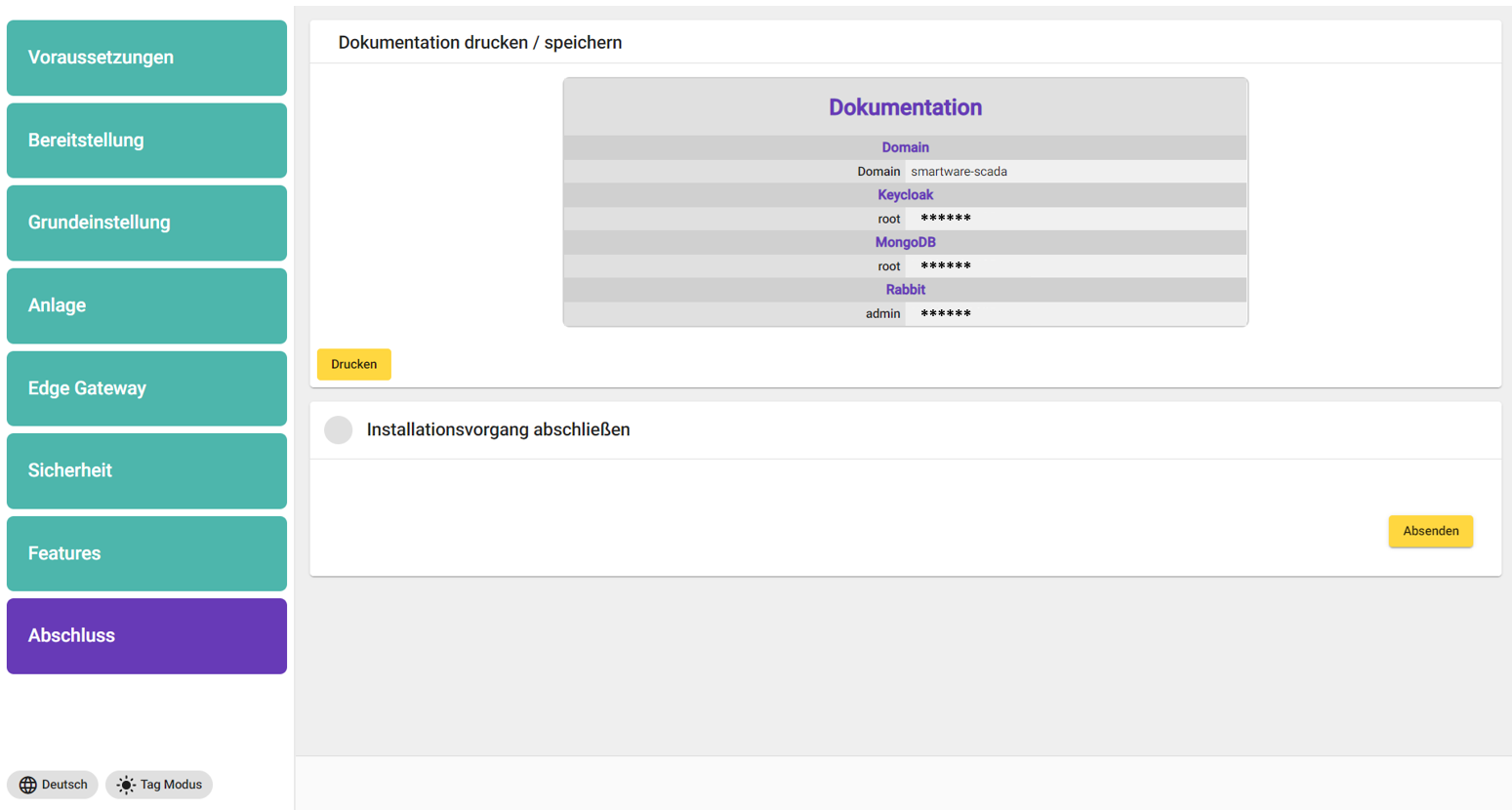

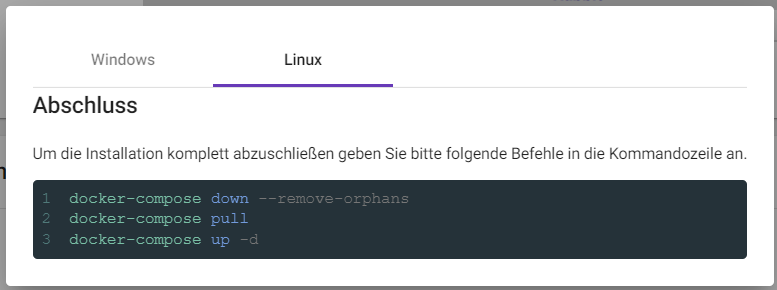

Conclusion | An overview of all user names and passwords which are to be printed or saved as a PDF file is displayed in the final window. After pressing the "send" button in the "Conclusion" menu item of the JUMO installer, Linux Terminal commands have to be entered (appears in the software). |
After pressing the button in the menu item in the JUMO installer, the following commands must be executed:
docker-compose down --remove-orphans
docker-compose pull
docker-compose up -d
Activating JUMO smartWARE SCADA license

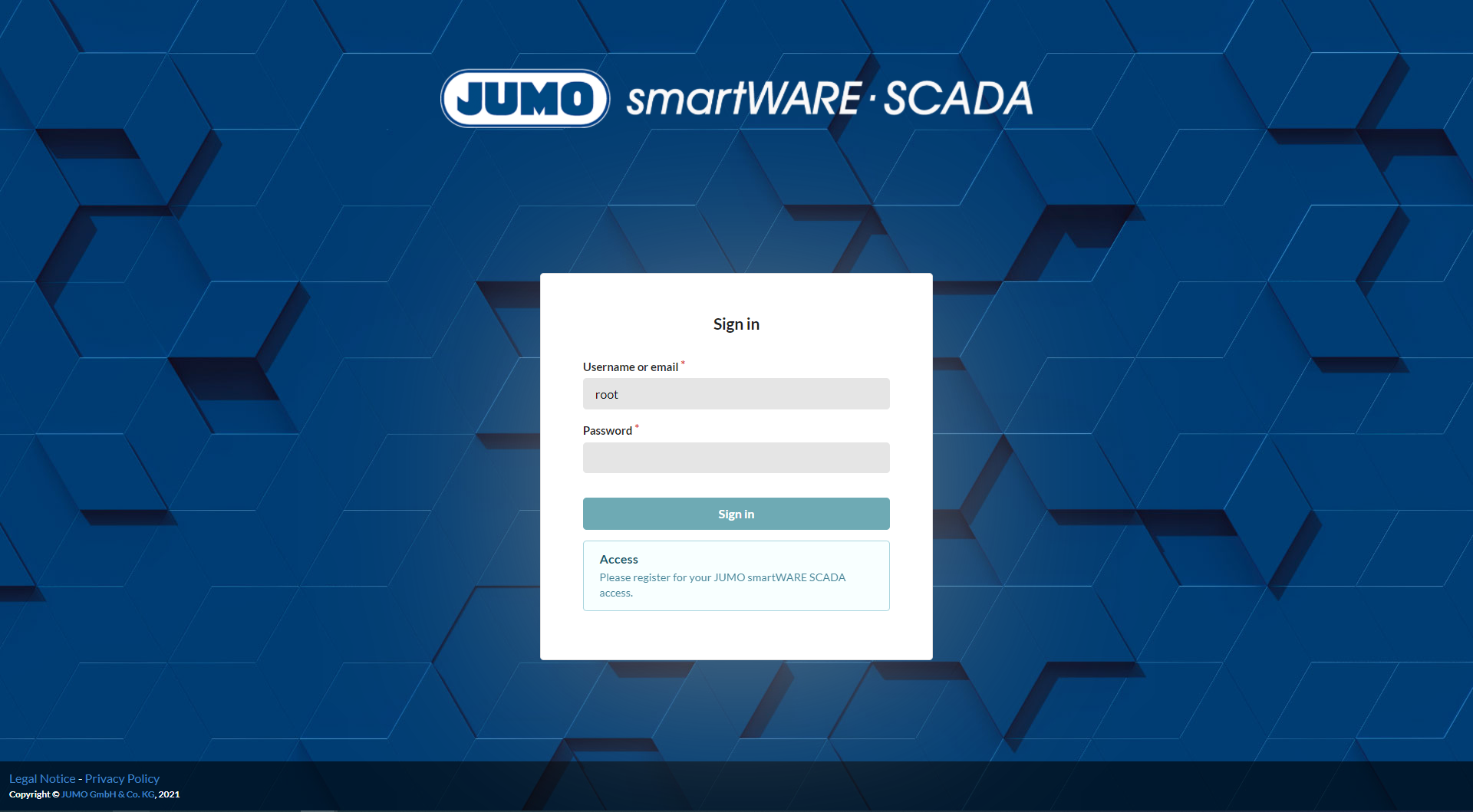

The homepage of JUMO smartWARE SCADA can be accessed in the browser via the host name. The login works with the "Root" user and the corresponding password from the password list of the last step.
To adjust the log-in themes (SSO, Security, Registration, LDAP, etc.) please check the chapter User management Keycloak (IAM)
1) Opening license settings

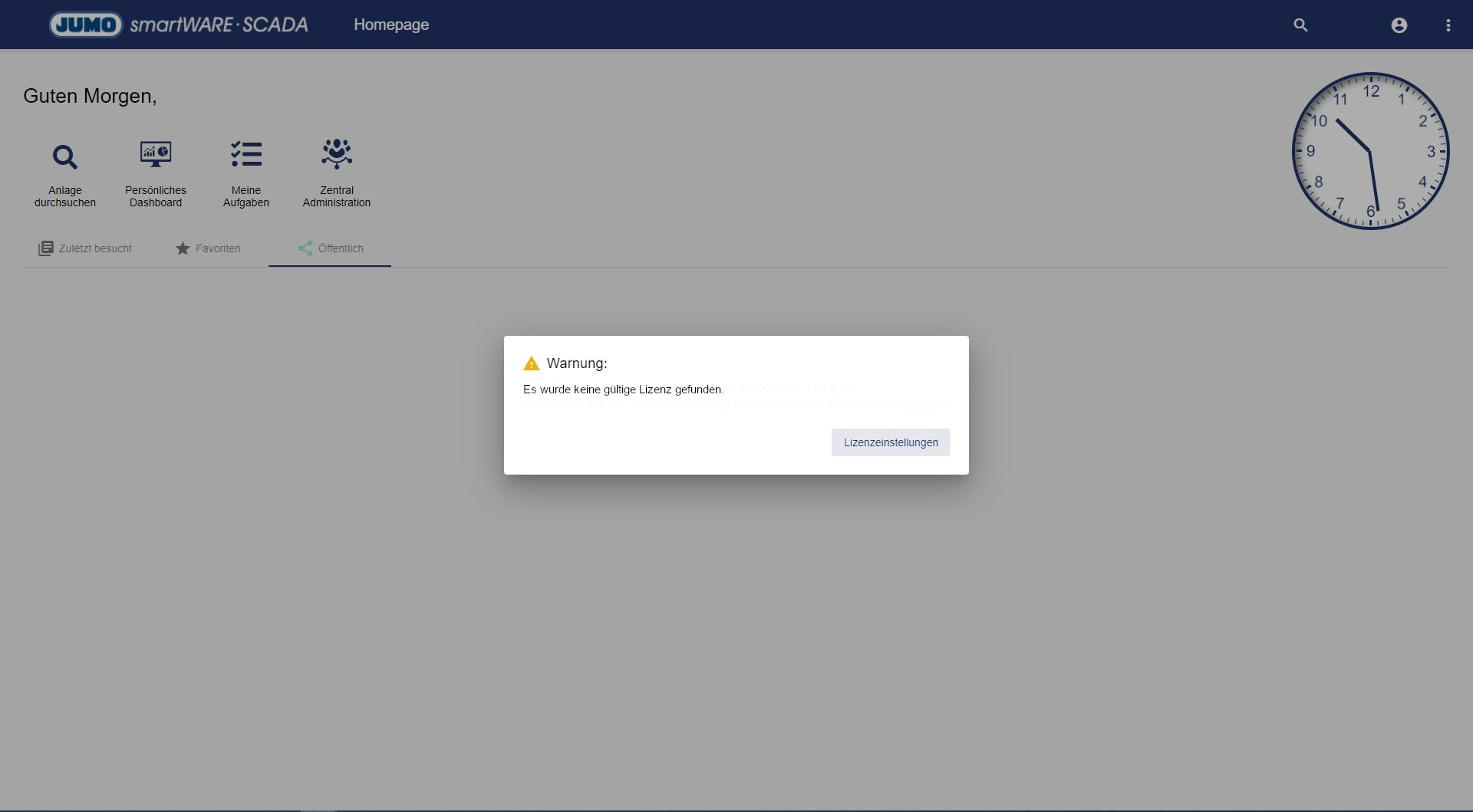

As soon as a JUMO application is started, a warning not appears that no valid license was found. The license settings open by clicking the license setting in the warning window. Here, copy the system UID.

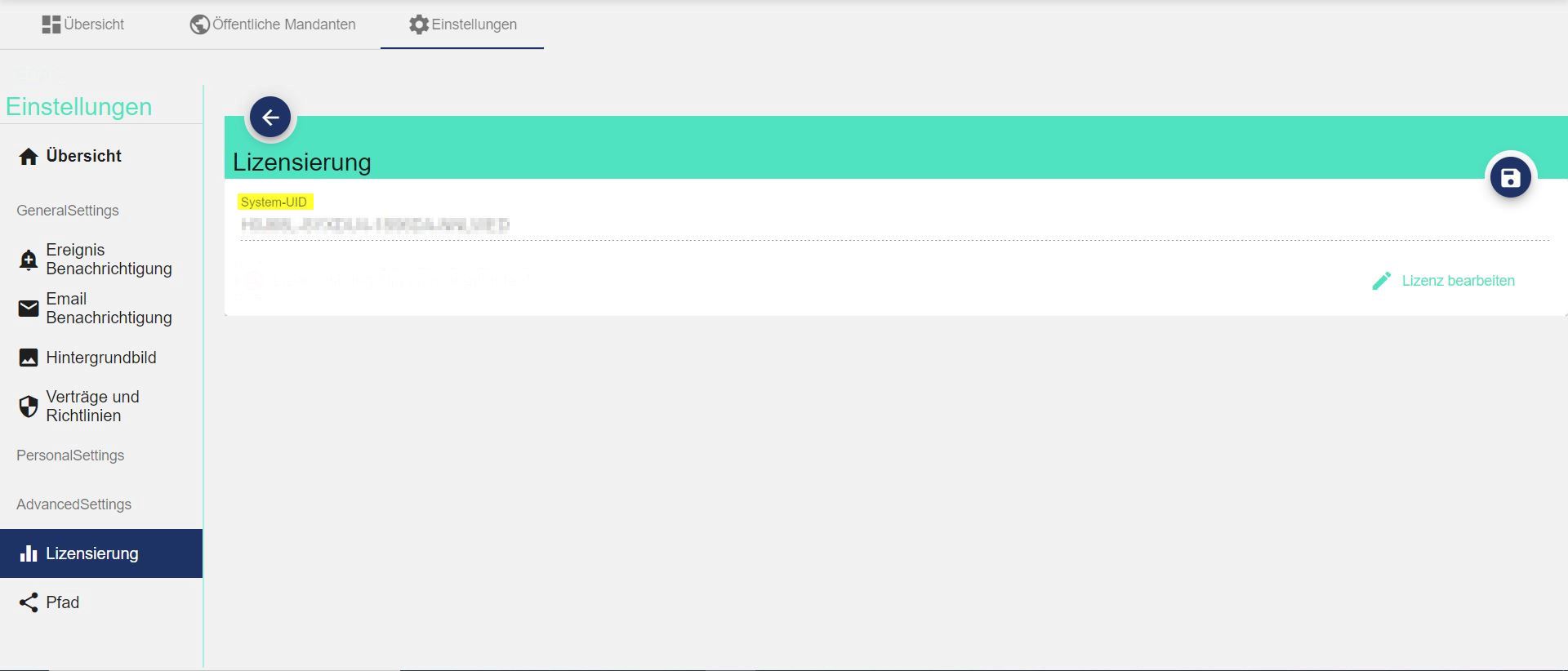

The UID of the respective SCADA Installation can be found in the central administration under Settings and Licensing. This settings overview can only be viewed in the top root client.
2) Activating the SCADA license
In order to use the SCADA application, a valid license has to be entered in the system. If a valid license has not been entered, only the central administration can be accessed.

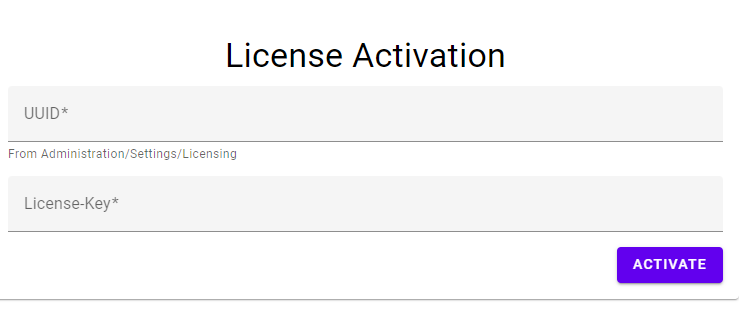

In order to be able to store a license in the system, it must first be activated in the JUMO license portal under https://portal.jumo.digital using the license key sent to you and the system-specific UID (identification number of the SCADA installation). You receive the license key by mail as soon as you have purchased the JUMO smartWARE SCADA.
If you wish to activate the software offline, please contact JUMO.
JUMO smartWARE SCADA license portal:
Once the license is activated/established, it can be downloaded as a file or copied directly.
Before you leave the website, be sure to back up (copy to a text file or hit the download button) after activating the license, as it is a one-time activation. The license key cannot be used for further licenses!
3) Activating the SCADA Software

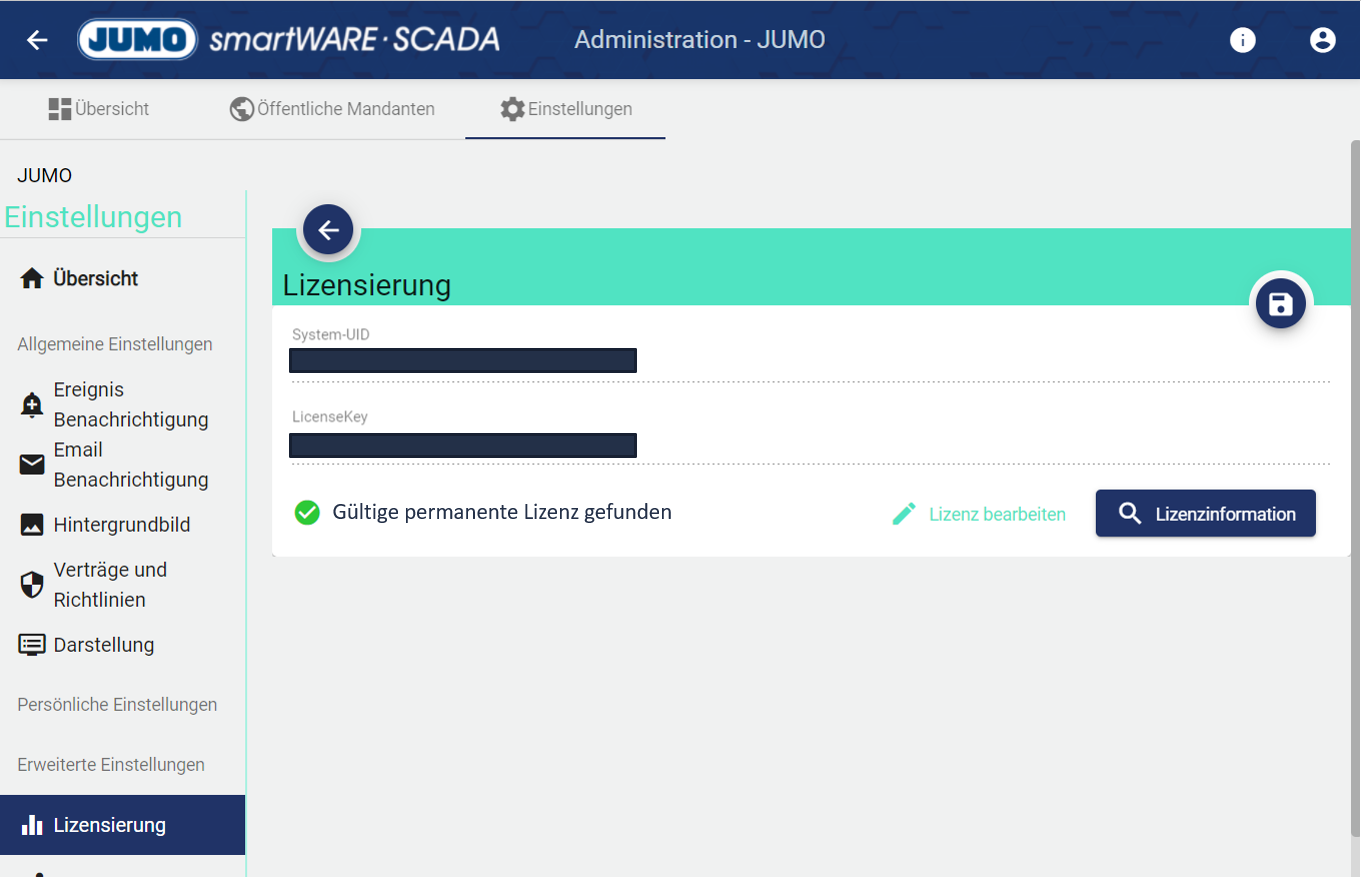

The activation of SCADA with the activated license is done via the settings for licensing in the central administration. The activated license has to be entered und LicenseKey and saved
Congratulations! You have successfully activated your SCADA.
Would you like to add further users in addition to the root user, please consult chapter Benutzerverwaltung Keycloak (IAM).
Troubleshooting:
1) SCADA-Installer - check Connection to MongoDB failed
Problem
Check of connection to MongoDB failed
Detailed description
MongoDB may take a little longer to boot up.. The JUMO installer requests the activity of MongoDB. It can happen that the JUMO installer quits this request if MongoDB takes too long to start up. The error "410 Gone"appears in the console.
Solution
Empty the entire cache of the browser.
