Add alerting services

Depending on the licence, the JUMO smartWARE SCADA can alert via e-mail, SMS, VoIP or push app.

Email configuration

An SMTP server is required for an alarm via email. In addition, the installed SCADA license has to comprise the "Standard notification" module.

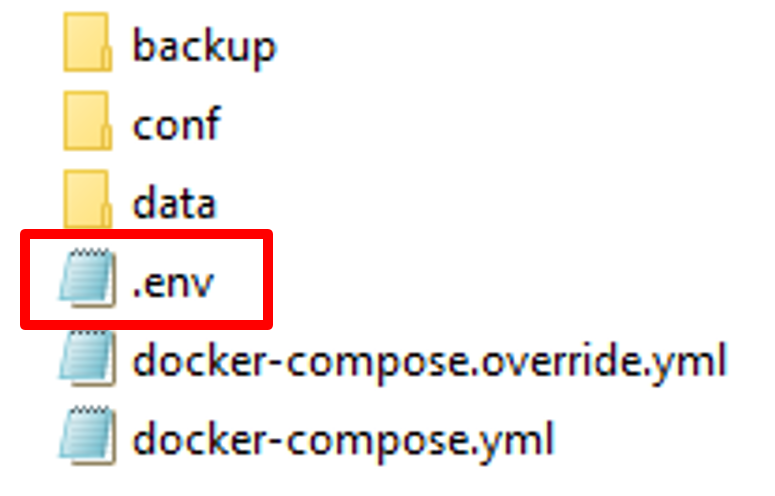

The following items have to be entered in *.env-Datei under C:\jumo_scada or Linux /opt/jumo_scada.

File path	Sample with explanation	Example
	Mail_SenderAddress ~ email address of sender Mail_ServerHost ~ Url to the SMTP Server Mail_ServerPort ~ SMPT port of server (Standard 25) Mail_ServerUser ~ User Mail_ServerPassword ~ Passwort Mail_ServerEnableSsl ~ true/false whether server uses SSL	Mail_SenderAddress=iot@jumo.net Mail_ServerHost=10.10.10.10 Mail_ServerPort=25 Mail_ServerUser= Mail_ServerPassword= Mail_ServerEnableSsl=false

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE

docker-compose up -d

This re-initializes the container "jumo_scada_messenger

SMS configuration

An SMS gateway is required for alerting via SMS. E.g. from Yeastar or Sipgate. We recommend Sipgate. In addition, the installed SCADA license has to comprise the "Standard notification" module.

The following items have to be entered in .env:

File path	Sample with explanation	Example
	Messenger_SmsUsername ~ User name for SMS Server Messenger_SmsPassword ~ Password for SMS Server Messenger_Provider ~ Which provider is used yeastar / sipgate Messenger_ProviderAddress ~ Address of SMS Server	Messenger_SmsUsername=ABC_user Messenger_SmsPassword=****** Messenger_Provider=sipgate Messenger_ProviderAddress=10.10.10.10

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE

docker-compose up -d

This re-initializes the container "jumo_scada_messenger

VoIP configuration

A provider is required for alerting via VoIP. E.g. Sipgate. In addition, the installed SCADA license has to comprise the "Extended notification" module.

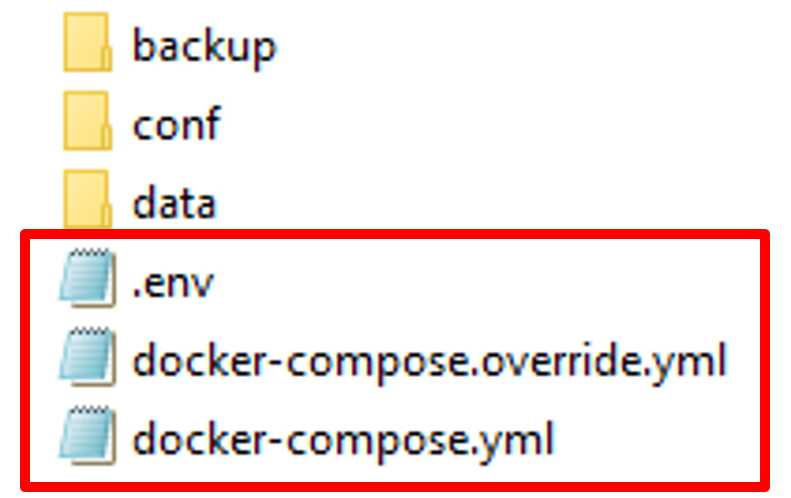

To set up VOIP, entries must be added in the .env, docker-compose.yml and in the docker-compose.override.yml. Using the example of the Sipgate provider.

File path

docker-compose.yml

docker-compose.override.yml

.env

tts:

image: ${DOCKER_REGISTRY}tts:latest

restart: always

ports:

59125:59125

voipaster:

image: ${DOCKER_REGISTRY}voipaster:latest

restart: always

ports:

8088:8088

environment:

SIP_PROVIDER: generic

SIP_SERVER: sipgate.de

SIP_ID:

SIP_PASSWORD:

SIP_NUMBER:

voipmanager:

image: ${DOCKER_REGISTRY}voipmanagerapi:unstable

restart: always

ports:

31422:80

voipmanager:

environment:

ASPNETCORE_ENVIRONMENT=Development
MQ_Connstr=${MQ_Connstr}
DB_Connstr=${DB_Config_Connstr}
TTS_ProxyUri=${TTS_ProxyUri}
TTS_ProcessUri=${TTS_ProcessUri}
VoIP_AriUri=${VoIP_AriUri}
Log_Connstr=${Log_Connstr}

TTS_ProxyUri=http://voipmanager/api/tts/

TTS_ProcessUri=http://tts:59125/process

VoIP_AriUri=http://asterisk:asterisk@voipaster:8088

If changes have been made in the *.env file, the following commands must then be executed in PowerShell:

C:\jumo_scada (Windows) bzw. /opt/jumo_scada (Linux)

CODE

docker-compose up -d

Push-app configuration

For alerting via push app, an available push app from the app store is required. In addition, the installed SCADA license has to comprise the "Standard notification" module.

Documentation in progress. If required: enquire withe JUMO.
