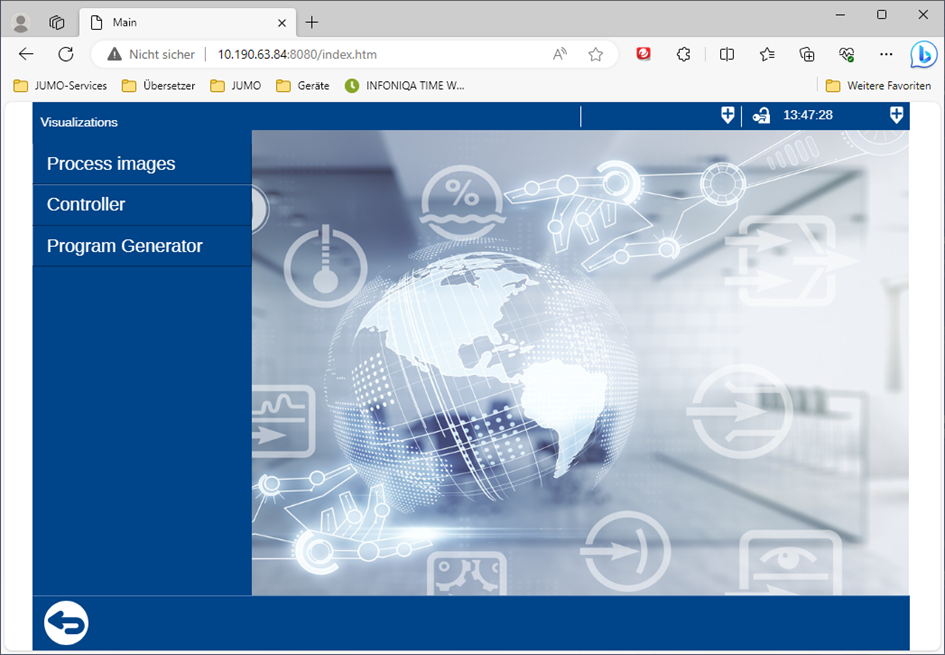

Visualisations

The menu point for the visualisation menu in the navigation bar is also available to users who are not logged in.

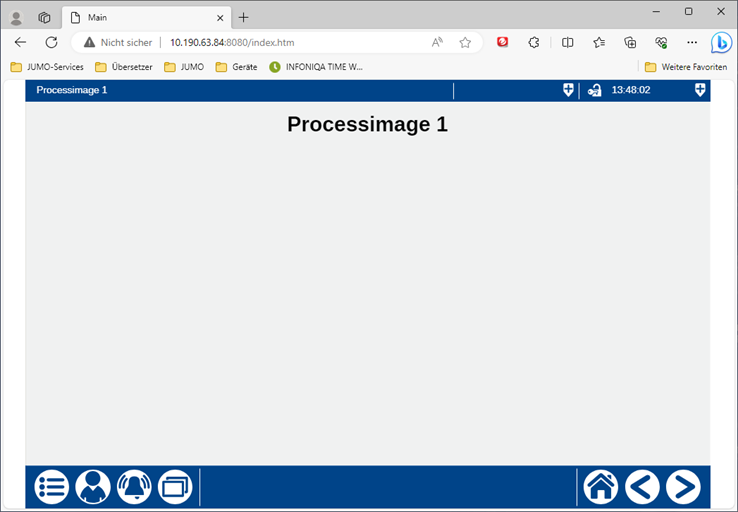

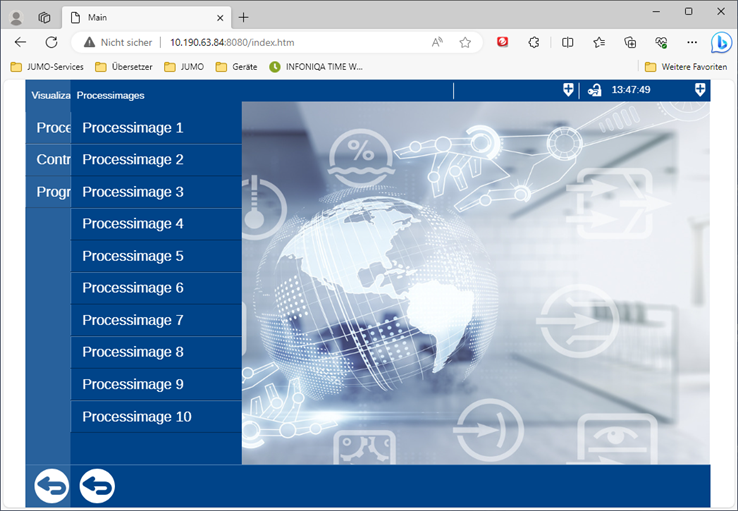

Process graphics

In this submenu, 10 process graphics can be displayed. The process graphics must first be created by the user (application developer).

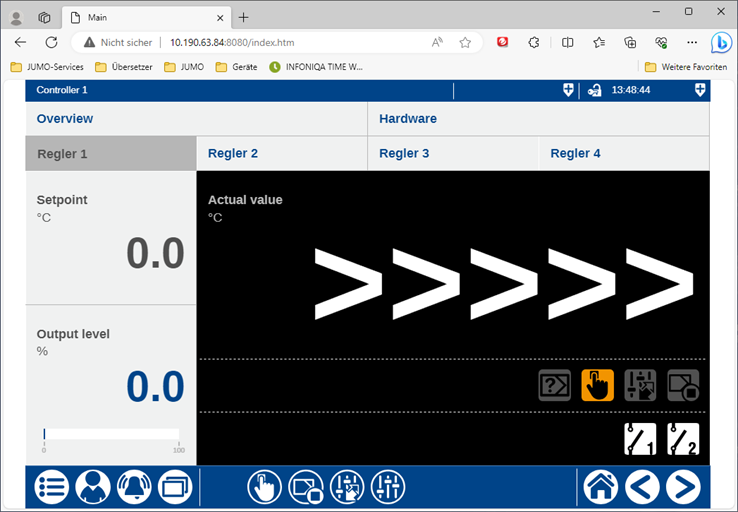

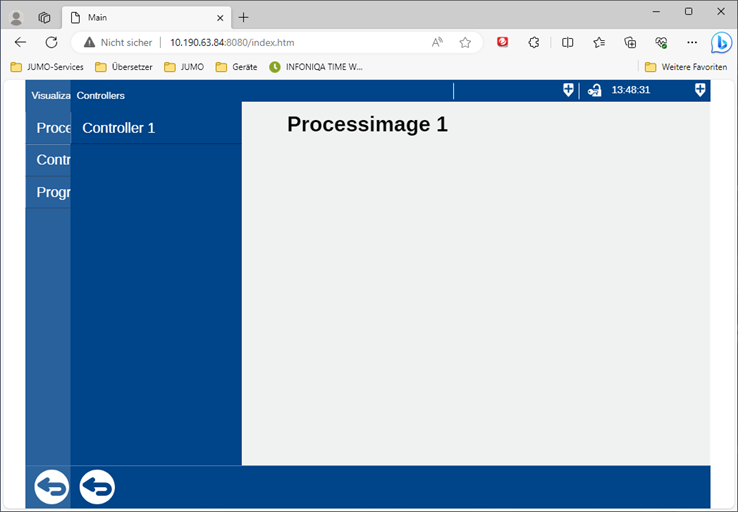

Controller graphics

In this submenu, 10 controller graphics can be displayed.

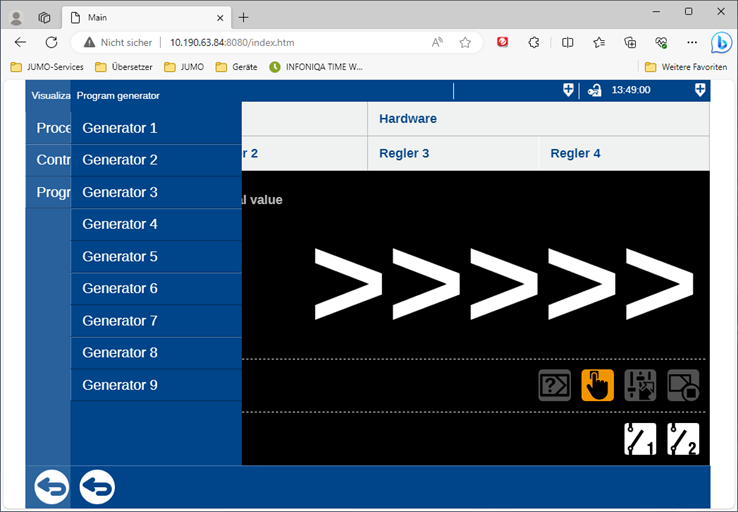

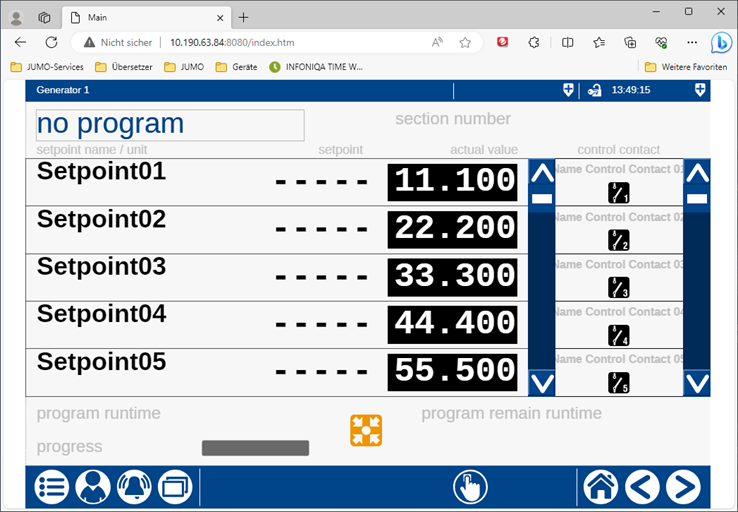

Program generator

In this submenu, 9 program generators can be displayed.
