Confirming an alarm message via PLC

If you want to confirm pending alarms from the PLC, this is possible in the following steps:

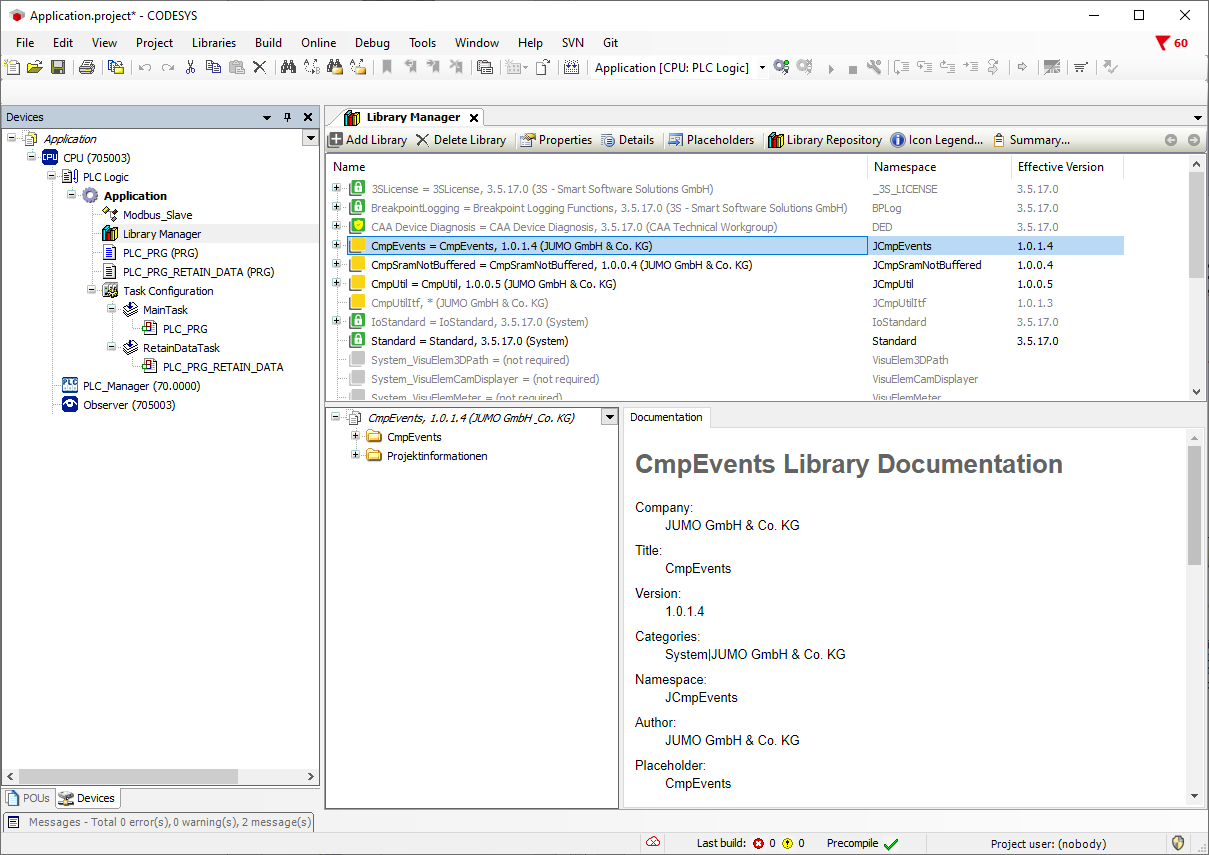

In the Library Manager using the button Add Library, add the CmpEvents library.

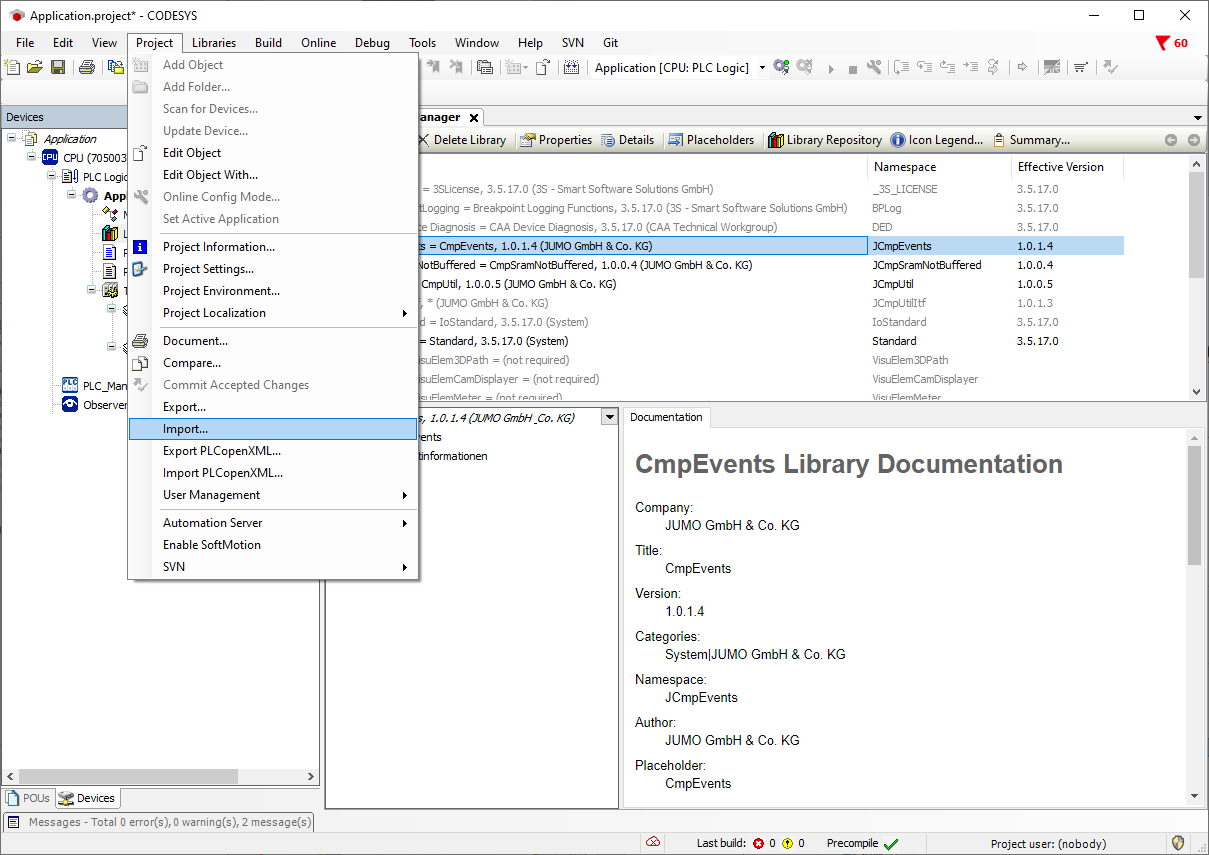

For the alarm confirmation, import the prepared program PLC_PRG_ResetAllAlarms.export via the menu Project → Import…

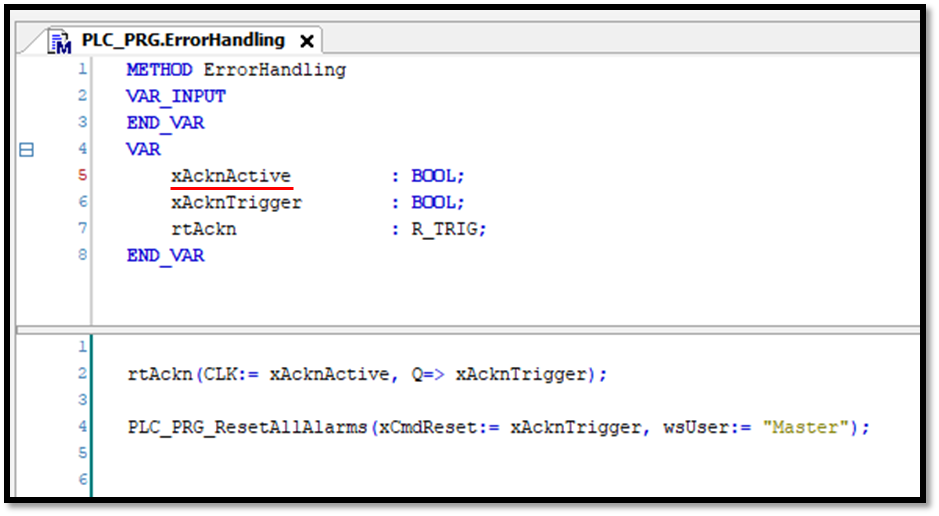

Alarms are then confirmed as follows, for example:



PLC_PRG_ResetAllAlarms.export
