If you want to quickly and easily import a new configuration into the variTRON, all you need is the configuration file with the .jcf extension and access to the variTRON via the Web Cockpit.

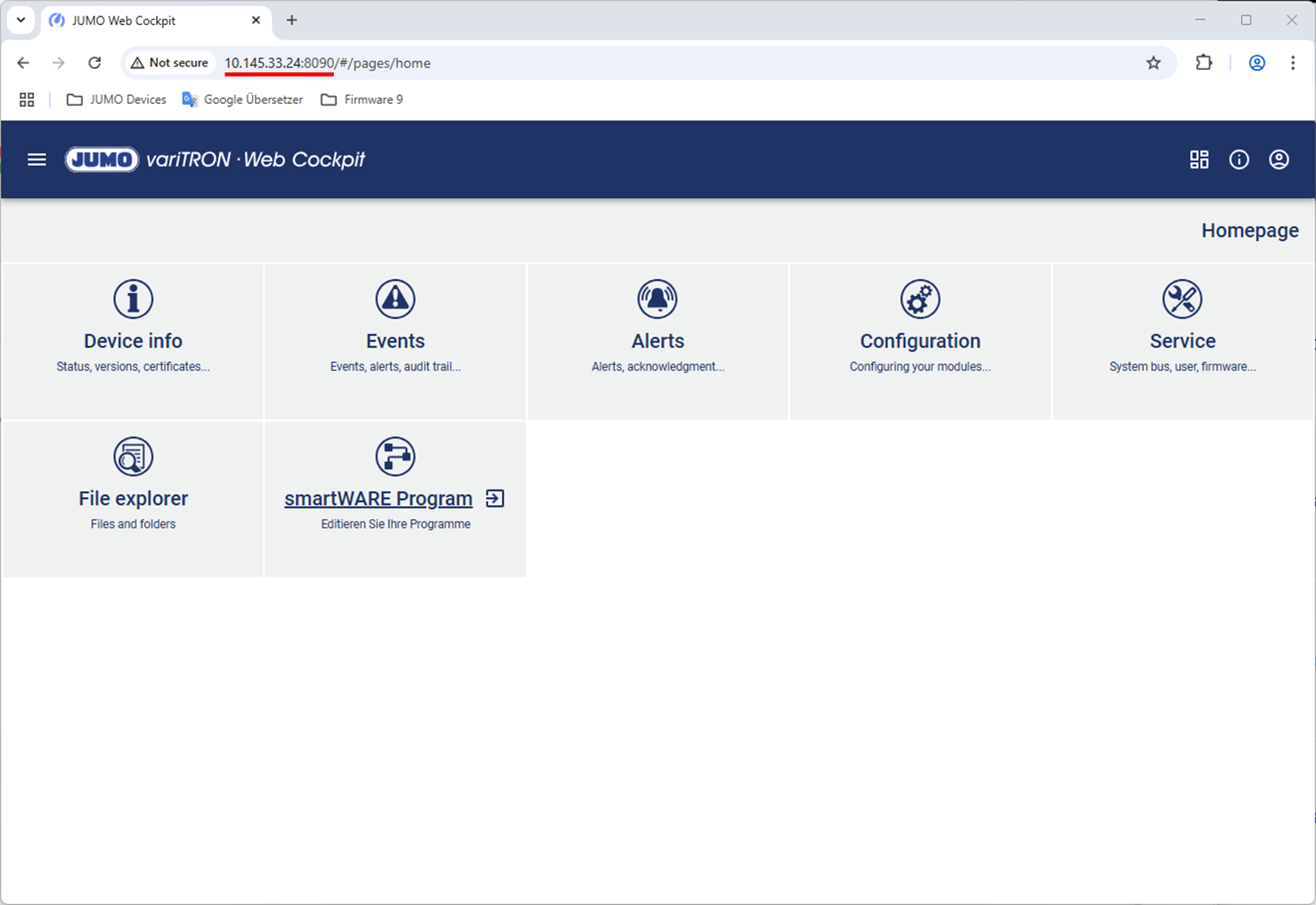

Enter the variTRON’s IP address (http://<ip-address>:8090) in your browser. The Web Cockpit’s main view will open.

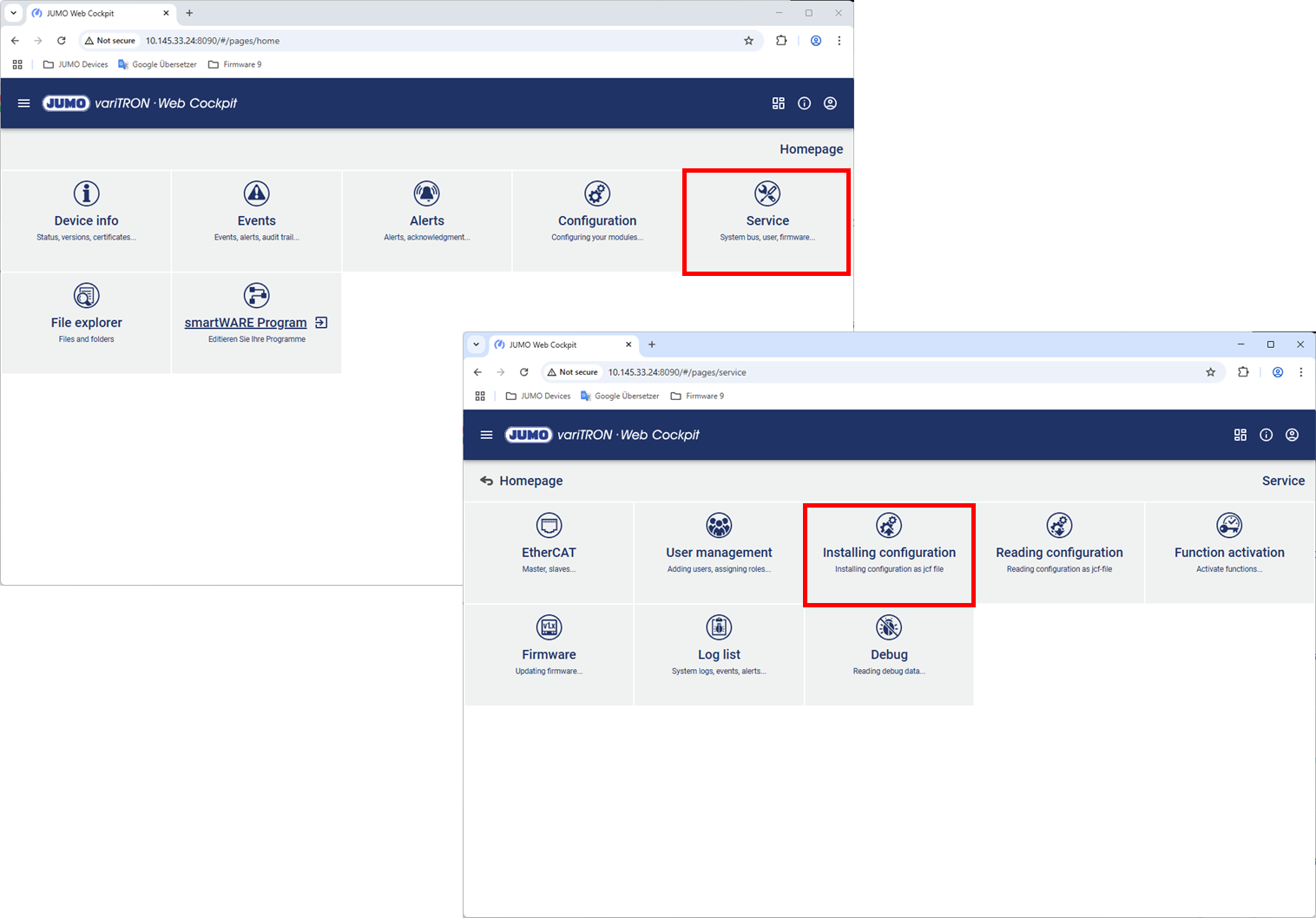

Clicking the Service / Installing configuration tile opens the following view.

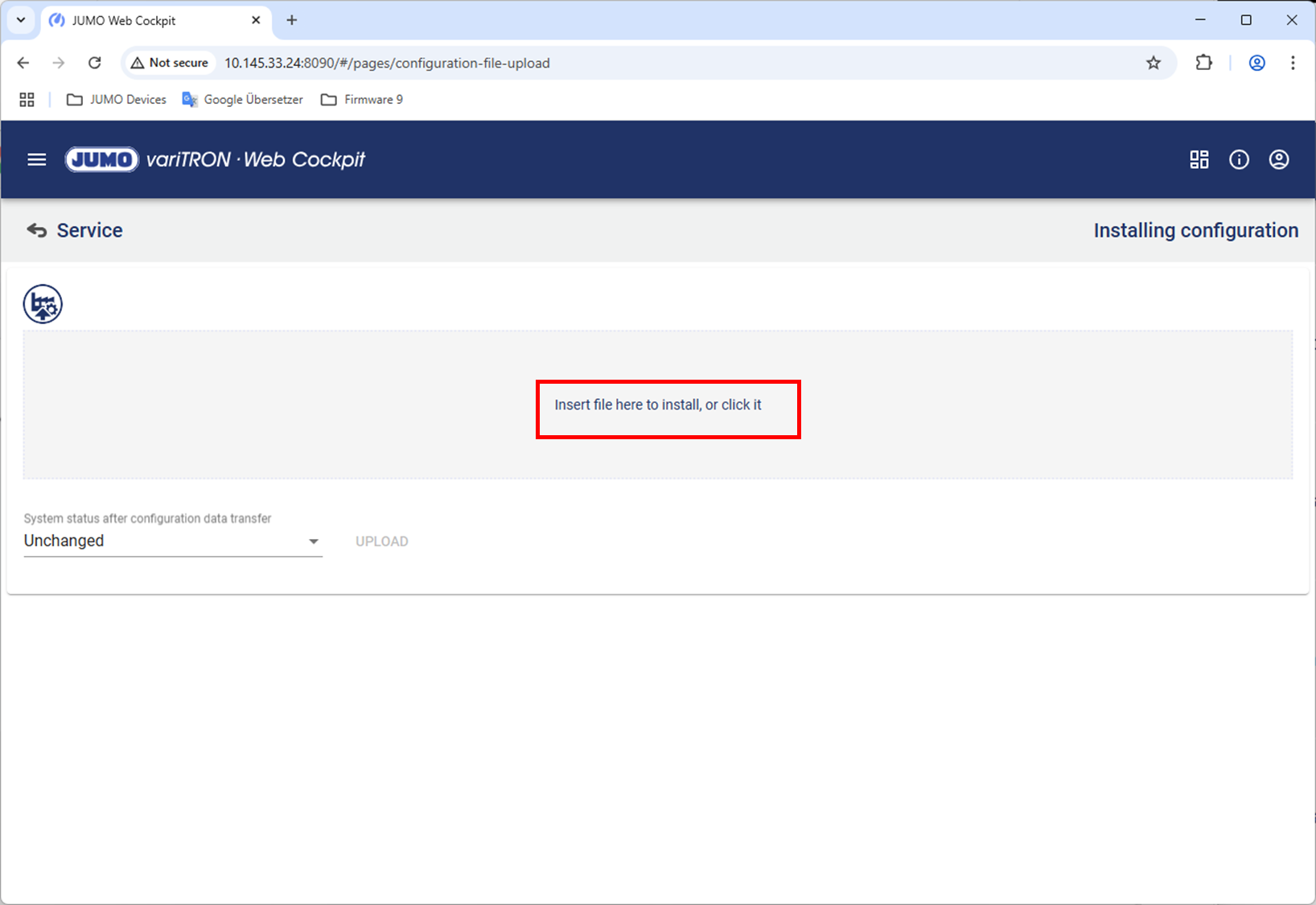

Clicking the Insert file here to install, or click it button opens a window.

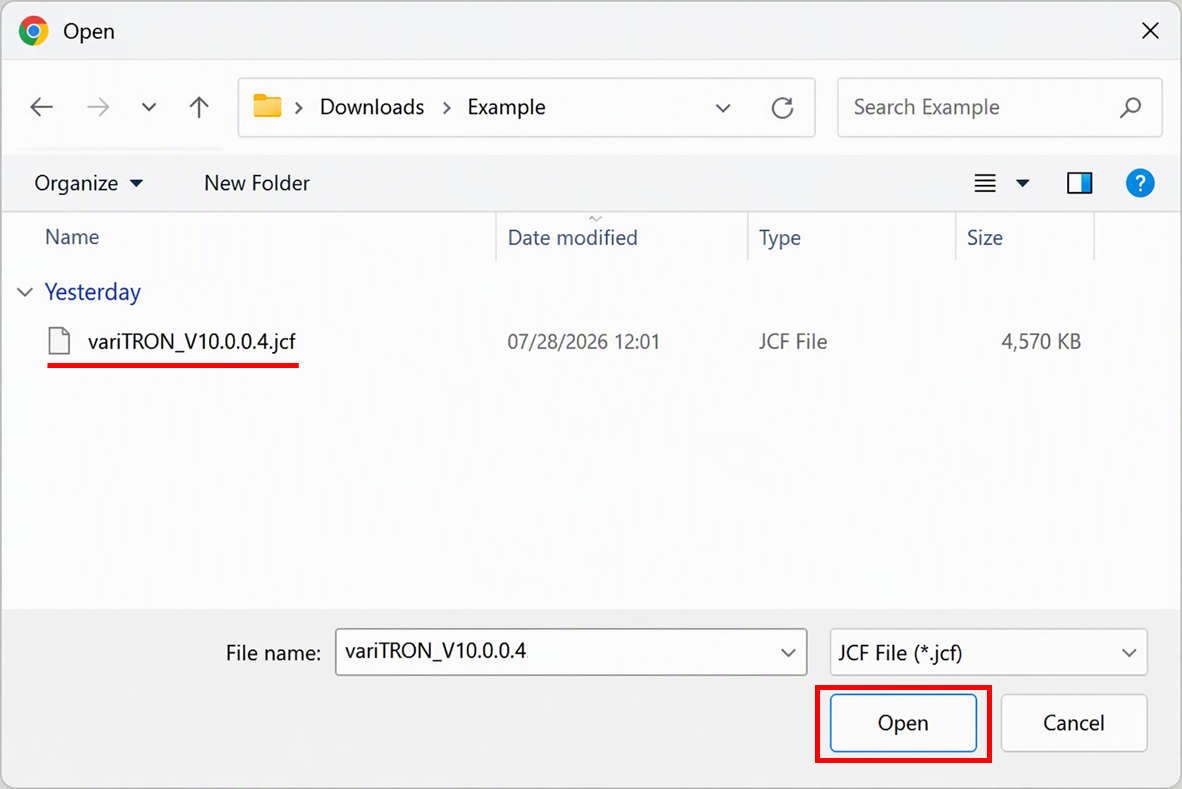

Here, you can select the desired .jcf file and open it by clicking Open.

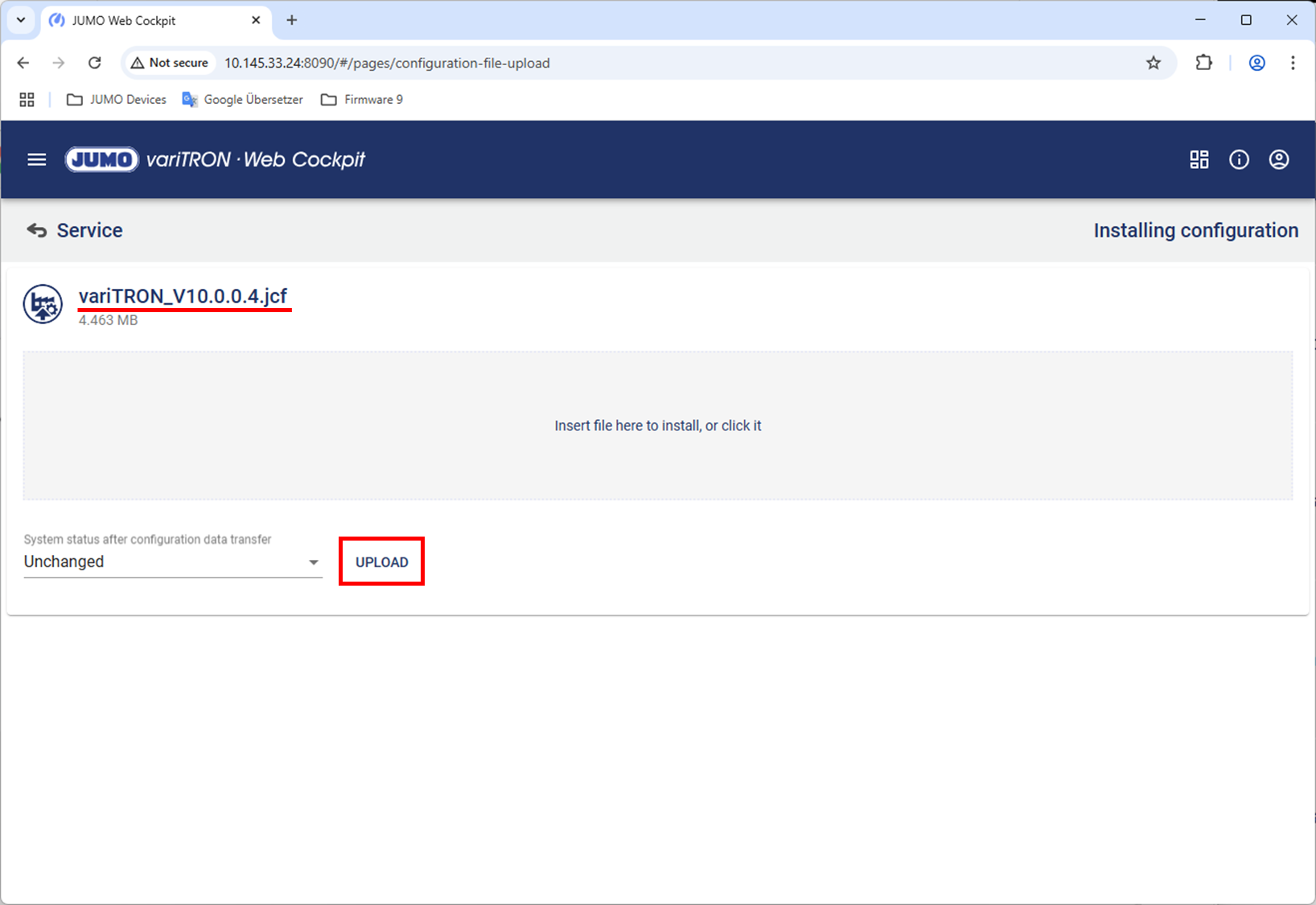

The selected file is displayed at the top. Click the UPLOAD button to import the configuration into the variTRON. This process may take a few minutes.
