The following description can be used to create your own event messages, which are then displayed in the event list.
The example shows how the FB_SetEventEntry function block is used to create an event entry in the event list.

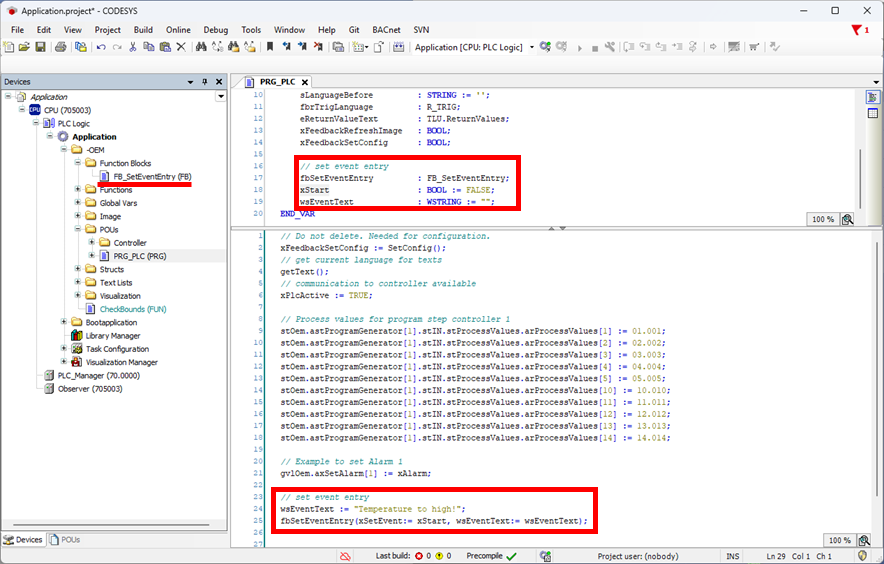

First, the function block is instantiated in the declaration part and the auxiliary variables are created.
// set event entry
fbSetEventEntry : FB_SetEventEntry;
xStart : BOOL := FALSE;
wsEventText : WSTRING := ““;
The function call can then be made as shown in the example.
// set event entry
wsEventText := “Temperature to high!“;
fbSetEventEntry(xSetEvent:= xStart, wsEventText:= wsEventText);

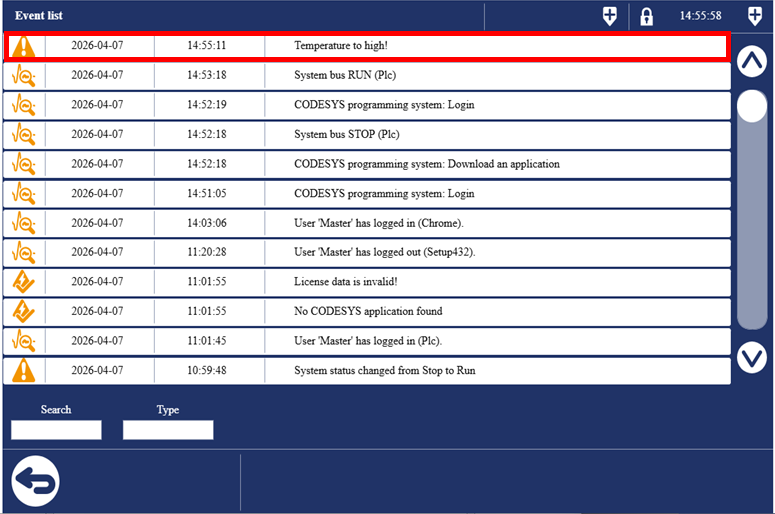

If the variable xStart is set to TRUE, the defined event text is entered once in the event list.
