Widget: Batch archive

Use

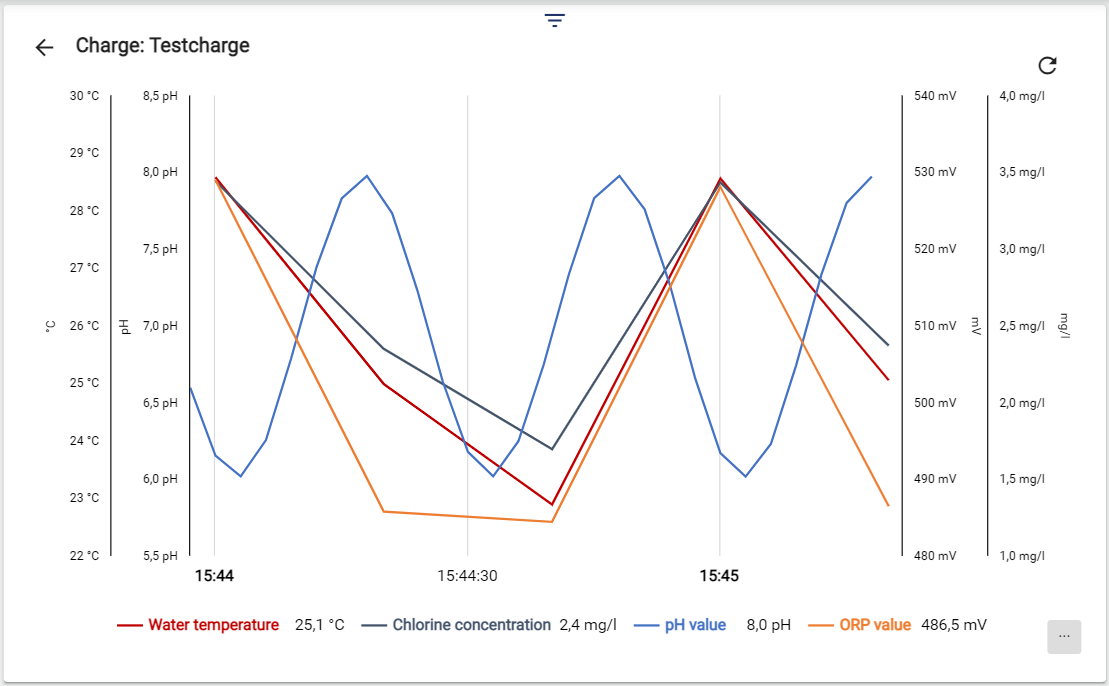

All completed and running batches can be displayed and filtered in the batch archive. Individual reports, signal curves and header data can also be viewed and evaluated for each batch.

To use the widget, a batch definition must have been created beforehand.

In order to use the widget, the “Advanced Reports” license module must be present.

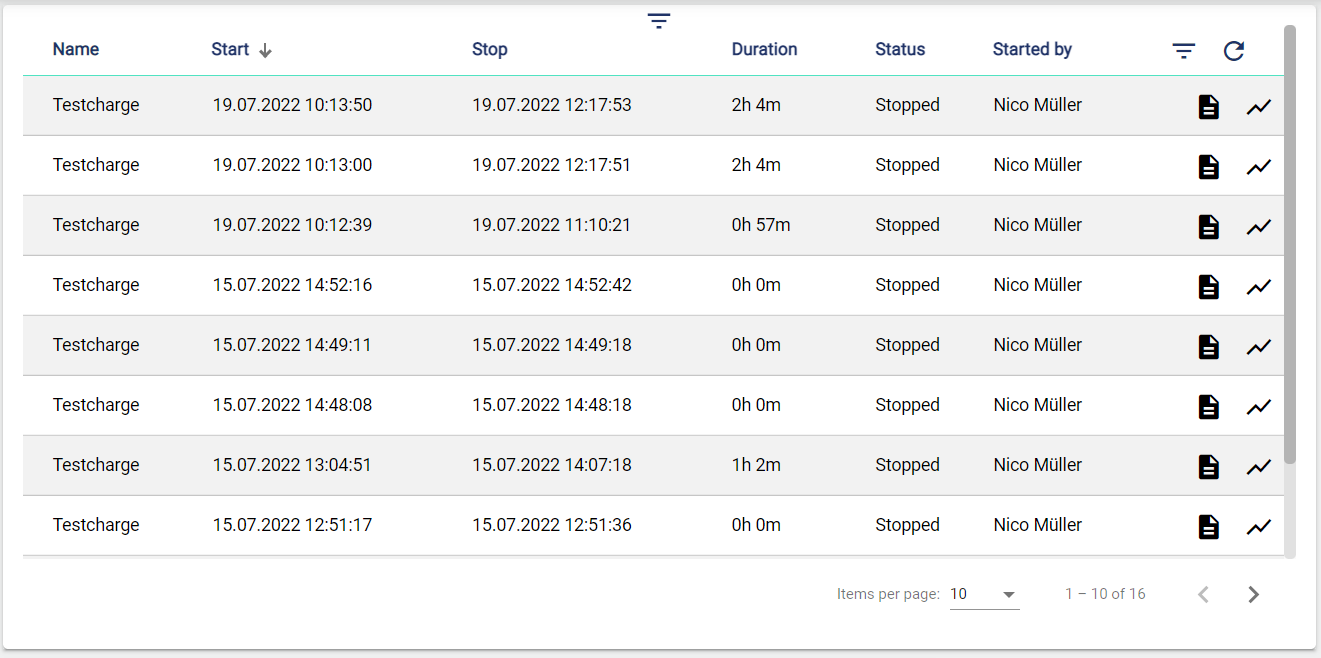

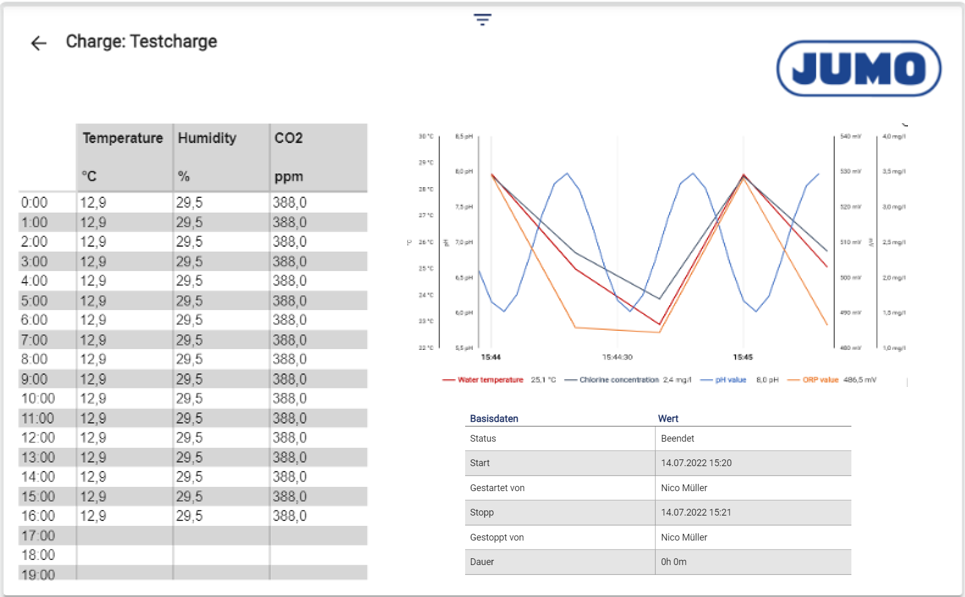

Batch History	Batch Report

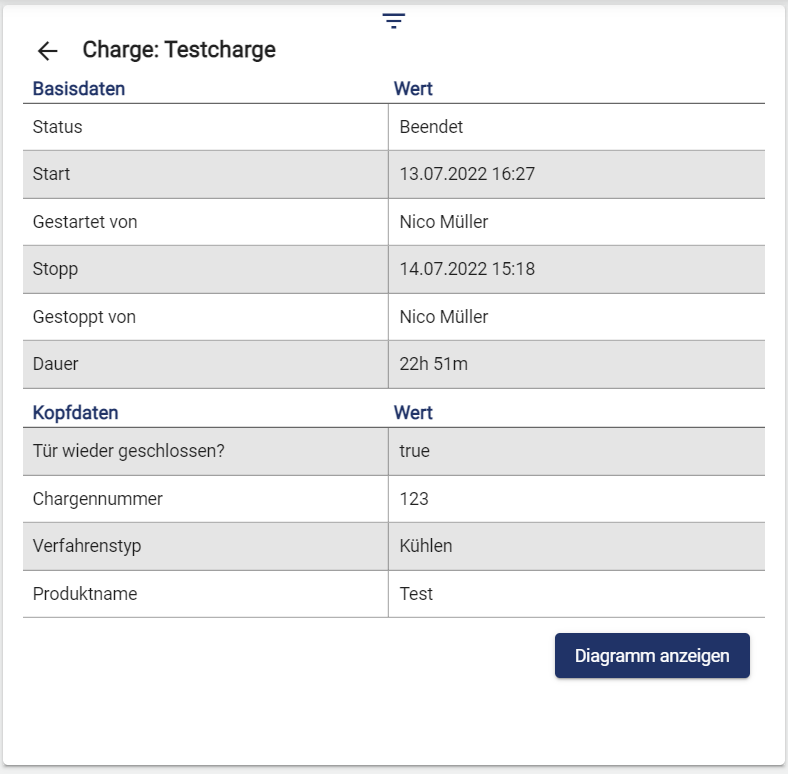

Base and header data

Configuration

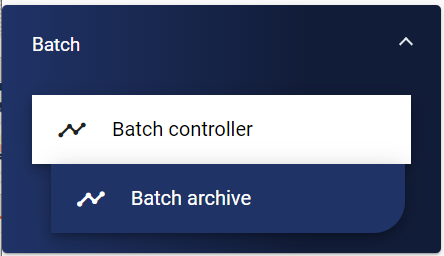

Select the Batch Archive widget from the Batch category.

Basic configuration

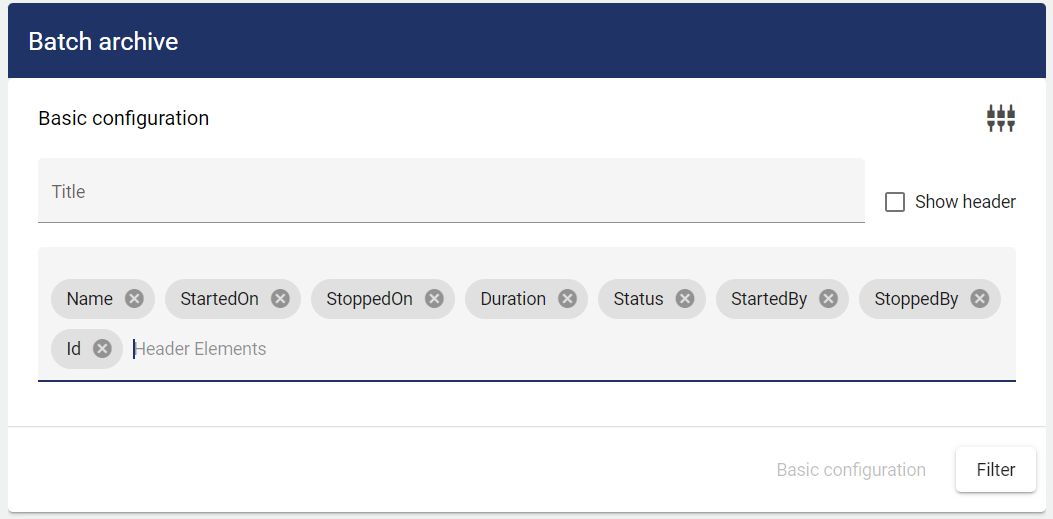

The header of the widget can be changed according to selected columns via the “Header elements” tab. All selected elements are then displayed.

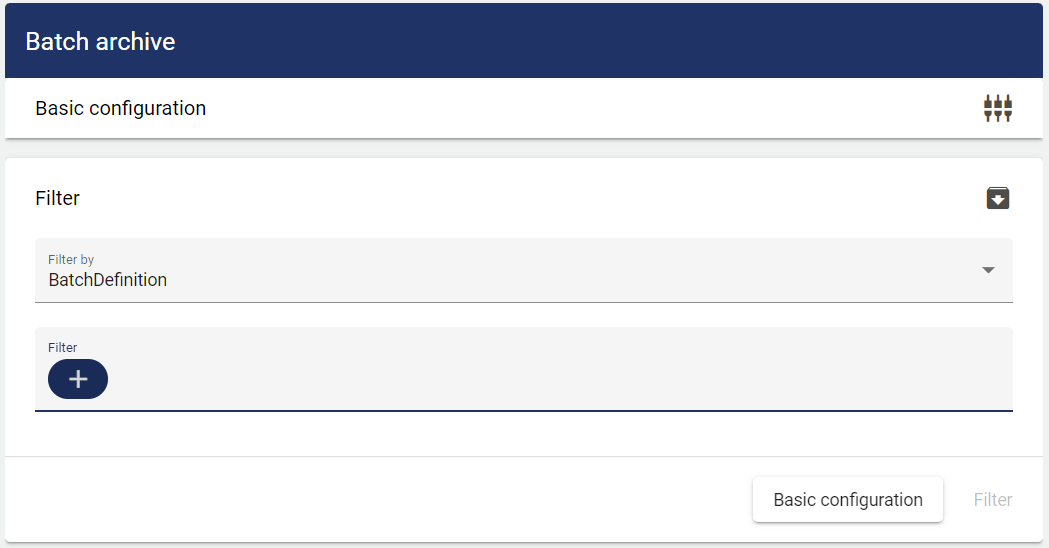

Filter

A batch previously created in the configuration under can be selected here according to "Batch definition" or "Group".
