Synchronisation

The "synchronization" is exclusively a cyclic "copy" of the configuration (groups, signals, formulas, dashboards, etc.) between two synchronization partners

Synchronization between JUMO Cloud and a local JUMO smartWARE SCADA is also possible. Use case: No connection to the JUMO Cloud → local JUMO smartWARE SCADA takes over data recording.

  • No historical data, event archives, etc. are synchronized

  • To perform a synchronization, the synchronization partner must be reachable via the network.

  • Synchronizations within an application is not possible → e.g. Synchronization of a configured tenant into a new tenant within the JUMO Cloud leads to the configured tenant being deleted.

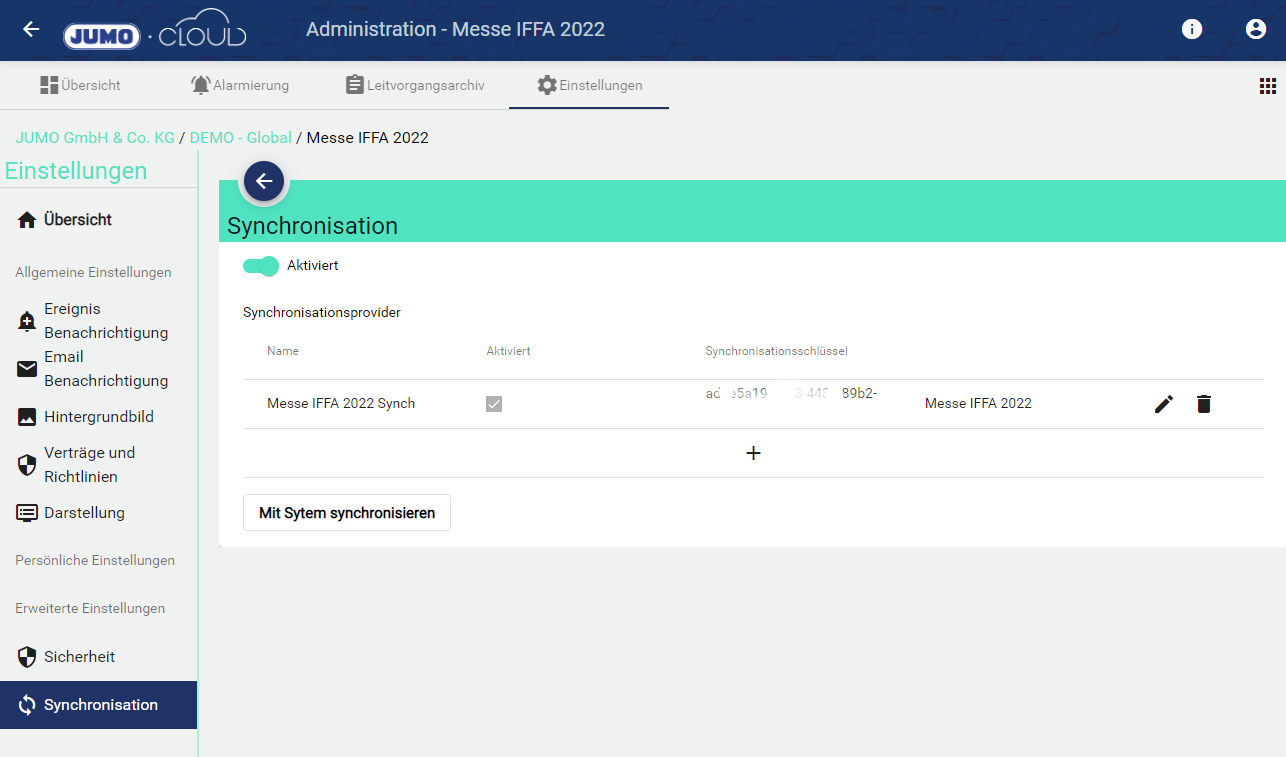

JUMO Cloud → Administration → Settings→ Synchronisation

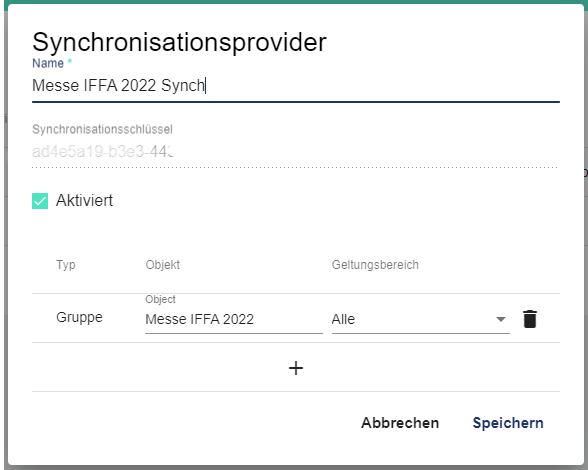

Create synchronization provider → Select group

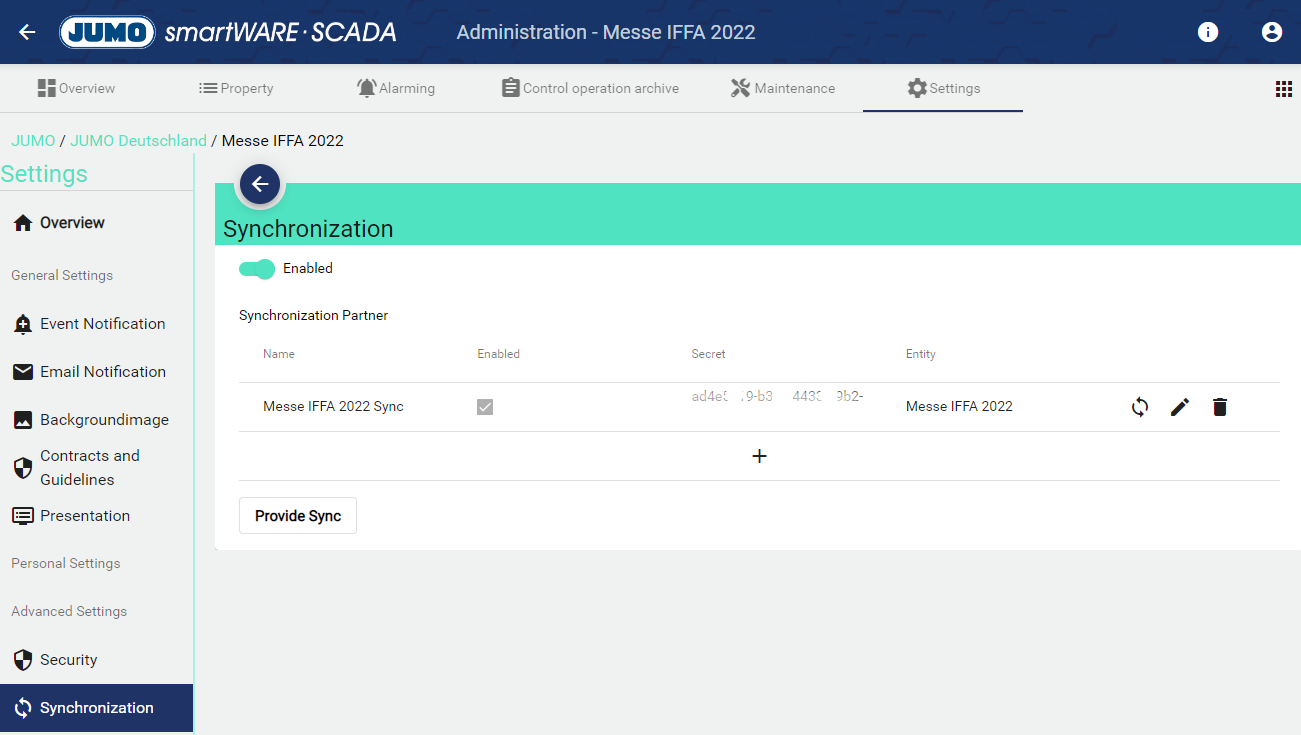

JUMO smartWARE SCADA → Administration → Settings→ Synchronisation

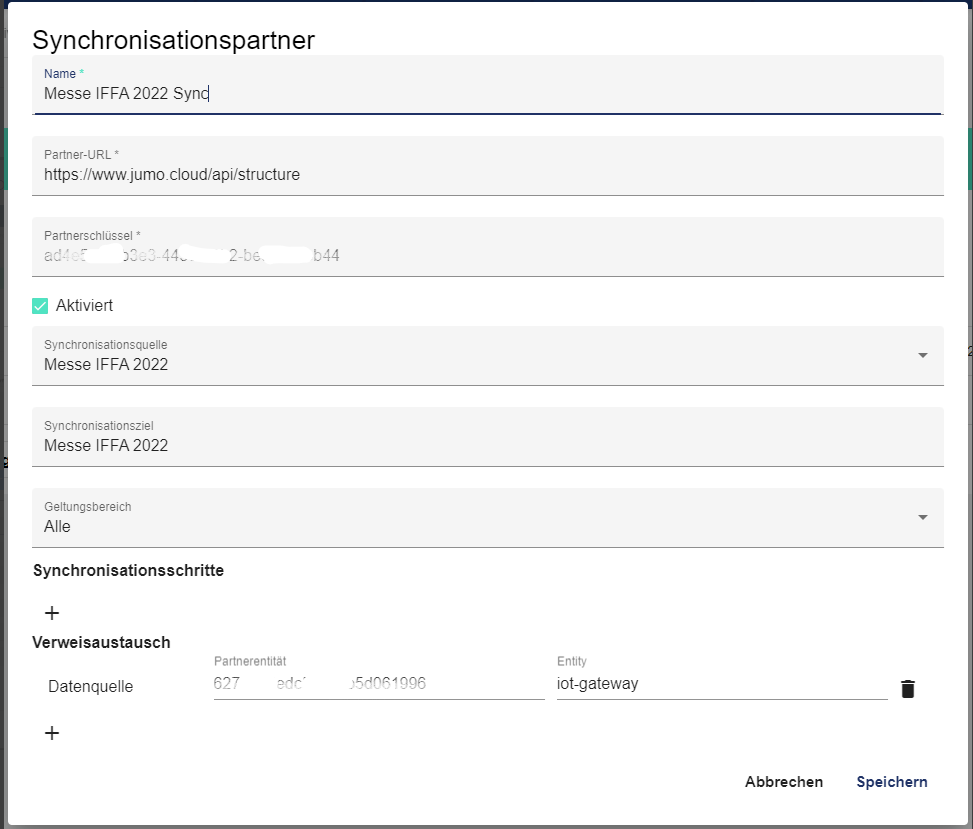

Create synchronization partner
