Smart Device Wizard

Smart Device Wizard is used to get signals from specific devices to the SCADA faster and easier.

In order to use the Smart Device Wizard, an entry must be made in the administration of the tenant under "Settings". See: “Blue Print Registries”. This entry can then be selected as "Profile".

"Blue Print Registries" can be used to connect the system to containers, allowing the user to use templates in the configuration. Each URL entry creates a "profile" in the Smart Device Wizard, which can then be selected and used.

URL entry:

To get a signal into the JUMO smartWARE SCADA with an additional datasource you need 3 configuration objects:

  1. Datasource → "Edge Gateway" of a JUMO Smart Device device

  2. Data connection → Proprietary internal JUMO data connection. No Modbus TCP.

  3. Signal → Available JUMO Smart Device signals

Once everything is set up, the signals are captured by the edge gateway of the smart device and sent to the SCADA server using MQTTS (encrypted across network boundaries).

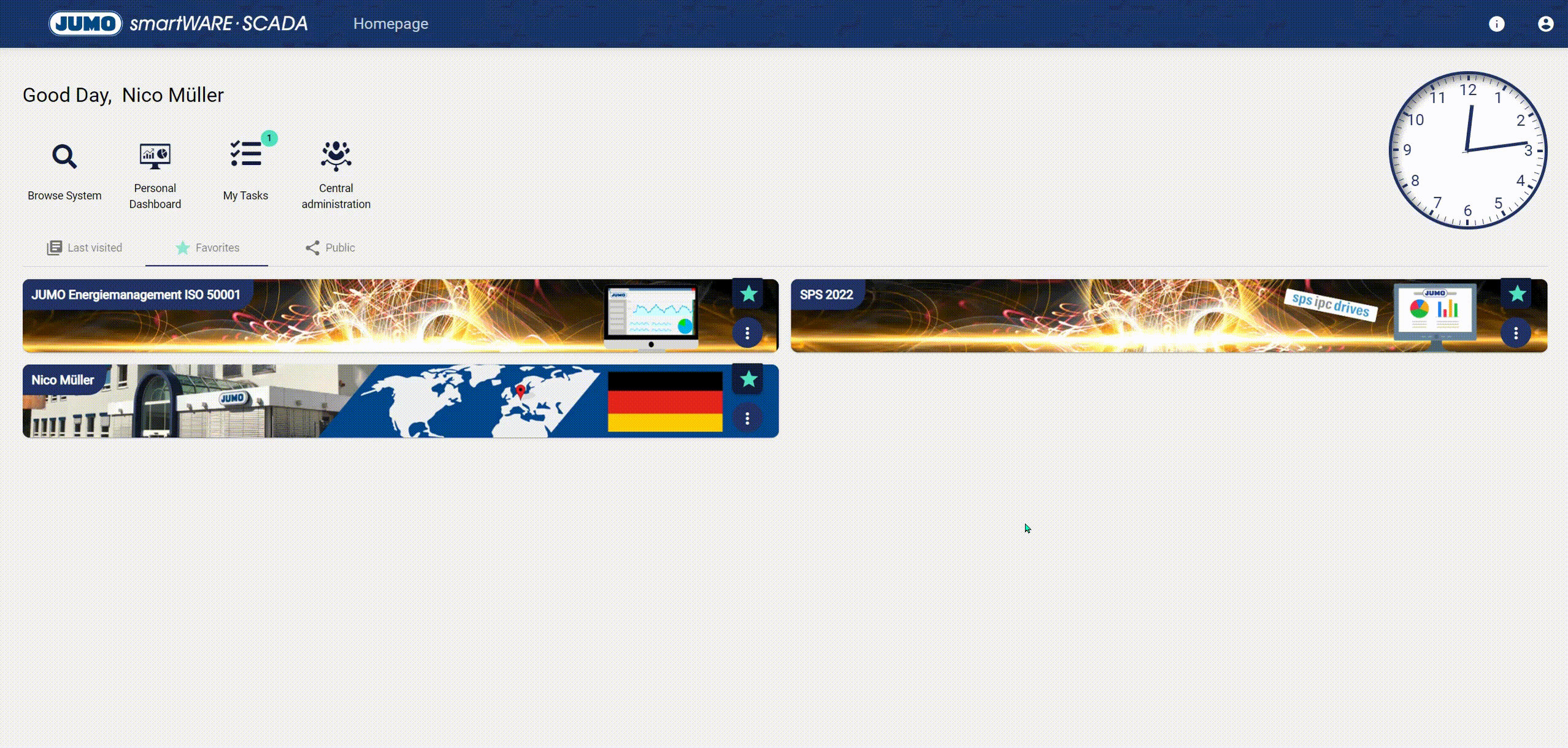

The Smart Device Wizard is accessed from the top right of the configuration and creates these 3 objects quickly and easily in a guided dialog. After these are created, the following steps must be taken to be able to include the signal in a dashboard:

  1. Enter "Device ID" and "Password" in the corresponding smart device (can be found under the item "Cloud Gateway in the setup, this must also be set to "active").

  2. After that the Datasource has to be sent to the device. You do that in the “configuration” of the tenant.

  3. Now the signal values are displayed in the system and can be included in the dashboard.
