Recipient Group

A Recipient Group is used to set the order of the Recipients to be alerted. In our system, the Recipient Group is used in Alarm Schedules. The prerequisite for a Recipient Group is the availability of previously created Recipients.

By selecting the "Recipient Group" button, you can edit a Recipient Group that was created earlier. A new Recipient Group is created via the Plus button.

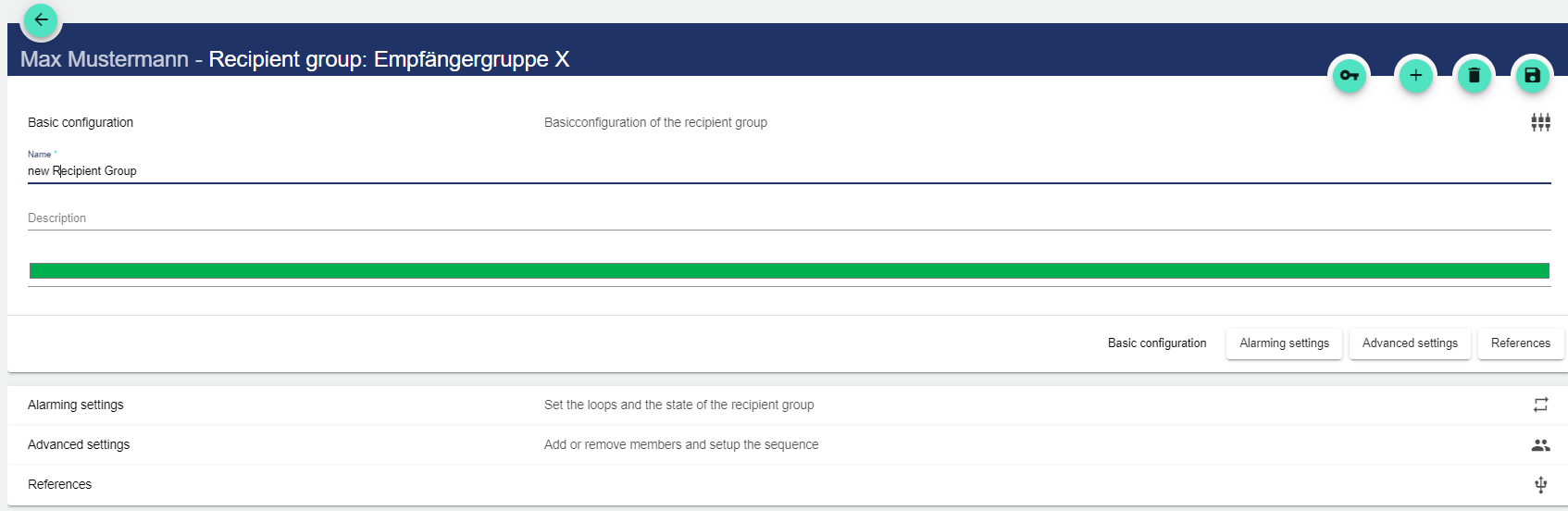

Assign the name of the Recipient Group in the Basic Configuration. The Description field is optional.

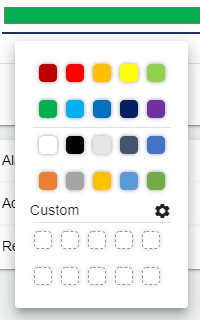

Optionally, you can assign any color to the Recipient Group. This is displayed in the respective Alarm Planning Widget.

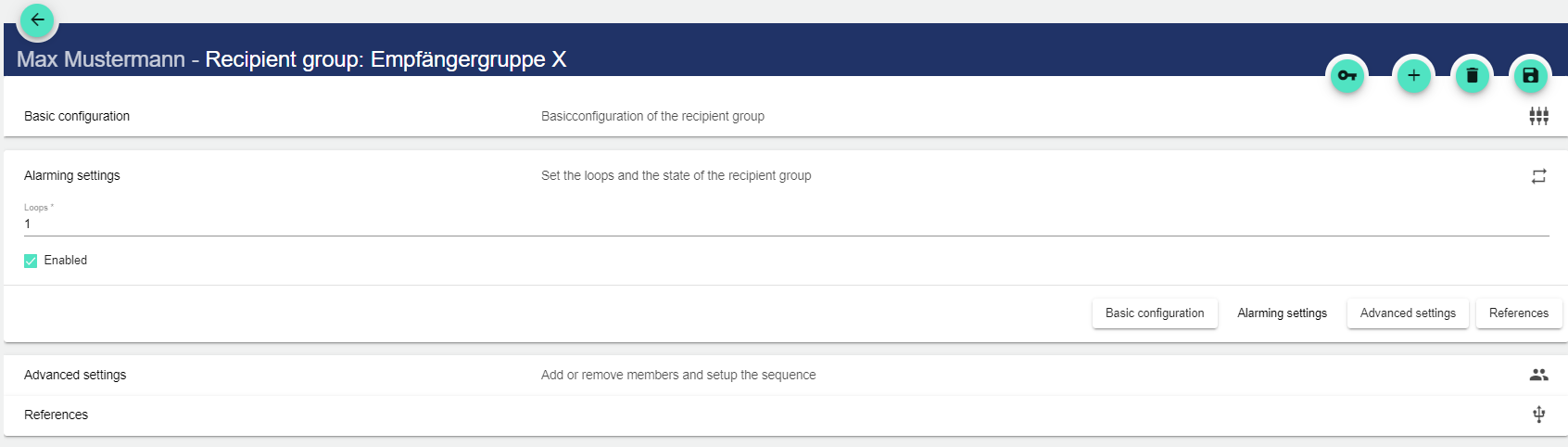

Alarm Settings

Repetitions

This setting allows you to define how often the alarm is to be triggered in case of activation.

Activated

When the checkmark is activated, the Recipient Group is notified.

Advanced Settings

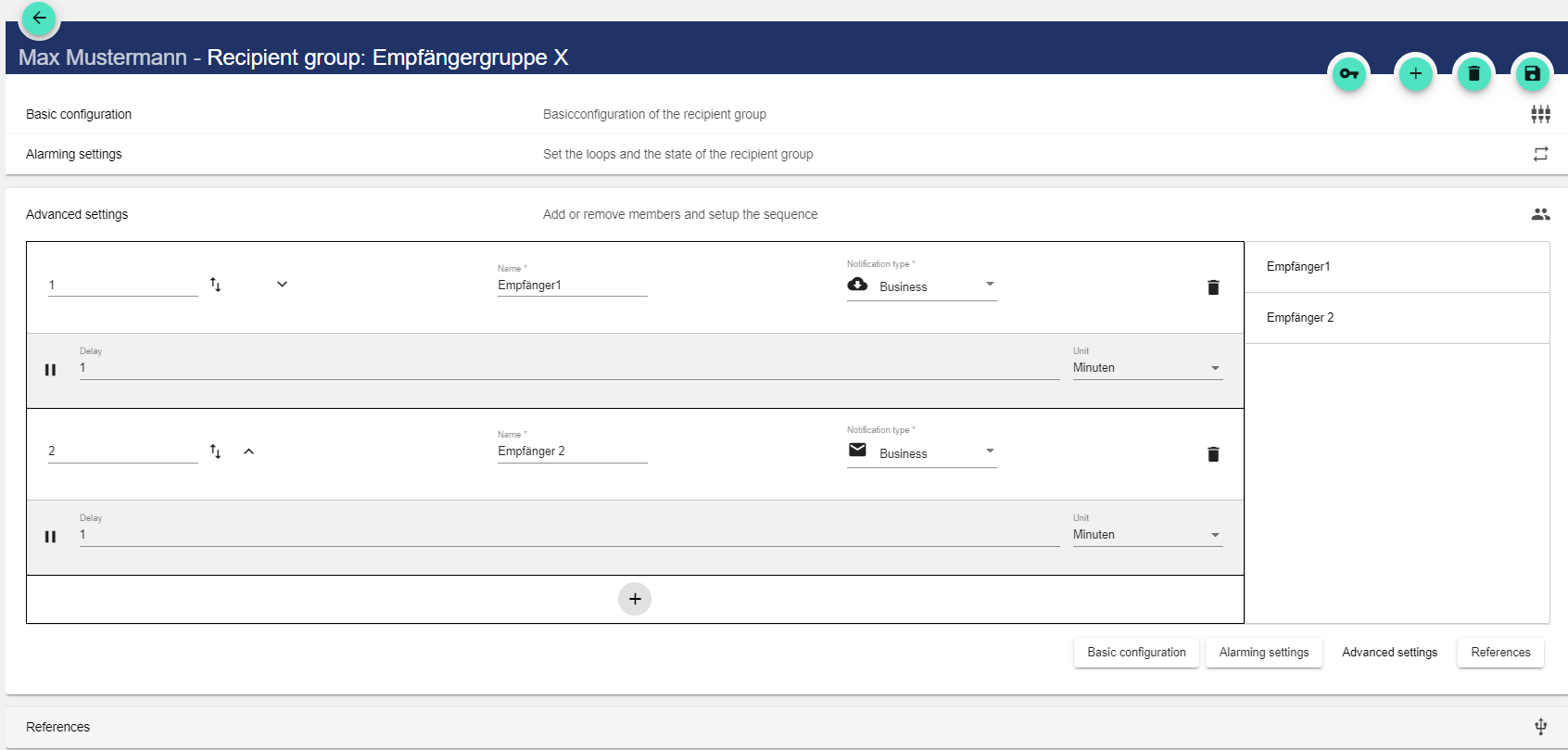

In the Advanced Settings of the Recipient Groups, you can assign recipients to the selected recipient group and also remove them again. Added recipients are notified in the event of an alarm.

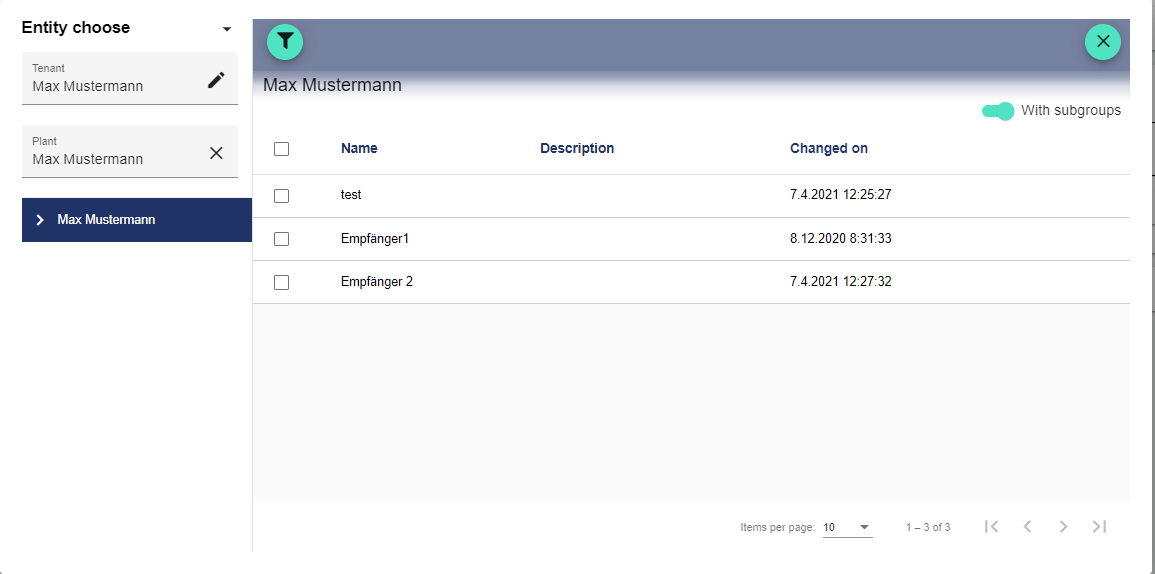

Clicking the Plus button opens a new window where you can add a previously created recipient.
The order of the Recipients is defined via the numbering on the left side; the name and the notification type is automatically applied. The following widget has the same functionality in the Dashboards: Widget: Recipient Group Config.
In the Delay field you can specify how much time you want between notifications and specify the unit (minutes/hour).

References

All references to this Recipient Group are displayed in the References.

AuditLog

The AuditLog is a change log that transparently shows how the object was changed. For some objects, it also shows which target values were set by a specific person. Power users can use the button on the right-hand side to get a detailed view of exactly what has been changed in the configuration.

The AuditLog can be used to quickly trace what happened to the object last. It corresponds to an extract from the Control Operation Archive.
