Widget: Live Mode

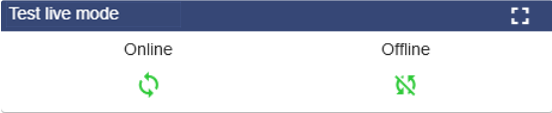

The Live Mode widget provides you with a live mode for a data source of your choice. Each applied signal is interrogated after the set Interval time and the value is stored historically. However, if you want to receive a current signal value between these sampling cycles, you can use this widget to wake up the data source (with the respective signals created with it) via the Online field. The live state of the data source is now active for 15 minutes and can be deactivated again at any time via the Offline field. In this Live Mode, the current actual values of these signals are displayed. If a signal value is sampled infrequently and is only of interest when needed, this widget provides an optimal solution.

The signal values, which are displayed in the Live Mode, are not stored in the history.

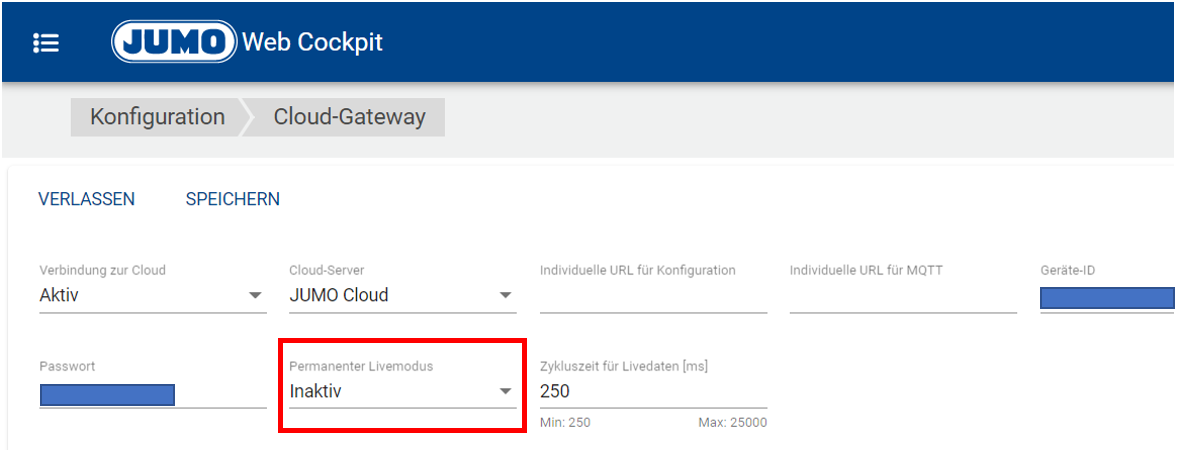

If the "permanent live mode" is deactivated in the JUMO variTRON Web Cockpit, no live data is sent. In this state, only historical data is transmitted according to Interval time.

"Permanent Live modus" in the Web Cockpit "inactive".

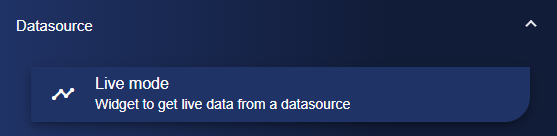

Select the Live Mode widget from the Data Source category.

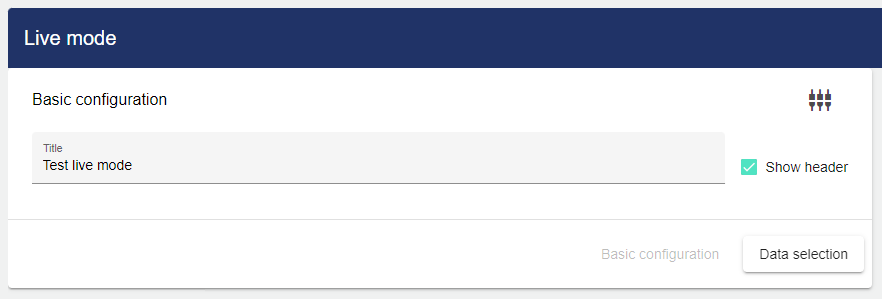

In the Basic Configuration of the Live Mode, assign a suitable title. The header can be displayed by selecting the check box.

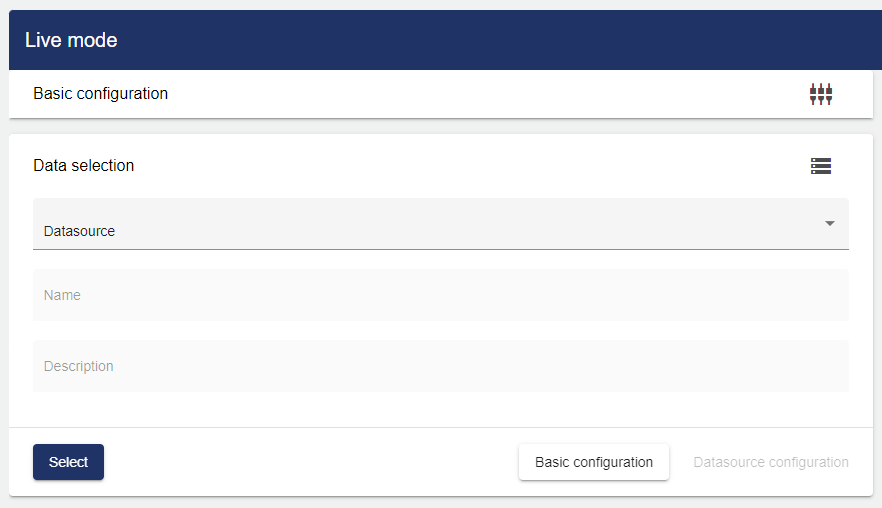

Then go to the "Data Source Configuration" tab and click "Data Source".

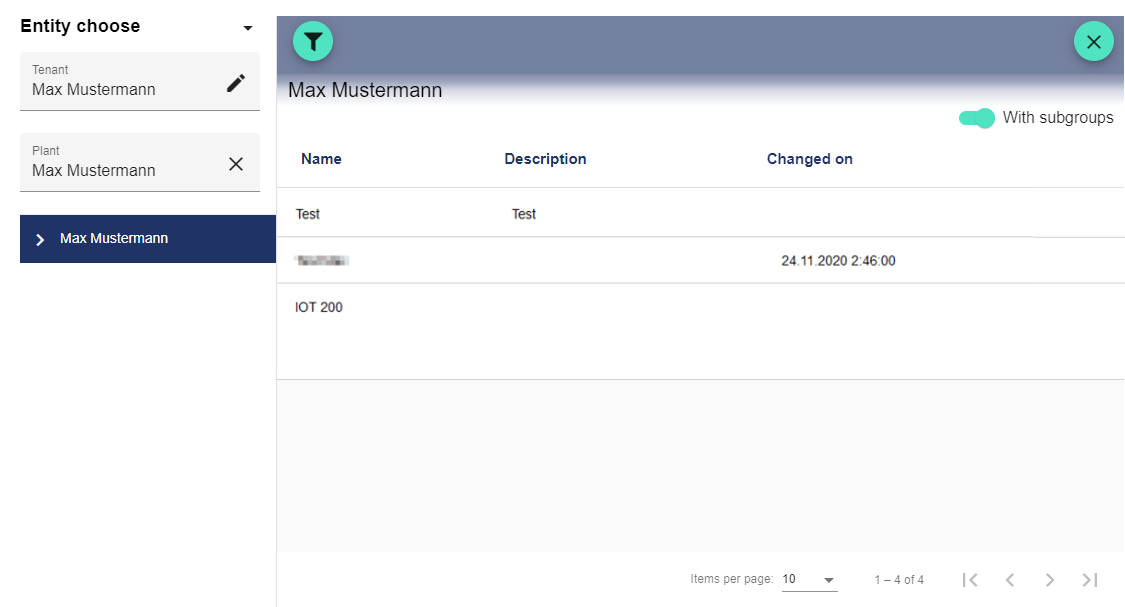

Clicking "Data Source" opens the Entity-Select window. You can add a data source that was created earlier.

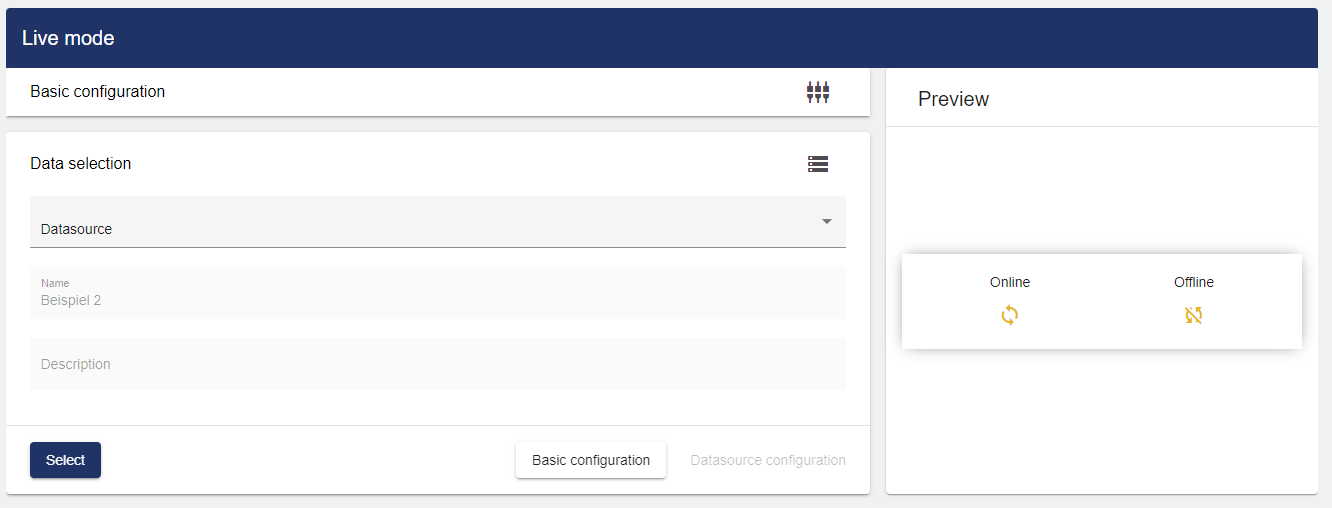

Subsequently, you test your configuration by clicking on the "Online" button.

Once you are satisfied with your configuration, you can save it.
