Dashboard (Configuration)
The Dashboard is the central element for controlling and visualizing process information in the form of Widgets.
Setting up a Dashboard is the basis for the further use of the JUMO smartWARE SCADA. The creation of a Dashboard and the associated panel(s) is described in more detail in the following chapter: Dashboard Setup.
Use the Plus button to create a new Dashboard.

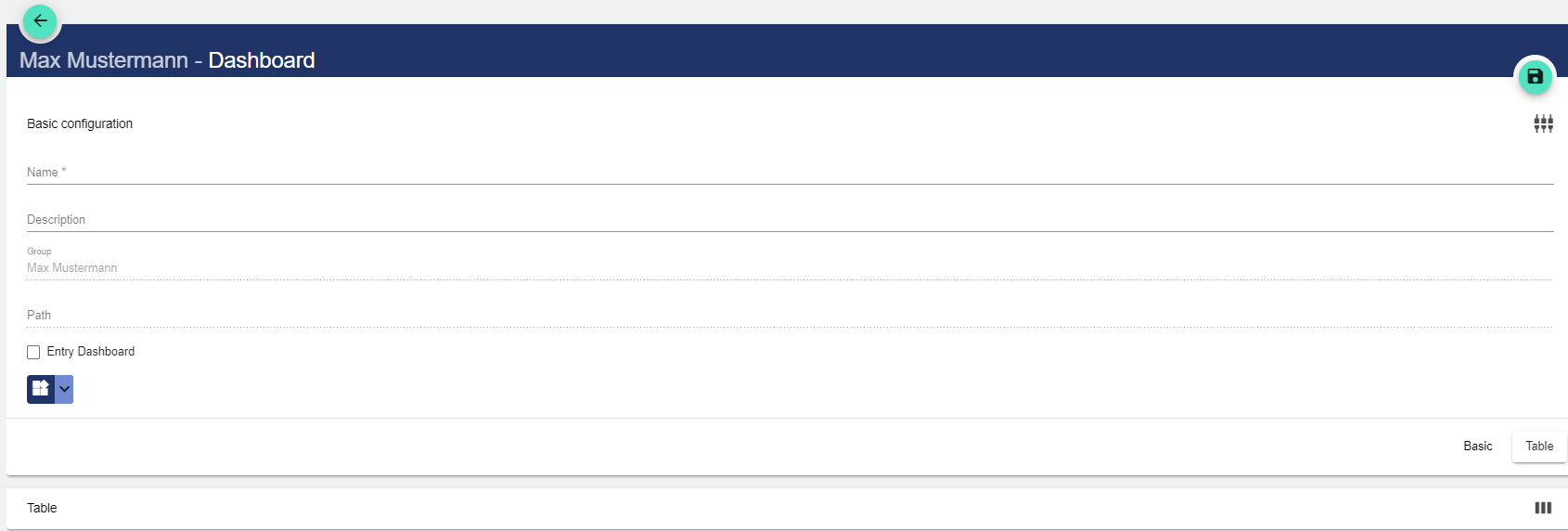

Assign a name to the Dashboard in the Basic Configuration. The Description field is optional. The Dashboard can also be created as an "entry-level" dashboard. This means that you always access the other information via this Dashboard.

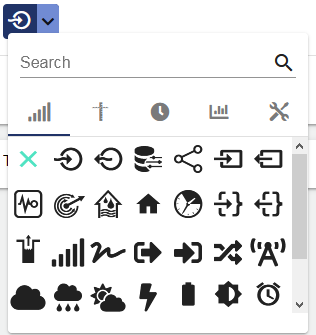

Optionally, you can select the desired icon from the menu.
Save the Dashboard by clicking the Disk icon.

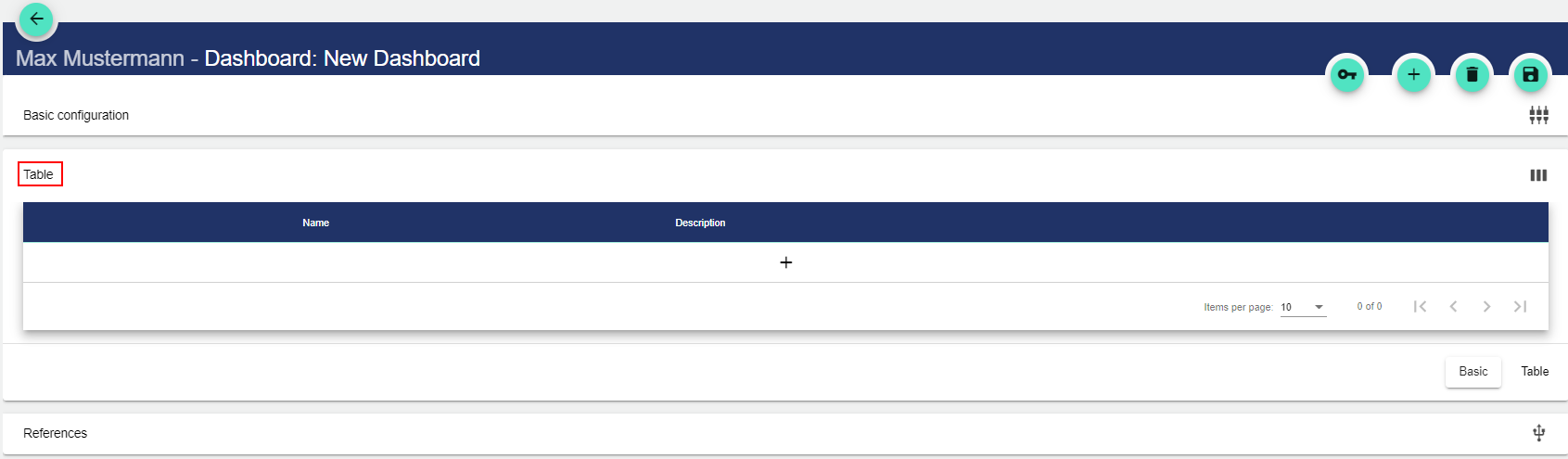

The panel can be created either directly when creating the Dashboard or later by editing the existing Dashboard.
The condition for a new Dashboard is always a panel.
The name is used to identify a panel at a later time.
