Widget: Setpoint Slider
Benutzung

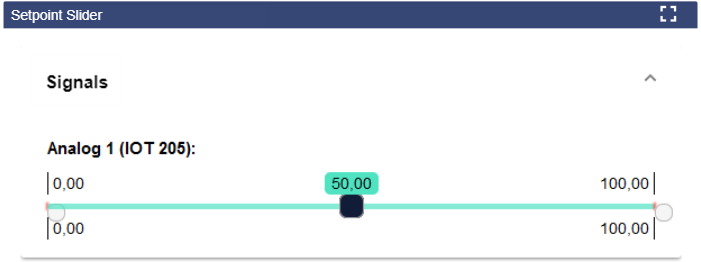

The Setpoint Slider is used to set an analog signal or an analog setpoint within a defined range.
![](../__attachments/1420394538/image-20220525-091039.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Configuration

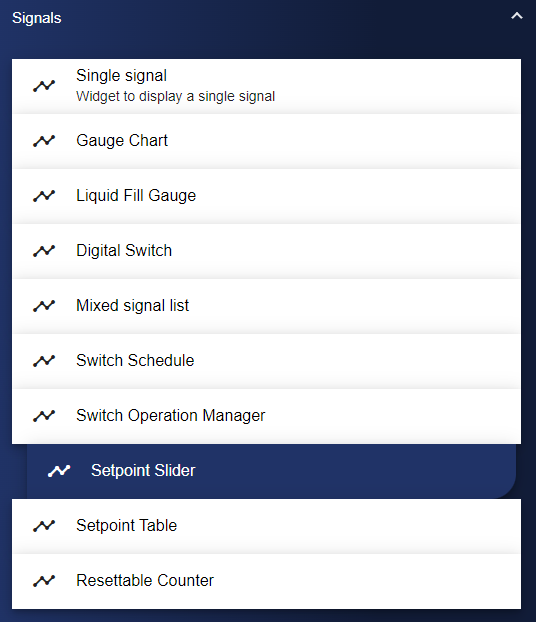

Select the Setpoint Slider widget from the Signals category.
![](../__attachments/1420394538/image-20220525-091137.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

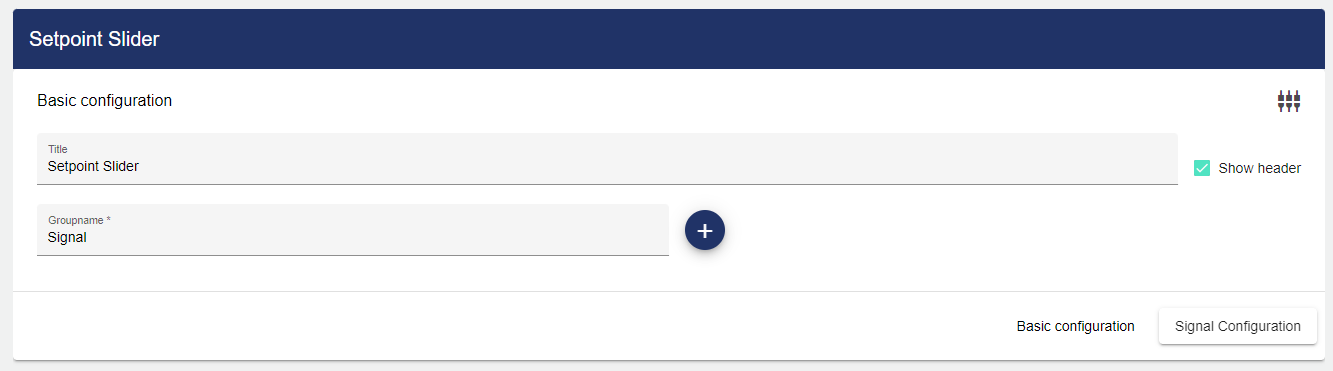

In the Basic Configuration of the Setpoint Slider, assign a suitable label (title). The header can be displayed by selecting the check box. You also need to add a Group name. Click the Plus button to create the respective configuration of the Group.
![](../__attachments/1420394538/image-20220525-091159.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

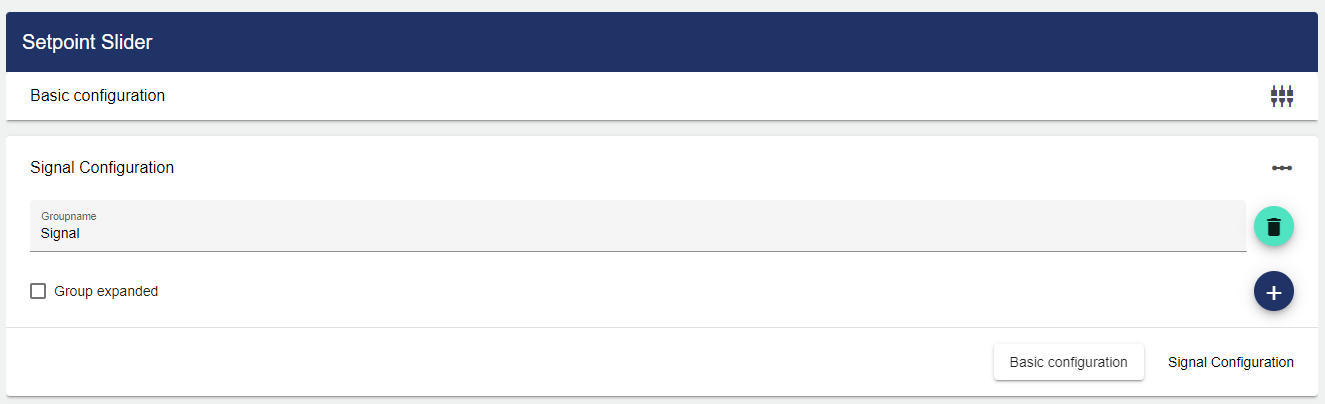

Under the Signals configuration, you now need to select a signal via the Plus button.
![](../__attachments/1420394538/image-20220525-091216.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
If you want to expand the display of the Group in the Dashboard, activate the corresponding checkbox here.

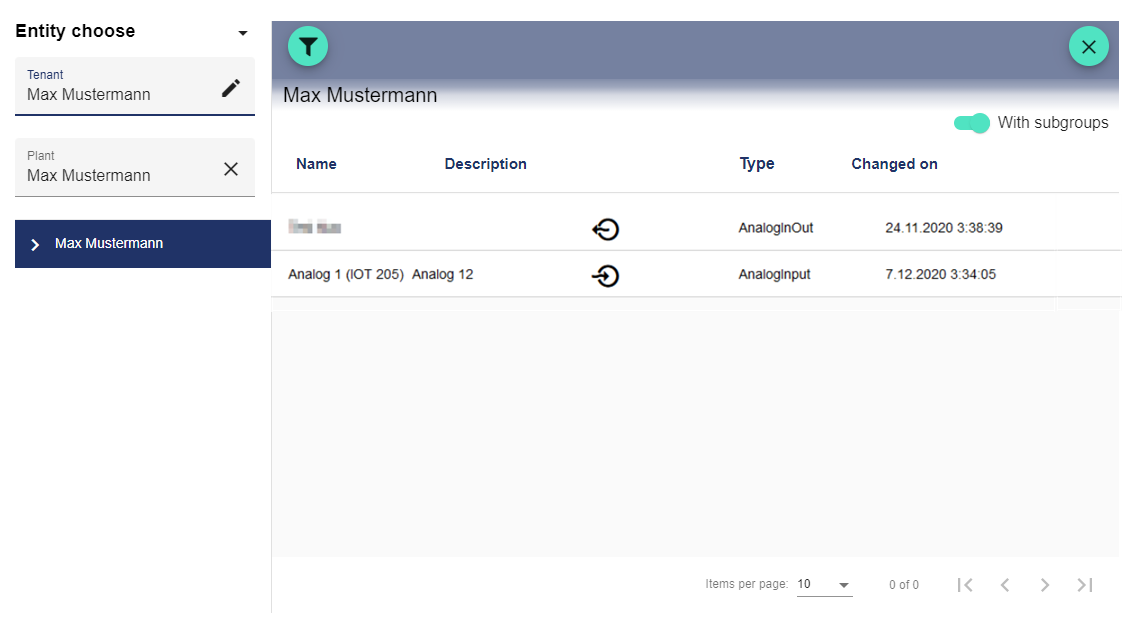

Clicking the Plus button opens the Select Entity window. You can add a previously created signal here.
![](../__attachments/1420394538/image-20220525-091403.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)

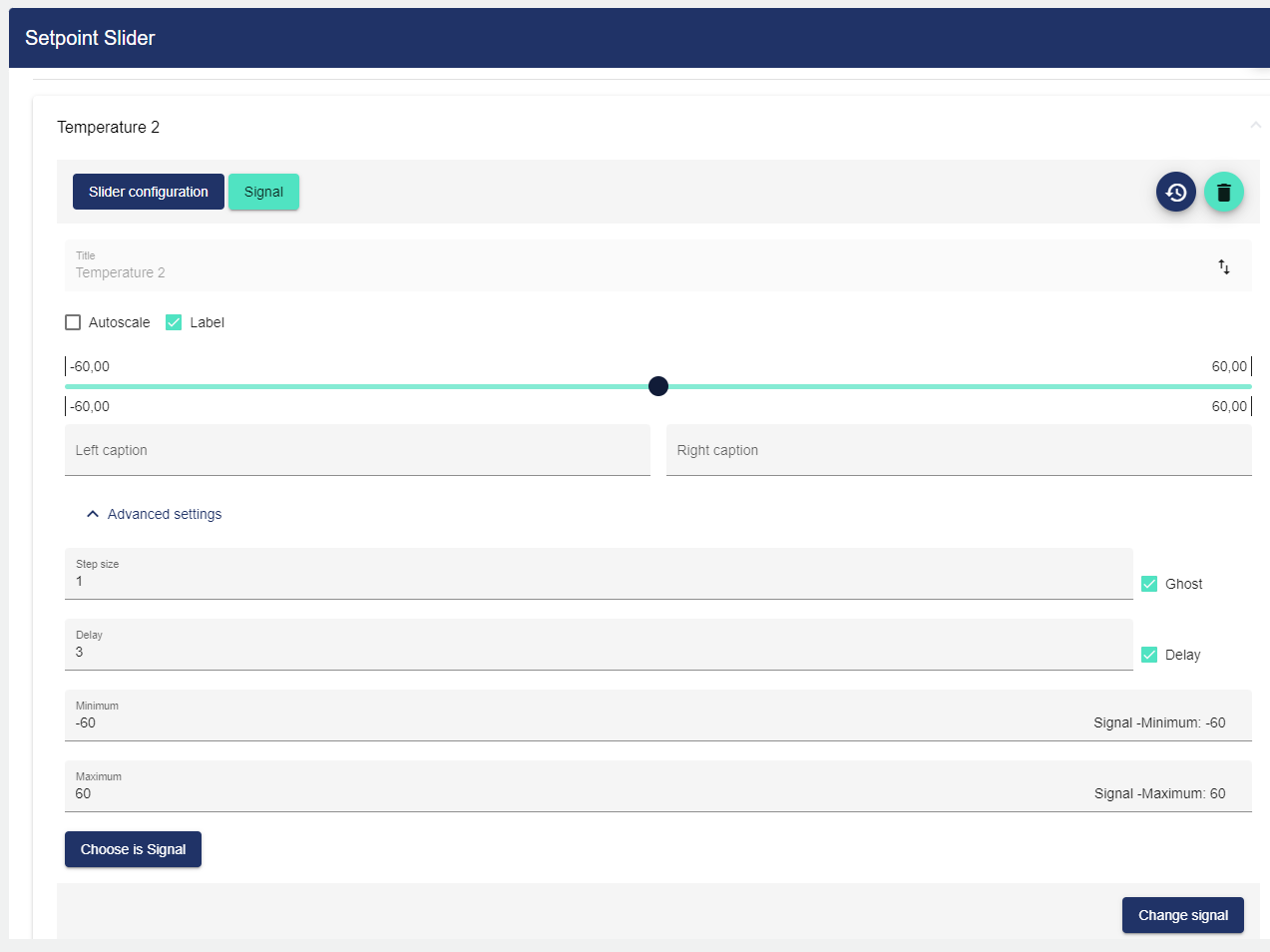

You can add multiple signals that were created earlier. Various settings can be made for each signal. Automatic scaling and the labeling of the slider can be activated by clicking a button.
![](../__attachments/1420394538/image-20220525-091431.png?inst-v=3189c006-94e2-4a50-82f4-8862a39f3bb4)
Setting | Meaning |
---|---|
Subtitles | Subtitles can be added to the left and right under the slider. |
Increment | You can change the increment of the slider here. If the "Ghost" function is enabled, when the slider is changed, the old position of the slider is seen in a transparent form. |
Delay (in sec.) | In the Delay field, you can enter a value by which the adjustment of the analog setpoint is delayed. During the delay, the operation can be canceled. Click the "Delay" selection field to activate or deactivate the delay. |
Minimum | The value entered here determines the minimum value of the slider. |
Maximum | The value entered here determines the maximum value of the slider. |
Once you are satisfied with your configuration, you can save it.
