Setpoint settings
The settings for the setpoints are made in smartWARE Setup in the area Configuration under :Home: > PLC configuration > Prog. generator > Program generator x > Setpoint settings.

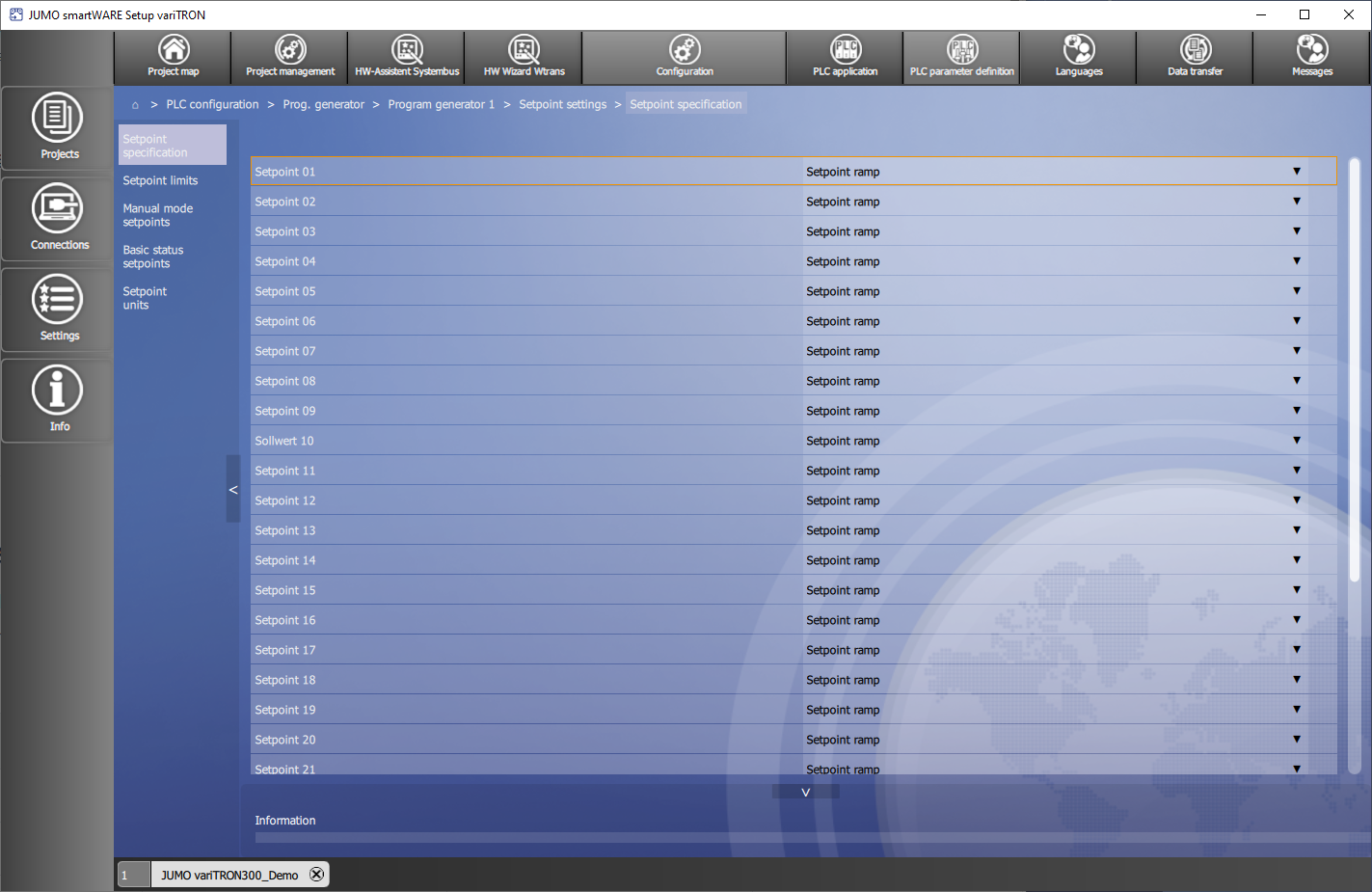

Setpoint setting
For each setpoint, you can specify whether a setpoint change takes place as a step or in the form of a ramp.
Parameter | Selection/setting | Description |
|---|---|---|
Setpoints 1-30 | Setpoint jump Setpoint ramp End value for SW ramp 1…10 | Setpoint change as jump Setpoint change as ramp Not used for the Visu-Template. |

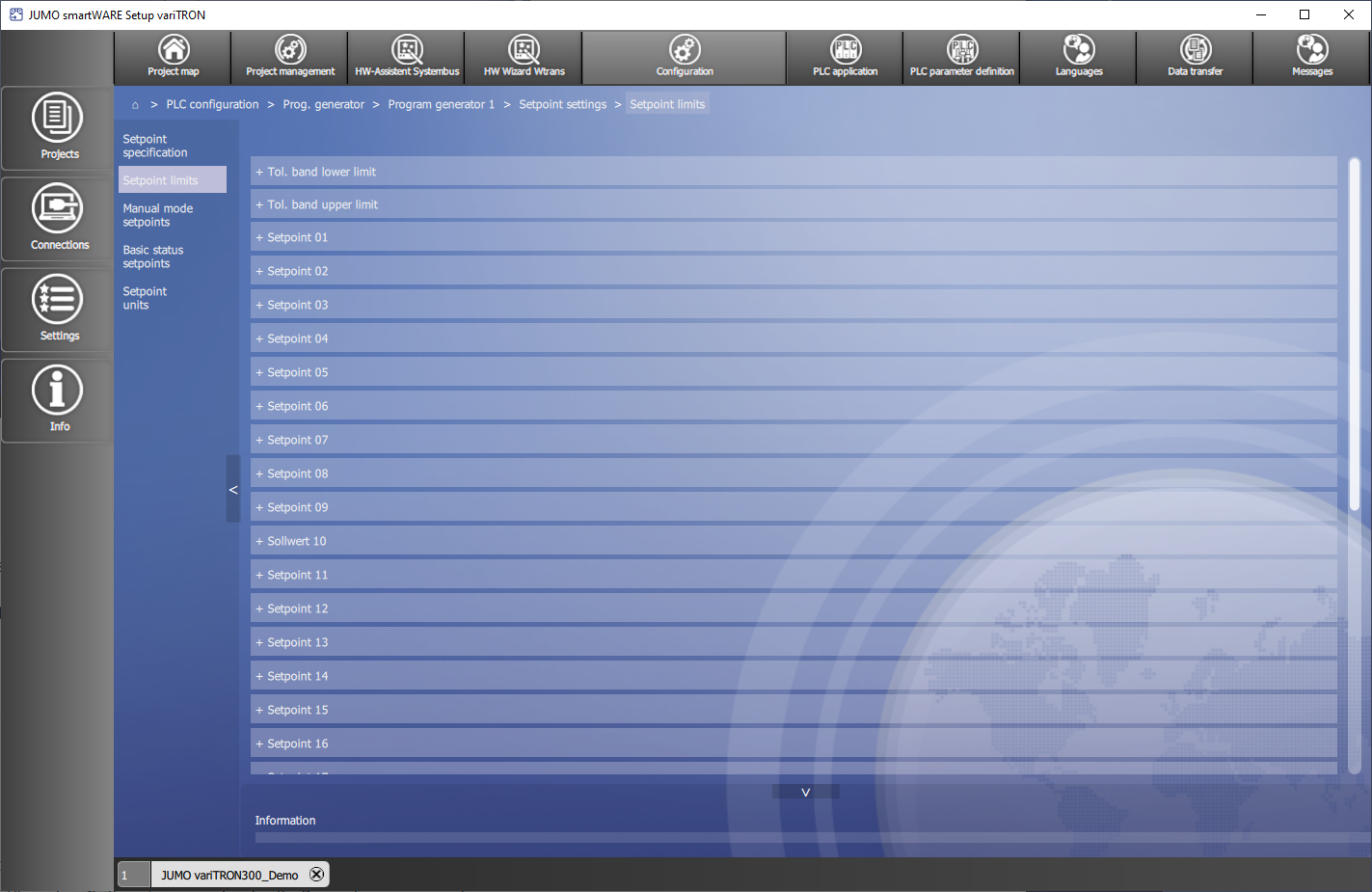

Setpoint limits
The setpoint limits and tolerance band limits (setpoint 1) are specified here. You can also set the number of decimal places and assign an individual name for each setpoint.
Parameter | Selection/setting | Description |
|---|---|---|
Setpoints 1-30 | ||
Minimum | -99999…+99999 | Permissible minimum setpoint |
Maximum | -99999…+99999 | Permissible maximum setpoint |

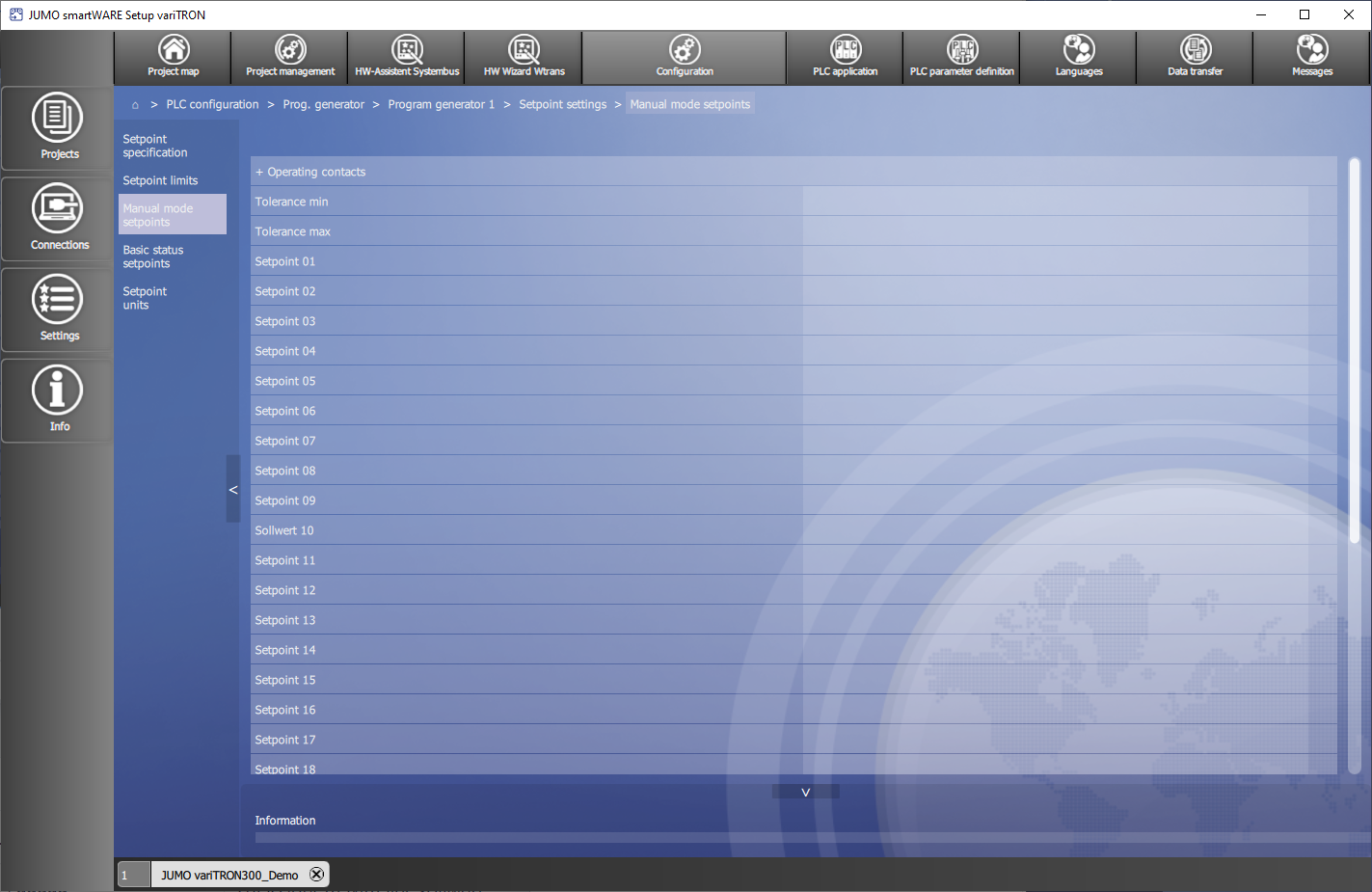

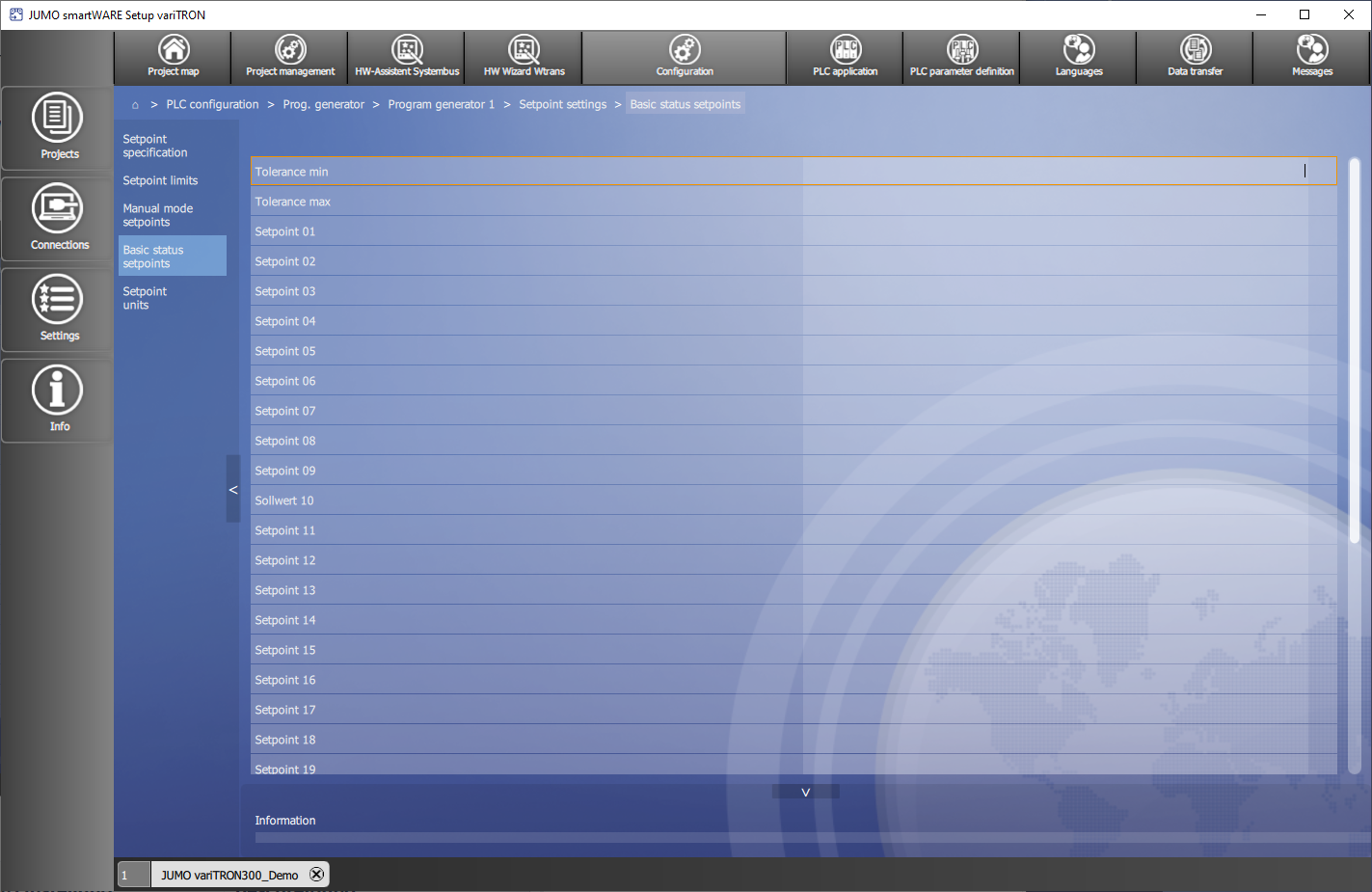

Setpoints for manual mode
For manual mode, certain values can be specified. This relates to all setpoints, tolerance band and the control contacts.
These values are also used if the program generator has been configured as a fixed value generator.
Parameter | Selection/setting | Description |
|---|---|---|
Setpoint 1-30 | -99999…+99999 | Setpoint 1-30 |
Lower tolerance limit | -99999…+99999 | Lower value of the tolerance band |
Upper tolerance limit | -99999…+99999 | Upper value of the tolerance band |
Control contacts 1-32 | Off (switch) On | Control contact not active Control contact active |
Units for setpoints
A unit can be selected for each setpoint.
Parameter | Selection/setting | Description |
|---|---|---|
Setpoint 1-30 | No unit Absolute temperature Relative temperature Relative humidity Ratio Hours Minutes Seconds |
