Set bus cycle time

Using cycle settings of the primary bus

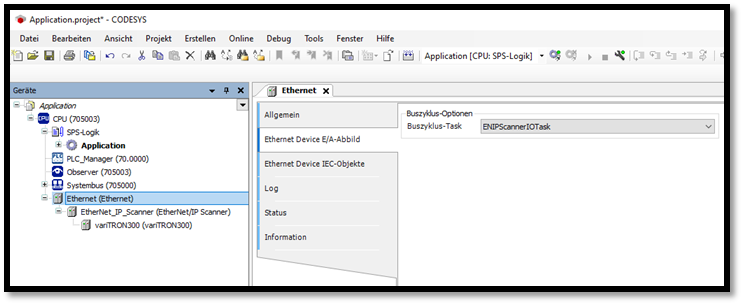

Under Ethernet and EtherNet_IP_Scanner, the bus cycle time can be set under -I/O image.

According to CODESYS assistant:

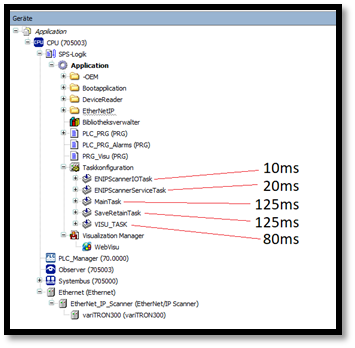

By default, the bus cycle setting of the higher-level bus device applies (use cycle settings of the higher-level bus), i.e. the device tree is searched upwards for the next valid bus cycle task definition. In our example, CODESYS relates to the cycle time of the VISU_TASK with 80 ms.

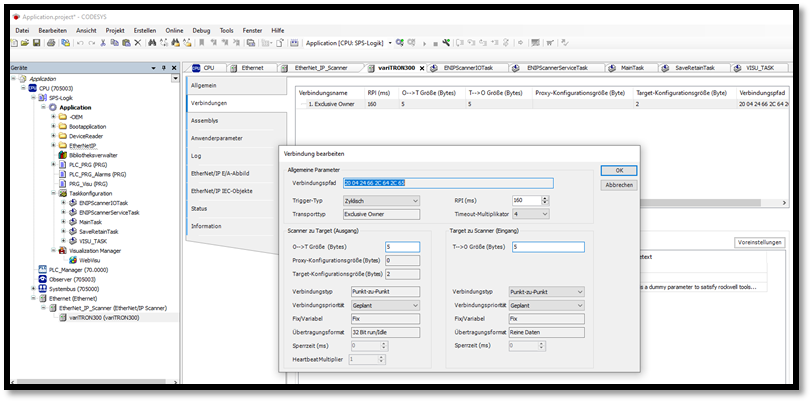

In the adapter for the variTRON, the entry Exclusive Owner can be opened under connections. The cycle time can be entered here under RPI (ms).

According to CODESYS assistant:

The set times should always be a multiple of the task cycle time.

Therefore, 160 ms is entered here in our example.

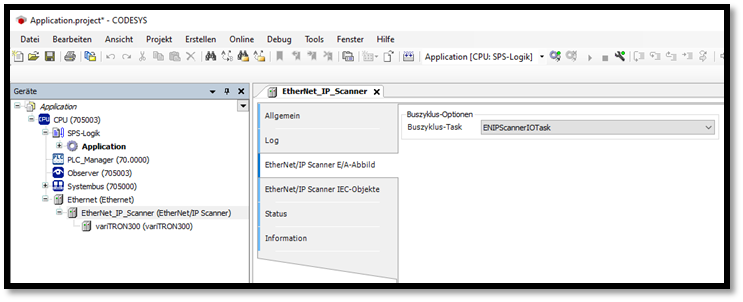

ENIPScannerIOTask

Alternatively, the task ENIPScannerIOTask can also be selected. Here you also have to enter the multiple of the tasks in the device connections for RPI(ms).
