Output objects

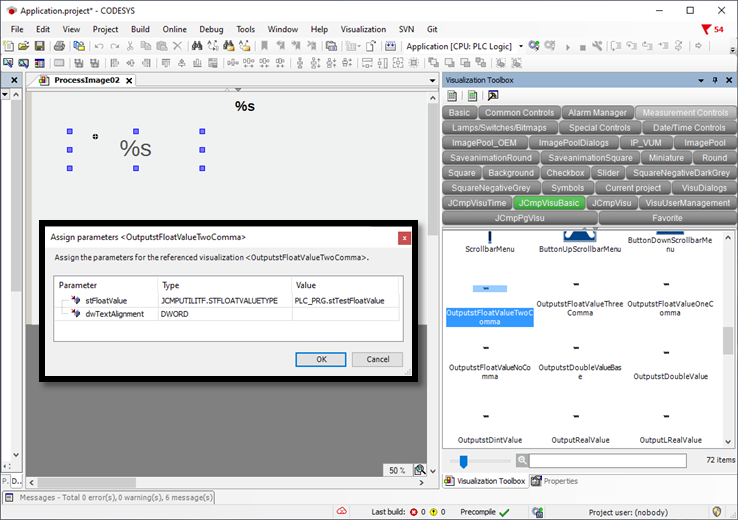

In this example, an output object is used for floating point numbers with two decimal places. The transfer parameter is given a structure variable of type stFloatValueType.

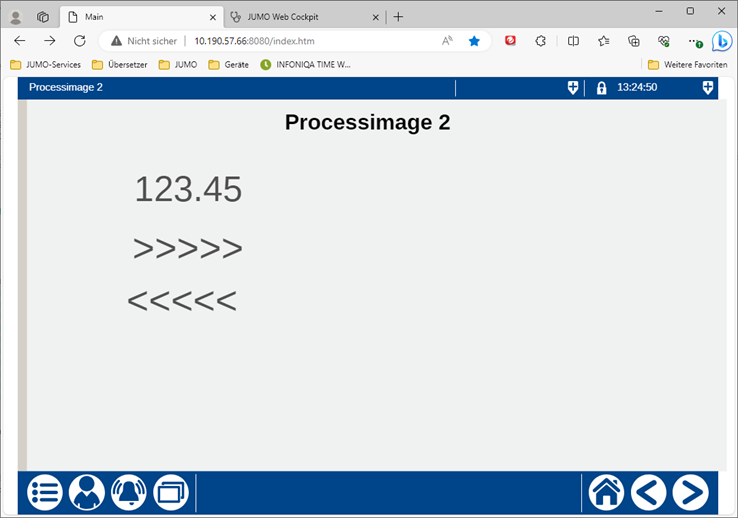

In the finished application, the transferred floating point value is displayed with two decimal places. As the structure variable can also process 'Underrange' and 'Overrange', the JUMO-typical characters for 'Underrange' and 'Overrange' are displayed in the object.
