IP address input

In the JCmpVisuBasic library, there is the following input object for input of and IP address:

InputNetwork: Input of wString value (0.0.0.0 to 255.255.255.255).

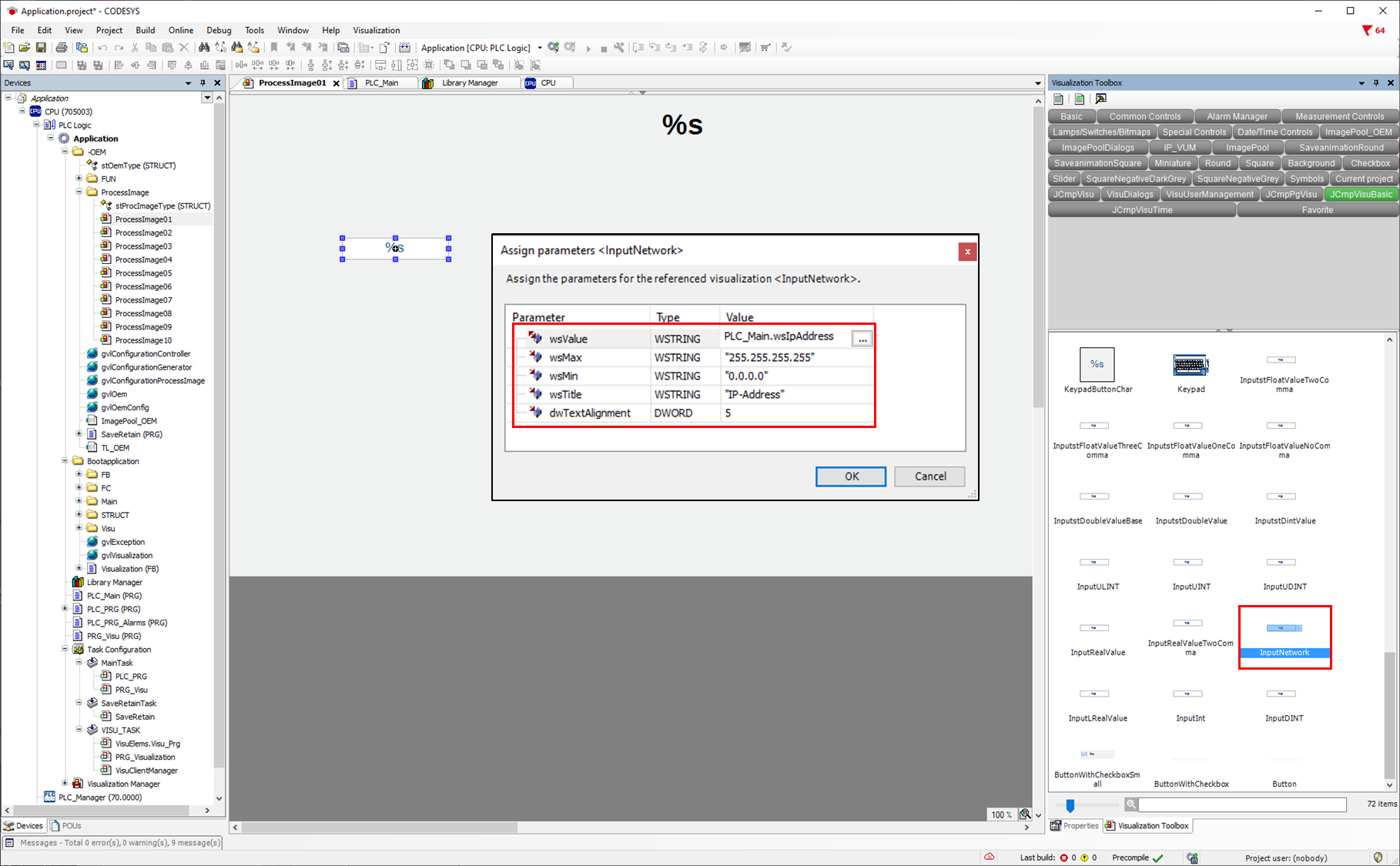

If you now drag the desired object from the Visualization Toolbox into the process screen, a parameter window opens. Here you can either specify fixed values as parameters for the input window or assign variables.

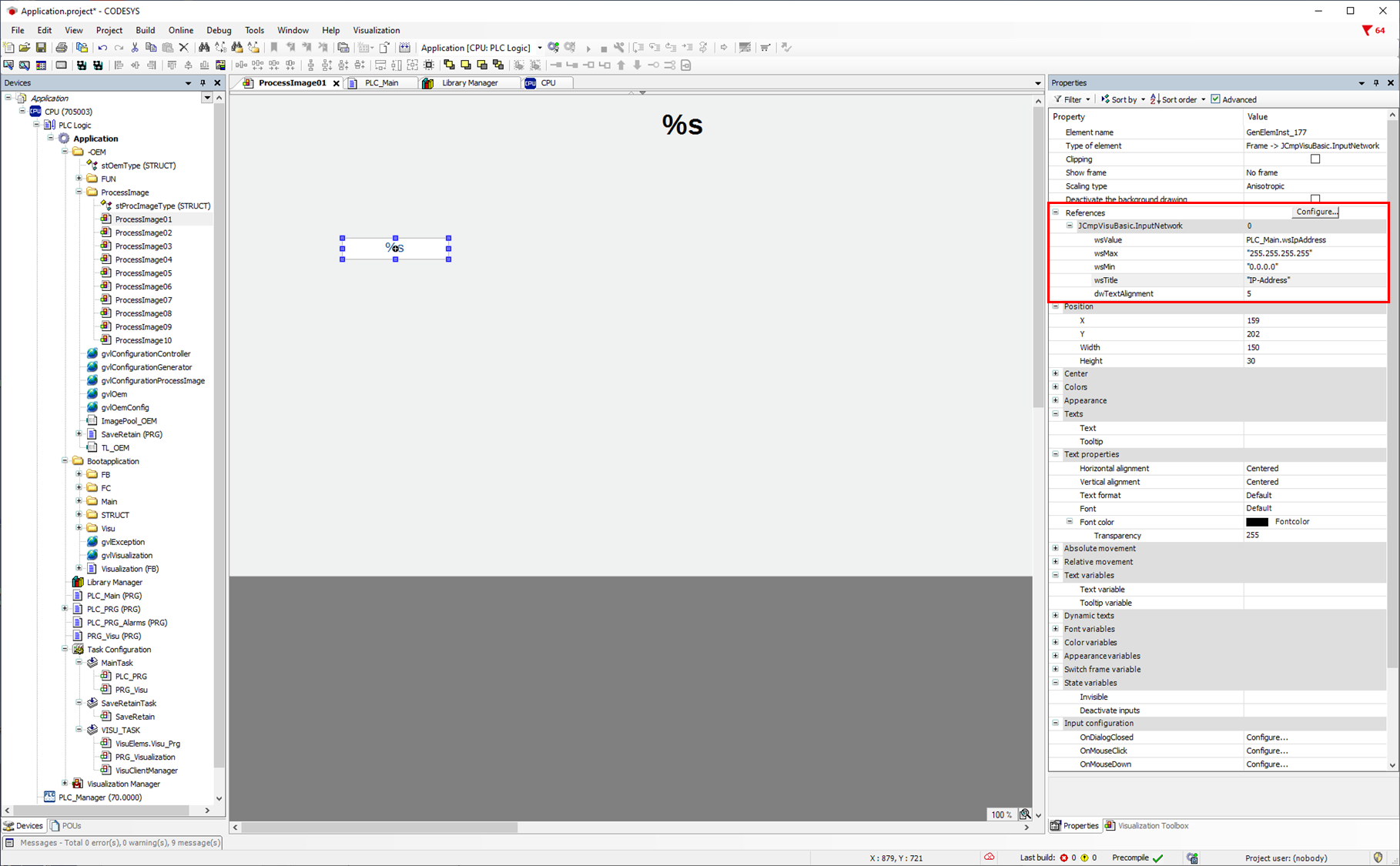

It is also possible to enter or change the parameters afterwards via the object property.

The same variables are used for all IP address inputs.

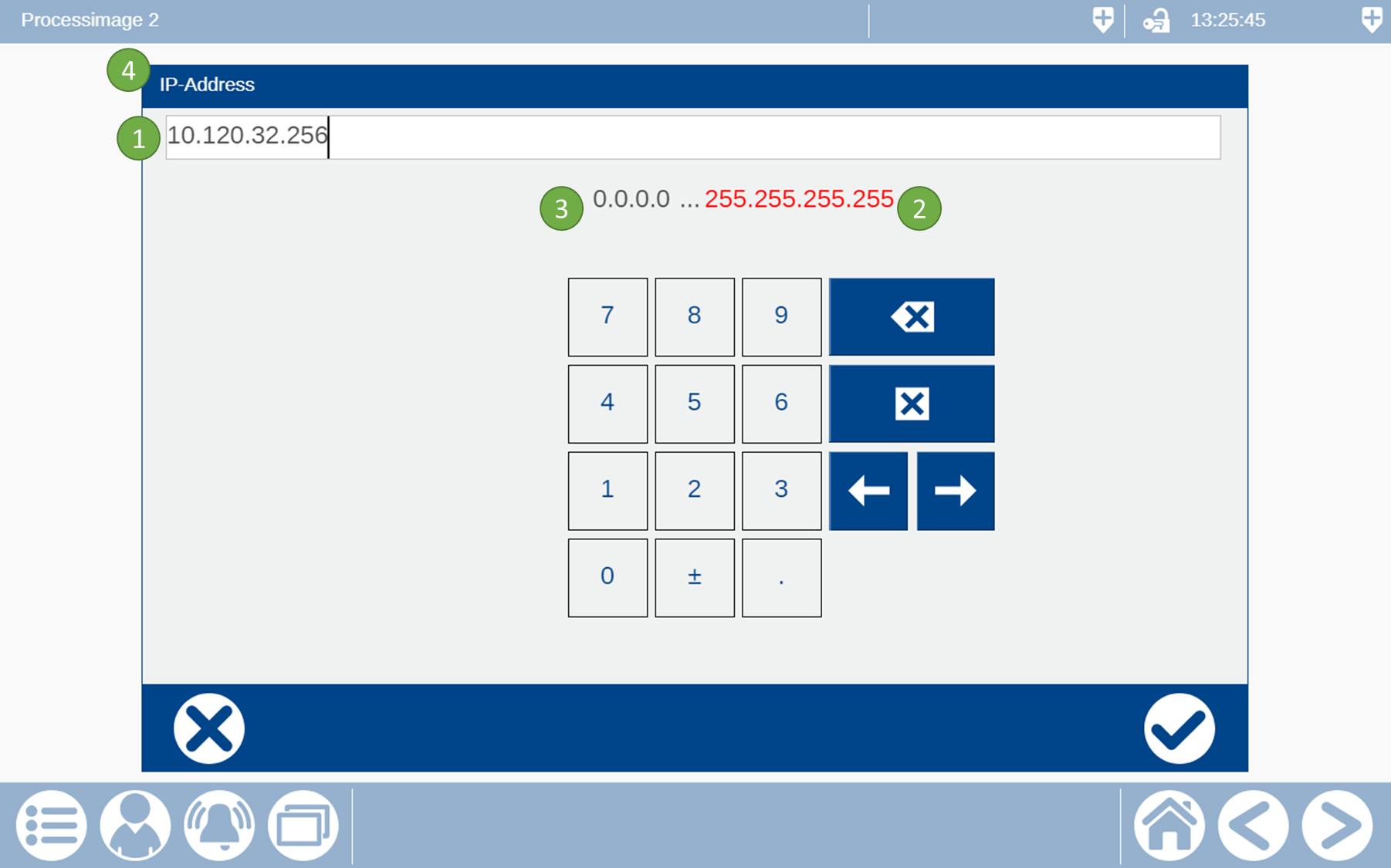

:No1: wsValue: Entered wString
:No2: wsMax: Max. input limit as wString.
:No3: wsMin: Min. input limit as wString.
:No4: wsTitle: Title for the input window as wString or wStringvariable

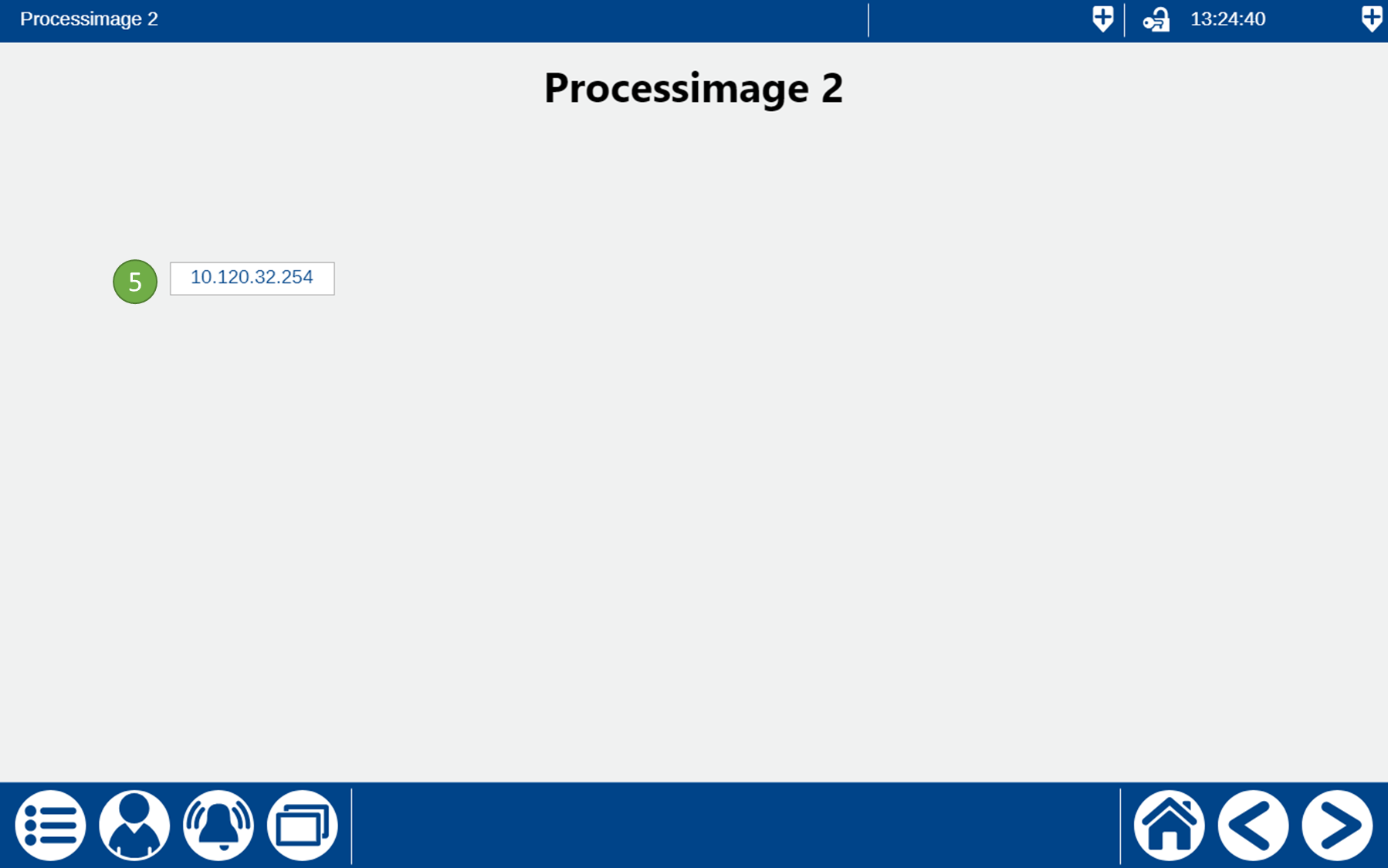

:No5: dwTextAlignment: The following values determine the position of the value in the input
0 Top left
1 Top center
2 Top right
4 Center left
5 Center Center
6 Center right
8 Bottom left
9 Bottom center
10 Bottom right
