Input value type stDoubleValueType

In the library JCmpVisuBasic the following input objects are available for inputting floating points type stDoubleValueType and stDoubleValueBaseType:

InputstDoubleValue: Input of long real value via the structure variable.
InputstDoubleValueBase: Input of long real value via the structure variable.

stDoubleValueTyp/stDoubleValueBaseTyp: the structure contains the following variables:

lrValue: Long Realwert

eValueError: enum for error.

eValueStateNamur: Enum für den Namurzustand.

udiUnitType: Wert für die Einheit. (nur bei stDoubleValueTyp)

In the project, the necessary structures can be defined as follows:

VAR
// Example for DoubleValue
stDoubleValue : JCmpVisuBasic.JCmpUtilItf.stDoubleValueType;
stDoubleValueBase : JCmpVisuBasic.JCmpUtilItf.stDoubleValueBaseType;
END_VAR

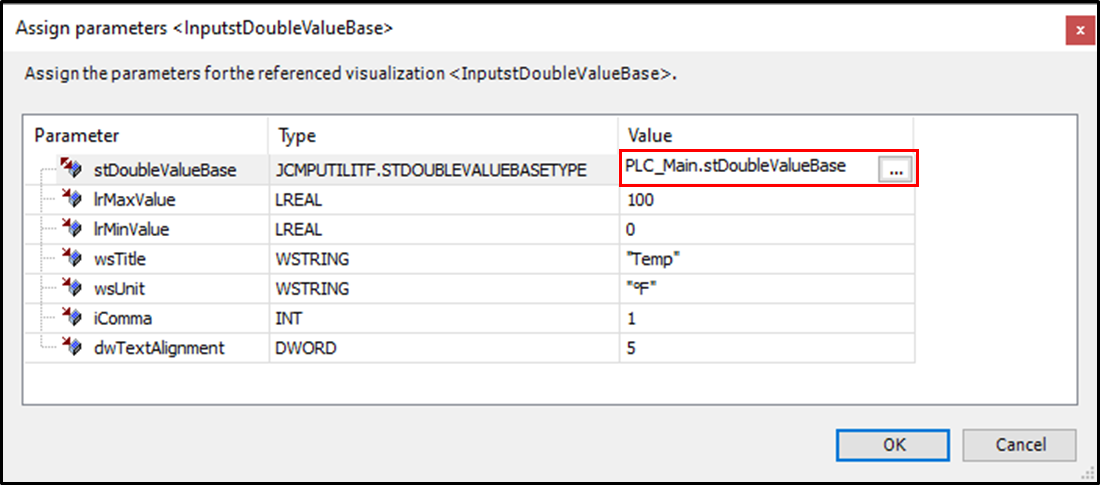

The structure defined above must now be transferred for the transfer parameters.

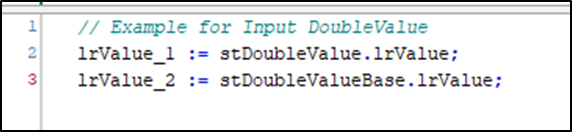

In the code, the input of the long real value can be queried as follows:
