Input of Wstring

At the current point in time, the Wstring input object is an exception and not found in the JCmpVisuBasic library, but in JCmpVisu.

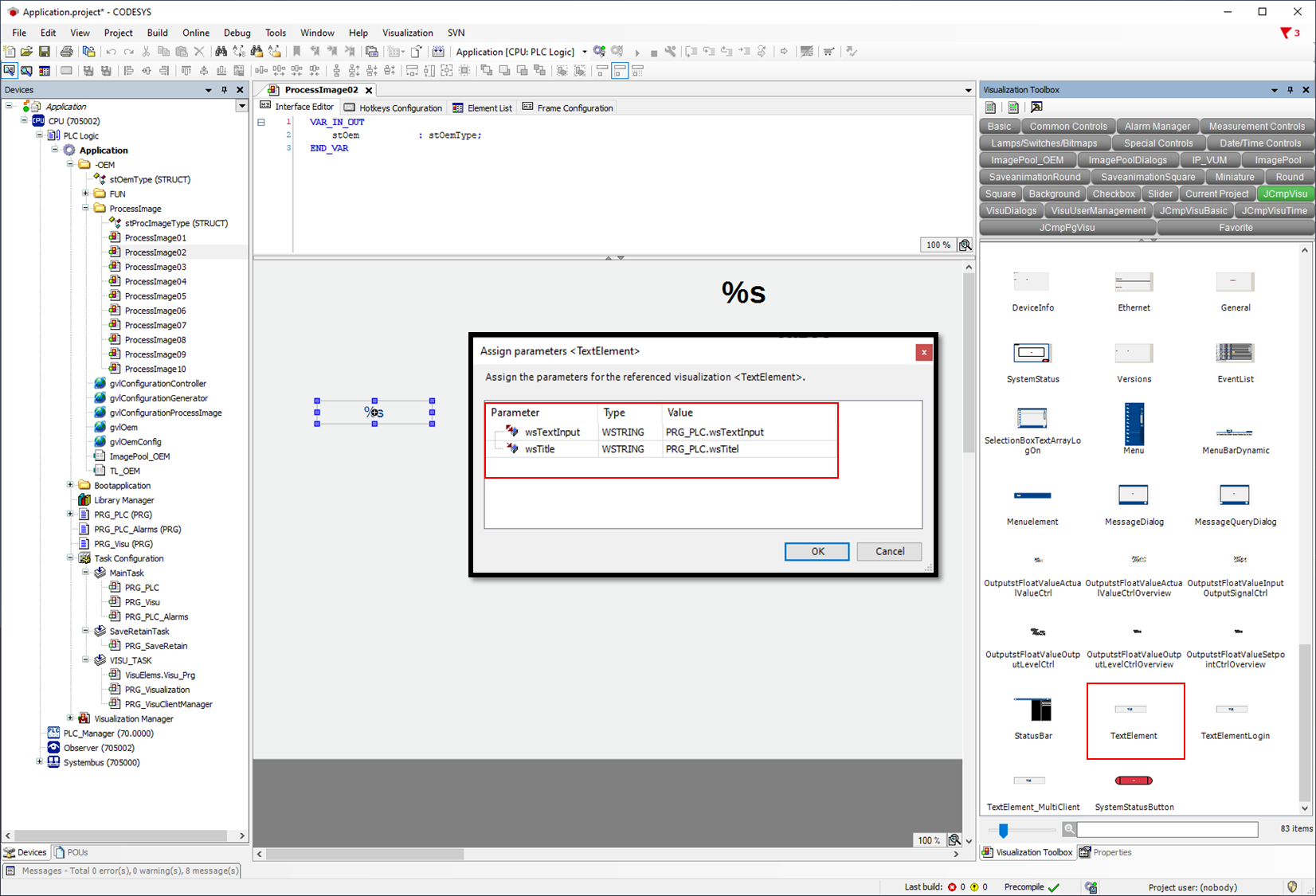

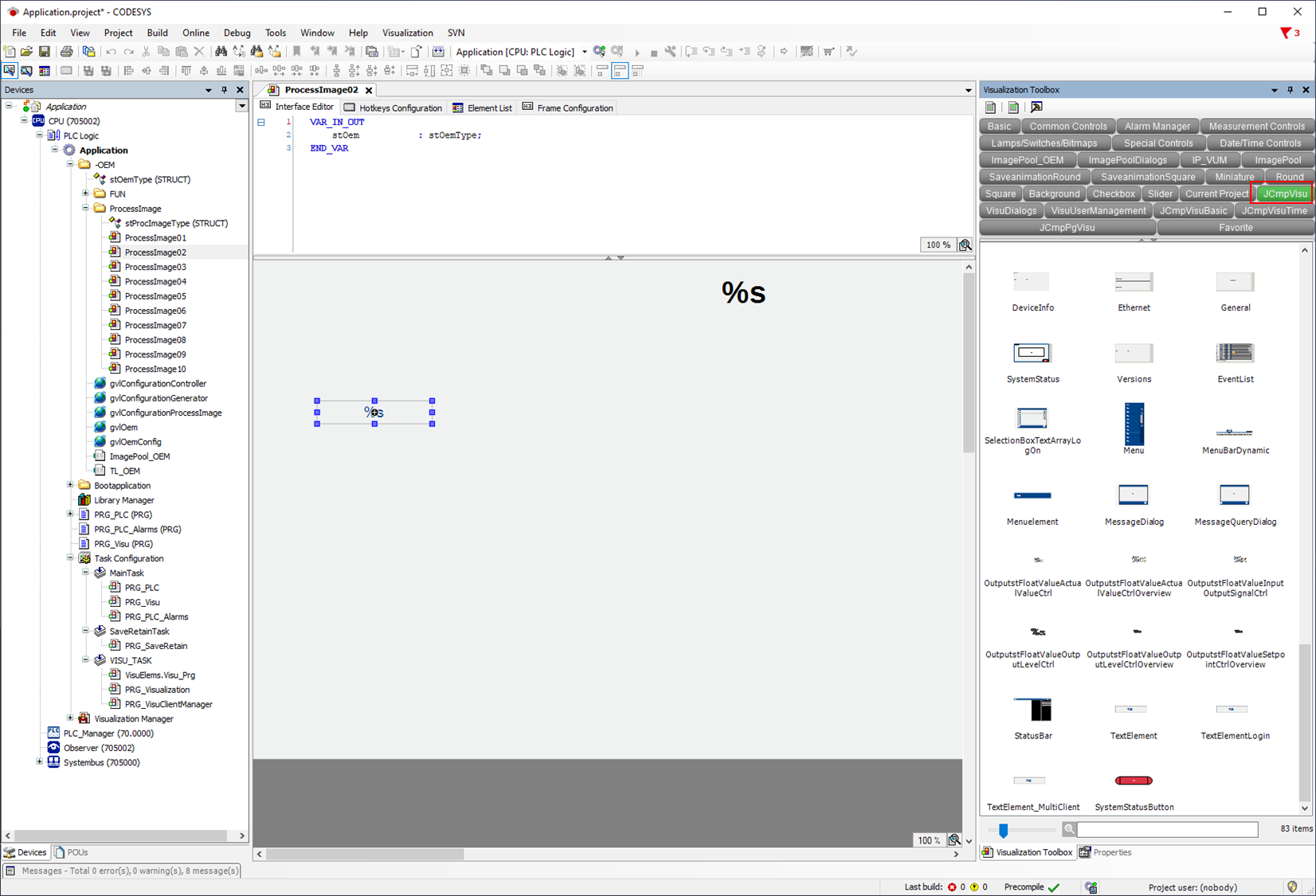

If you now drag the desired object from the Visualization Toolbox into the process screen, a parameter window opens. Here you can either specify fixed values as parameters for the input window or assign variables.

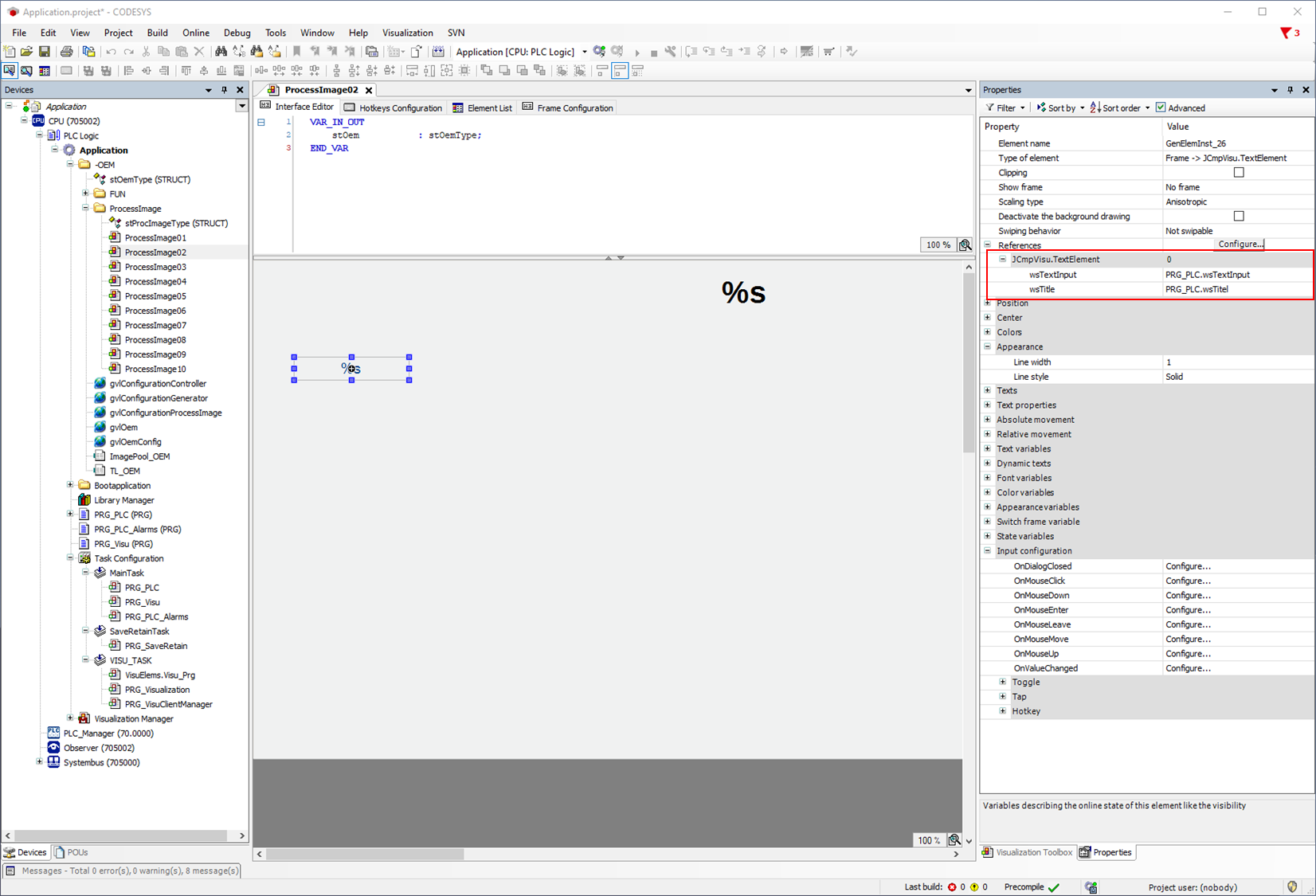

It is also possible to enter or change the parameters afterwards via the object property.

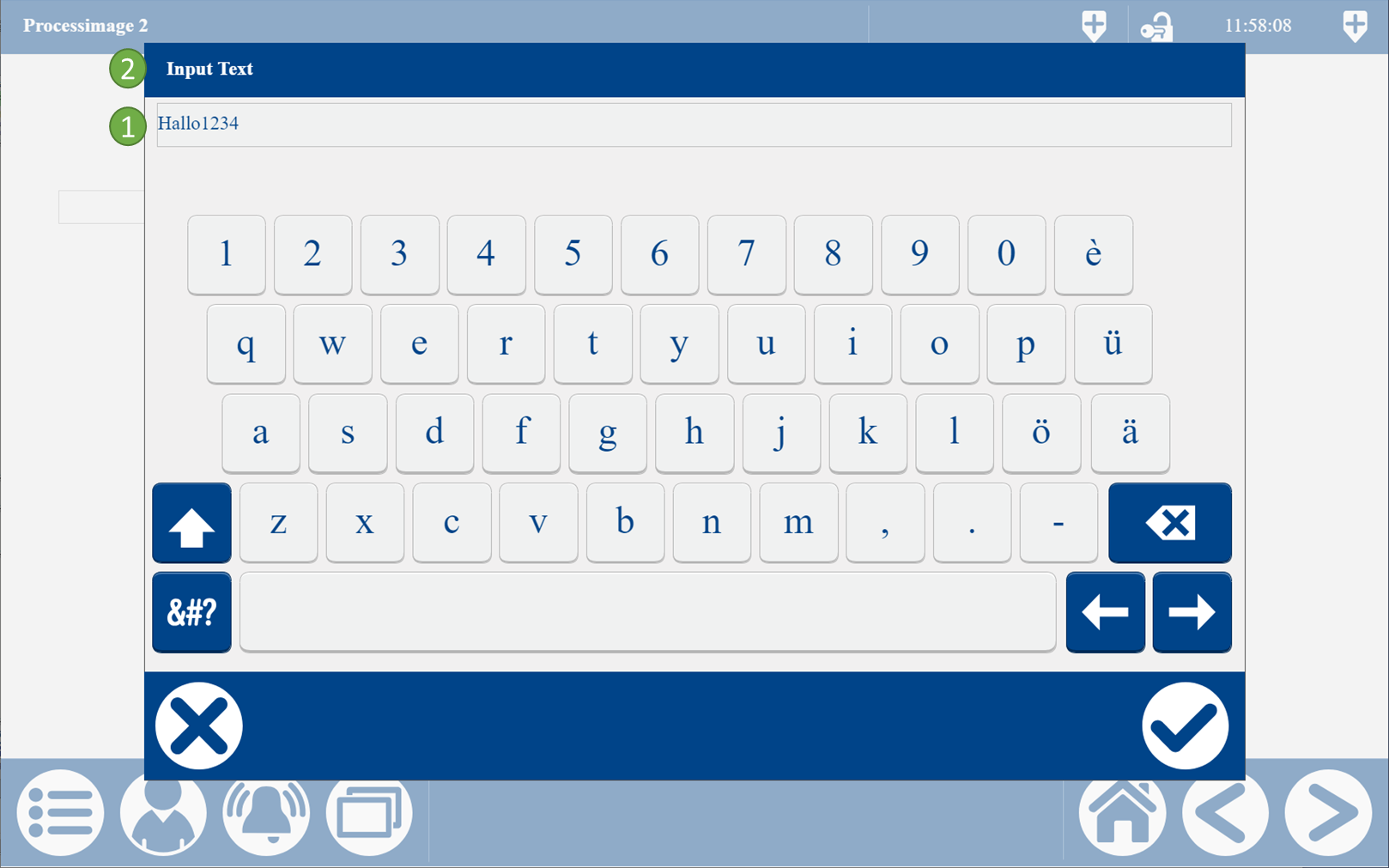

:No1: wsTextInput: Entered string value.

:No2: wsTitle: Title for the input window as wString or wStringvariable.
