?Currently not released!!! How can batches be generated from the CODESYS and created in the smartWARE evaluation?

How data is prepared in the CODESYS for smartWARE Evaluation has already been described in here .

Batches now need to be assigned to previously created groups. In the smartWARE Setup up to 20 batches can be configured. This can be found under :Haus: > Batches.

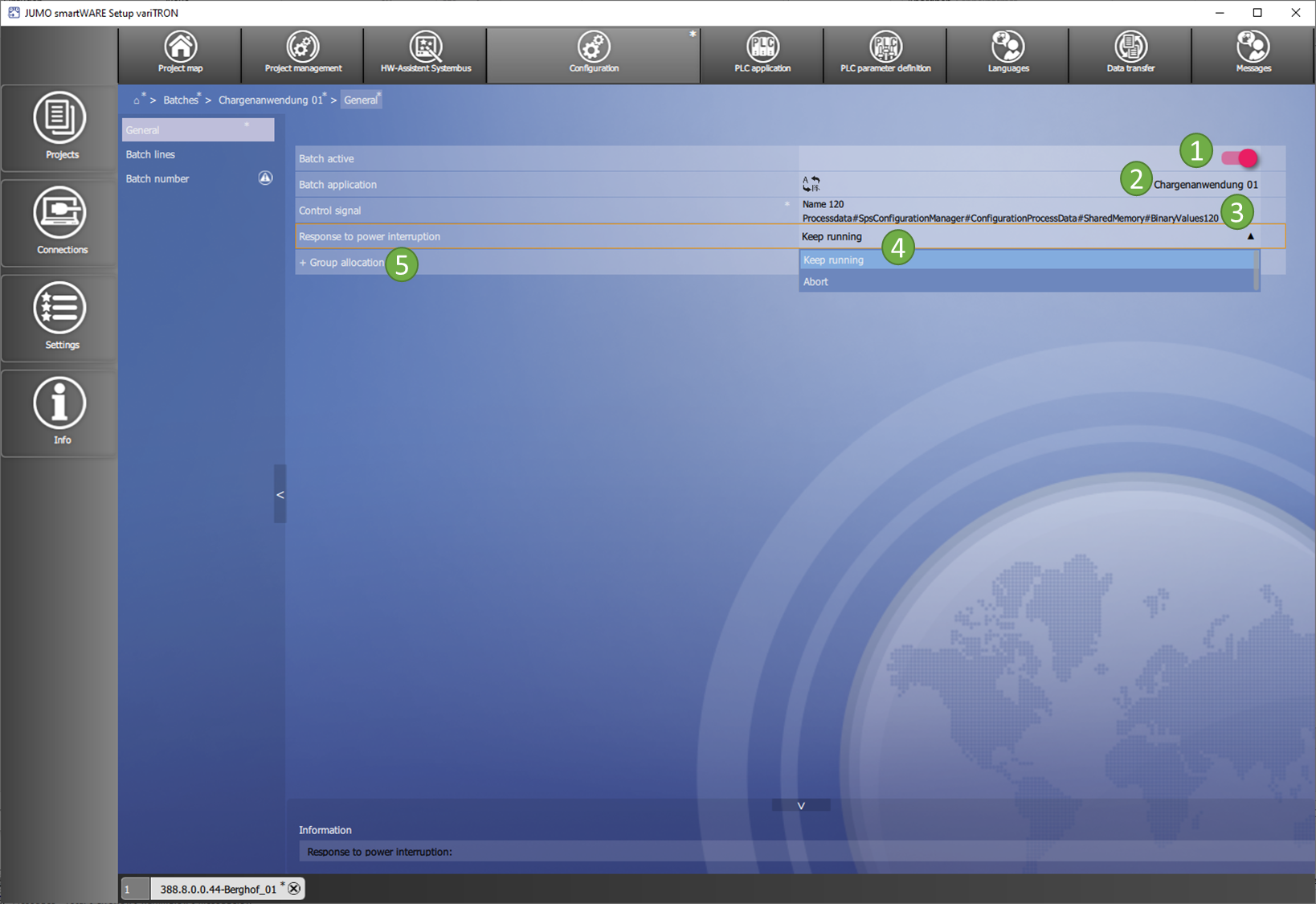

Batch 1 is configured in the following example. Here you open the configuration :Haus: > Batches > Batch application 01 > General.

:No1: The batch function can be disabled/enabled.

:No2: The name of the batch can be entered in various languages.

:No3: Selection of control contact from the CODESYS, which is starting/stopping the batch.

:No4: Behaviour after mains off (continue or cancel).

:No5: Assignment of the group.

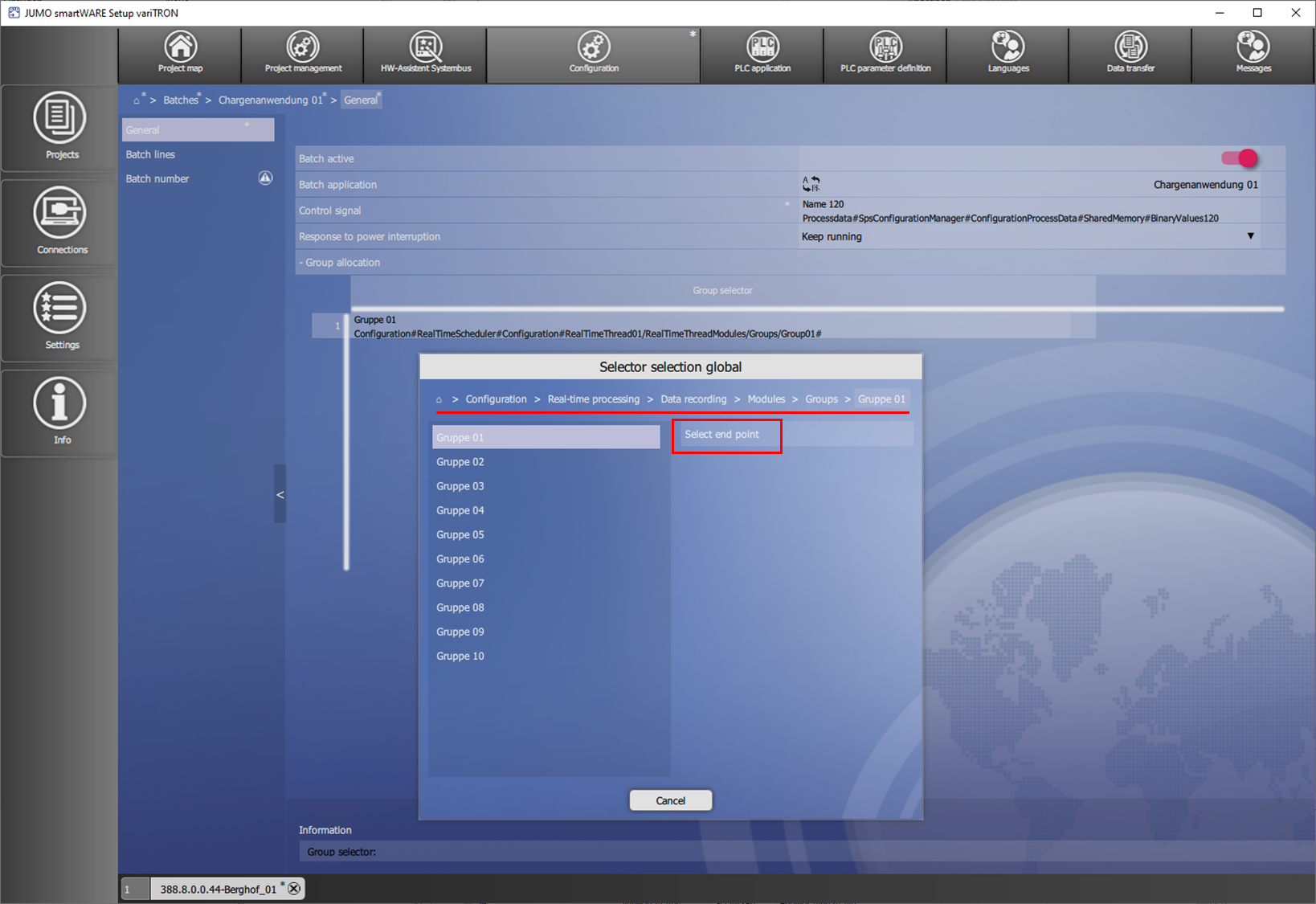

The previously created group is chosen using the selector :Haus: > Configuration > Real-time processing > Data recording > Modules > Groups > Group 01 and accepted with Select end point.

?Batch lines

?Batch number

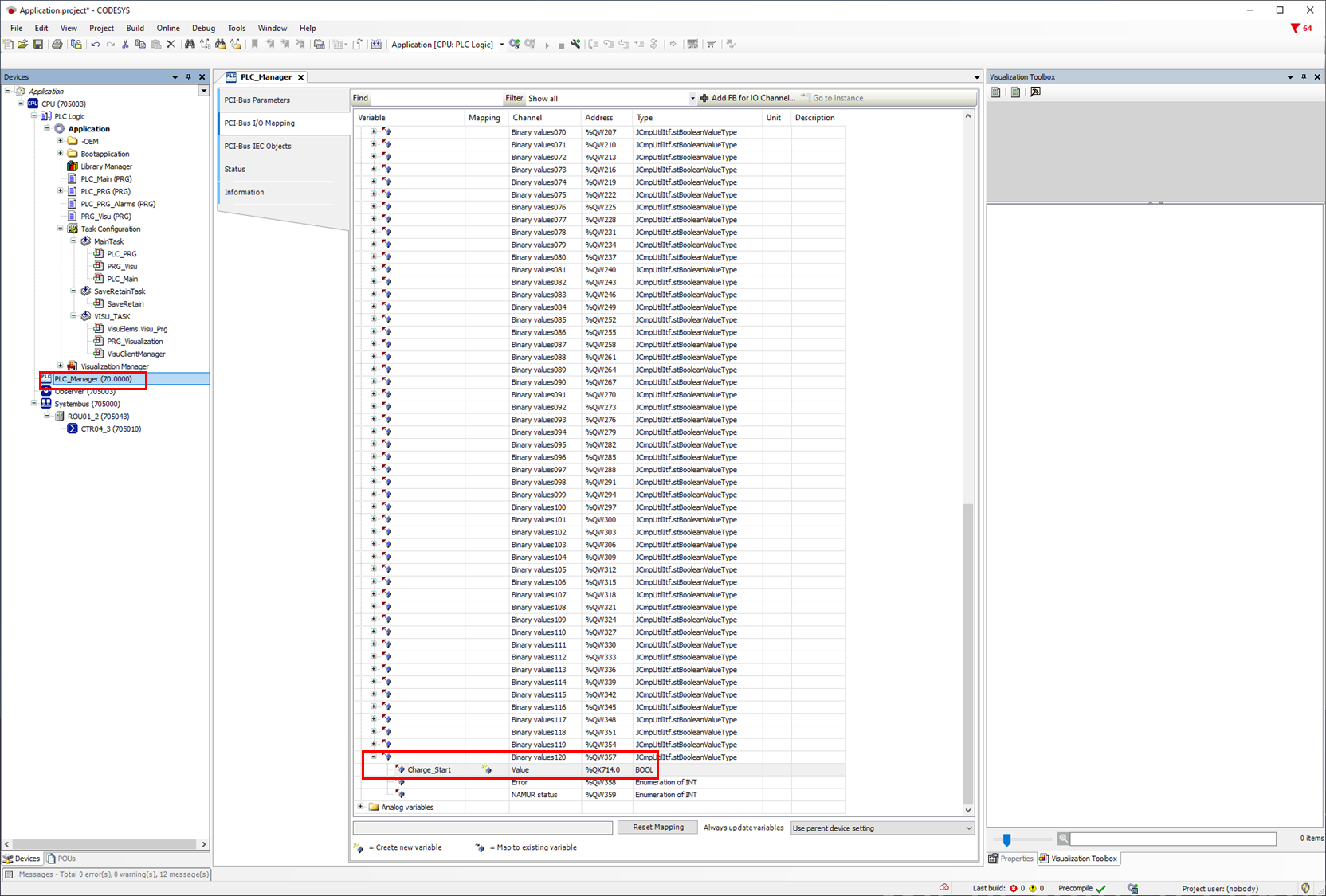

In the CODESYS, the 120th binary signal can be mapped in the PLC_Manager under Digital variables, since this has already been selected as the control signal in the smarWARE setup. This mapped variable can now be used to start/stop the batch in your own program.
