Widget: Digital Switch


You can use the Switch to set a digital output for your signal. This can be given the value On (1 / true) or Off (0 / false).

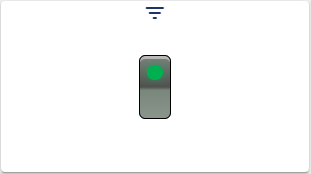

Type 1 “Switch“

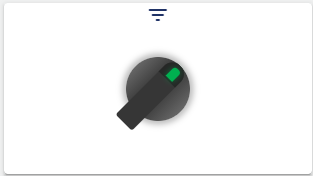

Type 2 “Rotory Switch“

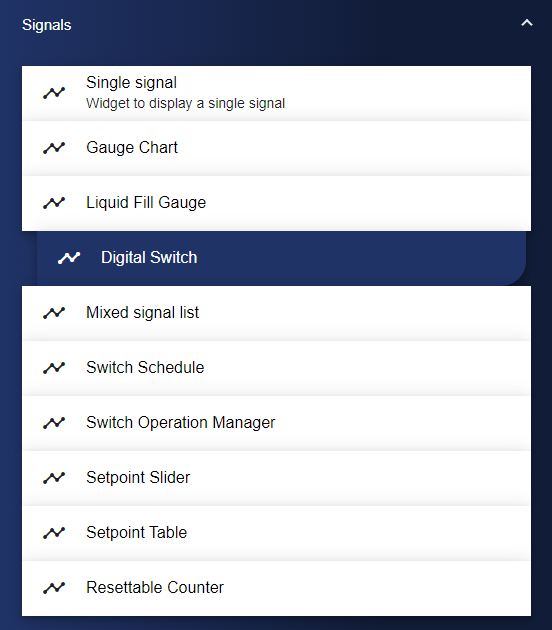

First of all, select the Switch widget from the Signals category.

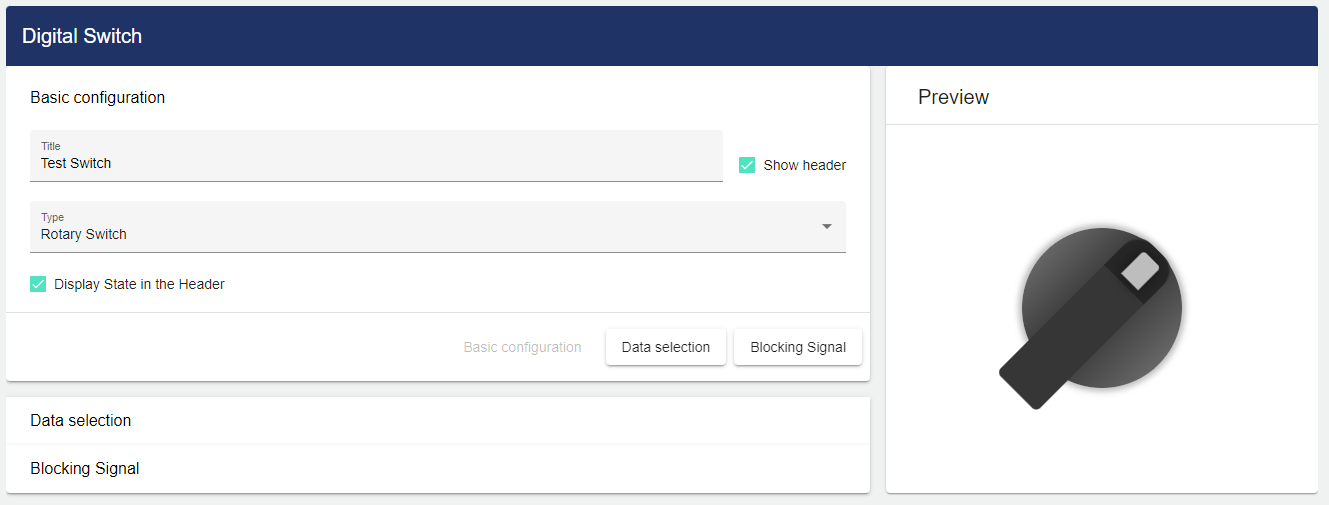

In the Basic Configuration of the Switch, assign a suitable title. The header can be displayed by selecting the check box. Now you have to select the type of switch, you can choose between "Switch" and "Rotary Switch".

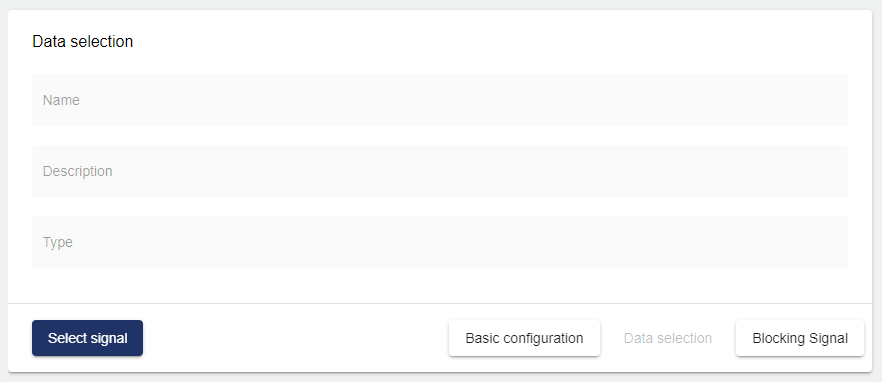

Then go to the "Data Selection" tab and click "Signal".

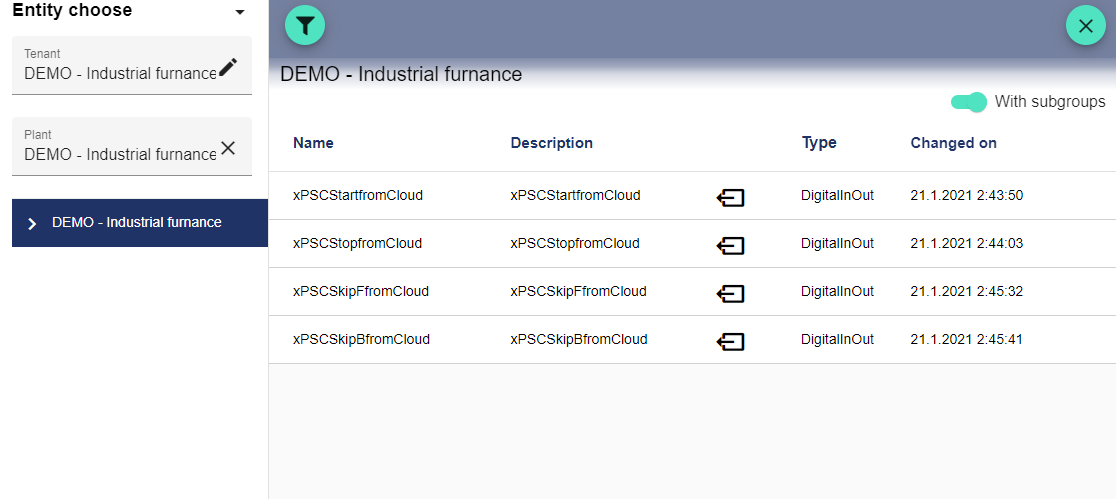

Clicking "Select Signal" opens the Entity-Select window. You can add a previously created signal here.

With the "Lock signal" it is possible to prevent the digital signal from being changed in this widget. The "Data Selection" signal is locked when the "Lock signal" is active.

Once you are satisfied with your configuration, you can save it.
