Animation

With the JUMO Animator, we are able to display any animations in process images and integrate them in the Cloud or SCADA.

The JUMO Animator automatically recognizes whether the object is a shape or a text and provides corresponding animation options. The currently selected object is outlined in red.

Bar

The "Bar" animation is used to zoom in or out on objects. This can be used to graphically display filling levels, for example. Thus, the liquid in a container may rise or fall.

The inserted element has the maximum size and shows a certain range depending on the signal.

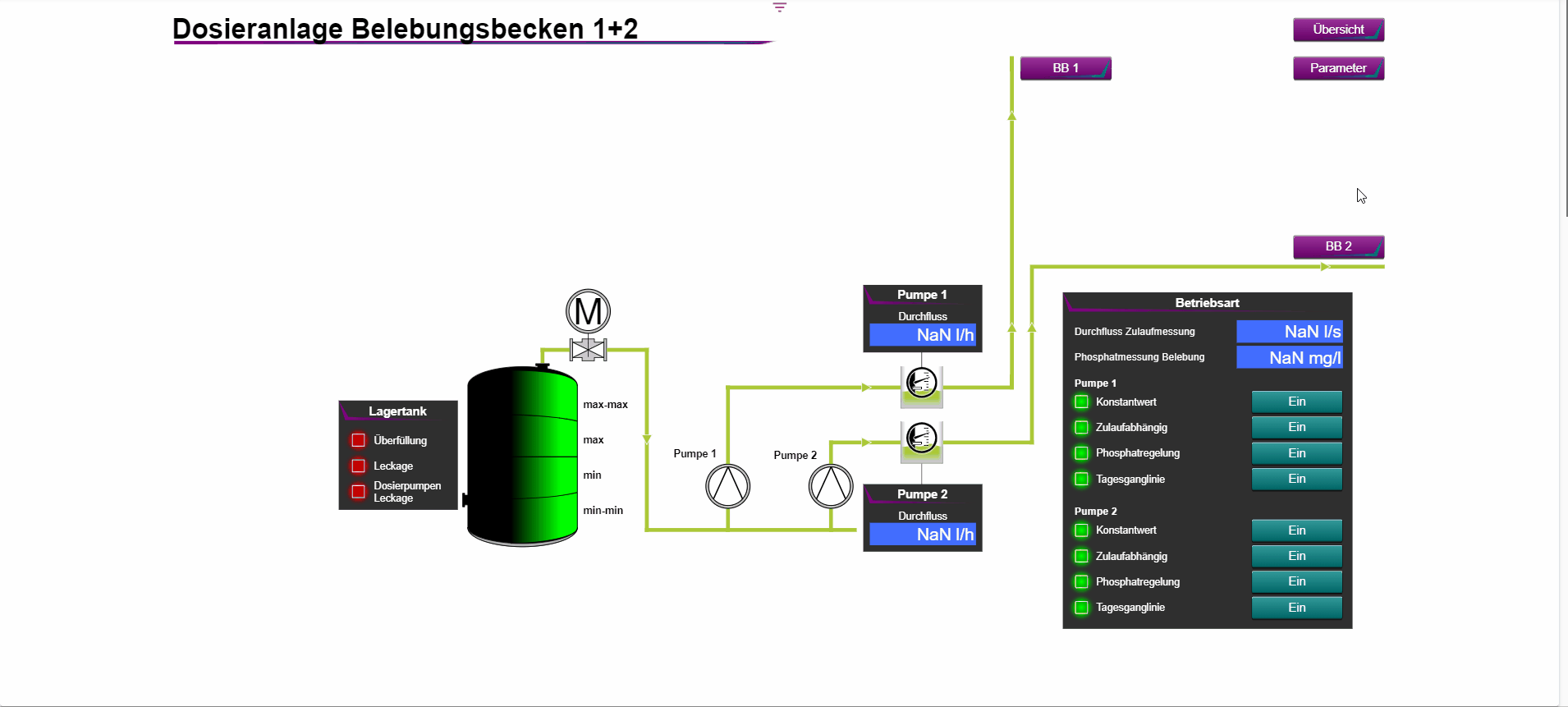

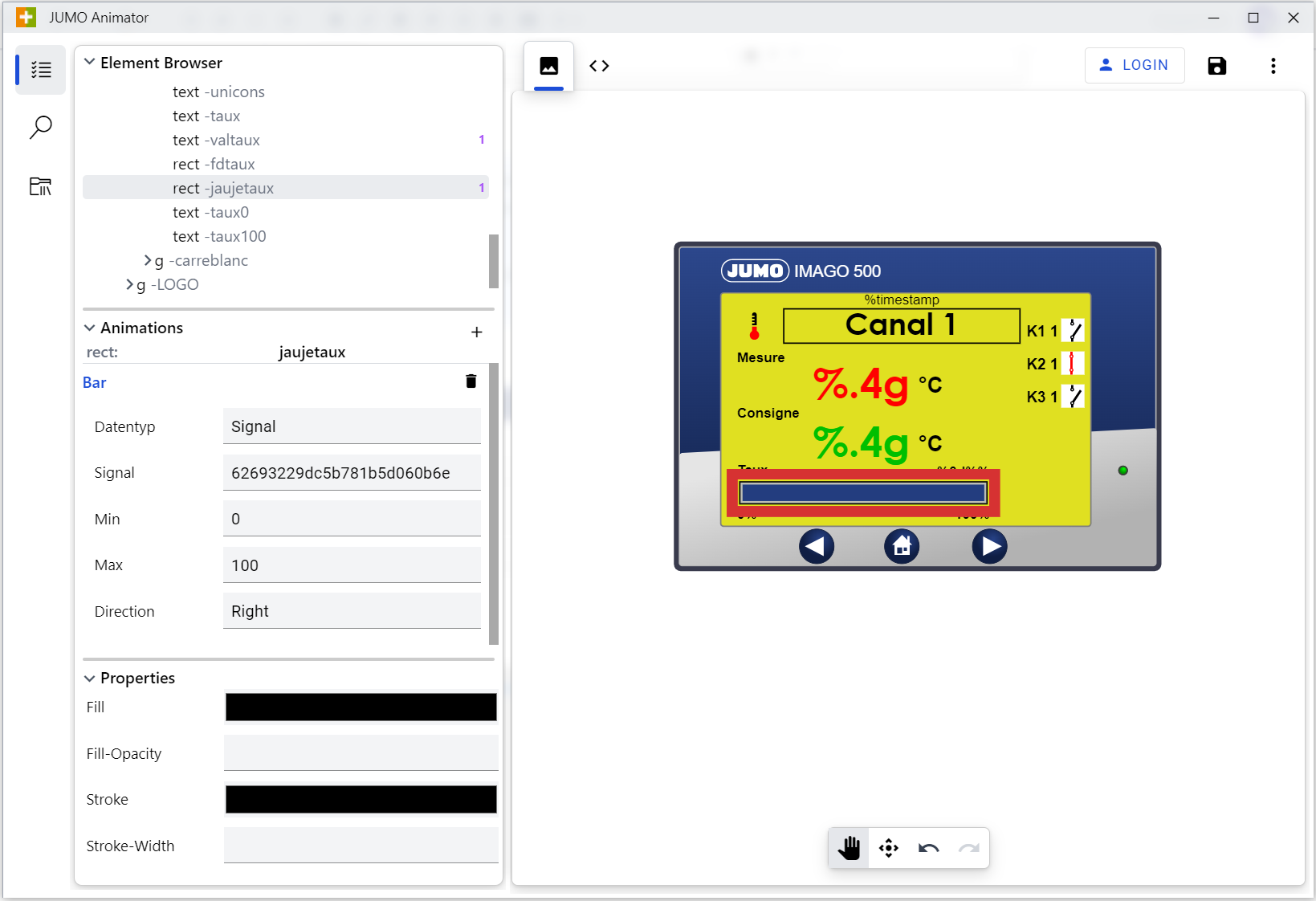

Bar example:

Attribute	Value	Meaning
Signal	ID	The ID of the input value
Min	e.g. 0	Minimum value of the analog input signal. (mostly "0")
Max	e.g. 30	Maximum value of the analog input signal. (Boundary condition of the level to be reached)
Direction	see table	Specification of the direction in which filling takes place.

Other possible values for the "Direction" attribute:

Value of the Direction attribute	Meaning
Up	Display fills upwards
Down	Display fills downwards
Left	Display fills to the left
Right	Display fills to the right

Base Tag

The Base Tag allows you to use a single process image for multiple systems with the same structure. This reduces the time and effort required for animation.

The Base Tag must be created in the highest possible group to be able to use it repeatedly. In addition, the Base Tag should be selected at the start of the animation.

Attribute	Value	Meaning
Base Tag	Group structure (JUMO group structure)	Specify the path in which the signal is located
jumo-signal	Signal name (not signal number)	Specify the signal name

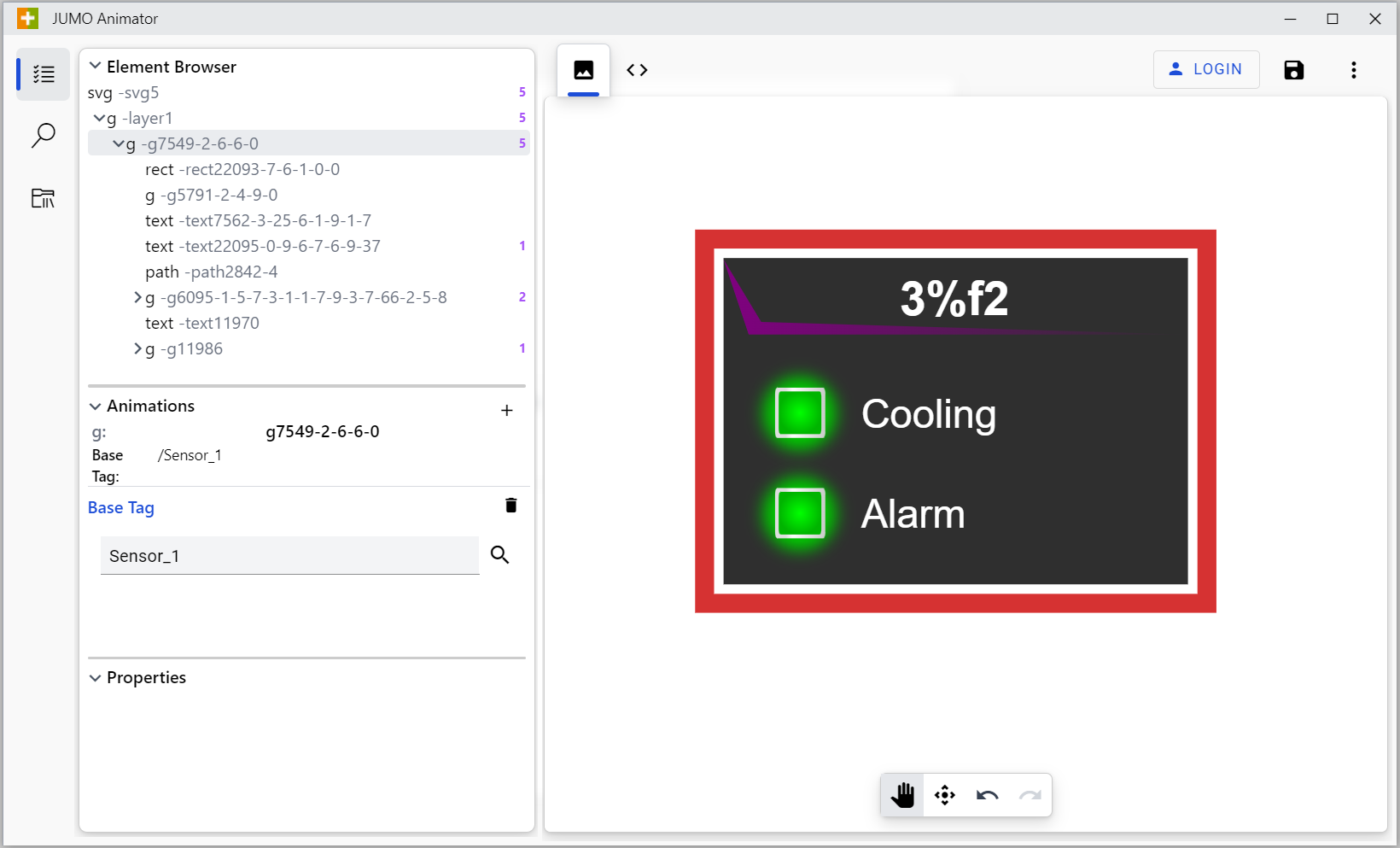

Example:

The "Base Tag" animation is used to create recurring process images as a template. Here, for example, a filling level that is used for several process images can be created once and then used multiple times, with different signals. The signals must be named the same in the system. For this you need to create a process image and save it with Base Tag. The created Base Tag can then be selected in the Animator under Entitiy Select in the "Base Tag" animation configuration and can be included for other elements.

Blinker

The "Blinker" animation allows you to make an element blink. This animation can be used, for example, to point out malfunctions.

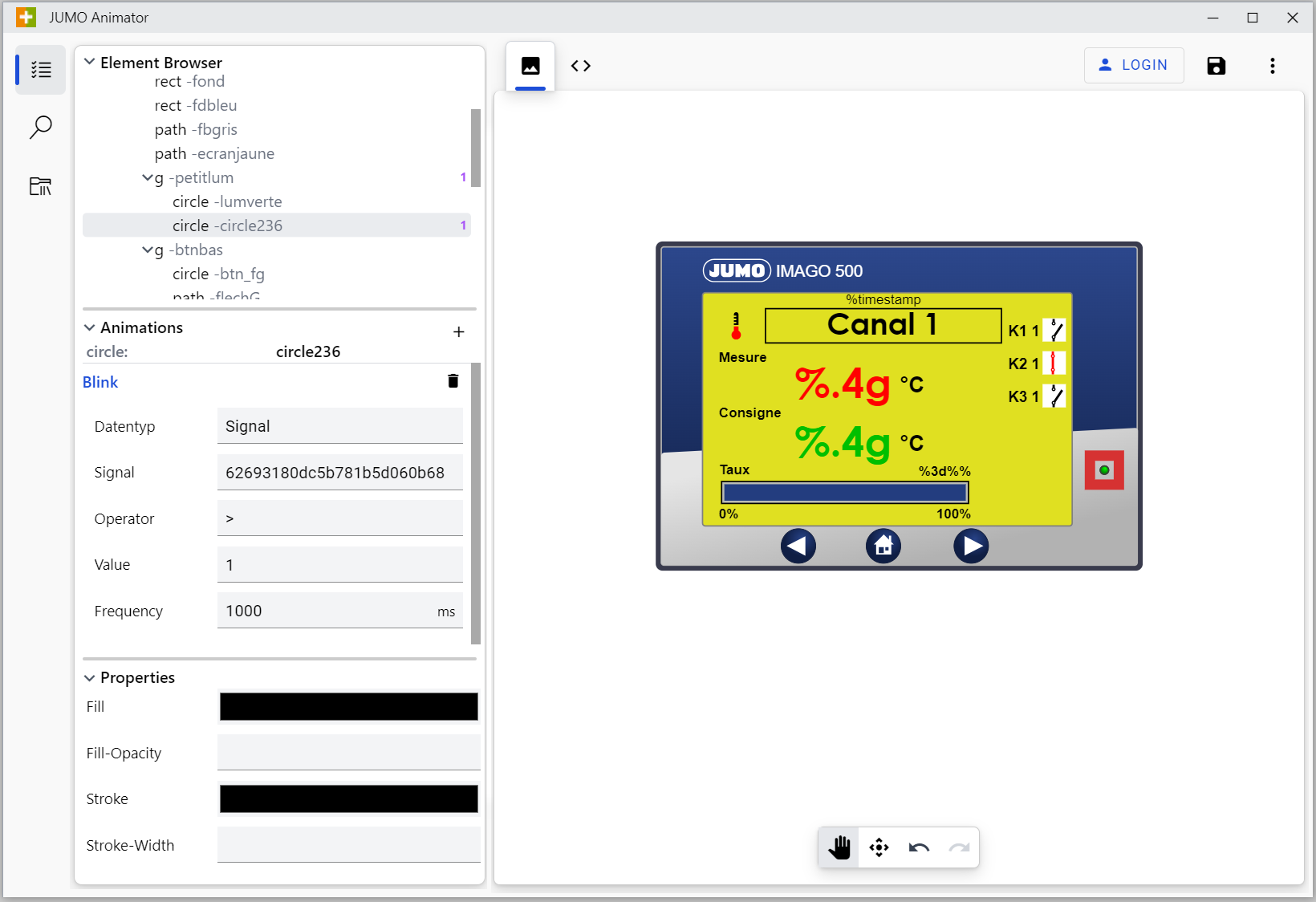

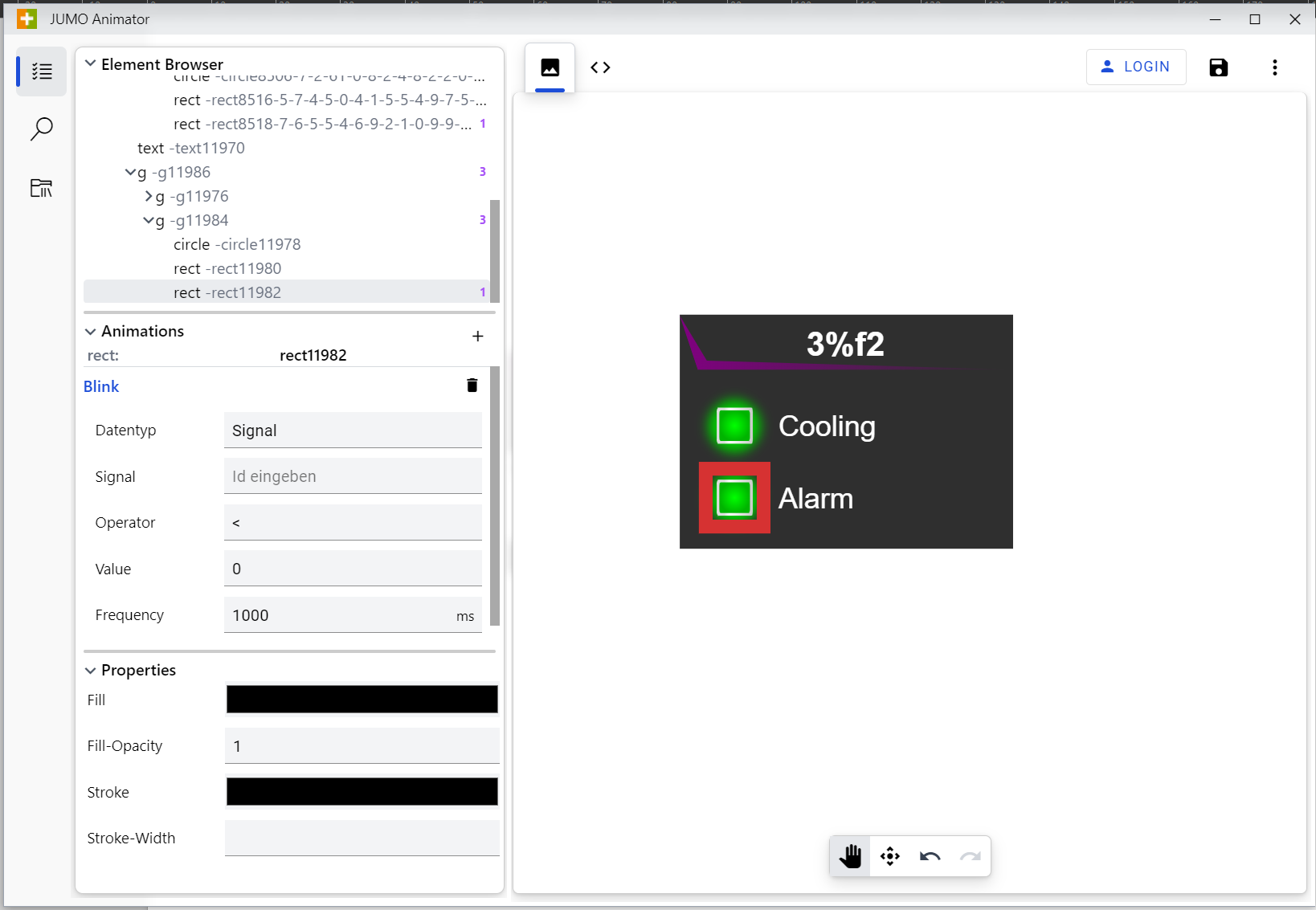

Blinker example:

Attribute	Value	Meaning
Signal	ID	The ID of the input value
Value	e.g. 0	The comparison value
Frequency	e.g. 1000	Specification of the blink interval in ms
Comparator	See table	Comparison operator: compares input value with comparison value

Functionality of the comparison operator / comparator:
The comparison operator or the "Comparator" attribute compares the input value with the set comparison value. For example, if the input value is greater ">" than the comparison value "0", the element starts to blink.

Value of the Comparator / Comparison Operator	Meaning
<	less than
>	greater than
=	equal to
>=	greater than or equal to
<=	less than or equal to

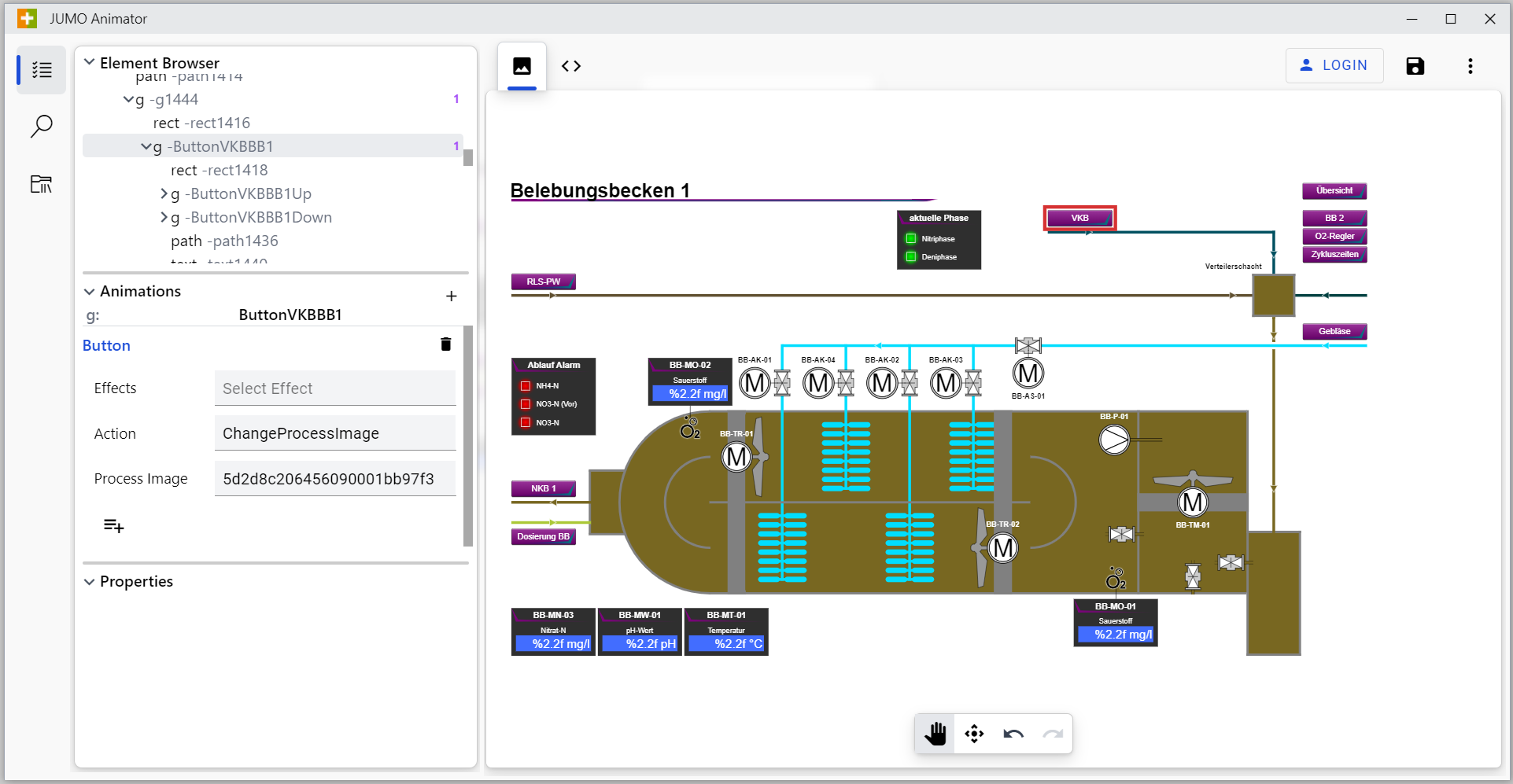

Button

The "Button" animation can be used to realize different functions for a button. There are seven different action options.

Button example:

Attribute	Value	Meaning
Effects	siehe Tabelle “Effects”	Select which effect the button should have
Action	see table "Target	Target signal, target image or target datasource
Action ID	e.g. ID of the process image	Selection of the respective element

Possible action types for the "Effects" attribute:

Value of the attribute Target	Meaning
Mouse Pointer	Changes the appearance of the mouse pointer
Pressed Effects	Creates an effect of button pressing when hovering.

Possible action types for the attribute „Action“:

Attribute value Action	Meaning
ChangeProcessImage	Button to another process image
ChangeDashboard	Button to change the dashboard
SetValueDigital	Button for setting a digital value (free input)
SetValueFixed	Button for setting a fixed value
SetValueAnalog	Button for setting an analog value (free input)
StartBatch	Button opens the header data field of a batch and starts or stops it after correct input.
OpenChart	Button to open the historical chart of a signal
OpenList	Button to open a list
Online	Button switches a data source online (activation of live data for 15 min)
Offline	Button switches a data source offline (immediate deactivation of the live data)
PopUp	Button to open a popup window

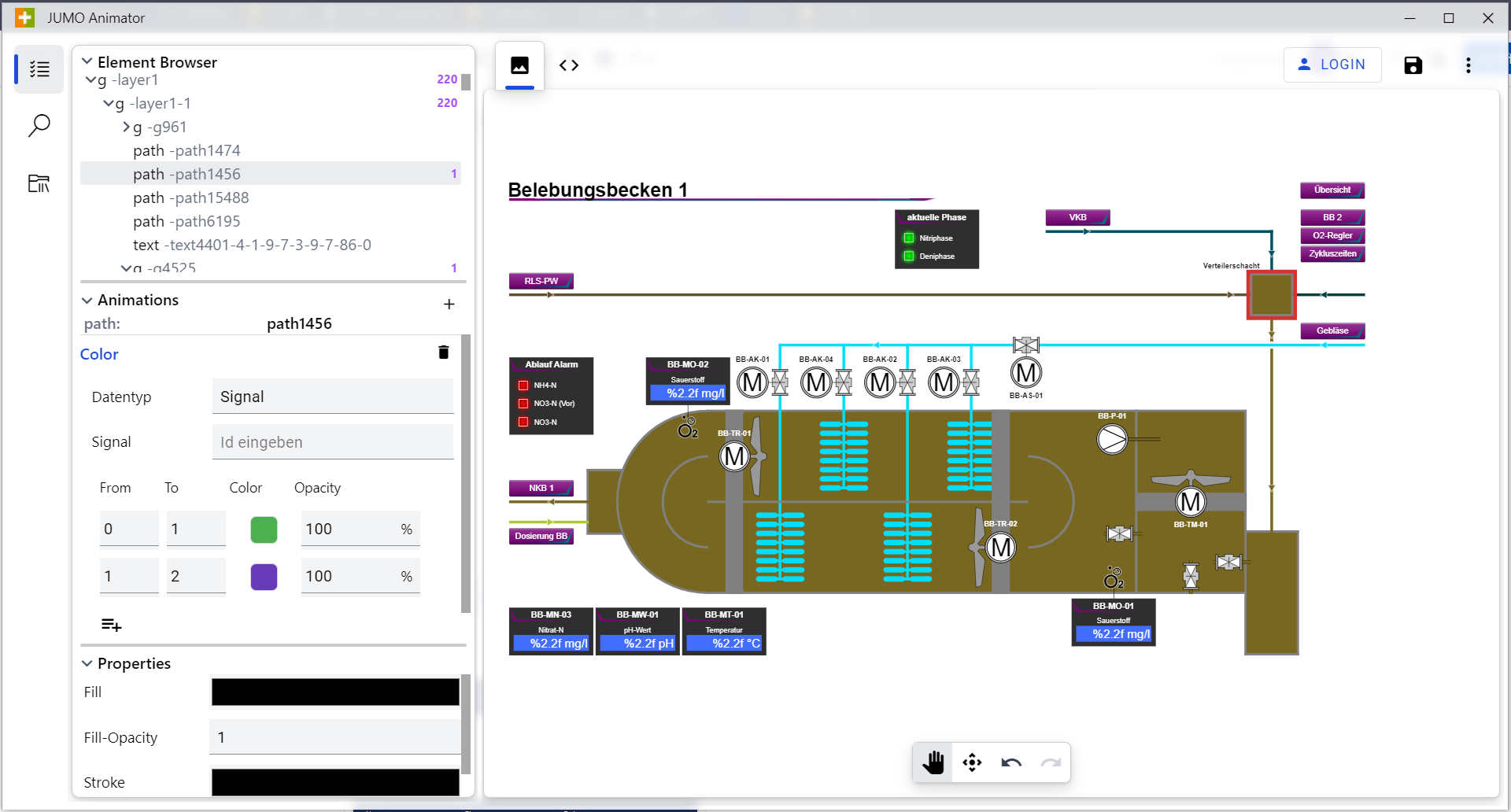

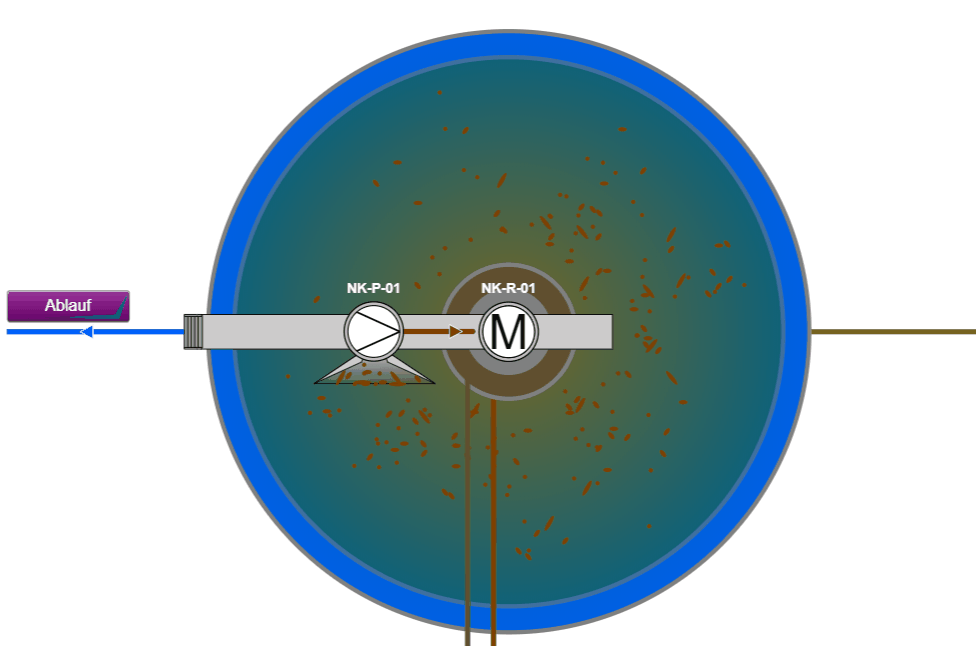

Color

The "Color" animation allows the user to color objects, depending on the value of the specified signal.

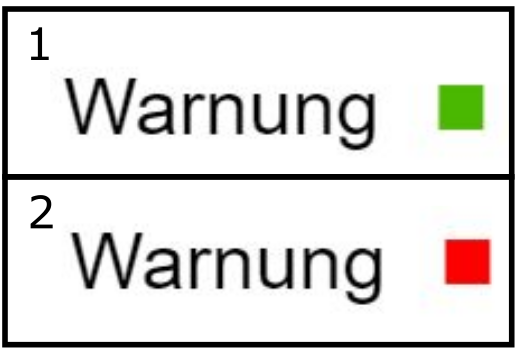

Example:

Fixed attribute names for the Color animation:

Attribute	Value	Meaning
From	e.g. 0	Start of a color area.
To	e.g. 30	End of a color area.
Color	RGB	Here you select a basic color or adjust it using the R, G and B input buttons. The object is colored in this color, provided that the signal is within the range of the "From" and "To" values.

Text

The "Text" animation can be used to display analog measured values and binary counter values.

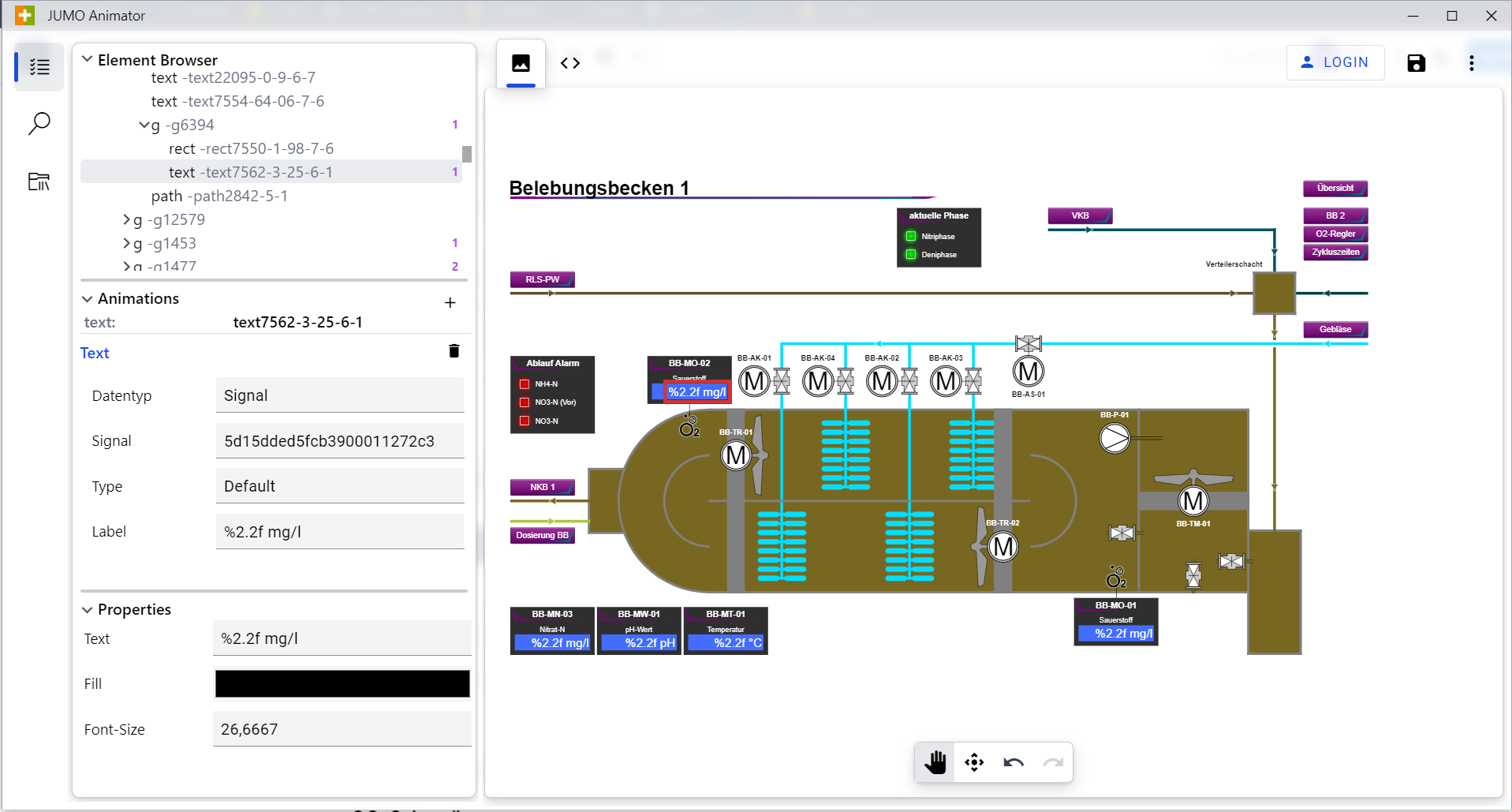

Example of two text fields: Signal value (top) with timestamp (bottom):

Attribute	Value	Meaning
Data type	Signal	Selection of the data type to be included. I.d.R. "Signal
Signal	ID	The ID of the input value (selection from Entity Select).
Type	-	Default → Standard Data type Timestamp → Selection if it is a timestamp Operating Hour → Selection if it is operating hours.
Label	-	siehe unten

Label

The value that appears on the input signal is displayed in the text box. For the value to be displayed correctly in the visualization, we need to specify the decimal places and units of measurement beforehand. To do this, the "Label" text field, which should reflect the value later, must contain the following information:

Example: %2.1f m³/h

The % marks the beginning of the formatting symbols and is mandatory.
The 2 indicates that there are 2 digits before the decimal point.
The 1 indicates that there is 1 digit after the decimal point.
The f is the number type, in this case double, i.e. numbers with decimal places.
The unit m³/h is simply placed after the value that is output later.

You can find more detailed information about the form of presentation here: https://www.php.net/manual/de/function.sprintf.php

As of frontend version "4.3.20210709-unstable", STRING variables (text) may be displayed within a process image.

Example: %s

Timestamp

The timestamp displays the date and time in the process image when the selected signal last changed. To display a timestamp in the process image, a signal must be selected in advance by clicking the "Timestamp" button. This timestamp replaces the text in the selected text element on the process image. The "Label" text field disappears after selecting the "Timestamp" button.

In Inkscape, as well as in JUMO Animator, you still see the text that was entered in the text element and not the timestamp values.

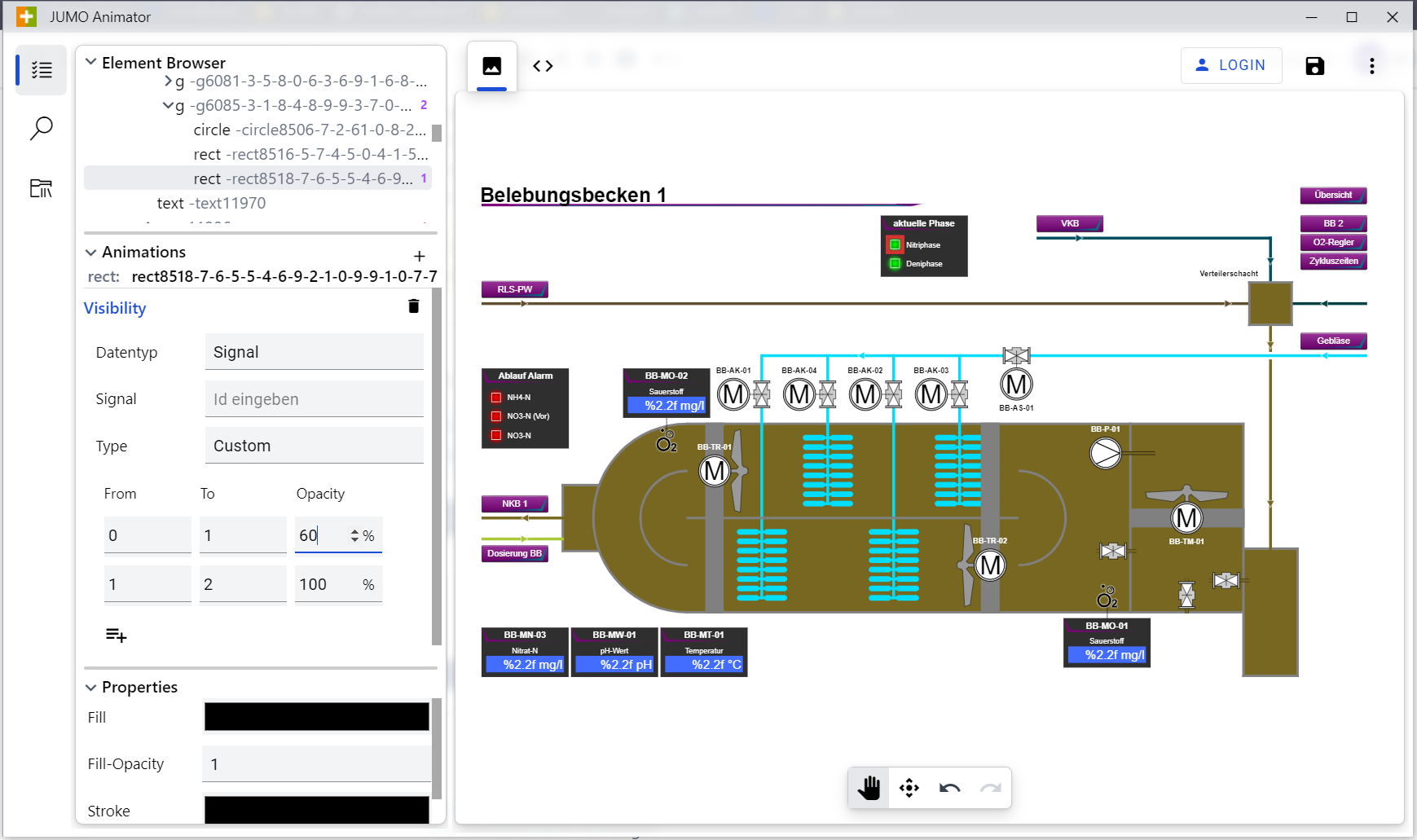

Visibility

The "Visibility" animation allows you to make an element visible as well as invisible. You can also set a transparency.

Example: Button 2 → Value too low → Text remains invisible

Example: Button 3 → Value exceeded → Text becomes visible

Attribute	Value	Meaning
Signal	ID	The ID of the input value
Mode	Standard, Inverted, Advanced	Selection of the mode for visibility
Standard	0 = Invisible 1 = Visible	Digital signal can be made visible or invisible.
Inverted	1 = Invisible 0 = Visible	Digital signal can be made visible or invisible.
Advanced	See "From", "To", "Opacity"	The "Advanced" mode can be used to set intervals. A range and an opacity can be set for each interval. Analog signals can also be displayed with this mode
From	e.g. -50	Start values of an interval
To	e.g. 0	End values of an interval
Opacity	e.g. 0	Opacity of an interval. The opacity is shown as a percentage. 0 = No opacity, 100 = Full opacity.

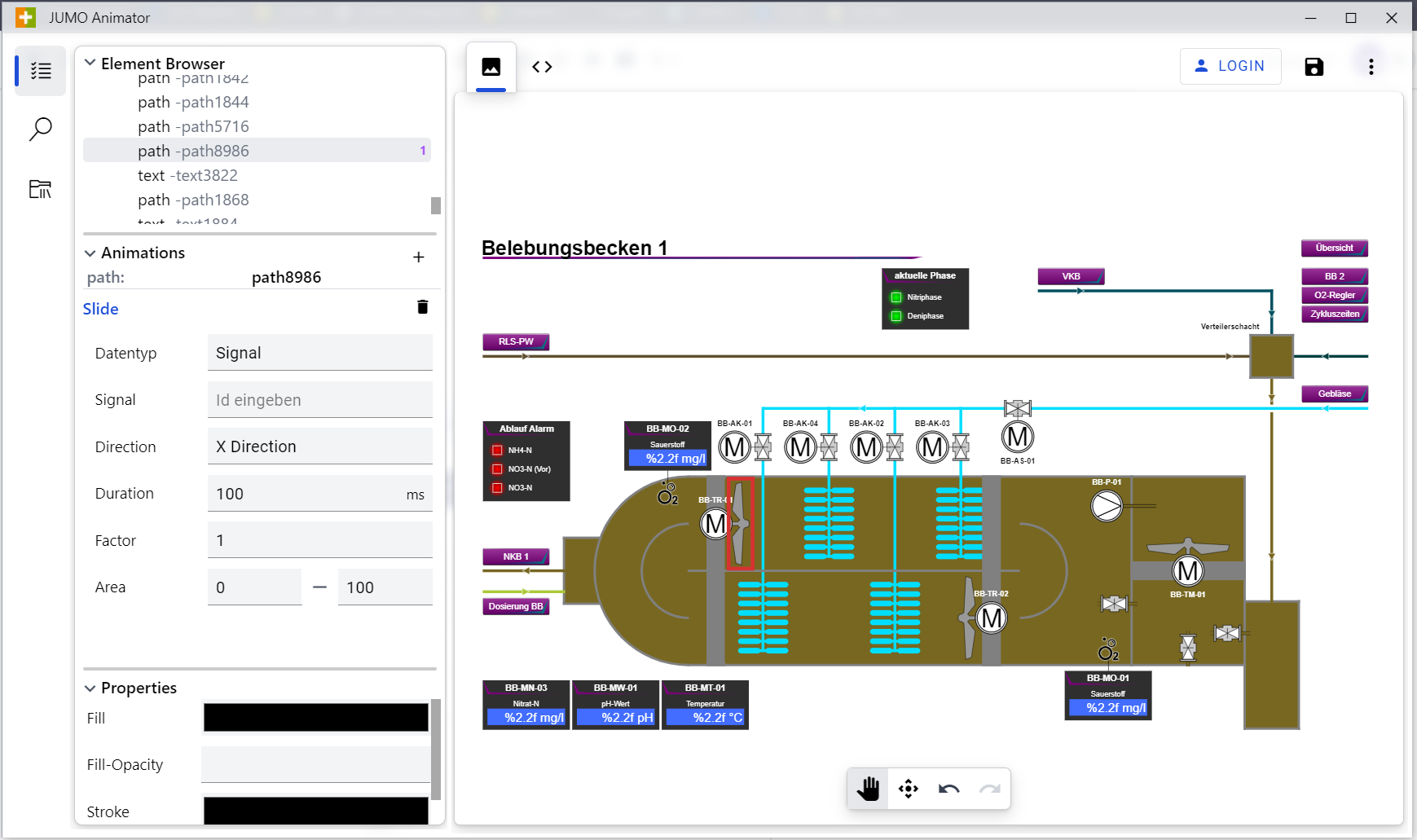

Slide

With the "Slide" animation, objects can be moved either horizontally or vertically.

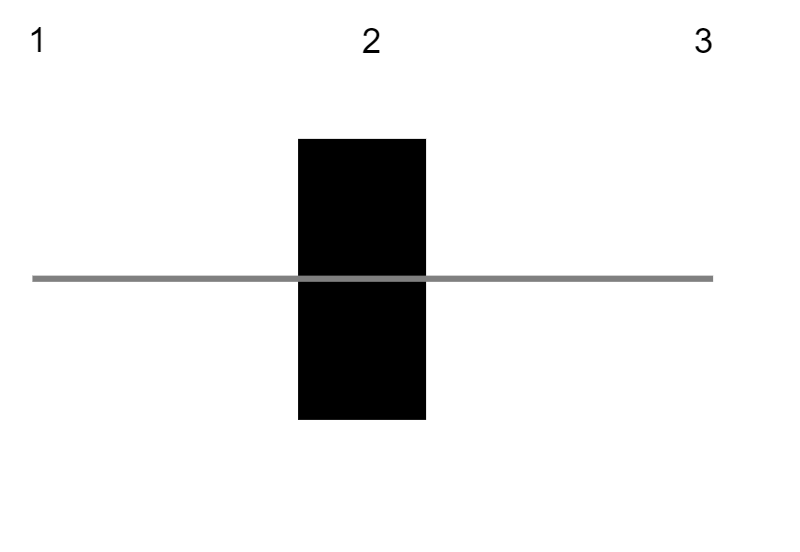

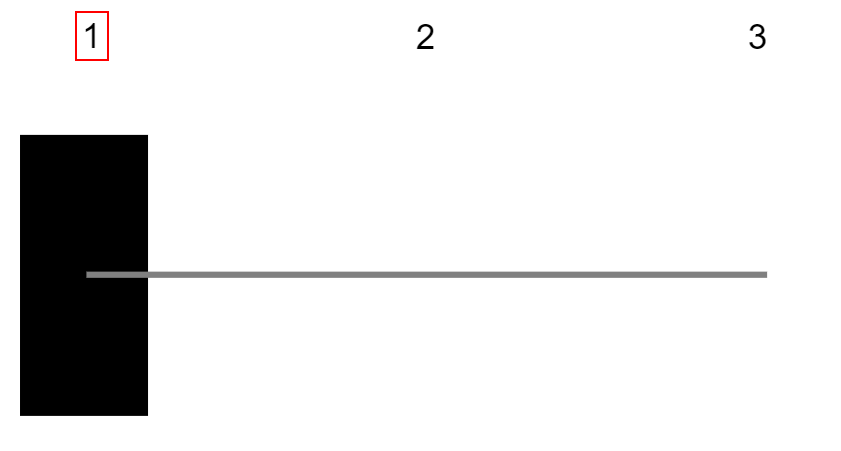

Example Button 1: Button sets value → Slider moves to left or right depending on value.

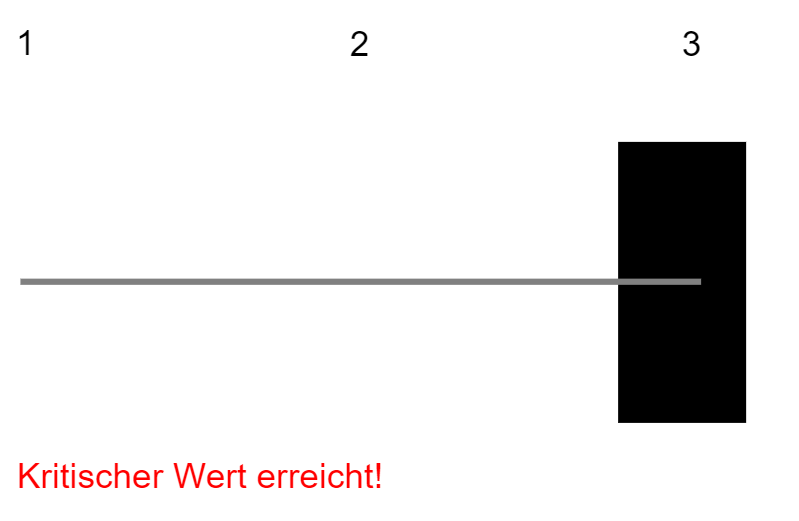

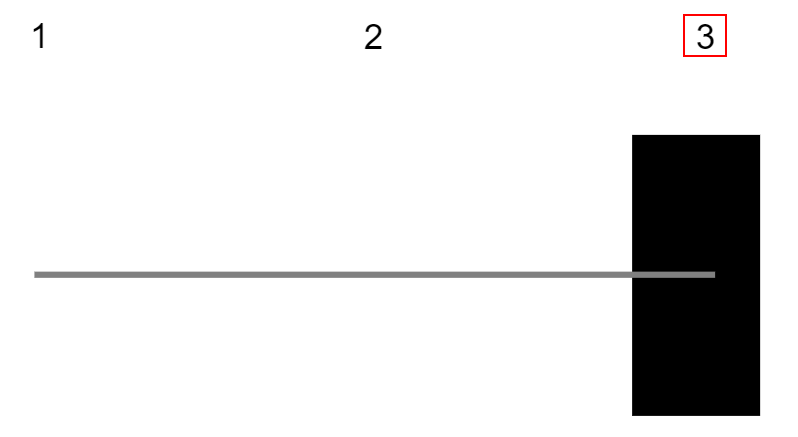

Example Button 3: Button 3 selected → Slider moves to right.

Attribute	Value	Meaning
Signal	ID	The ID of the input value
Direction	X, Y	Specifies the direction of movement of the object
Duration	E.g. 5 Sekunden	Duration of the animation (in seconds)
Factor	E.g. 10	The "Factor" value is multiplied by the value of the signal. The product indicates how many px the object slides.
Area (Min)	E.g.100px	If the product of the multiplication between signal value and factor is below the min. value, the min. value is used
Area (Max)	E.g. 600px	If the product of the multiplication between signal value and factor is above the max. value, the max. value is used
