USB import
JUMO smartWARE Evaluation
Home / Setup/data overview / Datastore / Datastore system: storage 1 / USB import
Only data that has been exported from a device to a USB flash drive can be imported. The data must be available as a JSON file. Data in CSV format cannot be imported.

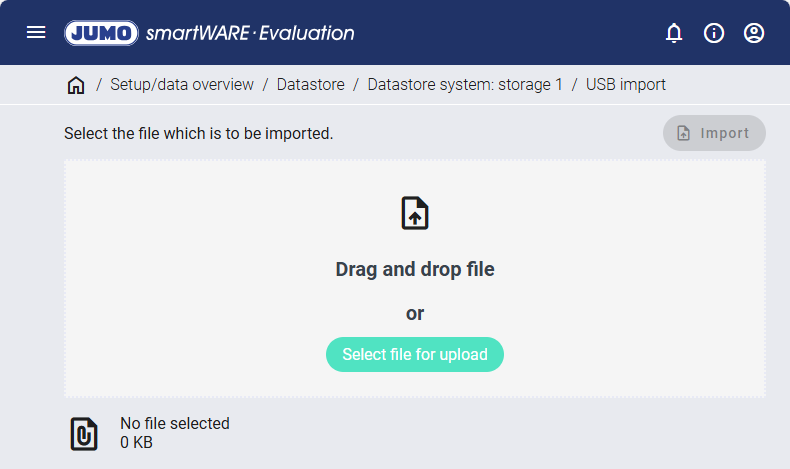

The ZIP file is added and imported using drag and drop or via the "Select file for upload" button.

The name of the ZIP file and its size are displayed. The time range of the exported data is also displayed.
If the ZIP file contains multiple exports, the time ranges that have already been imported and the time ranges that are new are displayed.
Already imported time ranges are not imported again.

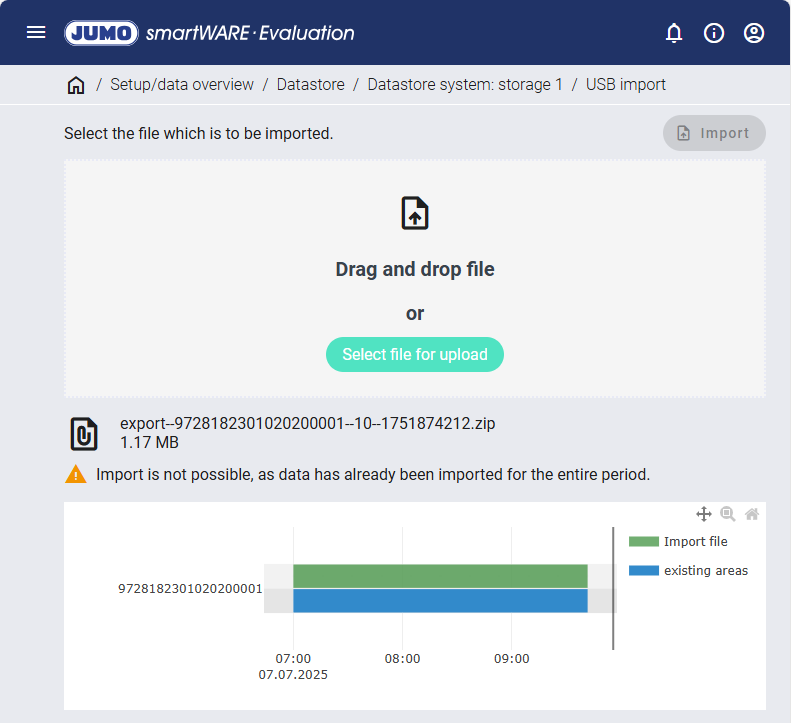

If there is no new time range, the "Import" button remains disabled and the following message appears:
View | Meaning |
---|---|
![]() | Import is not possible, as data has already been imported for the entire period. |
If there is a new time range, the import process is started using the "Import" button. After the import is complete, one of the following messages appears:
View | Meaning |
---|---|
![]() | The data has been successfully imported. |
![]() | The device "Device name" (fabrication number) has not yet been recorded in the system. The device must be assigned to a plant, as it is not assigned automatically. |
![]() | Error when importing the data. |
