Base settings (Linux)

Base configuration

Once the installation has been carried out properly, the services are automatically started with the following default settings:

CODE

DC_TIMEZONE=Europe/Berlin
#  ========== Proxy settings ==========
DC_PROXY_PORT=80
DC_PROXY_SSL_PORT=443

These settings are saved in the ".env" file in the software installation directory ("~/smartWARE_452.5.0.0.14").

To create or edit this file, the "~/smartWARE_452.5.0.0.14/config_smartware.sh" script can be used. The parameters can be changed using text-based menu guidance.

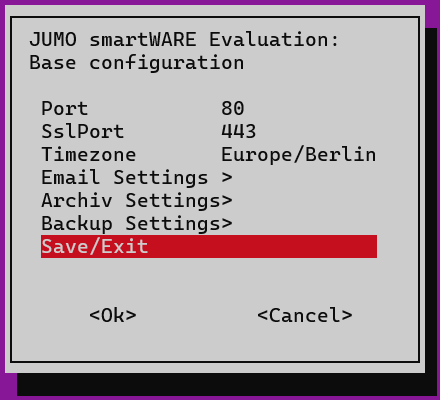

The "Save/Exit" menu item is required to save the new settings.

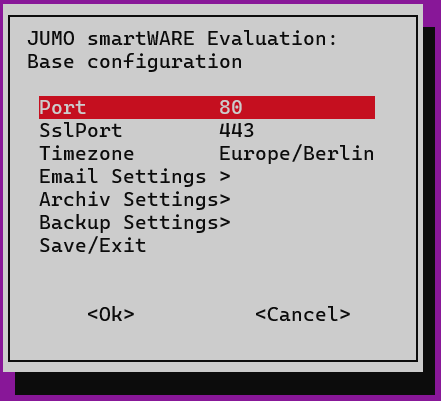

Port configuration

The device that sends the data to JUMO smartWARE Evaluation is connected to a port. The port number "80" is pre-set as standard. If the port is already being used by another program, the port can be changed.

Double-clicking on "Port" opens the input window, which can be used to edit the port number. The change is confirmed with "OK" and becomes active the next time JUMO smartWARE Evaluation is started.

If the ports have been changed, the relevant port must also be specified when accessing the GUI in the browser. Below are a couple of examples:

In general, communication using HTTP or HTTPS is possible. For this, two separate ports can be configured.

Port = HTTP
SSL port = HTTPS

If the standard port in JUMO Config smartWARE is modified, the Datastore URL must be modified in the Datastore gateway settings in Web Cockpit.

Example:
If the SSL port is modified to "5443", the Datastore URL is "eval2.jumo.digital:5443/store".

SSL port assignment (HTTPS)

The SSL port number "443" is pre-set as standard. If the SSL port is already being used for another program, the port can be changed.

Double-clicking on "SSL port" opens the input window, which can be used to edit the port number. The change is confirmed with "OK" and becomes active the next time JUMO smartWARE Evaluation is started.

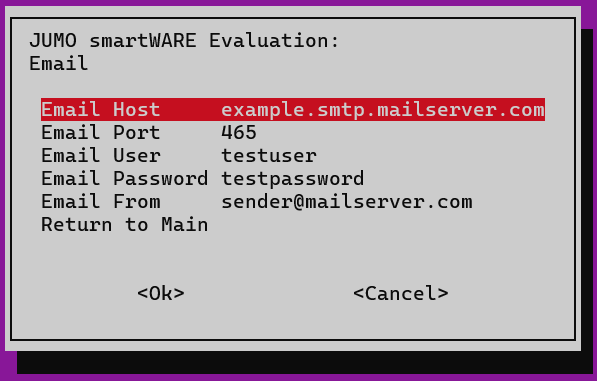

Email settings

To enable JUMO smartWARE Evaluation to send emails, for example for automatically transmitting daily or batch reports, the access data for the user's own mail server has to be entered.
