Dashboards - Evaluation

This section allows you to evaluate the created dashboards.

How to create a dashboard is described in this here.

Navigate to Dashboard

There are two ways to navigate to a Dashboard:

Select Dashboard
All Dashboards

Select Dashboard

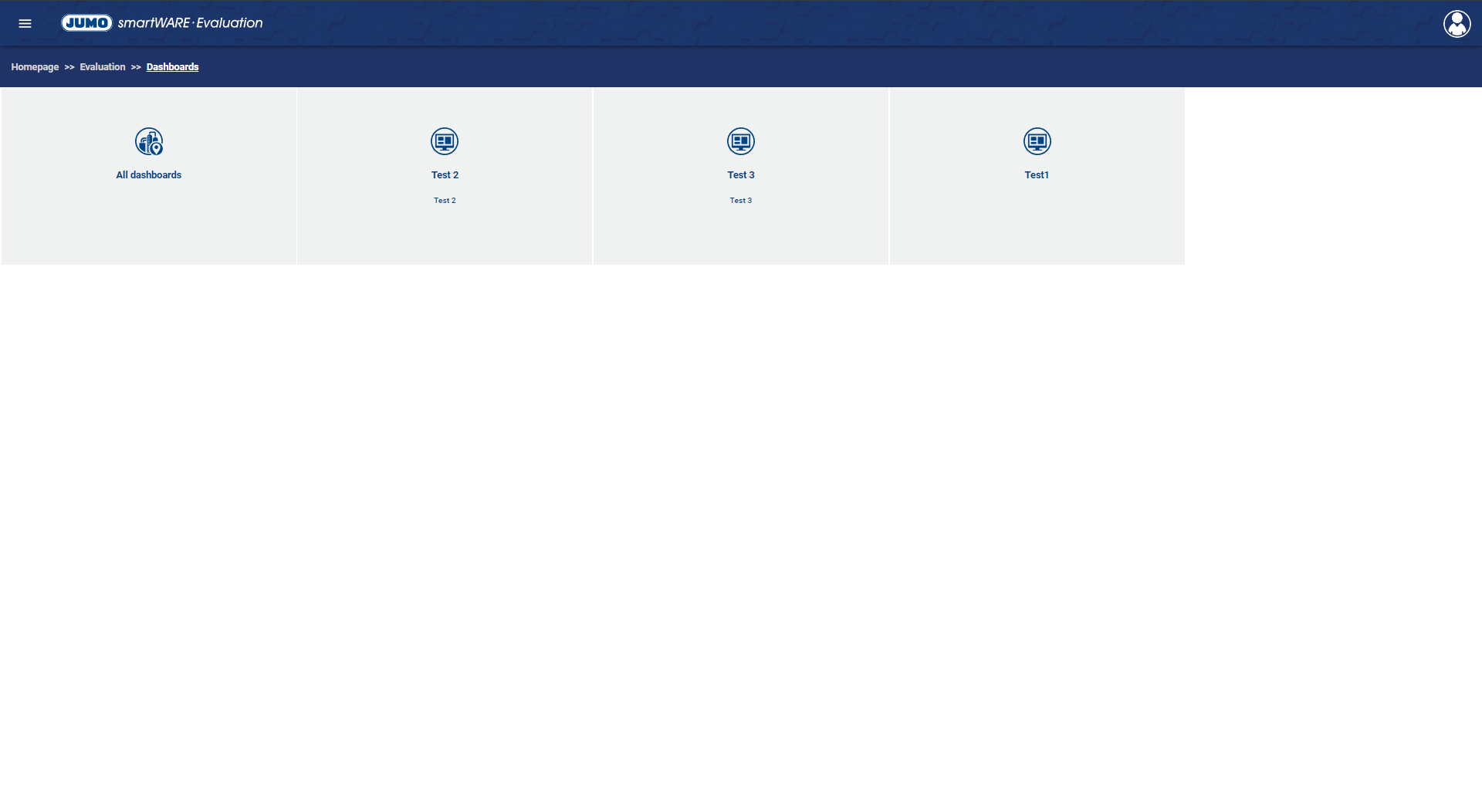

If the name of the Dashboards is known, the Dashboard can simply be selected in the start screen of the Evaluation area.

All Dashboards

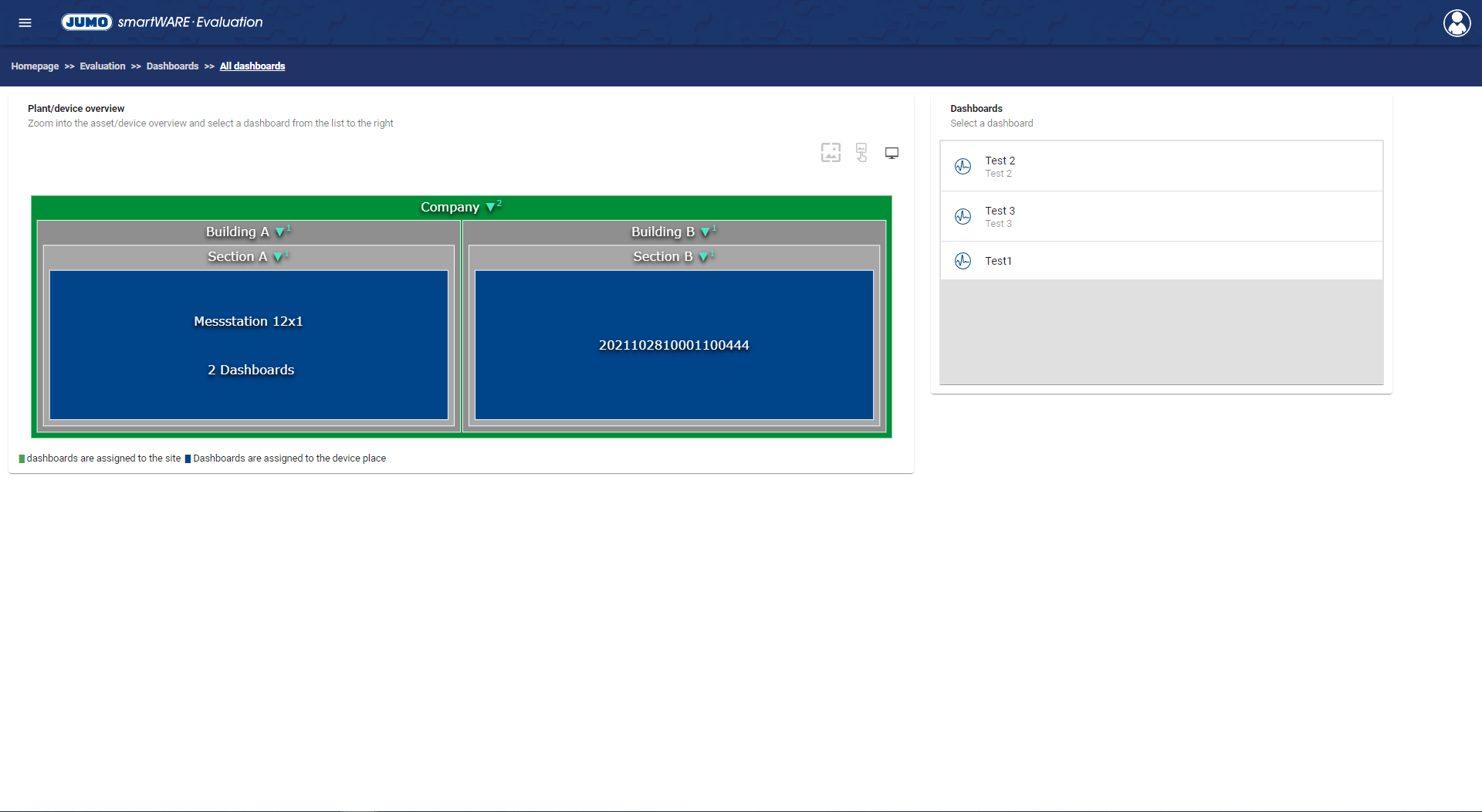

Clicking the field "All Dashboards" opens a new window

The Device/Plant Overview can be used to navigate to the individual Dashboards in this area.

The Dashboards can be found at the site/device location that was selected in the Dashboard creation process!

The list on the right half of the screen shows all Dashboards that are within or below the selected site/device location.

Evaluate Dashboard

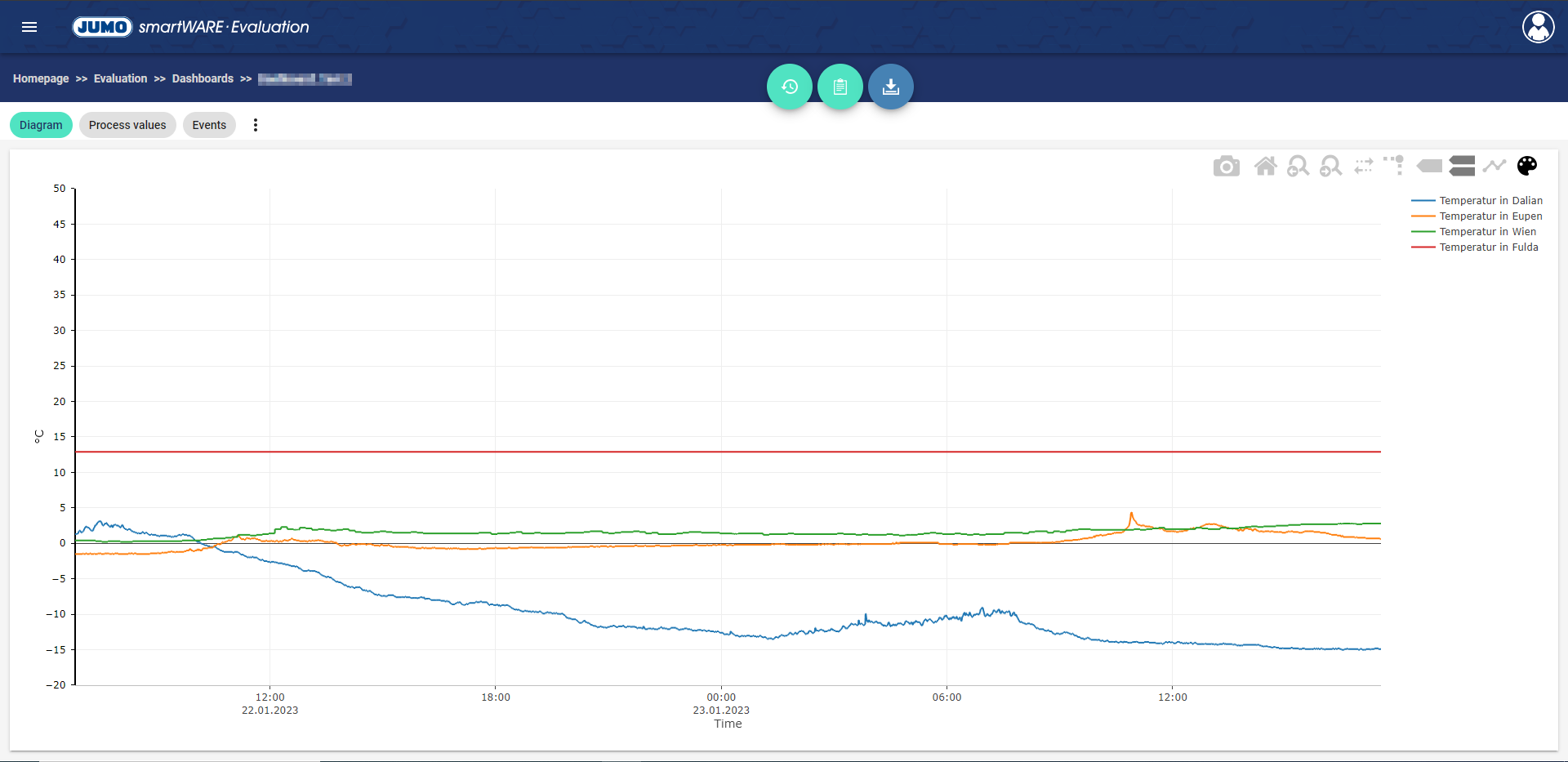

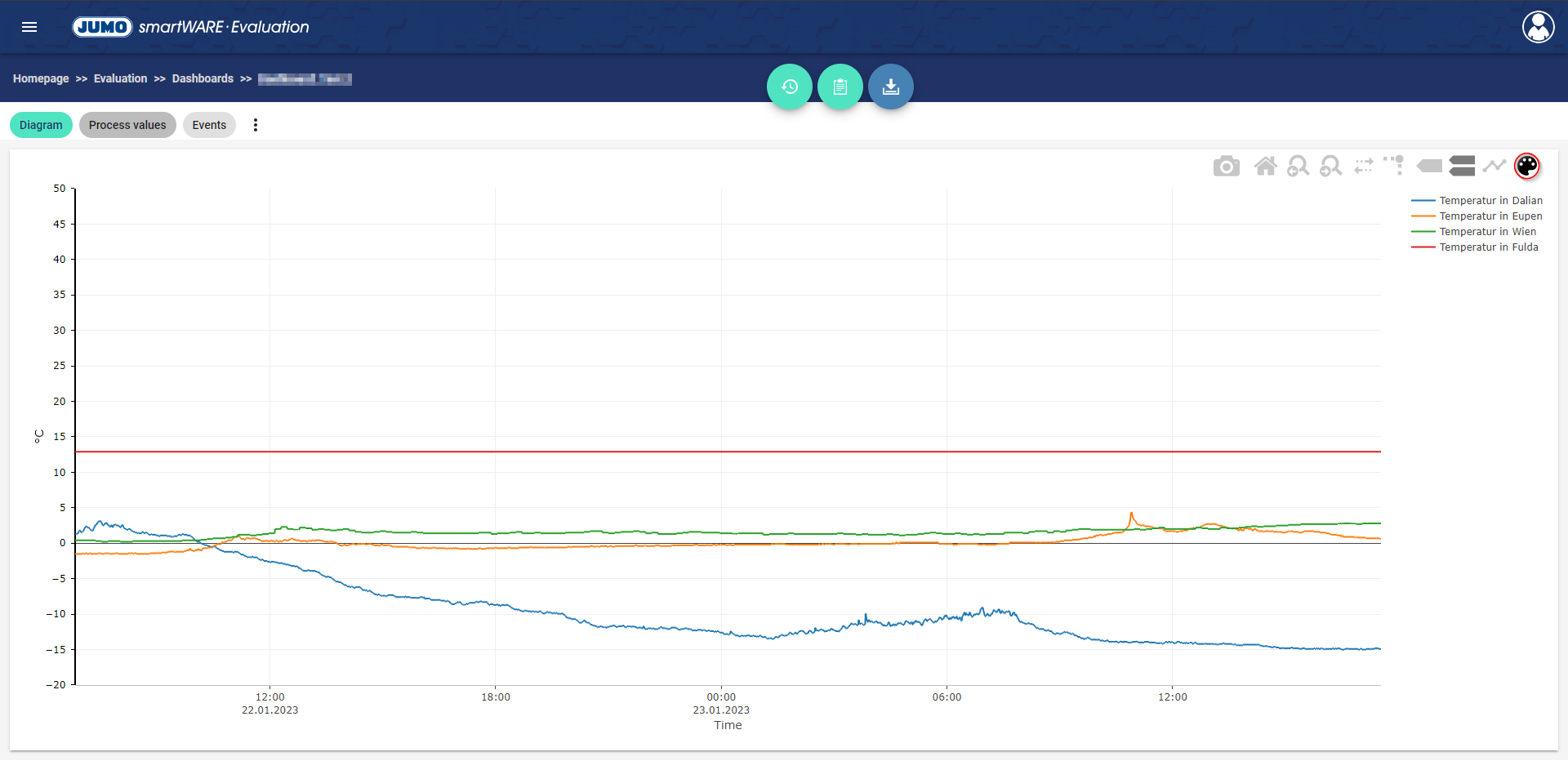

After navigating to the Dashboard to be opened, the Dashboard opens by left-clicking the respective menu item or list entry of the Dashboards.

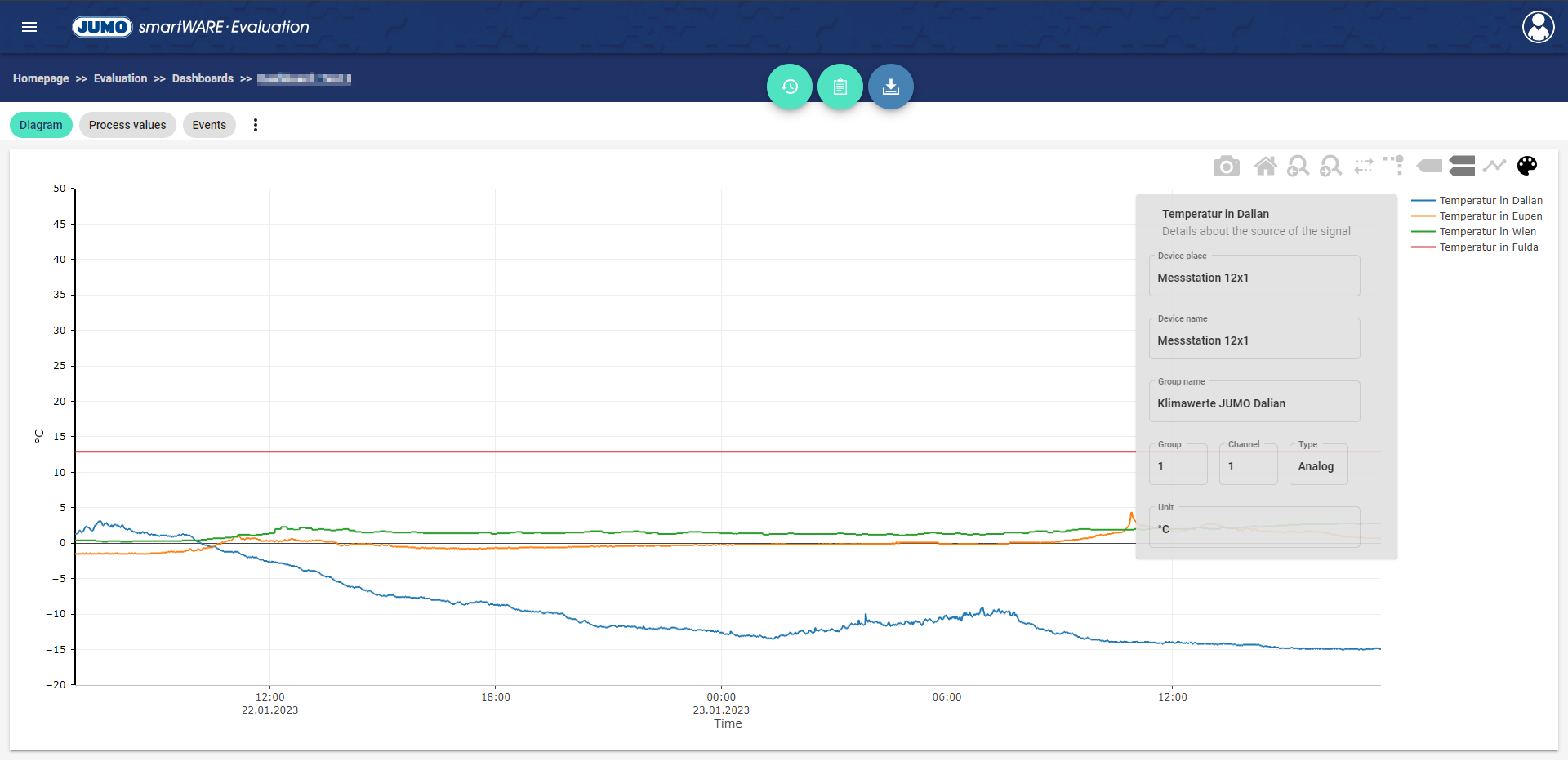

When moving the mouse-over individual sources in the upper-right frame, each source on the top right, and you will see details about that source.

The application offers a great deal of assistance for the evaluation of the Dashboards.

Process Value Table
Events
Menu

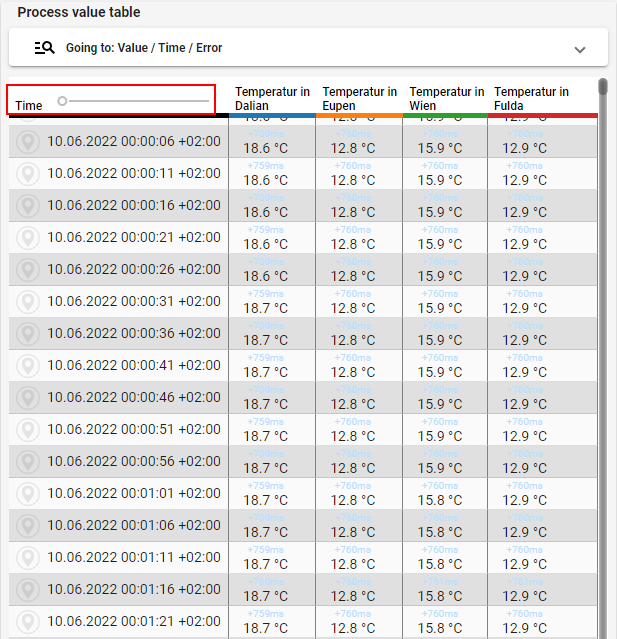

Process Value Table

The Process Value Table gives an overview of all available values of the various mapped channels for the Dashboard.

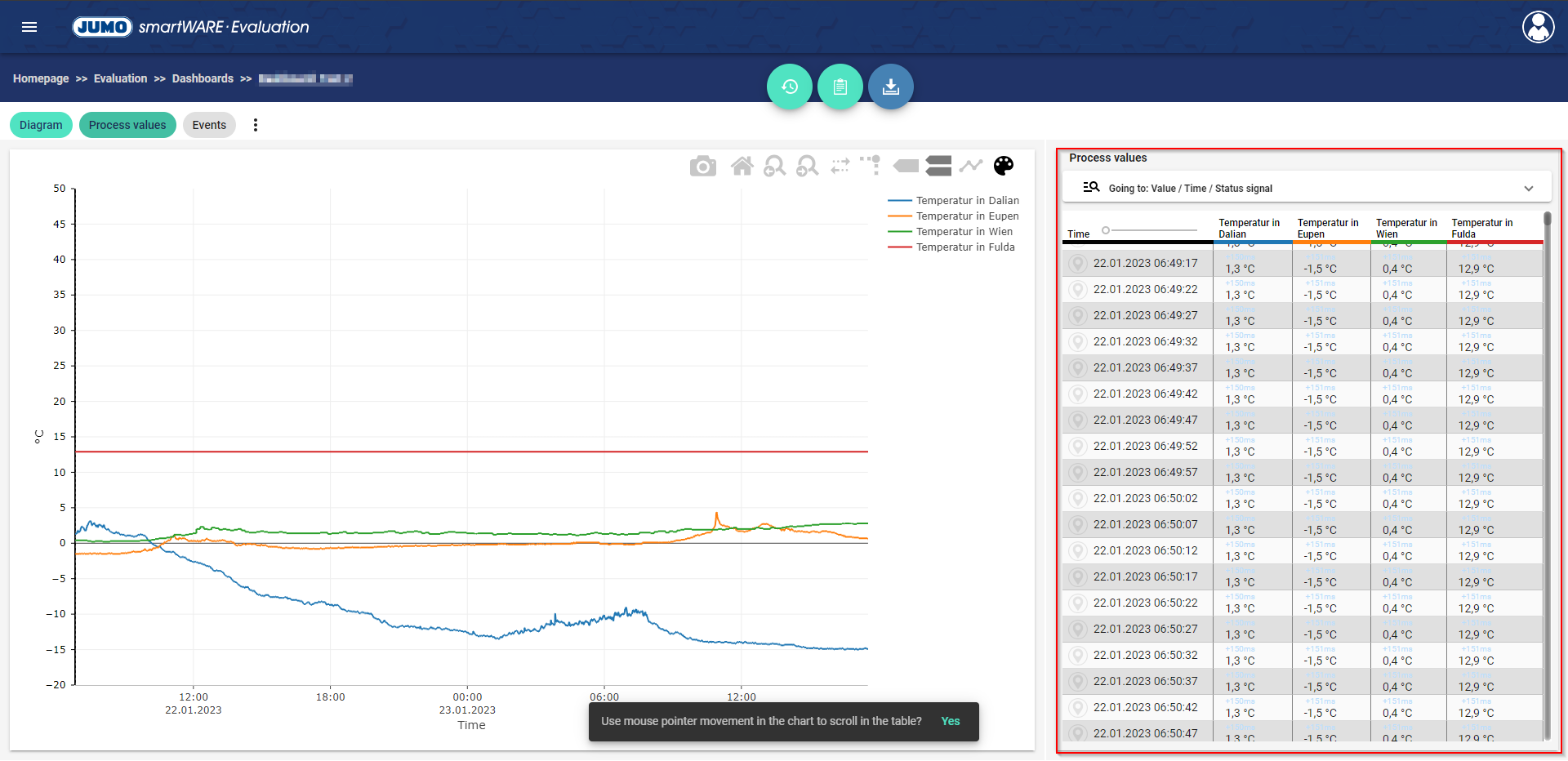

When scrolling in the table with the mouse wheel or the scroll bar at the right edge, a window opens with the following query:

"Use mouse pointer movement in chart to scroll the table?"

If the answer to this query is "Yes", the table automatically displays the values that were hovered over in the chart. This also works the other way around, so that in the chart a guide line shows the row of the table in which the mouse pointer is located

Clicking with the left mouse button closes this function.

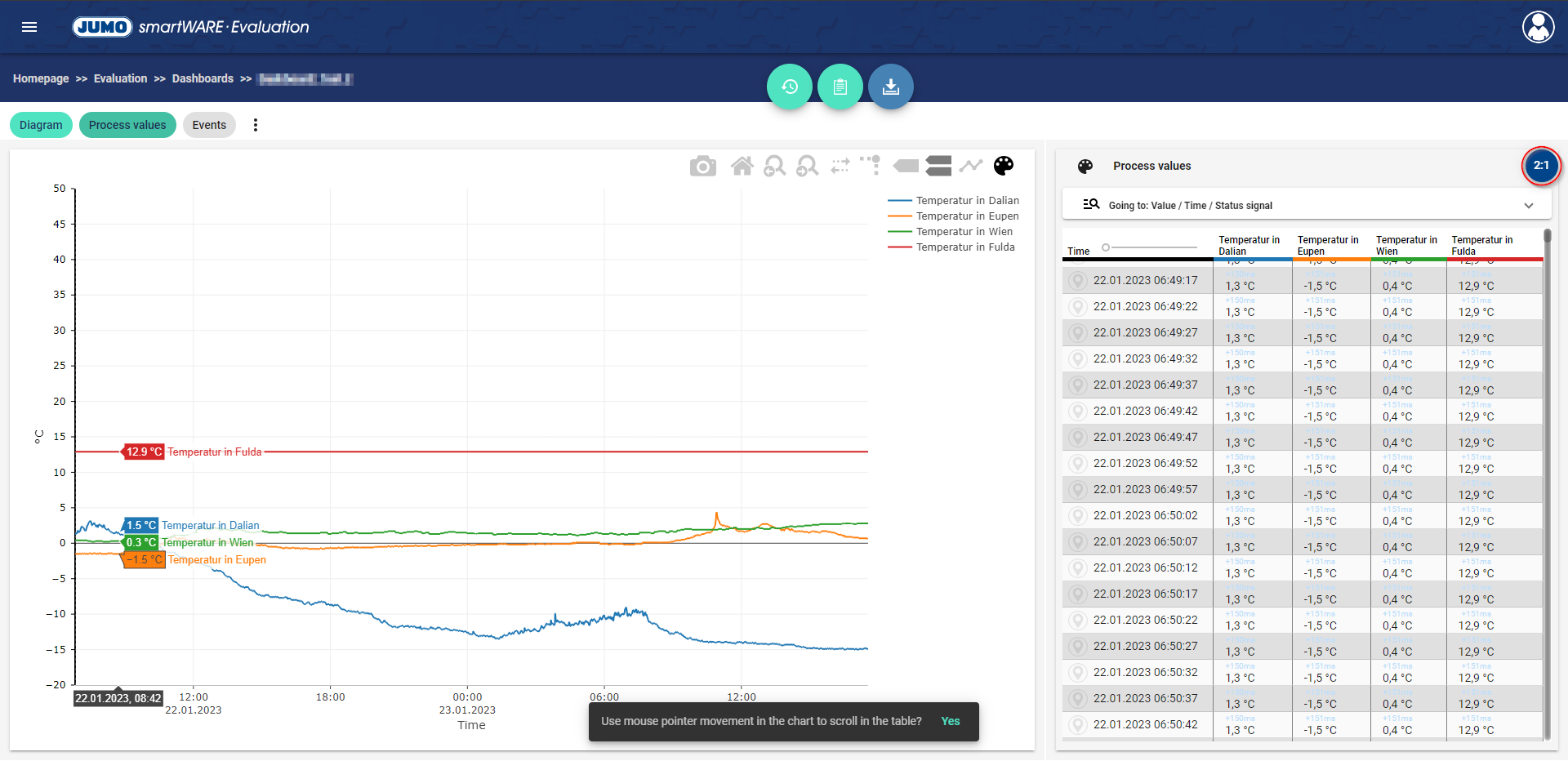

It is possible to set a marker in the chart for individual values. Left-clicking on a table row activates the marker for this value. Using the slider in the Process Value Table, it is possible to jump from one marker to another.

“Go to” Function

The "Go to" Function is described in the following section: “Go to” Function

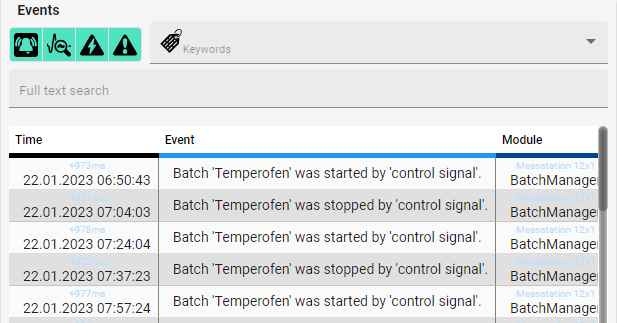

Events

The Events area provides an overview of all events that affect this Evaluation.

The Expert mode Show ALL events within time period option is also available on the. If this option is selected, all events are displayed over the time range, even if the associated signals are not associated with the dashboard.

There are a number of filter options that allow you to adapt the overview to your own needs:

Field	Definition
Alarm	All events in the Alarm category can be shown and hidden
Audit Trail	All events in the Audit Trail category can be shown and hidden
Fault	All events in the Fault category can be shown and hidden
Event	All events in the Event category can be shown and hidden
Keywords	In the Keywords field, you can filter for keywords that are stored in the values
Full Text Search	You can search for text fragments in the Full Text Search field

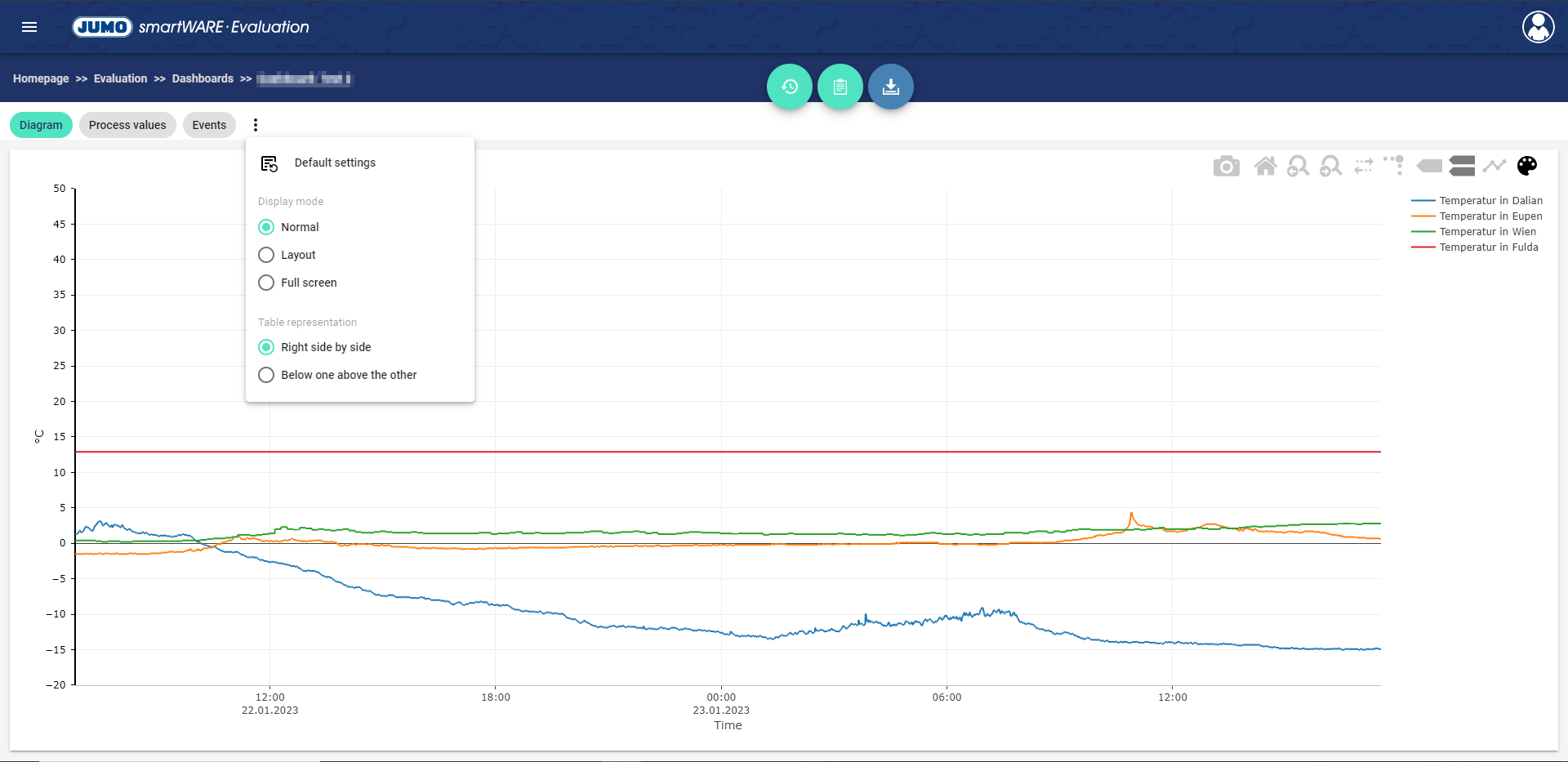

The presentation of the page can be customized in the Menu area

The default setting for the dashboard is always Normal and Right side by side.

Display Mode

There are three choices:

Normal → The page is in its original form
Layout → The aspect ratio of each window can be edited.
Full screen → The application is displayed in full screen mode.

Clicking the button allows you to adjust the aspect ratio of the three possible windows.

Presentation

You can decide on the arrangement of the windows here. The names of the options are self-explanatory:

On the right, side by side
Below, one above the other

The screen is always arranged in the following order: Display → Process Value Table → Events

Time Navigator

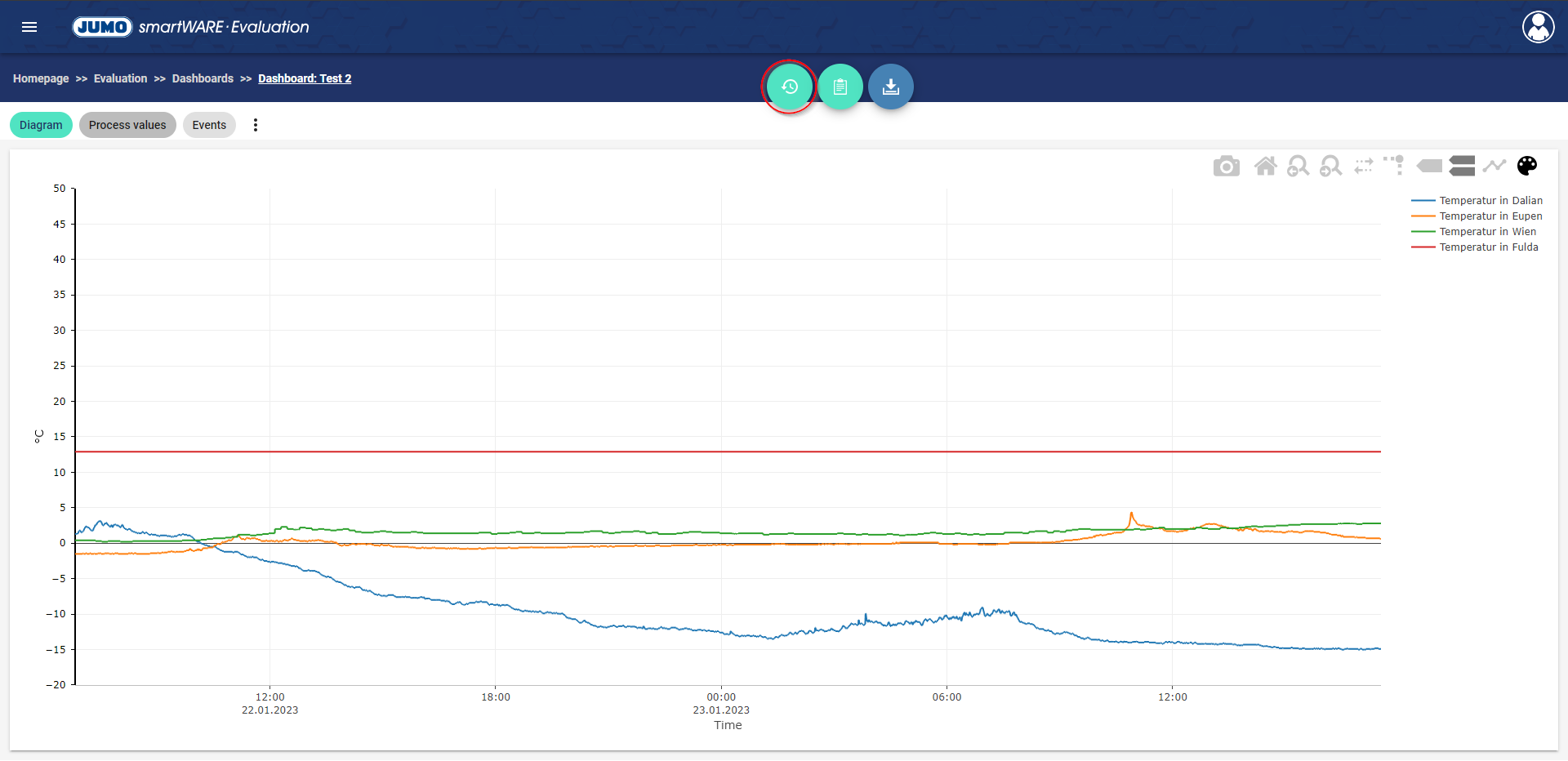

Clicking the button "Time Navigator" opens the Time Navigator.

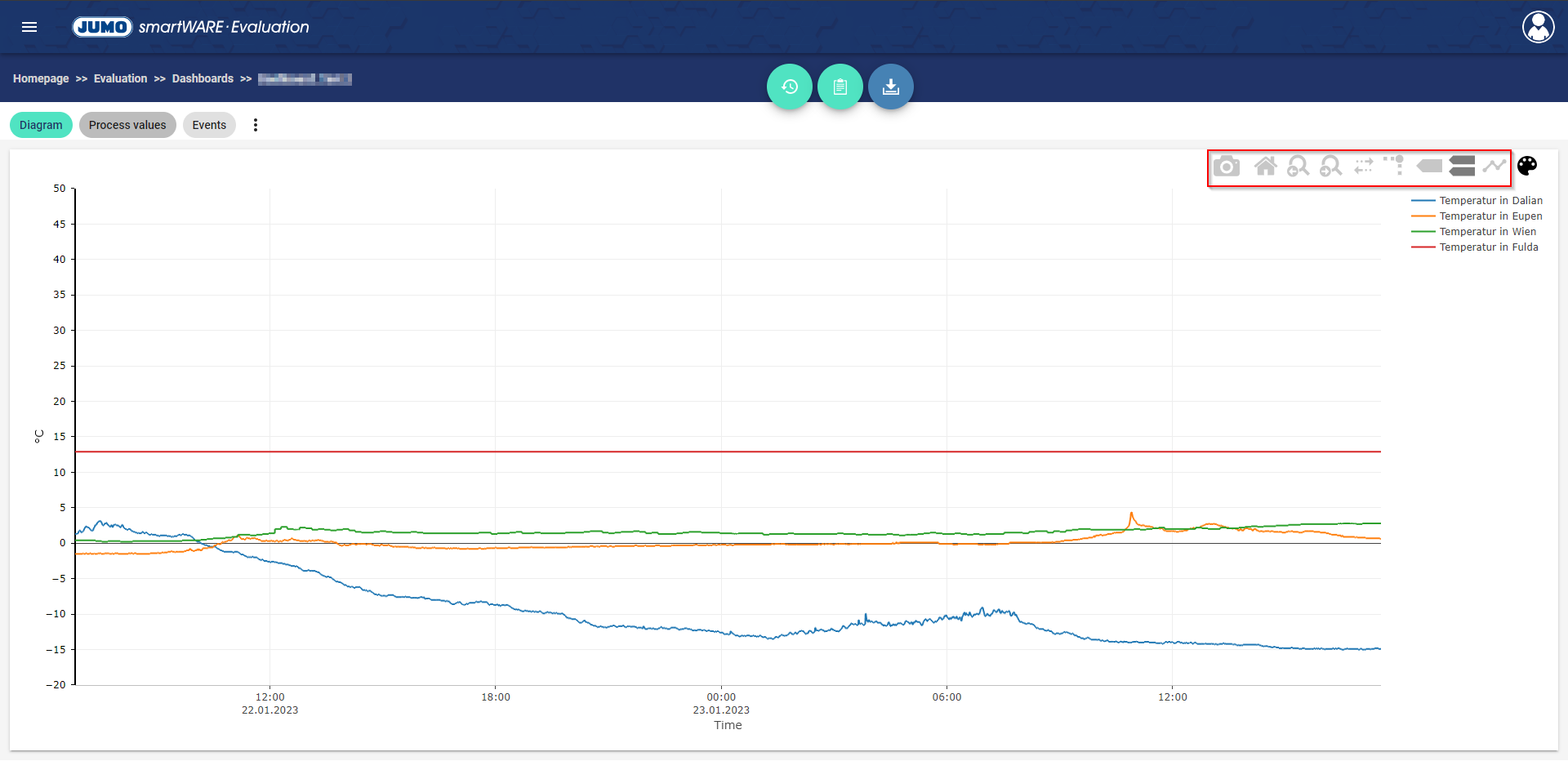

Functions icons

Icon	Description
	Download graph as PNG - The graphic can be downloaded to the desktop in .png format
	Reset Axes - Resets the plot's clipping to the origin clipping.
	Back / Zoom Forward - Clicking on one of the two icons will zoom back or forward to a zoom cutout. If the zoom history is blank, a message is displayed.
	Toggle Rangeslider - Enables / Disables Rangeslider. It can be used to manually adjust the excerpt of the chart.

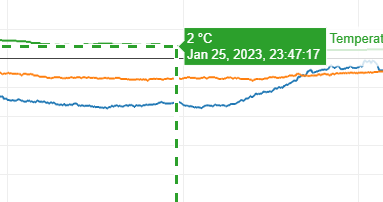

	Toggle Reference Lines - Enables the reference lines in the display (See Figure)
	Show next data when running over - When hovering over scales, the data value of the scale is displayed at the selected time (per hovern).
	Move over the data to compare it - When hovering over scales, the data value of all scales at the selected time (per hovern) is displayed to compare them.

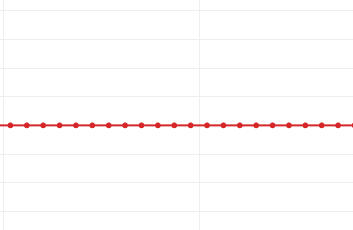

	Show / Hide Process Points - Displays all process points, i.e. each measured point, in the diagram (See Figure)

Edit Chart Presentation

Clicking the button "Edit Chart Presentation" opens a window for editing the Presentation of the Chart.

Output

Clicking on the button marked "Output" causes a window to open, in which the evaluation can be output in the form of a Output document.
